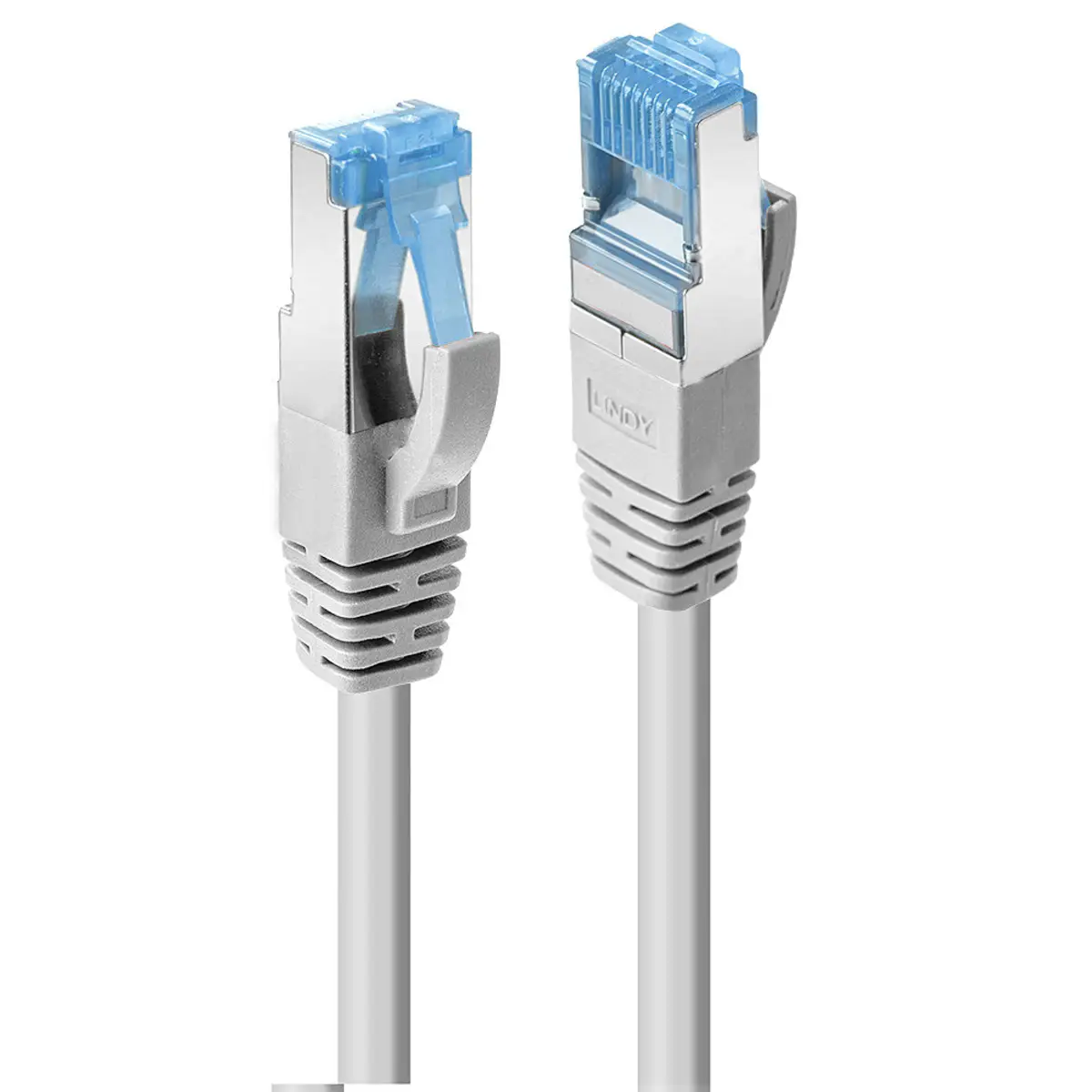

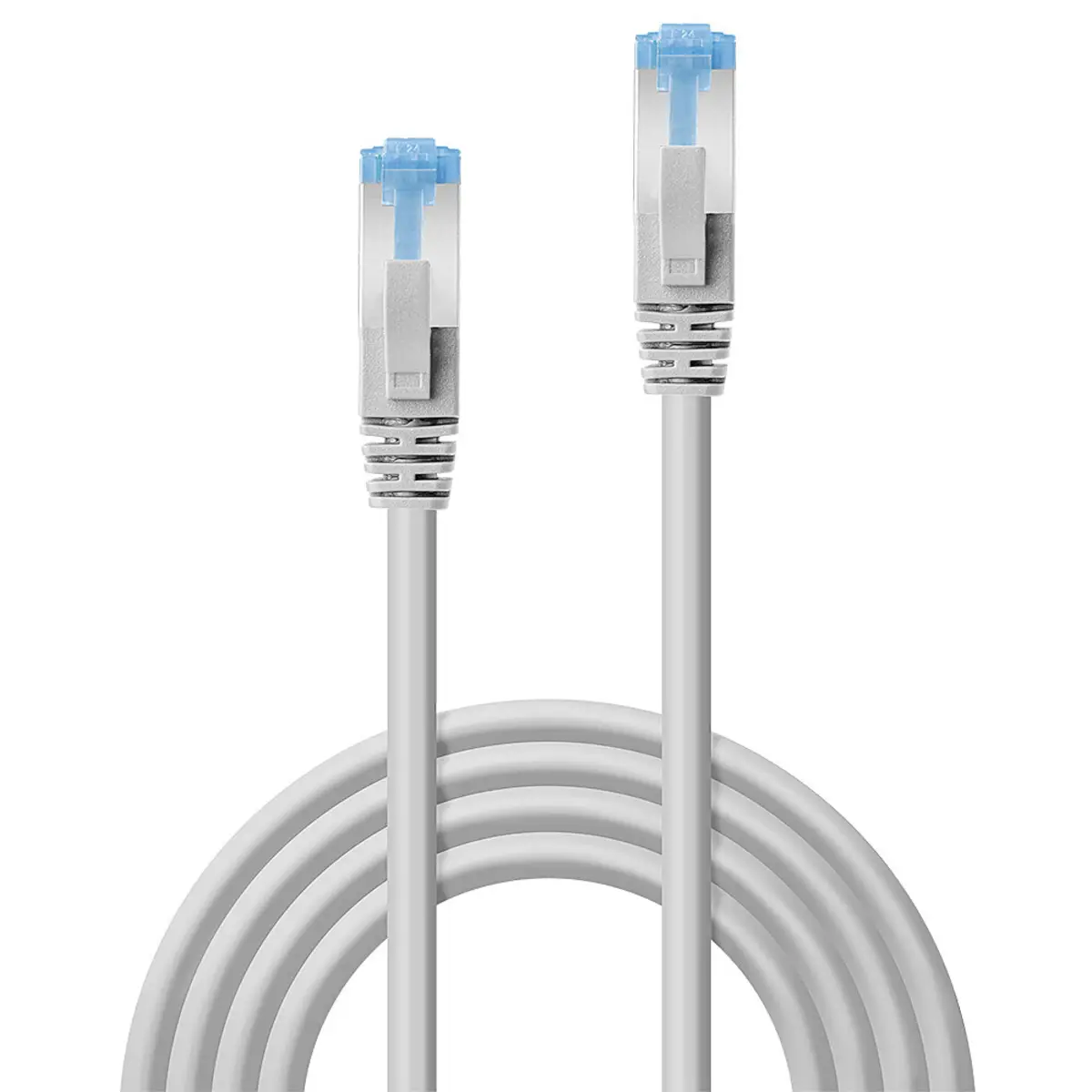

- Patchkabel CAT 6a RJ45/RJ45 Stecker/Stecker Grau 10m
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Produktfarbe | Grey |
Beschichtung Steckerkontakte | Nickel/Gold |
Verkabelungstechnologie | 10GBase-T |
Kabelstandard | Cat6a |
Zertifizierung | RoHS, REACH, UL,California Proposition 65 |
Steckverbinder 1 Geschlecht | Male connector |
Steckverbinder 2 Geschlecht | Male connector |
Kabellänge | 10 m |
Anschluss 1 | RJ-45 |
Anschluss 2 | RJ-45 |
Jackenmaterial | Thermoplastic Elastomer (TPE) |
AWG Kabelgröße | 28 |
Kabelschirmung | S/FTP (S-STP) |
Material Stecker-Gehäuse | Polycarbonate (PC) |
Leitermaterial | Copper |
Material der Abschirmung des S | Copper alloy |
Kabelform | Round |
Knickschutz-Kabelschuh | Y |
Frequenz | 500 MHz |
Plug & Play | Y |
Nachhaltigkeitszertifikate | REACH,RoHS |
Nachhaltigkeitskonformität | Y |
Datenübertragungsrate | 500 Mbit/s |
Verpackungsart | Polybag |
Menge pro Packung | 1 ST |
Temperaturbereich bei Lagerung | -20 - 75 |
Temperaturbereich in Betrieb | -10 - 60 |
Menge pro Behälter | 1 ST |
Höhe | 8,3 mm |
Breite | 11,6 mm |
Tiefe | 22,8 mm |
Biegeradius (min.) | 74 mm |
Außendurchmesser | 6,2 mm |
Kabelschirmung S/FTP (S-STP)
Kabellänge 10 m
Produktfarbe Grey
Anschluss 1 RJ-45
Anschluss 2 RJ-45
Kabelstandard Cat6a
The TPE Jacket is a non-toxic alternative to PVC allowing it to be used in a variety of environments, as well as being more flexible than its counterpart with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material.
Cat.6A cable for operating frequencies up to 500MHz in shielded version with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables are widespread throughout the professional sector. They are ideal for Gigabit Ethernet or AV extension applications. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The TPE used as a sheath material provides increased flexibility and easy handling of cables.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Produktfarbe | Grey |
Beschichtung Steckerkontakte | Nickel/Gold |
Verkabelungstechnologie | 10GBase-T |
Kabelstandard | Cat6a |
Zertifizierung | RoHS, REACH, UL,California Proposition 65 |
Steckverbinder 1 Geschlecht | Male connector |
Steckverbinder 2 Geschlecht | Male connector |
Kabellänge | 10 m |
Anschluss 1 | RJ-45 |
Anschluss 2 | RJ-45 |
Jackenmaterial | Thermoplastic Elastomer (TPE) |
AWG Kabelgröße | 28 |
Kabelschirmung | S/FTP (S-STP) |
Material Stecker-Gehäuse | Polycarbonate (PC) |
Leitermaterial | Copper |
Material der Abschirmung des S | Copper alloy |
Kabelform | Round |
Knickschutz-Kabelschuh | Y |
Frequenz | 500 MHz |
Plug & Play | Y |
Nachhaltigkeitszertifikate | REACH,RoHS |
Nachhaltigkeitskonformität | Y |
Datenübertragungsrate | 500 Mbit/s |
Verpackungsart | Polybag |
Menge pro Packung | 1 ST |
Temperaturbereich bei Lagerung | -20 - 75 |
Temperaturbereich in Betrieb | -10 - 60 |
Menge pro Behälter | 1 ST |
Höhe | 8,3 mm |
Breite | 11,6 mm |
Tiefe | 22,8 mm |
Biegeradius (min.) | 74 mm |
Außendurchmesser | 6,2 mm |
