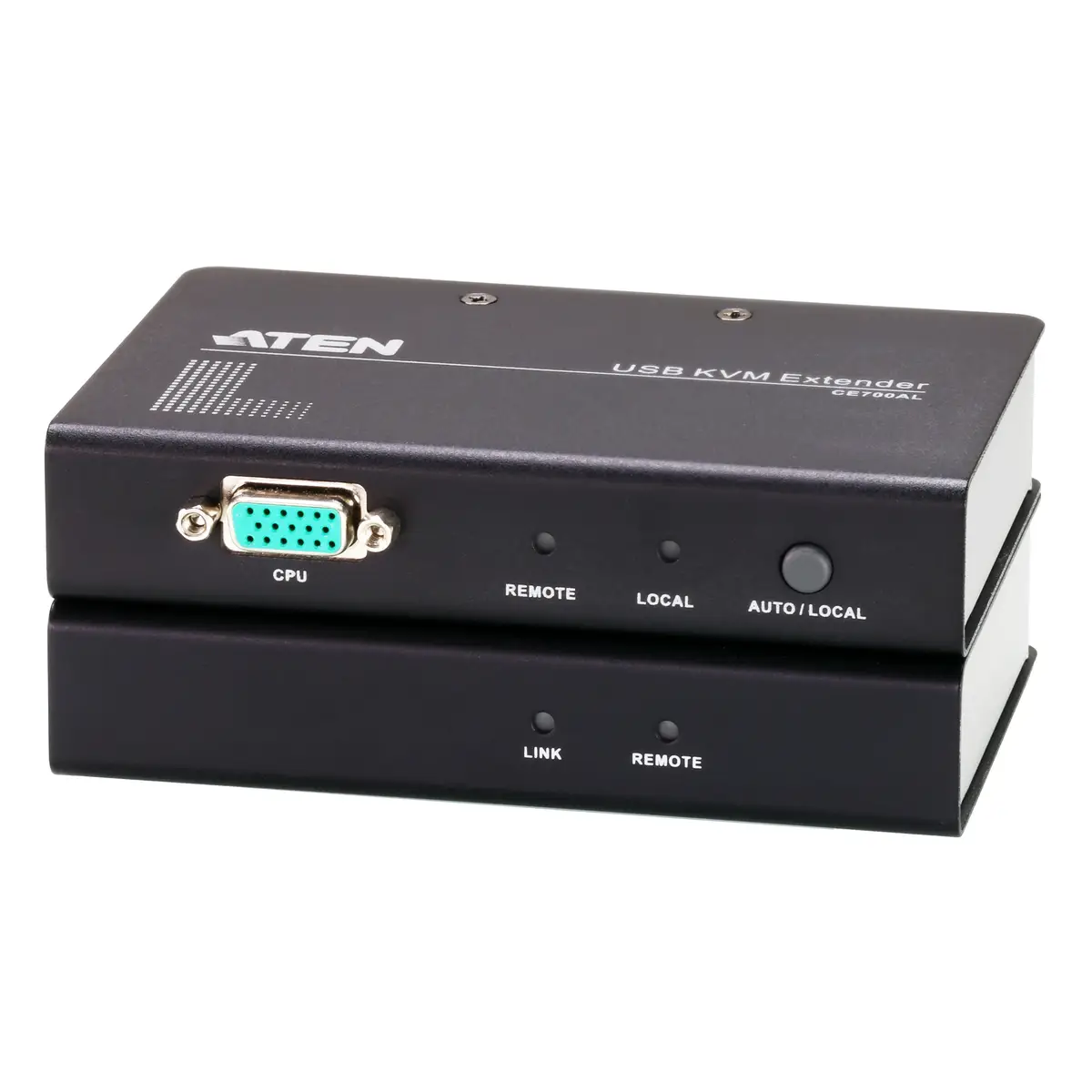

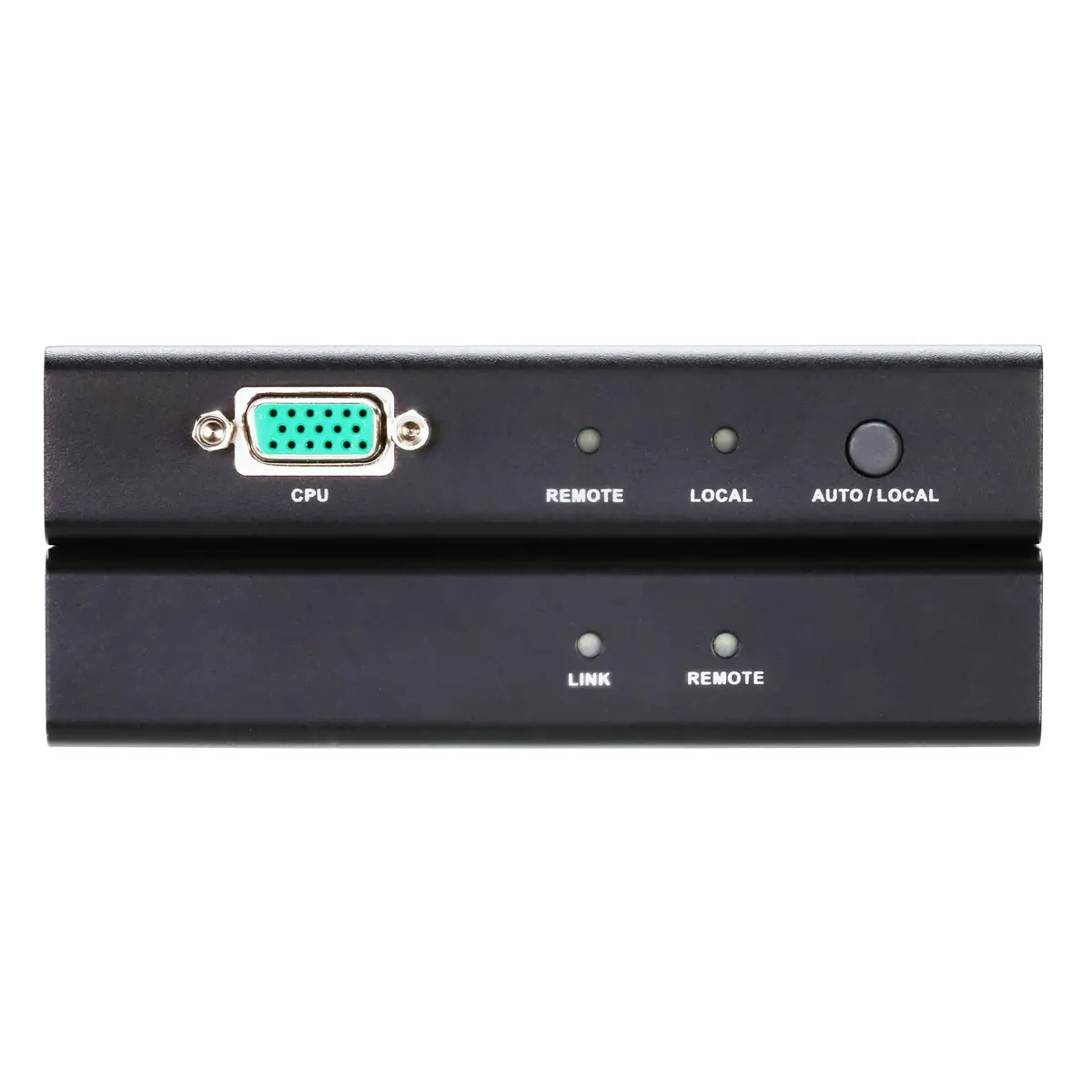

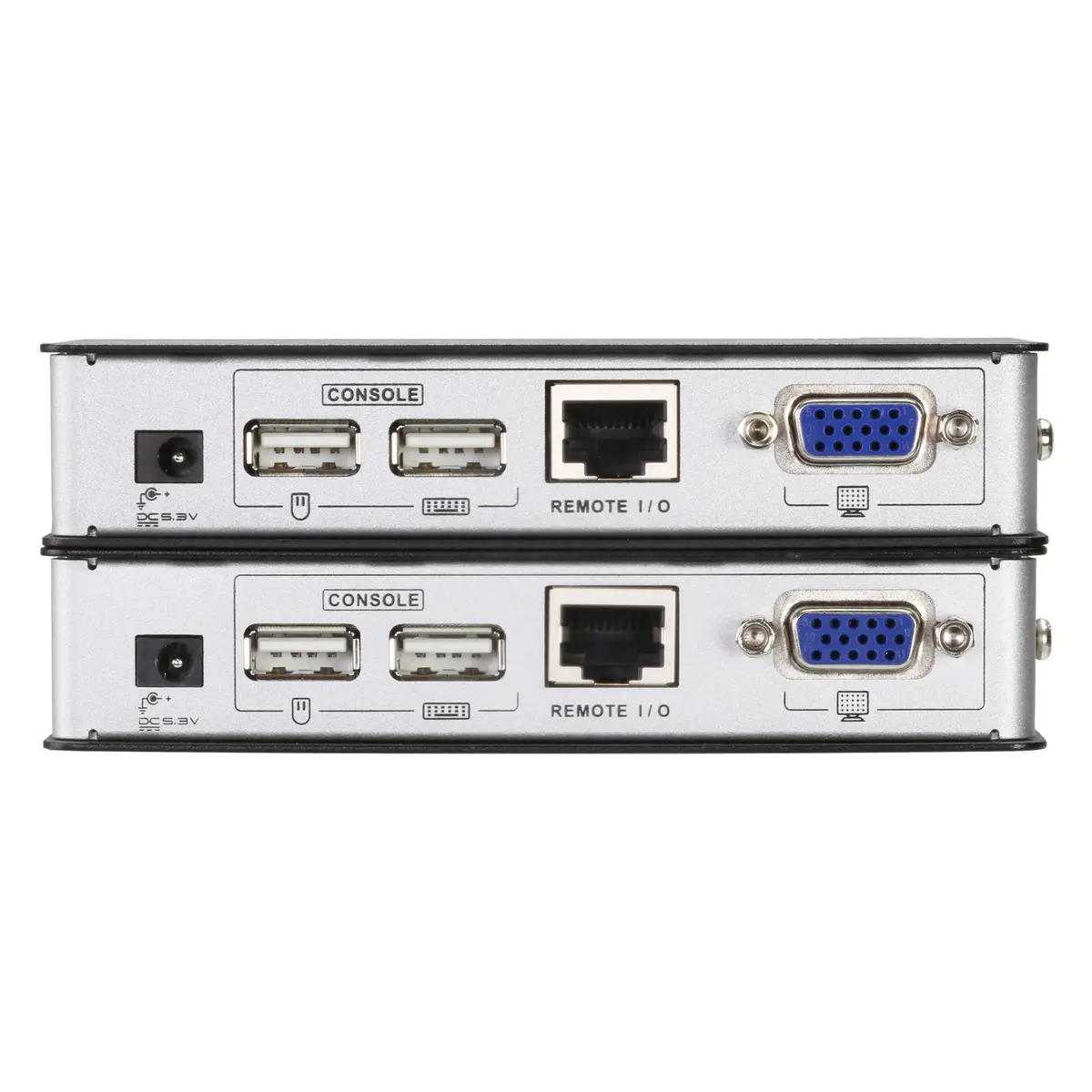

- CE700A KVM Extender High Quality 1920x1200Pixel 150m 1xUSB für Tastatur 1xUSB für Mouse 1xD-Sub 15pol
3 Images
Product description
Characteristics
- Cat. 5e network cable for connecting local and remote devices (max. 150m)
- Dual console operation - allows you to operate your system via the local and remote console (USB keyboard, mouse and monitor)
- The integrated ASIC chip offers higher reliability and compatibility
- Automatic signal compensation
- USB keyboard and USB mouse ports
- USB overload protection
- Operating mode can be selected using pushbuttons (only on the local device) - switching between local and automatic operation
- Built-in protection against static discharges up to 8 or 15 KV (8 KV for contact, 15 KV for flashovers and overvoltages up to 2 KV
- Automatic signal level control - allows signal strength to be adjusted based on distance
- High graphics resolution - up to 1920 x 1200 at 60 Hz (30m); 1600 x 1200 at 60 Hz (100m); 1280 x 1024 at 60 Hz (150m)
- Supports VGA, SVGA, SXGA, UXGA, WUXGA and Multisync monitors. The local monitor supports DDC; DDC2; DDC2B
- Rack mounting possible
- Easy installation - no software required - just connect the cables to the devices, done!
- Multiplatform compatible - Windows, Linux
Scope of delivery
- 1x CE700AL USB KVM extension (local device)

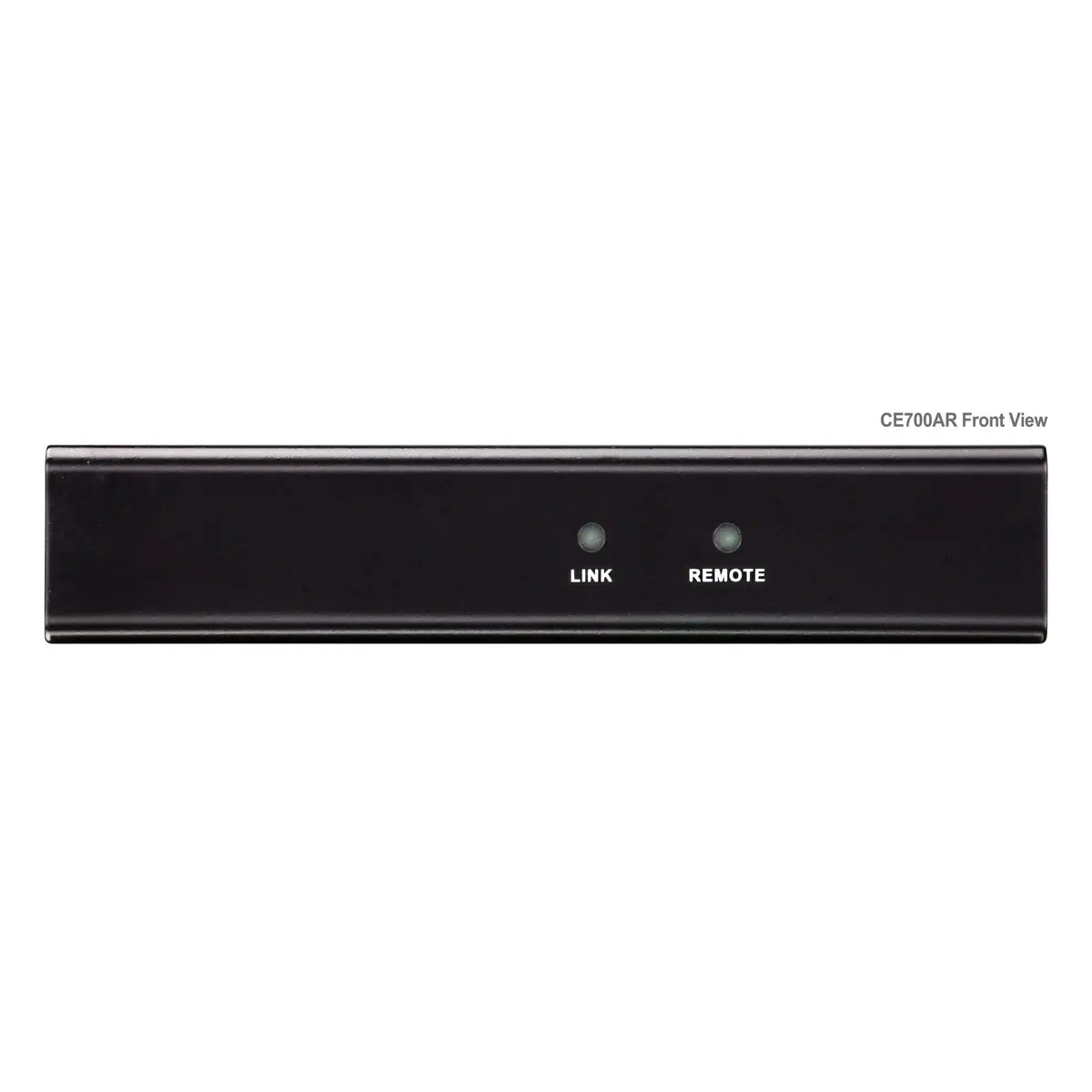

- 1x CE700AR USB KVM extension (device for remote station)
- 2x 0AD6-1605-09EG power supplies
- 1x 2L-5202U USB KVM cable (1.8 m)
- 1x mounting kit
- 1x user manual
ID: 108129
Aten ID: CE700A
CE700A KVM Extender High Quality 1920x1200Pixel 150m 1xUSB für Tastatur 1xUSB für Mouse 1xD-Sub 15pol
Detailed product title
Detailed product title
Aten CE700A KVM Extender High Quality, 1920x1200Pixel, 150m, 1xUSB für Tastatur, 1xUSB für Mouse, 1xD-Sub 15pol
3 Images
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
Characteristics
- Cat. 5e network cable for connecting local and remote devices (max. 150m)
- Dual console operation - allows you to operate your system via the local and remote console (USB keyboard, mouse and monitor)
- The integrated ASIC chip offers higher reliability and compatibility
- Automatic signal compensation
- USB keyboard and USB mouse ports
- USB overload protection
- Operating mode can be selected using pushbuttons (only on the local device) - switching between local and automatic operation
- Built-in protection against static discharges up to 8 or 15 KV (8 KV for contact, 15 KV for flashovers and overvoltages up to 2 KV
- Automatic signal level control - allows signal strength to be adjusted based on distance
- High graphics resolution - up to 1920 x 1200 at 60 Hz (30m); 1600 x 1200 at 60 Hz (100m); 1280 x 1024 at 60 Hz (150m)
- Supports VGA, SVGA, SXGA, UXGA, WUXGA and Multisync monitors. The local monitor supports DDC; DDC2; DDC2B
- Rack mounting possible
- Easy installation - no software required - just connect the cables to the devices, done!
- Multiplatform compatible - Windows, Linux
Scope of delivery
- 1x CE700AL USB KVM extension (local device)
- 1x CE700AR USB KVM extension (device for remote station)
- 2x 0AD6-1605-09EG power supplies
- 1x 2L-5202U USB KVM cable (1.8 m)
- 1x mounting kit
- 1x user manual
