- CS1644A KVM Switch Dual-View DVI/USB/Audio 4ports
The CS1644A 4-Port USB KVMP™ Switch for Dual DVI Monitors is a versatile device that combines a 4-port KVM switch with a 2-port USB hub. The latest version even supports four monitors if two KVM switches for two monitors each are connected.
You can use the CS1644A with multiple monitors, and by connecting two switches in series, workstations with two, three and even four monitors can be created. Furthermore, thanks to its 120 Hz 3D technology, the CS1644A is prepared for nVidia 3D Vision, so you can use a wide variety of 3D effects. With its help, you can control all connected computers from a single console, saving resources and space. Additionally, each computer can access connected peripherals (only one computer at a time), making it ideal for users who want to implement multitasking and special graphics effects on multiple computers. The CS1644A is perfect for graphic designers, banking and financial services professionals, gaming users and healthcare professionals who need a high-quality switch that ensures great colors, a clear image and maximum functionality.
Features:
- A dual-screen USB console controls two or four dual-screen computers and two additional USB devices

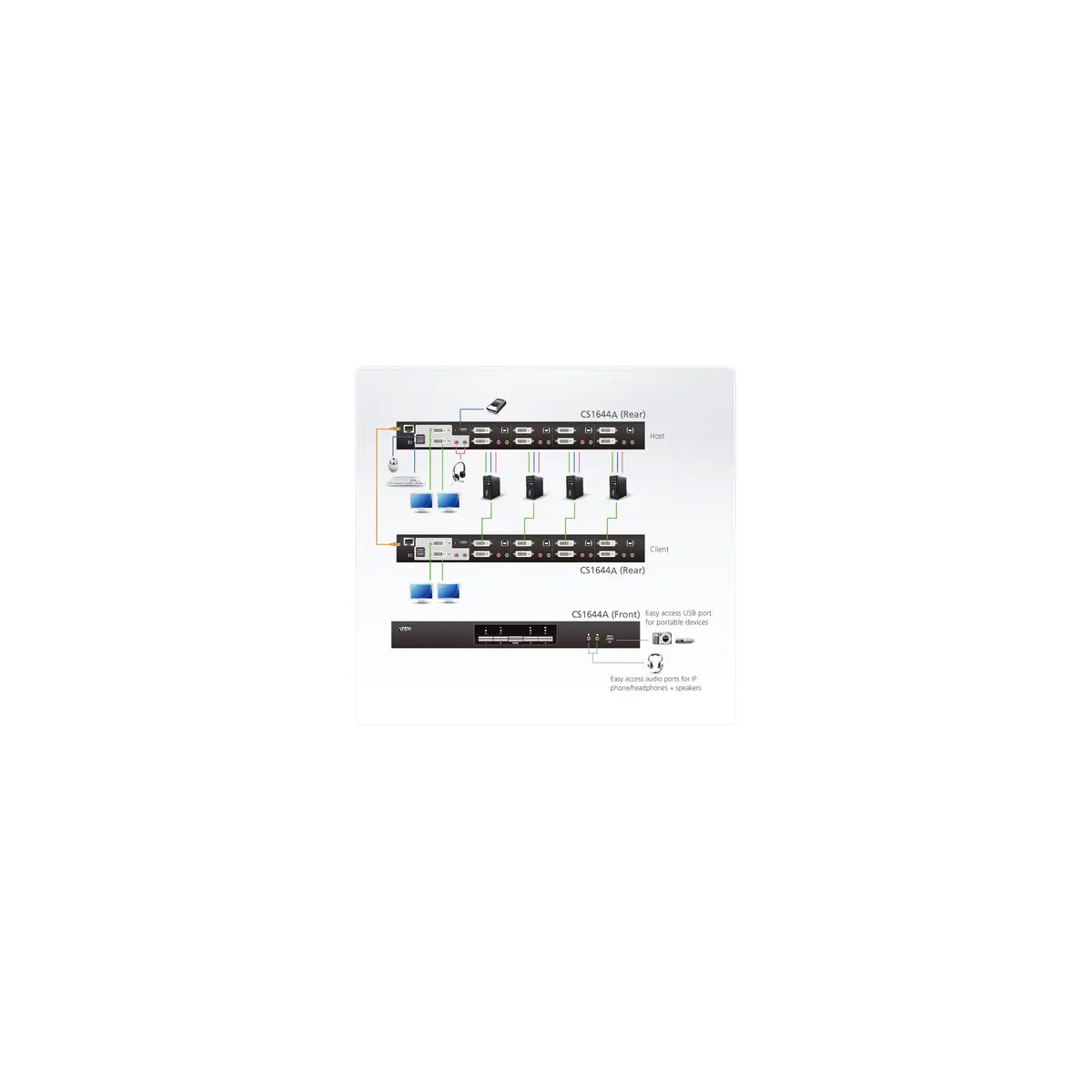

- Multi-screen display - connect two CS1642A/1644A units and benefit from another two-screen system that can be controlled via a single connection
- Outstanding image quality - 2560 x 1600 at 60 Hz (DVI Dual Link); 3D displays up to 1920 x 1200 at 120 Hz (DVI Single Link)
- Supports common widescreen resolutions
- Independent switching between KVM, USB and audio signals
- Supports digital DVI and analog monitors - fully compatible with DVI specifications and also HDCP compatible
- Multiplatform compatible - Windows 2000/XP/Vista, Linux*, Mac, Sun and FreeBSD
- Supports and emulates Sun/Mac keyboards**
- Video DynaSync, ATEN's exclusive technology to avoid display problems when restarting and optimize resolution when switching ports
Supports Linux Kernel 2.6 and above. The CS1644A has a built-in USB 2.0 hub; therefore, no PCs or operating systems that are not USB 2.0 compatible are supported.
PC keyboard shortcuts emulate Mac keyboards.
Mac keyboards only work with Macintosh computers.
Scope of delivery

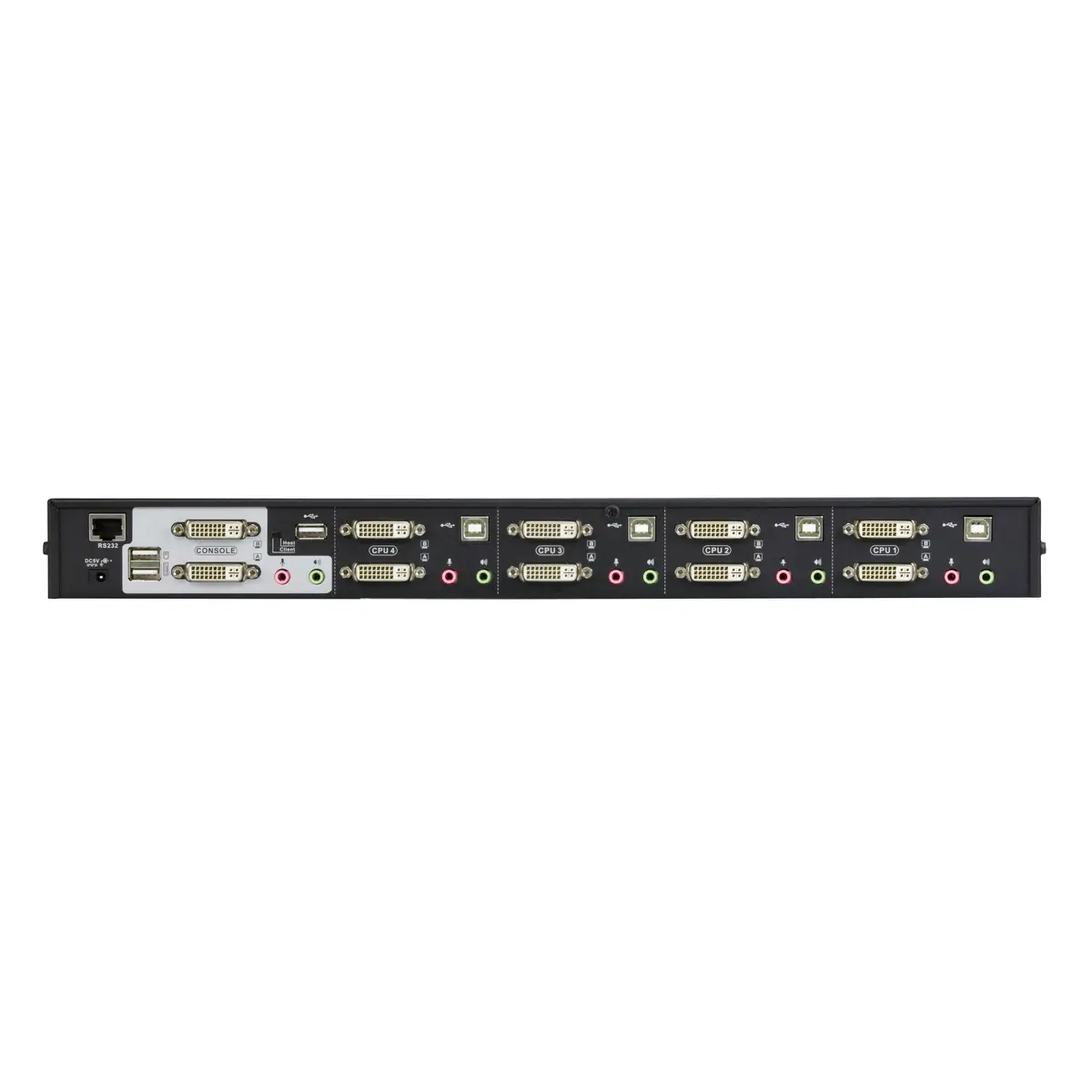

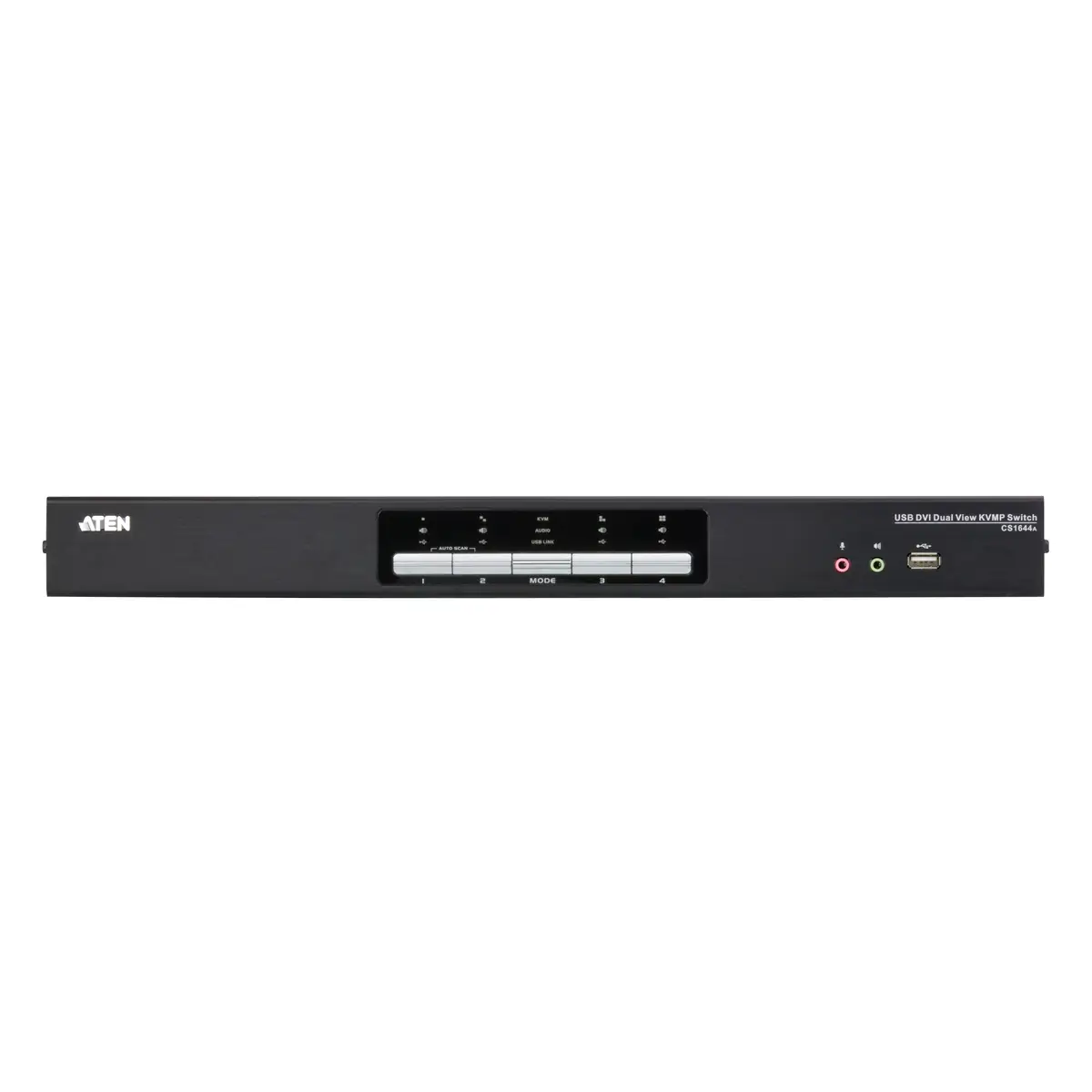

- 1 x CS1644A USB-KVMP™ switch with 4 ports for DVI monitors
- 8 x (4 x 2L-7D02UD - 4 x LIN5-26W1-W11G) individual DVI-D cable sets (Dual Linl) (1.8m)
- 1 x 0AD6-1605-24EG power supply
- 1 x User Manual
The CS1644A 4-Port USB KVMP™ Switch for Dual DVI Monitors is a versatile device that combines a 4-port KVM switch with a 2-port USB hub. The latest version even supports four monitors if two KVM switches for two monitors each are connected.
You can use the CS1644A with multiple monitors, and by connecting two switches in series, workstations with two, three and even four monitors can be created. Furthermore, thanks to its 120 Hz 3D technology, the CS1644A is prepared for nVidia 3D Vision, so you can use a wide variety of 3D effects. With its help, you can control all connected computers from a single console, saving resources and space. Additionally, each computer can access connected peripherals (only one computer at a time), making it ideal for users who want to implement multitasking and special graphics effects on multiple computers. The CS1644A is perfect for graphic designers, banking and financial services professionals, gaming users and healthcare professionals who need a high-quality switch that ensures great colors, a clear image and maximum functionality.
Features:
- A dual-screen USB console controls two or four dual-screen computers and two additional USB devices
- Multi-screen display - connect two CS1642A/1644A units and benefit from another two-screen system that can be controlled via a single connection
- Outstanding image quality - 2560 x 1600 at 60 Hz (DVI Dual Link); 3D displays up to 1920 x 1200 at 120 Hz (DVI Single Link)
- Supports common widescreen resolutions
- Independent switching between KVM, USB and audio signals
- Supports digital DVI and analog monitors - fully compatible with DVI specifications and also HDCP compatible
- Multiplatform compatible - Windows 2000/XP/Vista, Linux*, Mac, Sun and FreeBSD
- Supports and emulates Sun/Mac keyboards**
- Video DynaSync, ATEN's exclusive technology to avoid display problems when restarting and optimize resolution when switching ports
Supports Linux Kernel 2.6 and above. The CS1644A has a built-in USB 2.0 hub; therefore, no PCs or operating systems that are not USB 2.0 compatible are supported.
PC keyboard shortcuts emulate Mac keyboards.
Mac keyboards only work with Macintosh computers.
Scope of delivery
- 1 x CS1644A USB-KVMP™ switch with 4 ports for DVI monitors
- 8 x (4 x 2L-7D02UD - 4 x LIN5-26W1-W11G) individual DVI-D cable sets (Dual Linl) (1.8m)
- 1 x 0AD6-1605-24EG power supply
- 1 x User Manual
