- KVM DVI Full HD LCD Konsole mit 43,9 cm (17,3") Display DVI/HDMI 1 HE DE-Layout

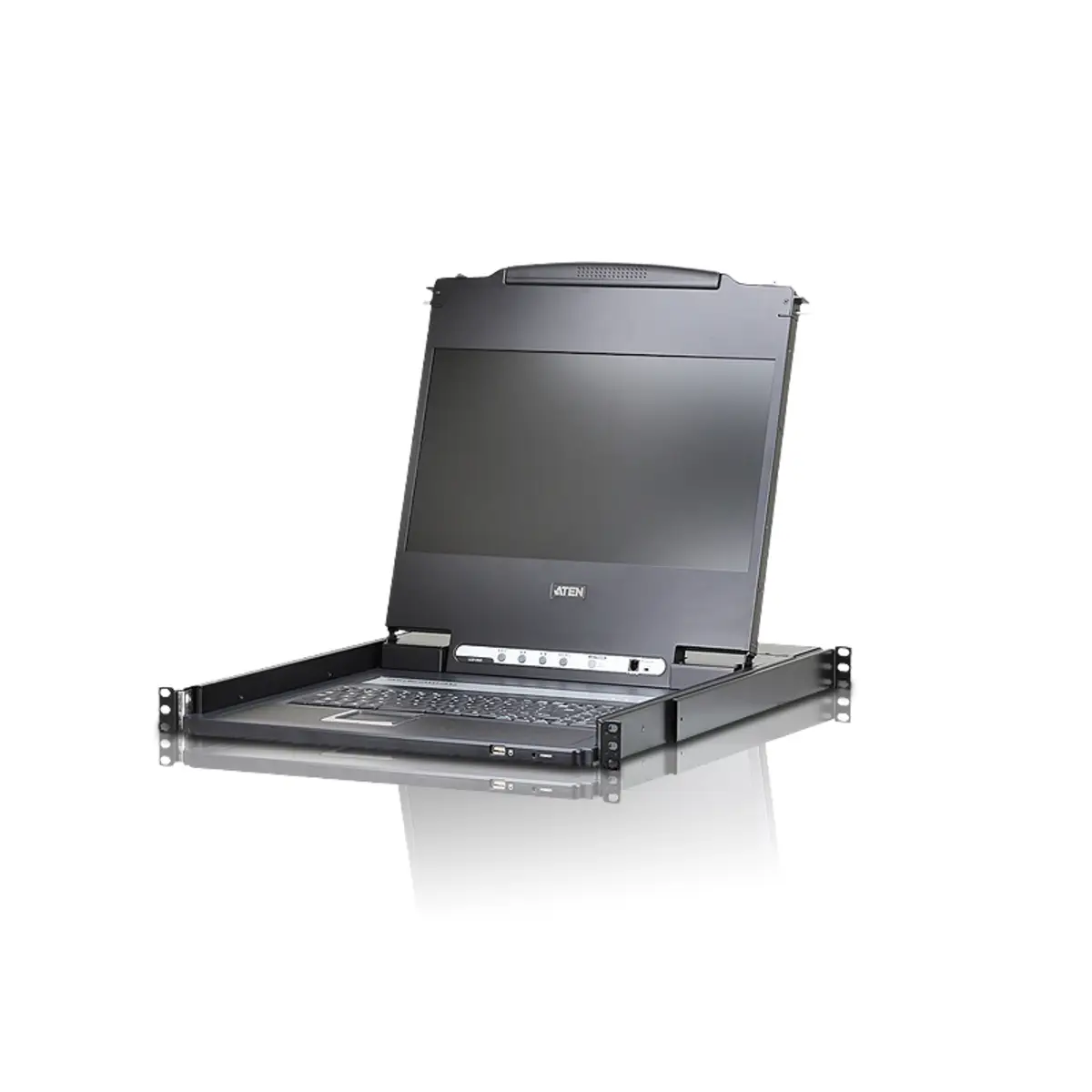

The CL6700MW DVI Full HD LCD Console is a single-rail KVM console with a 17.3" high-definition LED-backlit widescreen display and integrated keyboard and touchpad in a 1U rack-mountable sliding enclosure. The CL6700MW console provides front access to compatible KVM switches while taking advantage of space with a module that sits flush and slides into the rack. The single rail design allows independent operation of the LCD monitor, keyboard and touchpad. Multiple video ports allow the console to connect to three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For additional convenience, the Full HD console offers two HDMI ports, which allow you to connect a high-definition monitor to the console port or an HDMI-compatible switch to the KVM port.

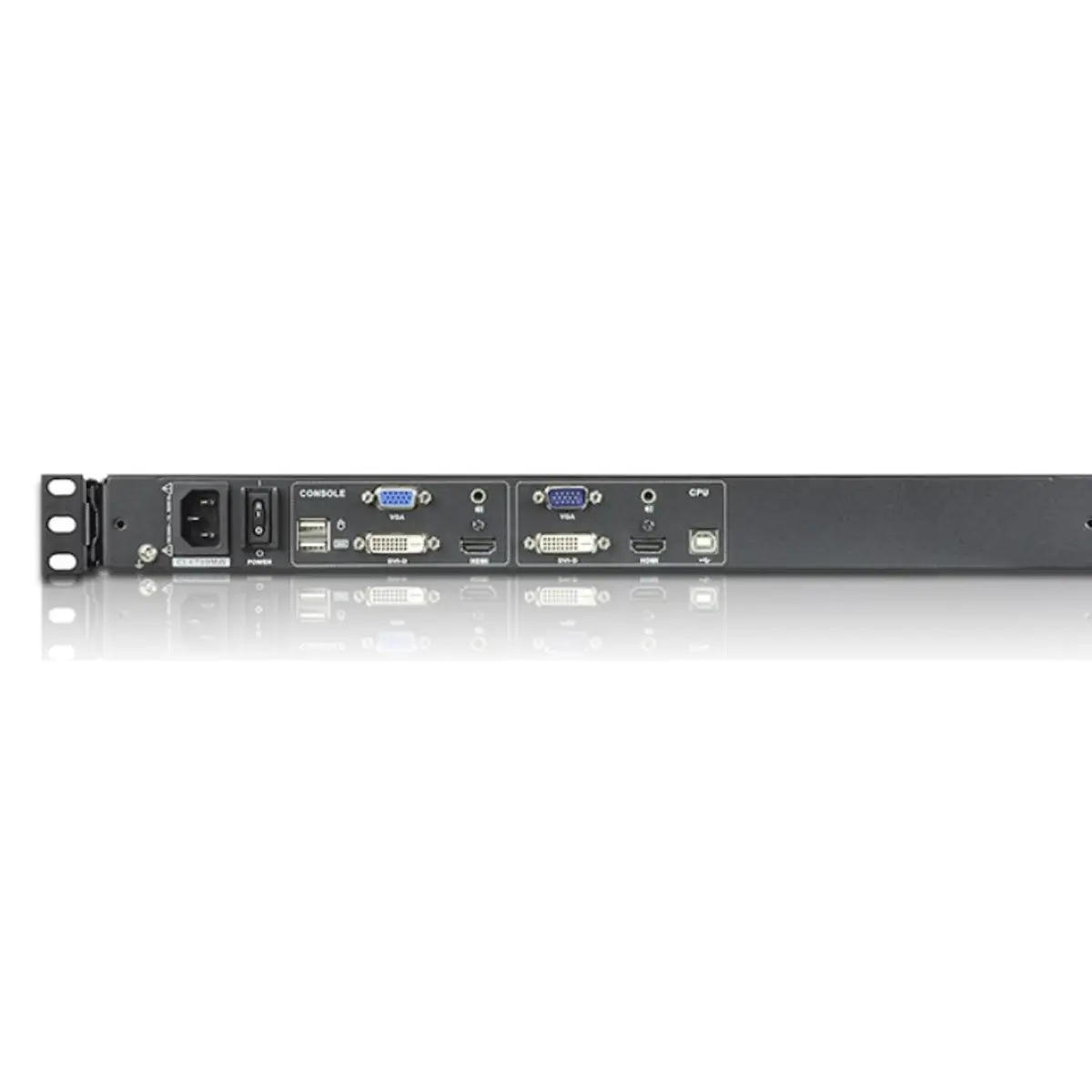

The CL6700MW offers a connection for an external USB mouse on the front of the device. On the back there are connections for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor). Server rooms where DVI KVM switches are already installed have the advantage of easy access, an additional console and an integrated, space-saving sliding module without having to purchase a KVM switch. The CL6700MW offers two mini stereo ports for connecting audio speakers.
Features:
- Integrated KVM console with a 17.3'' widescreen Full HD LCD monitor with LED backlight in a single rail housing with top and bottom spacing for easy use in a 1U high system rack
- Standard rack mounting kit included - optional Easy Rack Mounting (one person installation) rack mounting kit available (sold separately)
- Supports an external console with USB / DVI / VGA / HDMI ports
- Additional hot-pluggable USB mouse port on the front (also works as a USB peripheral port)
- Superior video quality - up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
- Audio support for connecting speakers
- Standard 105-key keyboard; Sun keyboard emulation
- Multiplatform support - Windows, Linux, Mac and Sun
- Adjustable depth for adjustment in the rack
- Firmware upgrade possible
- Console lock - the console drawer is securely locked when the console is not in use
- DDC Emulation - Video settings from connected computers are automatically adjusted for optimal output on the monitor
- Supported keyboard languages: English (US); English (UK); German; German (Switzerland); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian; Greek
The CL6700MW DVI Full HD LCD Console is a single-rail KVM console with a 17.3" high-definition LED-backlit widescreen display and integrated keyboard and touchpad in a 1U rack-mountable sliding enclosure. The CL6700MW console provides front access to compatible KVM switches while taking advantage of space with a module that sits flush and slides into the rack. The single rail design allows independent operation of the LCD monitor, keyboard and touchpad. Multiple video ports allow the console to connect to three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For additional convenience, the Full HD console offers two HDMI ports, which allow you to connect a high-definition monitor to the console port or an HDMI-compatible switch to the KVM port.
The CL6700MW offers a connection for an external USB mouse on the front of the device. On the back there are connections for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor). Server rooms where DVI KVM switches are already installed have the advantage of easy access, an additional console and an integrated, space-saving sliding module without having to purchase a KVM switch. The CL6700MW offers two mini stereo ports for connecting audio speakers.
Features:
- Integrated KVM console with a 17.3'' widescreen Full HD LCD monitor with LED backlight in a single rail housing with top and bottom spacing for easy use in a 1U high system rack
- Standard rack mounting kit included - optional Easy Rack Mounting (one person installation) rack mounting kit available (sold separately)
- Supports an external console with USB / DVI / VGA / HDMI ports
- Additional hot-pluggable USB mouse port on the front (also works as a USB peripheral port)
- Superior video quality - up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
- Audio support for connecting speakers
- Standard 105-key keyboard; Sun keyboard emulation
- Multiplatform support - Windows, Linux, Mac and Sun
- Adjustable depth for adjustment in the rack
- Firmware upgrade possible
- Console lock - the console drawer is securely locked when the console is not in use
- DDC Emulation - Video settings from connected computers are automatically adjusted for optimal output on the monitor
- Supported keyboard languages: English (US); English (UK); German; German (Switzerland); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian; Greek
