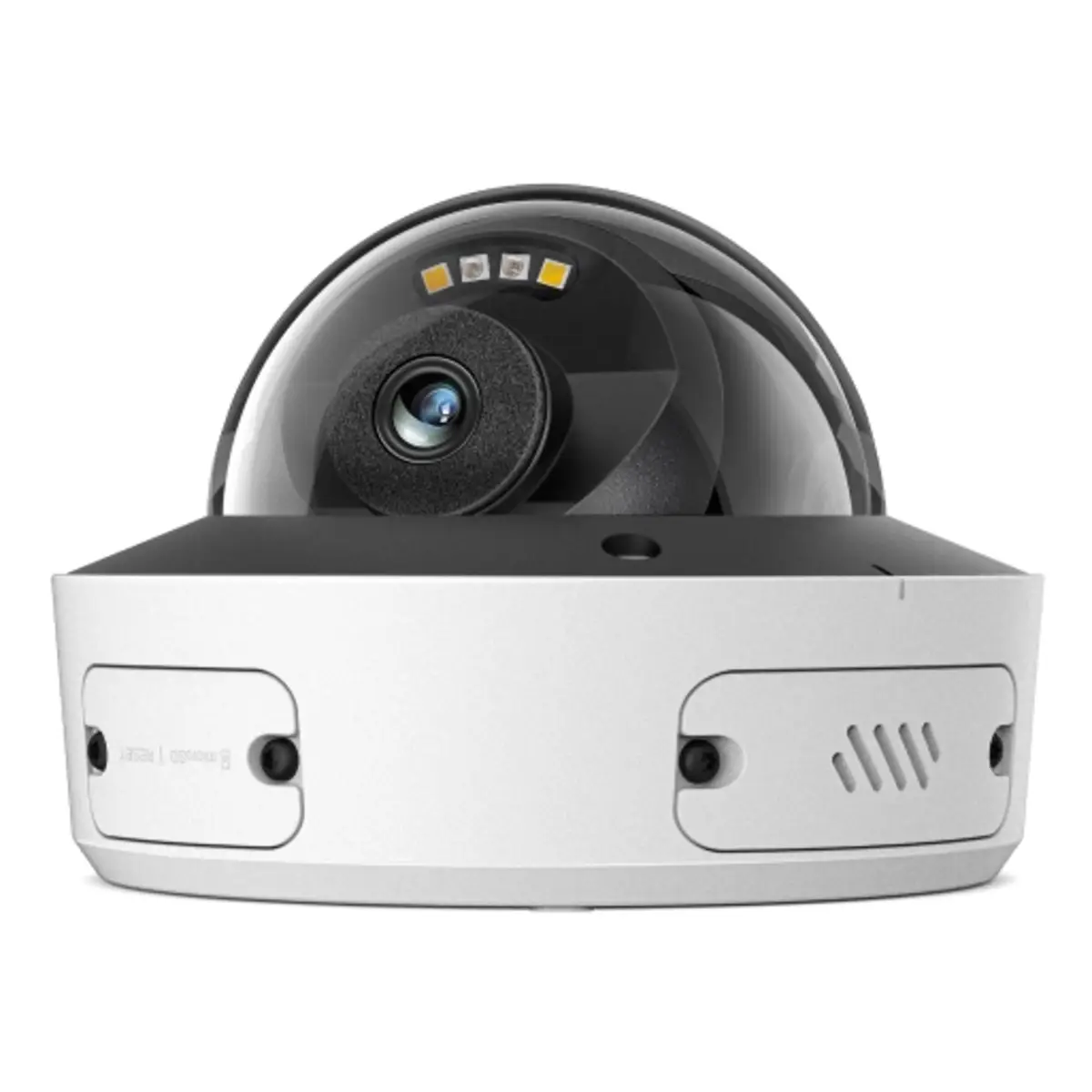

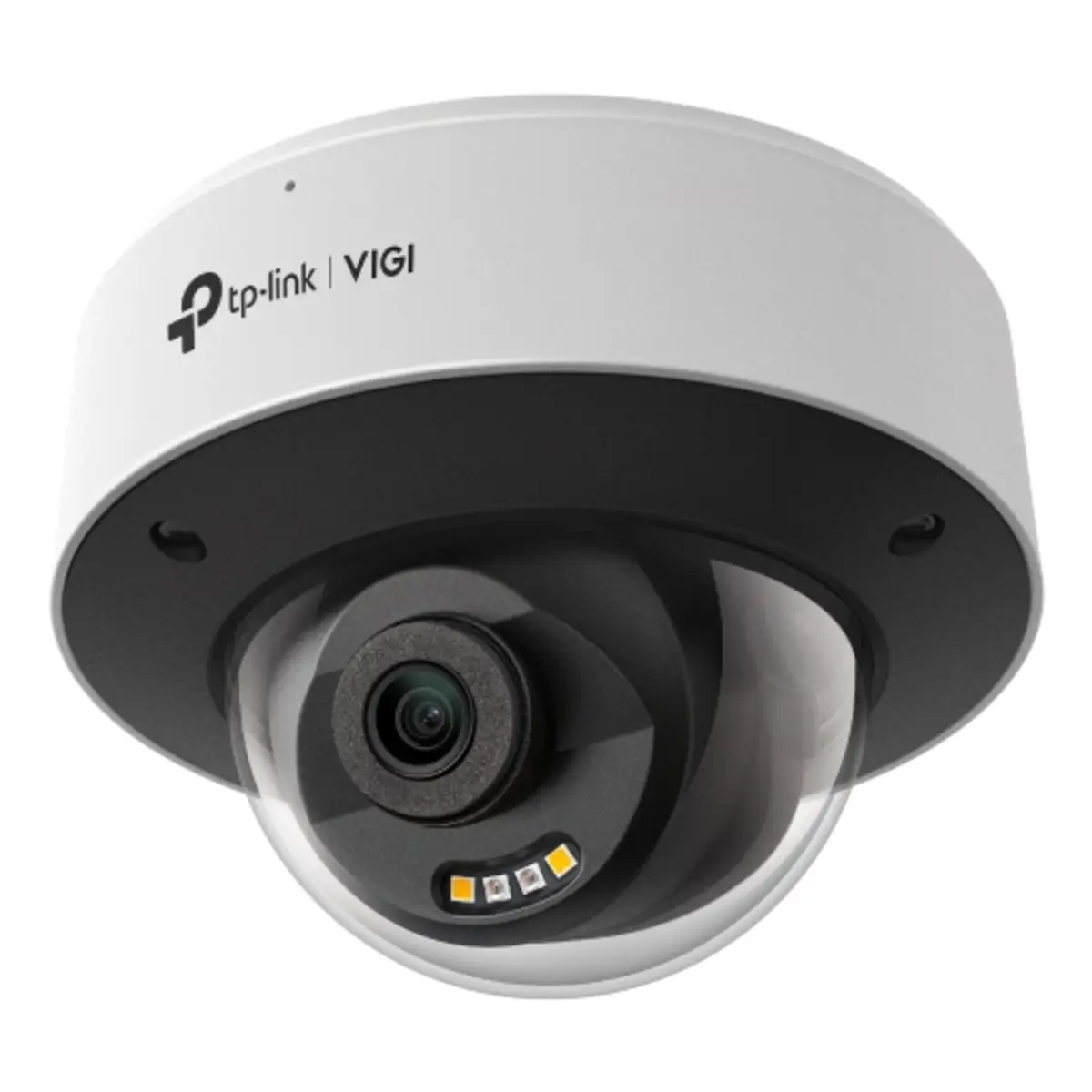

TP-Link InSight S285. Type: IP security camera, Supported placement: Outdoor, Transmission technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Viewing angle (horizontal): 110°, Viewing angle (vertical): 58.1°, Diagonal lens viewing angle: 133.5°. Sensor type: CMOS, Image sensor size: 25.4 / 2.7 mm (1 / 2.7"). Distance detection: 85 m, Distance observation: 35 m, Distance detection: 17 m

Audio
Built-in speakers: Yes
Audio system: 2-way
Audio input channels: 1 channel
Audio channels: 1 channel
Supported audio formats: G.711 A-law
Sample rate: 8 kHz
Built-in microphone: Yes
Number of microphones: 1
Bit rate range: 0 - 64 kbps
Connections and interfaces
Number of Ethernet LAN ports (RJ-45): 1
DC power connector (DC): Yes
Lens
Distance detection: 85 m
Distance observation: 35 m
Distance detection: 17 m
Fixed focus: Yes
Maximum aperture: 1.6
Distance detection: 8 m
Fixed focal length: 2.8 mm
Weight and dimensions
Width: 122 mm
Depth: 122 mm
Height: 89 mm
Weight: 620 g
Energy
Power source: DC, PoE
Power consumption (max.): 11 W
Power consumption (Power over Ethernet (PoE)): 12.3 W
DC output voltage: 12 V
Operating conditions
Operating temperature: -30 - 60 °C
Storage temperature range: -40 - 60 °C
Operating relative humidity: 0 - 95%
Storage humidity: 0 - 95%
Network
Ethernet/LAN: Yes
Wi-Fi: No
Bluetooth: No
Network standard: IEEE 802.3af, IEEE 802.3at
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Live View: Yes
Video
Maximum resolution: 3840 x 2160 pixels
Total megapixels: 8 MP
Video compression formats: H.264, H.264+, H.265, H.265+
Supported graphic resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 3840 x 2160
Video recording: Yes
Image quality adjustment: Brightness, contrast, mirroring, color saturation, sharpness
Bitrate control: Constant bit rate (CBR)/Variable bit rate (VBR)
Transmission speed: Main stream: 256 Kbps to 8 Mbps, Substream: 64 Kbps to 512 Kbps
Backlight compensation: Yes
Highlight compensation (HLC): Yes
Digital wide dynamic range (DWDR): Yes
Storage medium
Compatible memory cards: MicroSD (TransFlash)
Max. memory card size: 512 GB
Security
Built-in siren: Yes
Password protection: Yes
Video motion detector: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Distance detection: 85 m
Alert notification type: Push notification
Intelligent Video Surveillance (IVS) system features: Abnormal sound detection, crossing line detection, human detection, intrusion detection, line crossing detection, moving object detection, region entry detection, region exit detection, scene change detection, vehicle detection
Motion sensor: Yes
Mirror: Yes
Human and vehicle target classification: Yes
Digest authentication: Yes
Image sensor
Sensor type: CMOS
Image sensor size: 25.4 / 2.7 mm (1 / 2.7")
Full frame processing: Yes
Management features
Cloud-managed: Yes
Web-based management: Yes
Web browser: Yes
Reset button: Yes
Camera
Minimum illumination: 0 lux
Viewing angle (horizontal): 110°
Viewing angle (vertical): 58.1°
Lens diagonal viewing angle: 133.5°
Tilt angle range: 0 - 75°
Camera shutter speed: 1/3 to 1/10000
Included in delivery
Number of cameras: 1
User manual: Yes
Design
Mounting type: Ceiling
Product color: White
Form factor: Dome
Housing material: Metal
Protection function: Waterproof
International Protection Rating (IP Code): IP67
IK Code: IK10
Weatherproof: Yes
Night Vision
Night Vision: Yes
LED Type: IR/White
Features
Type: IP Security Camera
Supported Positioning: Outdoor
Transmission Technology: Wired
Maximum Working Distance: 85 m
Wide Dynamic Range (WDR): Yes
Day/Night Mode: Yes
Infrared (IR) Cutoff Filter: Yes
Remote View: Yes
Dynamic Range: 120 dB
