- 2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-001-1737986370196.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NDE4MDh8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ERmZNVGN6TnprNE5qTTNNREU1Tmk1M1pXSnd8ZDNlOTc0MTZkYzg4YTViNzhmOTM3YjliNmE0Yzk5ODU2ODRkNjU5MDI1YjI3OTIzZGEyOGUyZGQyZTgzZmNhMQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-002-1713284311928.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTEyNTYyfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNREpmTVRjeE16STRORE14TVRreU9DNXFjR2N8MGMyMTJiYjhlYjI1OTZkN2JiZjI3NDNlMWM5ZmRjODViMjI1MTQ3YmJlOTlhOGQ2ZWNiZDE3ZmM5NmQzMmE4Yw)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-003-1738729166076.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MjIyNzZ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ETmZNVGN6T0RjeU9URTJOakEzTmk1M1pXSnd8MTJiNGQzMWQzYWM0NWE0MWQ5MjQwYjg5MGZlYmM4NTkwMGMwYzNiOWIxNjUwMmJjZjQ3NGEyNzhlN2M4ZTA4YQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-004-1713284315000.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTQyMDQwfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFJmTVRjeE16STRORE14TlRBd01DNXFjR2N8NTM0ZWY0ZWExMzg0ZDUwNmYwOTIzYmRmYjFjZWNlZWUyMzJjOGRlODUwNjgyMjk5NWEzNWUzMzJjYjgwYmQ0NQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-005-1738713715508.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTE4MTQ2fGltYWdlL3dlYnB8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFZmTVRjek9EY3hNemN4TlRVd09DNTNaV0p3fDlkNWM2N2I5OTZjODViMWQ0NDA5NGU2NDUxNDNkZmI0NjBmNTY3ODQ1NjI3M2I5NTZmZGFjYWI2MGMzNWRmN2M)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-006-1738729172868.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NTAxNzJ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01EWmZNVGN6T0RjeU9URTNNamcyT0M1M1pXSnd8ZDIyNDVhNWQ1M2M3MjliMDk3MzFlNDY4N2MwMjE3NzU4NWRjYWZiOGZkZDRmNDlkNDk0ZjFjOGM3MDNkMDYyNg)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-001-1737986370196.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NDE4MDh8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ERmZNVGN6TnprNE5qTTNNREU1Tmk1M1pXSnd8ZDNlOTc0MTZkYzg4YTViNzhmOTM3YjliNmE0Yzk5ODU2ODRkNjU5MDI1YjI3OTIzZGEyOGUyZGQyZTgzZmNhMQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-002-1713284311928.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTEyNTYyfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNREpmTVRjeE16STRORE14TVRreU9DNXFjR2N8MGMyMTJiYjhlYjI1OTZkN2JiZjI3NDNlMWM5ZmRjODViMjI1MTQ3YmJlOTlhOGQ2ZWNiZDE3ZmM5NmQzMmE4Yw)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-003-1738729166076.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MjIyNzZ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ETmZNVGN6T0RjeU9URTJOakEzTmk1M1pXSnd8MTJiNGQzMWQzYWM0NWE0MWQ5MjQwYjg5MGZlYmM4NTkwMGMwYzNiOWIxNjUwMmJjZjQ3NGEyNzhlN2M4ZTA4YQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-004-1713284315000.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTQyMDQwfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFJmTVRjeE16STRORE14TlRBd01DNXFjR2N8NTM0ZWY0ZWExMzg0ZDUwNmYwOTIzYmRmYjFjZWNlZWUyMzJjOGRlODUwNjgyMjk5NWEzNWUzMzJjYjgwYmQ0NQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-005-1738713715508.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTE4MTQ2fGltYWdlL3dlYnB8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFZmTVRjek9EY3hNemN4TlRVd09DNTNaV0p3fDlkNWM2N2I5OTZjODViMWQ0NDA5NGU2NDUxNDNkZmI0NjBmNTY3ODQ1NjI3M2I5NTZmZGFjYWI2MGMzNWRmN2M)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-006-1738729172868.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NTAxNzJ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01EWmZNVGN6T0RjeU9URTNNamcyT0M1M1pXSnd8ZDIyNDVhNWQ1M2M3MjliMDk3MzFlNDY4N2MwMjE3NzU4NWRjYWZiOGZkZDRmNDlkNDk0ZjFjOGM3MDNkMDYyNg)
+1 Images
6 Images
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-001-1737986370196.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NDE4MDh8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ERmZNVGN6TnprNE5qTTNNREU1Tmk1M1pXSnd8ZDNlOTc0MTZkYzg4YTViNzhmOTM3YjliNmE0Yzk5ODU2ODRkNjU5MDI1YjI3OTIzZGEyOGUyZGQyZTgzZmNhMQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-002-1713284311928.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTEyNTYyfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNREpmTVRjeE16STRORE14TVRreU9DNXFjR2N8MGMyMTJiYjhlYjI1OTZkN2JiZjI3NDNlMWM5ZmRjODViMjI1MTQ3YmJlOTlhOGQ2ZWNiZDE3ZmM5NmQzMmE4Yw)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-003-1738729166076.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MjIyNzZ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ETmZNVGN6T0RjeU9URTJOakEzTmk1M1pXSnd8MTJiNGQzMWQzYWM0NWE0MWQ5MjQwYjg5MGZlYmM4NTkwMGMwYzNiOWIxNjUwMmJjZjQ3NGEyNzhlN2M4ZTA4YQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-004-1713284315000.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTQyMDQwfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFJmTVRjeE16STRORE14TlRBd01DNXFjR2N8NTM0ZWY0ZWExMzg0ZDUwNmYwOTIzYmRmYjFjZWNlZWUyMzJjOGRlODUwNjgyMjk5NWEzNWUzMzJjYjgwYmQ0NQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-005-1738713715508.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTE4MTQ2fGltYWdlL3dlYnB8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFZmTVRjek9EY3hNemN4TlRVd09DNTNaV0p3fDlkNWM2N2I5OTZjODViMWQ0NDA5NGU2NDUxNDNkZmI0NjBmNTY3ODQ1NjI3M2I5NTZmZGFjYWI2MGMzNWRmN2M)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-006-1738729172868.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NTAxNzJ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01EWmZNVGN6T0RjeU9URTNNamcyT0M1M1pXSnd8ZDIyNDVhNWQ1M2M3MjliMDk3MzFlNDY4N2MwMjE3NzU4NWRjYWZiOGZkZDRmNDlkNDk0ZjFjOGM3MDNkMDYyNg)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-001-1737986370196.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NDE4MDh8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ERmZNVGN6TnprNE5qTTNNREU1Tmk1M1pXSnd8ZDNlOTc0MTZkYzg4YTViNzhmOTM3YjliNmE0Yzk5ODU2ODRkNjU5MDI1YjI3OTIzZGEyOGUyZGQyZTgzZmNhMQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-002-1713284311928.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTEyNTYyfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNREpmTVRjeE16STRORE14TVRreU9DNXFjR2N8MGMyMTJiYjhlYjI1OTZkN2JiZjI3NDNlMWM5ZmRjODViMjI1MTQ3YmJlOTlhOGQ2ZWNiZDE3ZmM5NmQzMmE4Yw)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-003-1738729166076.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MjIyNzZ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01ETmZNVGN6T0RjeU9URTJOakEzTmk1M1pXSnd8MTJiNGQzMWQzYWM0NWE0MWQ5MjQwYjg5MGZlYmM4NTkwMGMwYzNiOWIxNjUwMmJjZjQ3NGEyNzhlN2M4ZTA4YQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-004-1713284315000.jpg?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTQyMDQwfGltYWdlL2pwZWd8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFJmTVRjeE16STRORE14TlRBd01DNXFjR2N8NTM0ZWY0ZWExMzg0ZDUwNmYwOTIzYmRmYjFjZWNlZWUyMzJjOGRlODUwNjgyMjk5NWEzNWUzMzJjYjgwYmQ0NQ)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-005-1738713715508.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8MTE4MTQ2fGltYWdlL3dlYnB8Y0hKdlpIVmpkSE12TVRNNU9UQTRMekV5TURCWGVERXlNREJJWHpFek9Ua3dPRjlwYldGblpWOHdNRFZmTVRjek9EY3hNemN4TlRVd09DNTNaV0p3fDlkNWM2N2I5OTZjODViMWQ0NDA5NGU2NDUxNDNkZmI0NjBmNTY3ODQ1NjI3M2I5NTZmZGFjYWI2MGMzNWRmN2M)
![2 Port 10G LWL Netzwerkkarte mit offenem SFP+ - PCIe](/medias/1200Wx1200H-139908-image-006-1738729172868.webp?context=bWFzdGVyfGF6dXJlUHJvZHVjdHN8NTAxNzJ8aW1hZ2Uvd2VicHxjSEp2WkhWamRITXZNVE01T1RBNEx6RXlNREJYZURFeU1EQklYekV6T1Rrd09GOXBiV0ZuWlY4d01EWmZNVGN6T0RjeU9URTNNamcyT0M1M1pXSnd8ZDIyNDVhNWQ1M2M3MjliMDk3MzFlNDY4N2MwMjE3NzU4NWRjYWZiOGZkZDRmNDlkNDk0ZjFjOGM3MDNkMDYyNg)
Product description

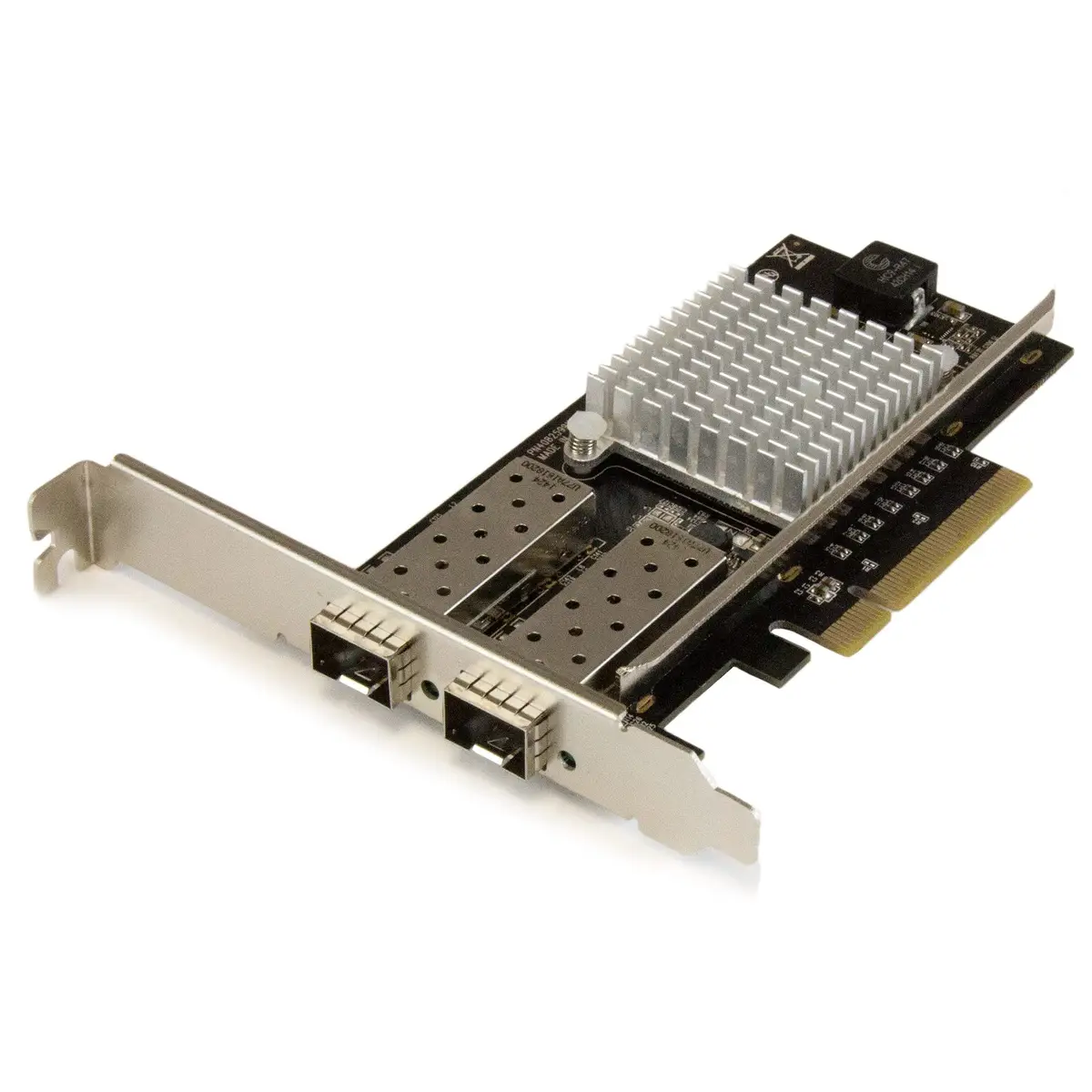

Get fast, high-bandwidth connectivity with this cost-effective fiber network card. It adds two open SFP+ slots to your server or high-powered workstation, giving you an easy way to connect your server or workstation to a 10 Gigabit fiber network using the SFP+ modules of your choice.
Transfer files at faster speeds
Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.
Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.
The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.
The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Transfer files at faster speeds
Large file transfers, multimedia content and increased numbers of network users create constant pressures for more bandwidth in your network infrastructure. This fiber NIC lets you harness the speed and stability of a 10 Gigabit network. The NIC supports data transfers at up to 10Gbps per port, or up to 20Gbps per port in full-duplex mode.
Add scalable network connections to your server or workstation
The fiber NIC is compatible with most 10GbE SFP+ transceivers, giving you flexible configuration options to connect your computer directly to a fiber network at greater distances.
The card features two open SFP+ slots with support for interchangeable SFP+ modules, including the StarTech.com 10GBase-SR SFP+ Fiber Transceiver Module (SKU: SFP10GSRST). This gives you the option to use the modules that best suit your network needs based on distance and connector type. StarTech.com SFP+ Cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The 10 Gigabit network card features the Intel® 82599 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for connectivity, PXE network boot support and up to 15K jumbo frame support.
The PEX20000SFPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Technical specifications
Design
Internal | Y |
Component for | PC/Server |
Netzwerk
Jumbo frames support | Y |
Jumbo frames | 15,000 |
VLAN tagging | Y |
Software
Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows |
Nachhaltigkeit
Sustainability certificates | CE,RoHS |
Sustainability compliance | Y |
Systemanforderung
Linux operating systems supported | Y |
Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Kopfhörer
Chipset | Intel 82599 |
Lieferumfang
Mounting brackets included | Y |
Verpackungsdaten
Quick installation guide | Y |
Package weight | 178 g |
Package depth | 170 mm |
Package width | 143 mm |
Package height | 30 mm |
Low-profile bracket | Y |
Betriebsbedingungen
Operating relative humidity (H-H) | 20 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 5 - 50 |
Sonstige Funktionen
Networking standards | IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3aq |
Flow control support | Y |
Gewicht und Abmessungen
Weight | 102 g |
Height | 120 mm |
Width | 18 mm |
Depth | 135 mm |
Features
Maximum data transfer rate | 20,000 Mbit/s |
Logistische Daten
Harmonized System (HS) code | 85176990 |
Master (outer) case height | 310 mm |
Master (outer) case width | 359 mm |
Master (outer) case length | 586 mm |
Products per master (outer) case | 40 ST |
Ports & interfaces
Host interface | PCI Express |
Fiber optic connector | SFP+ |
Fiber ports quantity | 2 |
PCI version | 2.0 |
Downloads
