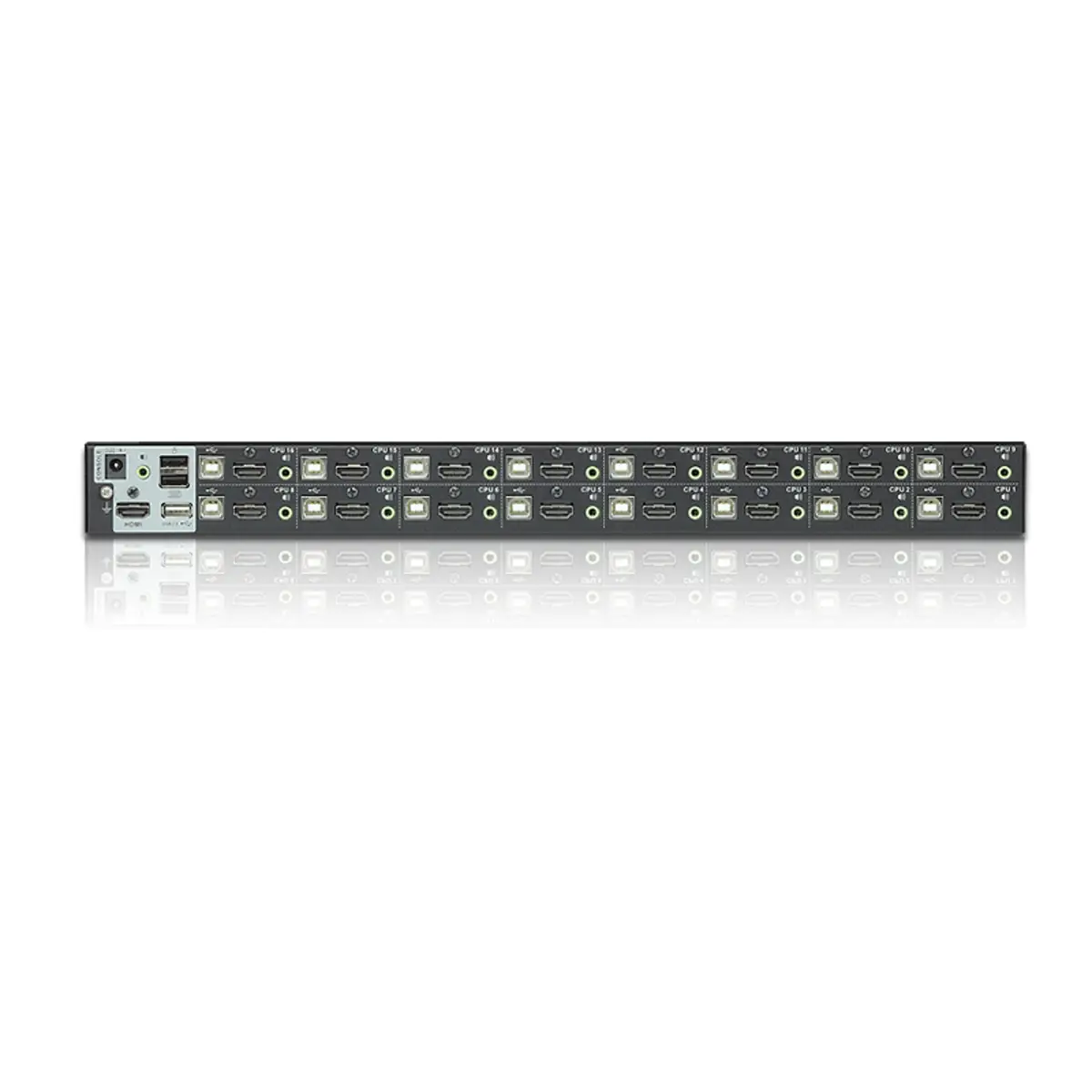

The CS17916 16-Port USB KVM Switch for HDMI Graphics is a multi-function device that allows you to control 16 HDMI computers from a single USB keyboard, monitor and USB mouse.

The CS17916 can be cascaded up to two levels - allowing you to control up to 256 computers - all from a single console.

The CS17916 also supports multi-screen configurations, which allow up to eight switches to be connected via conventional USB cables in order to have a clear overview of the entire configuration on multi-screen computers. This allows you to conveniently compare, analyze and clearly monitor the image output, which simplifies the entire workflow.

The CS17916 also has the OSD menu control known from ATEN, which allows access to any of the connected computers. The device configuration can also be saved via the OSD menu and restored if necessary.

The CS17916 supports multimedia keyboards and sound transmission. You can listen to the audio from each computer on two sets of speakers (one playback signal at a time).

Features:

• One USB console controls sixteen computers with HDMI interfaces and two additional USB 2.0 devices
• HDMI compatible
• Cascade connection on a maximum of two levels - control of up to 256 computers
• Multi-screen functionality - connect up to eight CS17916 units together and display the image on up to eight monitors (two-, three-, four- and multi-screen systems)
• Built-in 2-port USB 2.0 hub

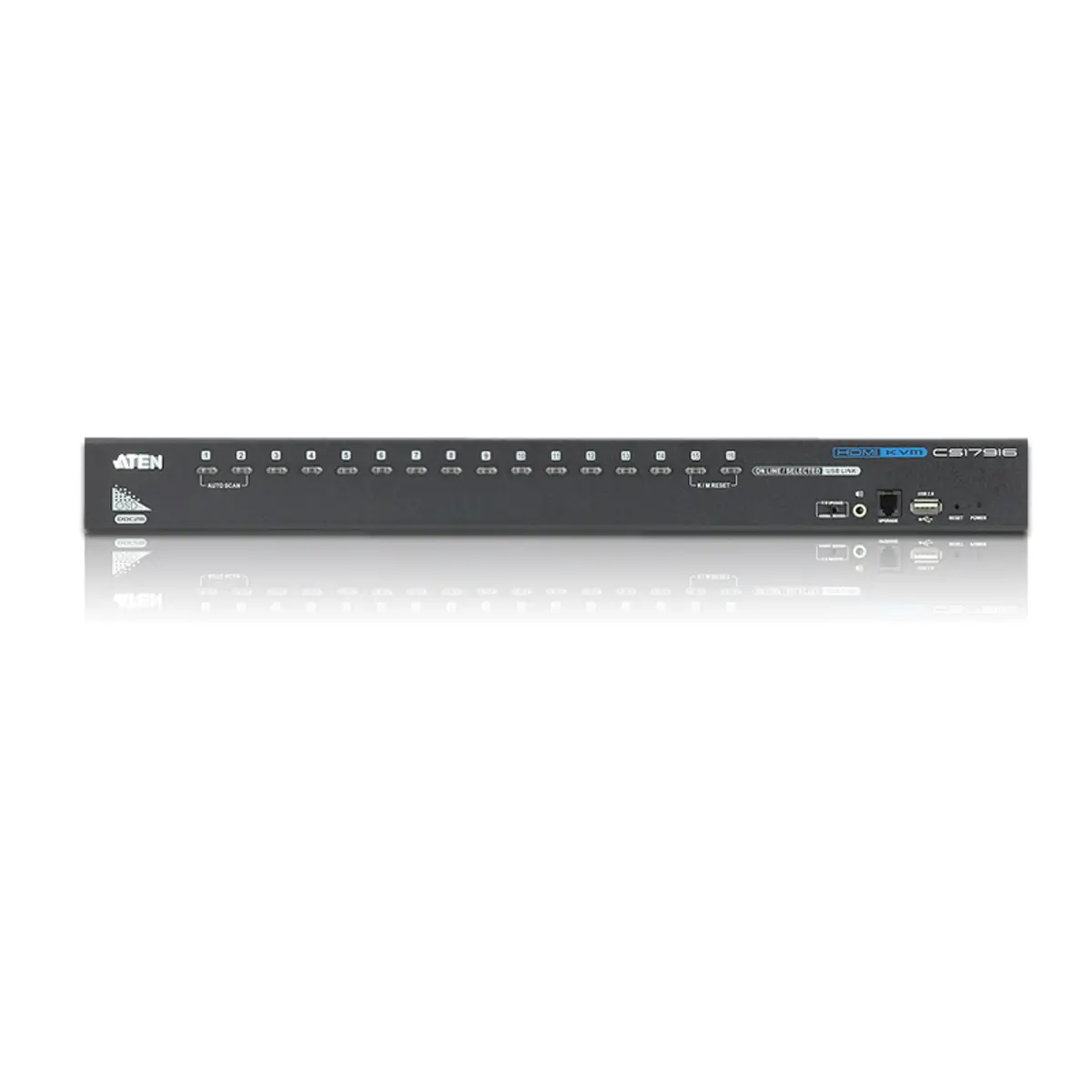

• Selection of computers via push buttons on the front of the device, hotkey shortcuts and multilingual OSD (screen menu)
• Independent switching of KVM and USB
• OSD backup/restore feature - allows the administrator to back up the switch's configuration and user profiles
• Firmware update possible
• Video DynaSync™- exclusive technology from ATEN to avoid display problems on reboot and optimize resolution when switching ports
• Improved image quality - resolutions up to 1080p / 1920 x 1200 at 60 Hz
• Supports common widescreen resolutions
• Sound transmission with full bass range for an exceptional sound experience on 2.1-channel surround sound systems
• Front console audio ports for simplified connection
• Automatic port switching for monitoring the connected computers
• HDCP compatible
• Multiplatform compatible: Windows, Linux, Mac, Sun
• Console with mouse port emulation and bypass function supports most mouse drivers and multifunction mice
• Keyboard emulation for error-free booting
• Supports and emulates Macintosh and Sun keyboards*1.2.
• Multilingual OSD menu in English, German, Japanese, Chinese (Traditional), Chinese (Simplified), Spanish, Russian and French
• Multilingual keyboard layout: supports English (US), English (UK), German (Germany), German (Switzerland), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Chinese (Traditional) and Chinese ( simplified)
• Supports hot plugging

Note: Enable mouse emulation for independent switching
1. For PC compatible computers. Macintosh and Sun computers must have compatible USB ports.
2. PC keyboard shortcuts emulate Sun/Mac keyboards; Mac/Sun keyboards only work with Macintosh or Sun computers

Scope of delivery

• 1x CS17916 16-Port KVM Switch with USB for HDMI Graphics with Rack Mount Kit
• 2x 2L-7D02UH individual KVM cable sets with HDMI and USB plugs (1.8m)
• 1x LIN5-04A2-J11G cable for firmware update
• 1x LIN2-418K-E12G power cable
• 1x 0AD8-8005-40MG power supply unit
• 1x stand set (4 pieces)
• 1x user manual
