Product description

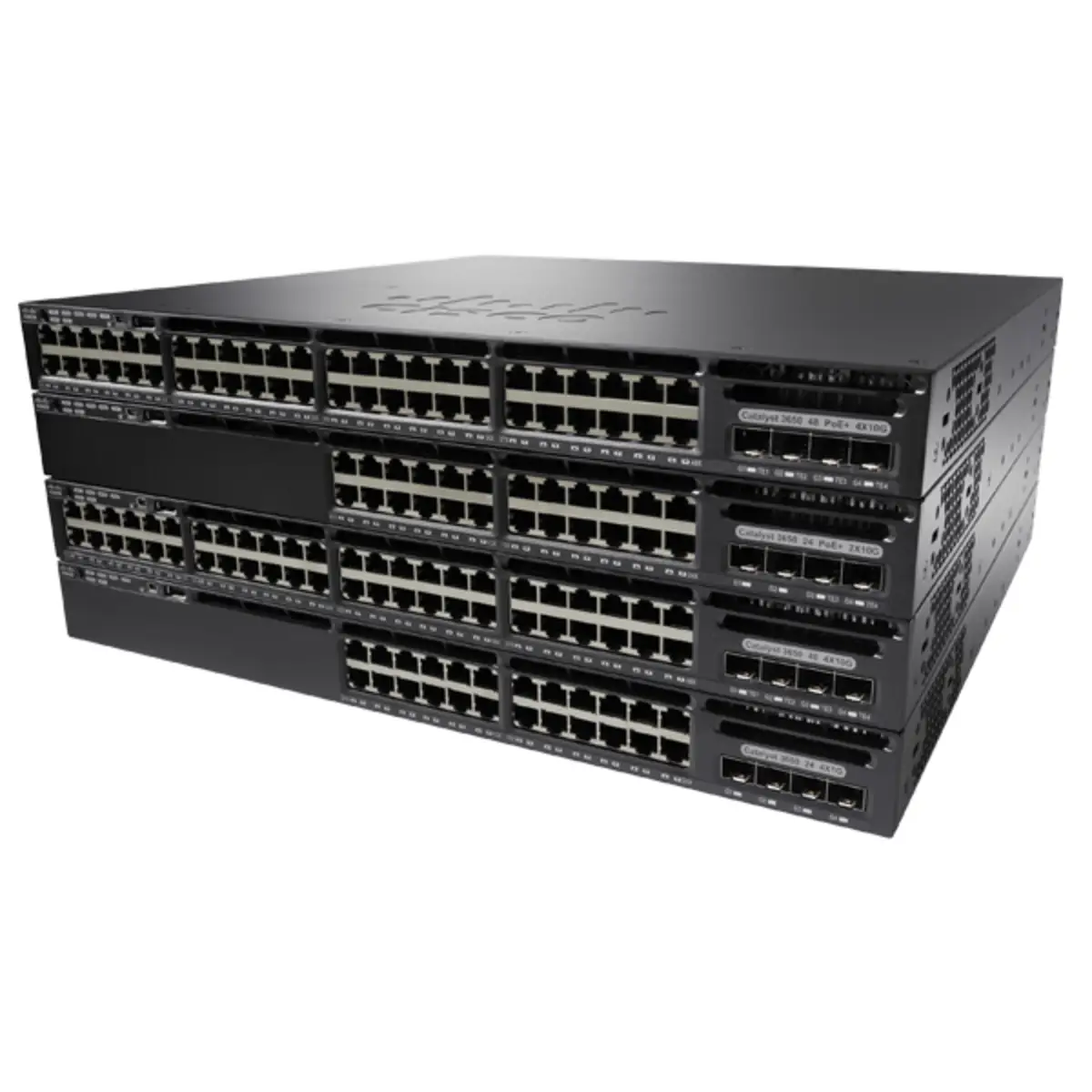

The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Technical specifications
Design
| Stackable | Y |
Logistics data
| Harmonized System (HS) code | 85176990 |
Leistungen
| Memory type | DRAM |
| Mean time between failures (MTBF) | 383,760 std |
Stromversorgung
| Power consumption (typical) | 102.1 W |
Power
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
Certificates
| Safety | UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1, |
Sonstige Funktionen
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IE |
| Rack mounting | Y |
| Internal memory | 4,096 MB |
| Flash memory | 2,000 MB |
| Noise level | 48 dB |
| Switching capacity | 176 Gbit/s |
Operational conditions
| Operating relative humidity (H-H) | 5 - 96 |
| Storage temperature (T-T) | -40 - 70 |
| Operating temperature (T-T) | -5 - 50 |
| Operating altitude | 0 - 1500 |
| Non-operating altitude | 0 - 5000 |
Gewicht und Abmessungen
| Weight | 7,600 g |
| Height | 44 mm |
| Width | 445 mm |
| Depth | 448 mm |
Ergonomics
| LED indicators | Y |
Network
| Full duplex | Y |
| MAC address table | 32,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Bandwidth | 160 Gbit/s |
| Number of VLANs | 4,094 |
| Rate limiting | Y |
| IP routing | Y |
| Spanning tree protocol | Y |
| 10G support | Y |
Ports & interfaces
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
Power over Ethernet (PoE)
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 390 W |
Multicast features
| Multicast support | Y |
Security
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP server |
| SSH/SSL support | Y |
Management features
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Switch layer | L3 |
Downloads
121856_document_DE_001
PDF Download
ID: 121856
Cisco ID: WS-C3650-48PQ-S
Catalyst 3650 Switch managed 48x10/100/1000 (PoE+) +4xGigabit SFP+ Desktop an Rack montierbar PoE+
Detailed product title
Detailed product title
Cisco Catalyst 3650 Switch, managed, 48x10/100/1000 (PoE+) +4xGigabit SFP+, Desktop, an Rack montierbar, PoE+
