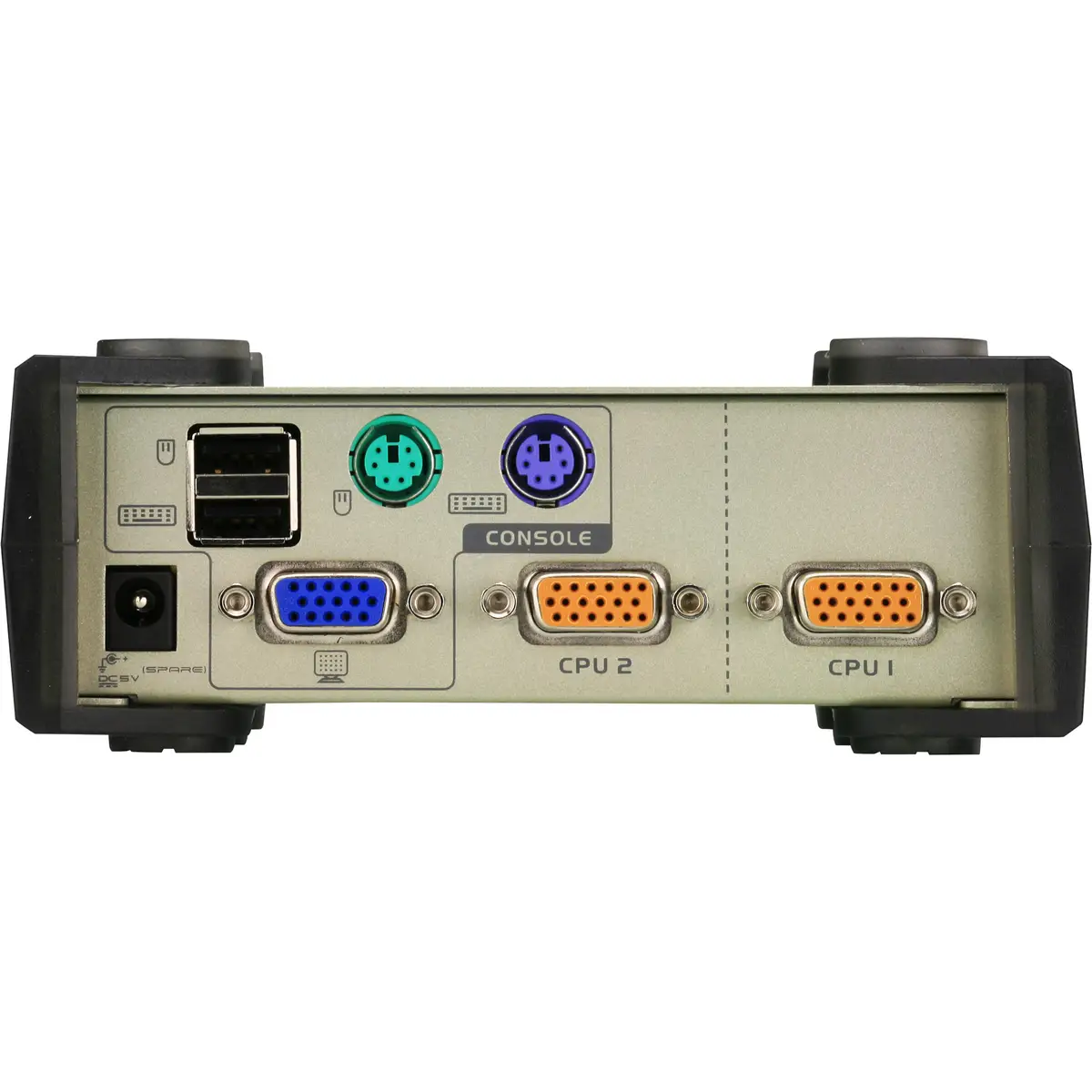

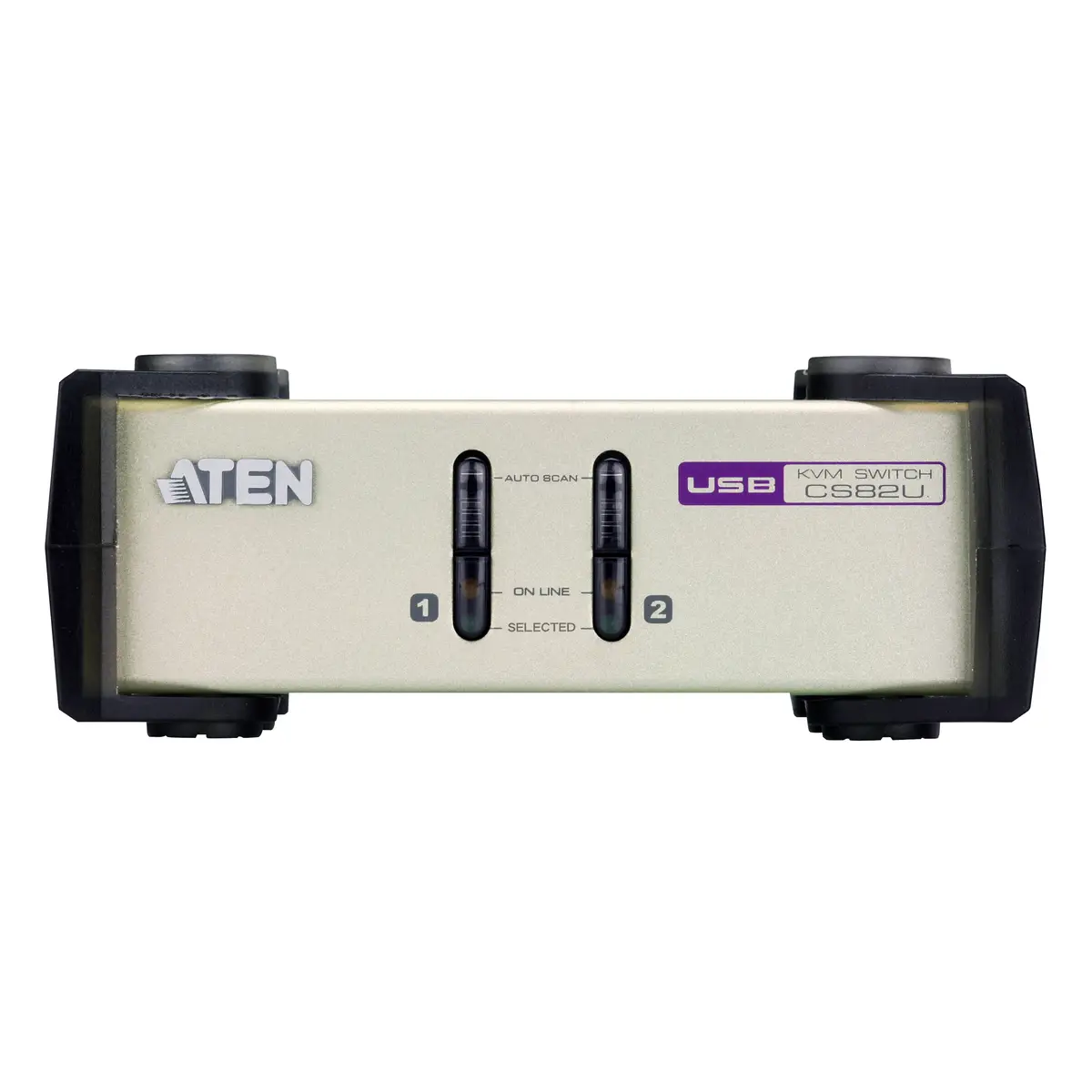

The PS/2 USB KVM Switch CS82U is a desktop installation device that allows two computers to be connected from a single KVM console (PS/2 or USB keyboard and mouse and VGA monitor). steer. Additionally, the CS82U supports ATEN's new Video DynaSync™ technology, which prevents display issues when devices are turned on and optimizes resolution.
- Dual interface - supports computers with PS/2 or USB keyboard and mouse
- Computer selection via front panel port select buttons, hotkey buttons and mouse
- Improved graphics quality - resolutions up to 2048 x 1536; DDC2B
Housing material | Metal |
DDC2B support | Y |
Video bandwidth | 60 Hz |
Scan interval | 3,5,10,20 |
Weight | 540 g |
Power source | DC |
Power consumption (typical) | 1.1 W |
Quick installation guide | Y |
I/O ports | 2x SPHD-18 |
Manual | Y |
Rack mounting | N |
Maximum resolution | 2048 x 1536 |
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Storage relative humidity (H-H) | 0 - 80 |
LED indicators | Y |
Height | 55.5 mm |
Width | 88 mm |
Depth | 140 mm |
HD type | QXGA |
Hot keys | Y |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 2 |
USB connector type | USB Type-A |
DC-in jack | Y |
Video port type | VGA |
Keyboard port type | USB, PS/2 |
Mouse port type | USB, PS/2 |
Console ports | PS/2,USB A,VGA (D-Sub) |
Number of computers controlled | 2 |
Console USB ports quantity | 2 |
USB 2.0 Type-A hub ports quantity | 2 |
Product colour | Black,Light grey |
Built-in display | N |
Push button | Y |



Number of computers controlled 2
The PS/2 USB KVM Switch CS82U is a desktop installation device that allows two computers to be connected from a single KVM console (PS/2 or USB keyboard and mouse and VGA monitor). steer. Additionally, the CS82U supports ATEN's new Video DynaSync™ technology, which prevents display issues when devices are turned on and optimizes resolution.
- Dual interface - supports computers with PS/2 or USB keyboard and mouse
- Computer selection via front panel port select buttons, hotkey buttons and mouse
- Improved graphics quality - resolutions up to 2048 x 1536; DDC2B
Housing material | Metal |
DDC2B support | Y |
Video bandwidth | 60 Hz |
Scan interval | 3,5,10,20 |
Weight | 540 g |
Power source | DC |
Power consumption (typical) | 1.1 W |
Quick installation guide | Y |
I/O ports | 2x SPHD-18 |
Manual | Y |
Rack mounting | N |
Maximum resolution | 2048 x 1536 |
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Storage relative humidity (H-H) | 0 - 80 |
LED indicators | Y |
Height | 55.5 mm |
Width | 88 mm |
Depth | 140 mm |
HD type | QXGA |
Hot keys | Y |
VGA (D-Sub) ports quantity | 1 |
PS/2 ports quantity | 2 |
USB connector type | USB Type-A |
DC-in jack | Y |
Video port type | VGA |
Keyboard port type | USB, PS/2 |
Mouse port type | USB, PS/2 |
Console ports | PS/2,USB A,VGA (D-Sub) |
Number of computers controlled | 2 |
Console USB ports quantity | 2 |
USB 2.0 Type-A hub ports quantity | 2 |
Product colour | Black,Light grey |
Built-in display | N |
Push button | Y |
