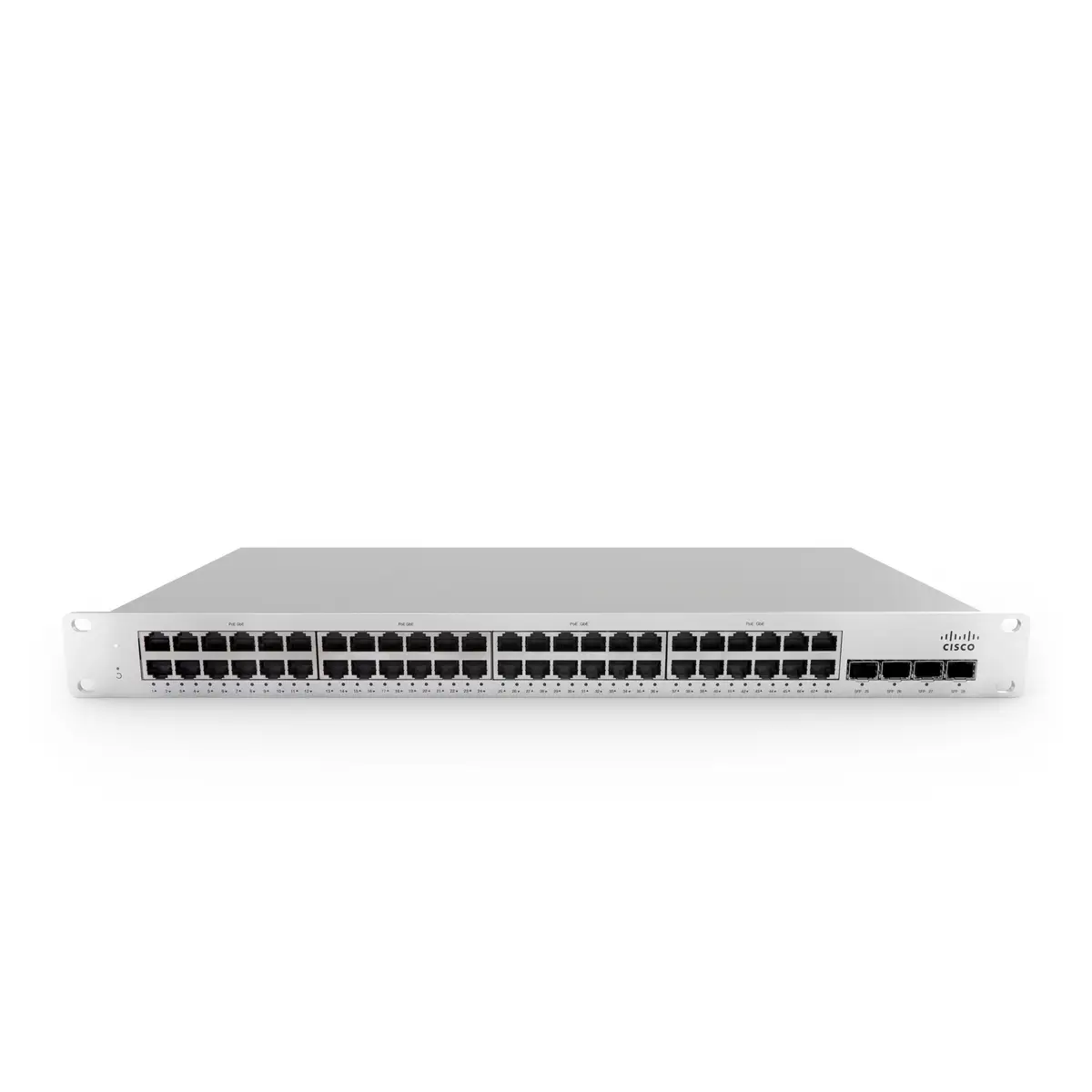

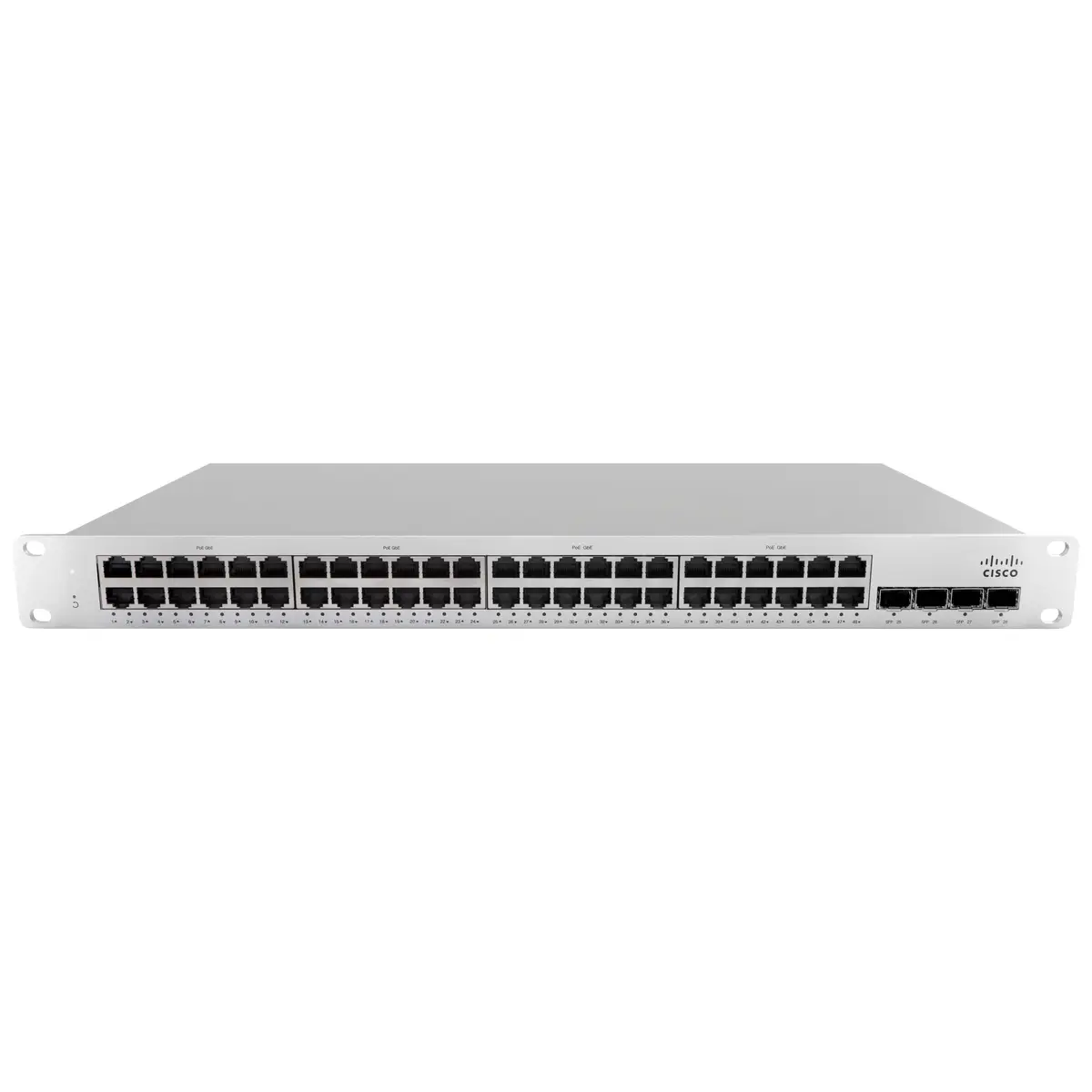

The Cisco Meraki MS is a cloud-managed switch. This means that the benefits of the cloud, such as simplified management, reduced complexity, network-wide visibility and control, and reduced costs in branch and campus deployments, can also be enjoyed in the corporate network.
The concept of Meraki Switches is completely designed for easy management , but does not compromise on the performance and flexibility that enterprise-class switches must provide.
For example, Cisco Meraki switches are managed not through a cryptic command line, but through an intuitive cloud interface. Meraki switches can be used immediately after connection - there is no need for complicated configuration files or pre-staging.
| Product colour | Silver |
| Stackable | Y |
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 439,585 std |
| Physical stacking (units) | 8 |
| Supported network protocols | LLDP, CDP |
| AC input voltage | 100 - 240 |
| AC input frequency | 47/63 |
| Power consumption (max) | 42 W |
| Number of queues | 8 |
| Throughput | 77.38 Mpps |
| Screws included | Y |
| Power consumption (typical) | 25 W |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,I |
| Rack mounting | Y |
| Flow control support | Y |
| Switching capacity | 176 Gbit/s |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | 0 - 40 |
| Weight | 3,980 g |
| Height | 43.8 mm |
| Width | 484.6 mm |
| Depth | 340 mm |
| Form factor | 1U |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| MAC address table | 32,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Number of VLANs | 4,094 |
| Jumbo frames | 9,578 |
| Port mirroring | Y |
| Auto-negotiation | Y |
| Broadcast storm control | Y |
| IP routing | Y |
| Spanning tree protocol | Y |
| 10G support | N |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Power over Ethernet (PoE) | N |
| Multicast support | Y |
| Password protection | Y |
| Security algorithms | 802.1x RADIUS,SNMP |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP snooping,DHCP relay |
| Root protection | Y |
| BPDU filtering/protection | Y |
| Firmware upgradeable | Y |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Switch type | Managed |
| System event log | Y |
| Switch layer | L3 |
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Power over Ethernet (PoE) N
Switch type Managed
The Cisco Meraki MS is a cloud-managed switch. This means that the benefits of the cloud, such as simplified management, reduced complexity, network-wide visibility and control, and reduced costs in branch and campus deployments, can also be enjoyed in the corporate network.
The concept of Meraki Switches is completely designed for easy management , but does not compromise on the performance and flexibility that enterprise-class switches must provide.
For example, Cisco Meraki switches are managed not through a cryptic command line, but through an intuitive cloud interface. Meraki switches can be used immediately after connection - there is no need for complicated configuration files or pre-staging.
| Product colour | Silver |
| Stackable | Y |
| Harmonized System (HS) code | 85176990 |
| Mean time between failures (MTBF) | 439,585 std |
| Physical stacking (units) | 8 |
| Supported network protocols | LLDP, CDP |
| AC input voltage | 100 - 240 |
| AC input frequency | 47/63 |
| Power consumption (max) | 42 W |
| Number of queues | 8 |
| Throughput | 77.38 Mpps |
| Screws included | Y |
| Power consumption (typical) | 25 W |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,I |
| Rack mounting | Y |
| Flow control support | Y |
| Switching capacity | 176 Gbit/s |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | 0 - 40 |
| Weight | 3,980 g |
| Height | 43.8 mm |
| Width | 484.6 mm |
| Depth | 340 mm |
| Form factor | 1U |
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| MAC address table | 32,000 entrie |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Number of VLANs | 4,094 |
| Jumbo frames | 9,578 |
| Port mirroring | Y |
| Auto-negotiation | Y |
| Broadcast storm control | Y |
| IP routing | Y |
| Spanning tree protocol | Y |
| 10G support | N |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Power over Ethernet (PoE) | N |
| Multicast support | Y |
| Password protection | Y |
| Security algorithms | 802.1x RADIUS,SNMP |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| DHCP features | DHCP snooping,DHCP relay |
| Root protection | Y |
| BPDU filtering/protection | Y |
| Firmware upgradeable | Y |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Switch type | Managed |
| System event log | Y |
| Switch layer | L3 |
