- Back USV 500VA CS
















+3 Images
8 Images
















Product description
This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
Technical specifications
Logistics data
Products per pallet | 48 ST |
Products per master (outer) case | 1 ST |
Weight & dimensions
Weight | 6,320 g |
Power
Battery recharge time | 8 std |
Power protection features | Overload |
Surge protection | Y |
Lieferumfang
Cables included | Phone (RJ-11),USB cable |
Verpackungsdaten
Bundled software | PowerChute Personal Edition |
Warranty card | Y |
Software CD | Y |
Quick installation guide | Y |
Package weight | 7,050 g |
Package depth | 368 mm |
Package width | 241 mm |
Package height | 178 mm |
Sonstige Funktionen
USB port | Y |
Input frequency | 50/60 |
Output power | 300 W |
Noise level | 40 dB |
Nominal input voltage | 230 |
Nominal output voltage | 230 |
Sustainability
Sustainability certificates | ENERGY STAR,Green Premium |
Operational conditions
Operating relative humidity (H-H) | 0 - 95 |
Storage temperature (T-T) | -15 - 45 |
Operating temperature (T-T) | 0 - 40 |
Operating altitude | 0 - 3000 |
Storage relative humidity (H-H) | 0 - 95 |
Non-operating altitude | 0 - 15000 |
Battery
Battery technology | Sealed Lead Acid (VRLA) |
Battery voltage | 12 V |
Waveform | Sine |
Battery capacity | 7 Ah |
Automatic battery test | Y |
Typical backup time at half load | 13.8 min |
Battery capacity | 83 Vah |
Typical backup time at full load | 3.8 min |
Battery life (max) | 6 |
Ergonomics
LED indicators | Battery replacement |
Features
Height | 165 mm |
Width | 91 mm |
Depth | 284 mm |
Cable length | 1.83 m |
Audible alarm(s) | Y |
Output frequency regulation | 47 - 63 |
Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Telephone |
UPS topology | Standby (Offline) |
Audible alarm modes | Low battery alarm,Overload alarm |
Efficiency | 99 % |
Surge energy rating | 310 J |
Output power capacity | 0.5 kVA |
Input operation voltage (max) | 300 V |
Input operation voltage (min) | 160 V |
Hold time (min) | 6 ms |
Hold time (max) | 10 ms |
Mouse
Form factor | Tower |
Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH |
Ports & interfaces
Power plug | C14 coupler |
AC outlet types | C13 coupler |
Number of output IEC jumpers | 2 |
AC outlets quantity | 4 AC out |
Security
Filtering | Y |
Design
Product colour | Beige |
Downloads
138195_document_DE_001
PDF Download
ID: 138195
APC ID: BK500EI

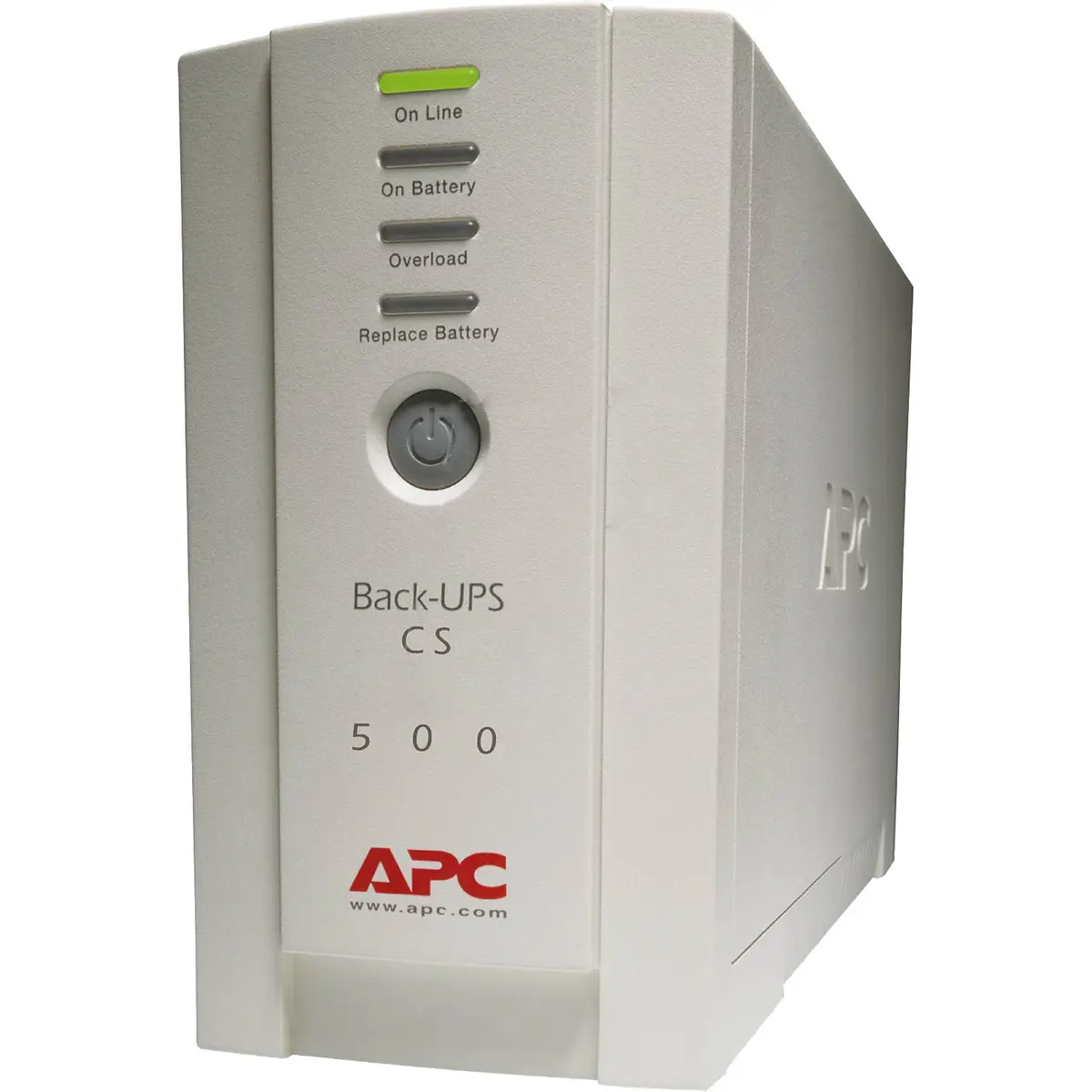

Back USV 500VA CS
Detailed product title
Detailed product title
APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 83 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
