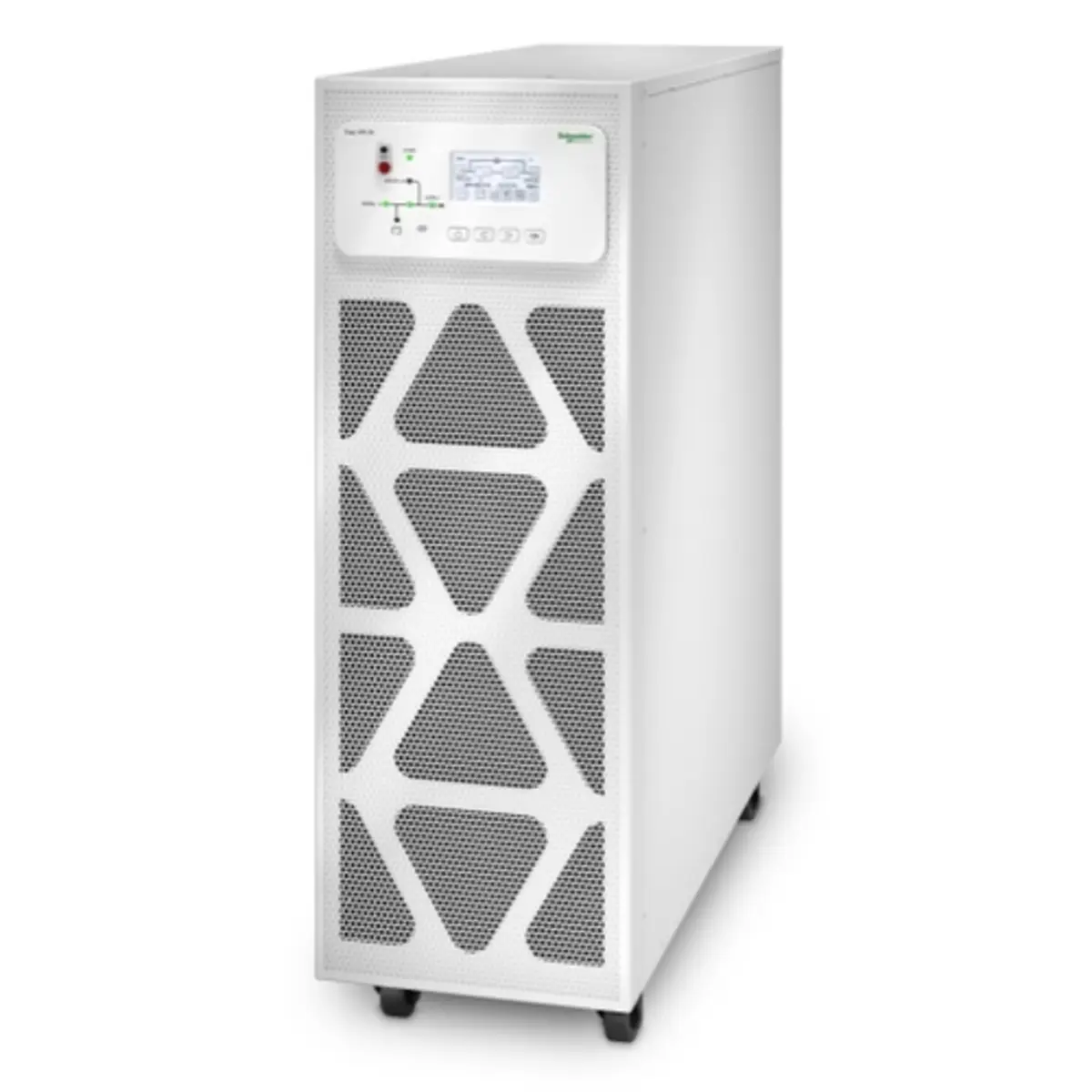

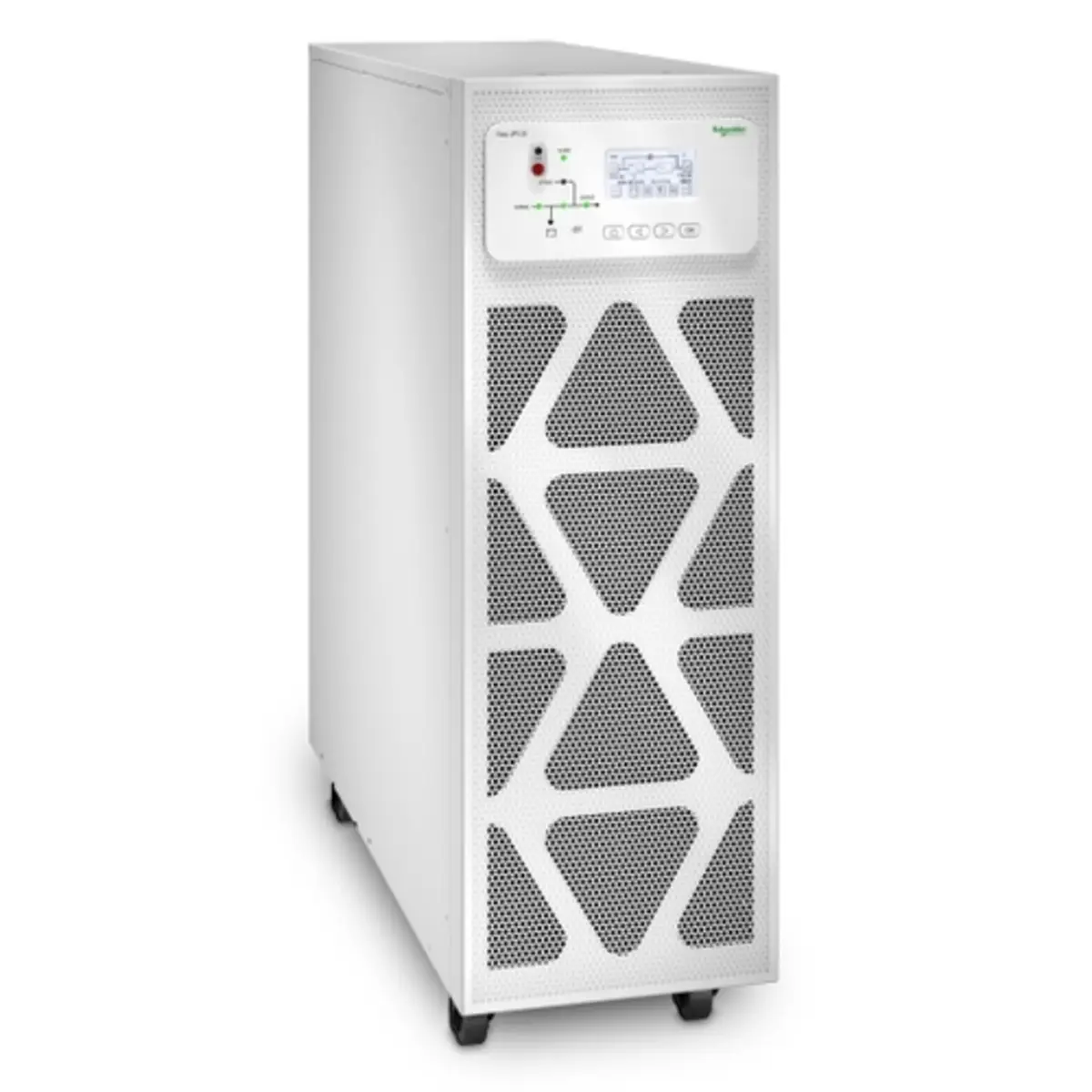

- E3SUPS30K3I, Doppelwandler (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
2 Images
Product description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Technical specifications
Design
| Product colour | White |
| Form factor | Tower |
Maus
| Certification | CE, EAC, IEC 62040-1-1,IEC 62040-2, IEC 62040-3, |
Merkmale
| Power factor | 0.99 |
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Nachhaltigkeit
| Sustainability certificates | RoHS |
Verpackungsdaten
| Package weight | 77,000 g |
| Package depth | 982 mm |
| Package width | 400 mm |
| Package height | 1,015 mm |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 40 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 1000 |
| Non-operating altitude | 0 - 15240 |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| Input frequency | 45/65 |
| Output power | 30,000 W |
| Noise level | 63 dB |
Gewicht und Abmessungen
| Weight | 60,000 g |
| Height | 770 mm |
| Width | 250 mm |
| Depth | 800 mm |
ID: 521415
APC ID: E3SUPS30K3I
E3SUPS30K3I, Doppelwandler (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Detailed product title
Detailed product title
APC E3SUPS30K3I. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 30 kVA, Ausgangsleistung: 30000 W. Formfaktor: Tower, Pro duktfarbe: Weiß, Internationale Schutzart (IP-Code): IP20. Breite: 250 mm, Tiefe: 800 mm, Höhe: 770 mm
2 Images
Product colour White
Gross:
incl.
vat.
will be ordered especially for you
Added to cart
Gross:
incl.
vat.
will be ordered especially for you
Product description
High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, so you can easily customize the battery solution.
Technical specifications
Design
| Product colour | White |
| Form factor | Tower |
Maus
| Certification | CE, EAC, IEC 62040-1-1,IEC 62040-2, IEC 62040-3, |
Merkmale
| Power factor | 0.99 |
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 30 kVA |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Nachhaltigkeit
| Sustainability certificates | RoHS |
Verpackungsdaten
| Package weight | 77,000 g |
| Package depth | 982 mm |
| Package width | 400 mm |
| Package height | 1,015 mm |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 40 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 1000 |
| Non-operating altitude | 0 - 15240 |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| Input frequency | 45/65 |
| Output power | 30,000 W |
| Noise level | 63 dB |
Gewicht und Abmessungen
| Weight | 60,000 g |
| Height | 770 mm |
| Width | 250 mm |
| Depth | 800 mm |
