- E3SUPS30K3IB, Doppelwandler (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
1 Images
Product description

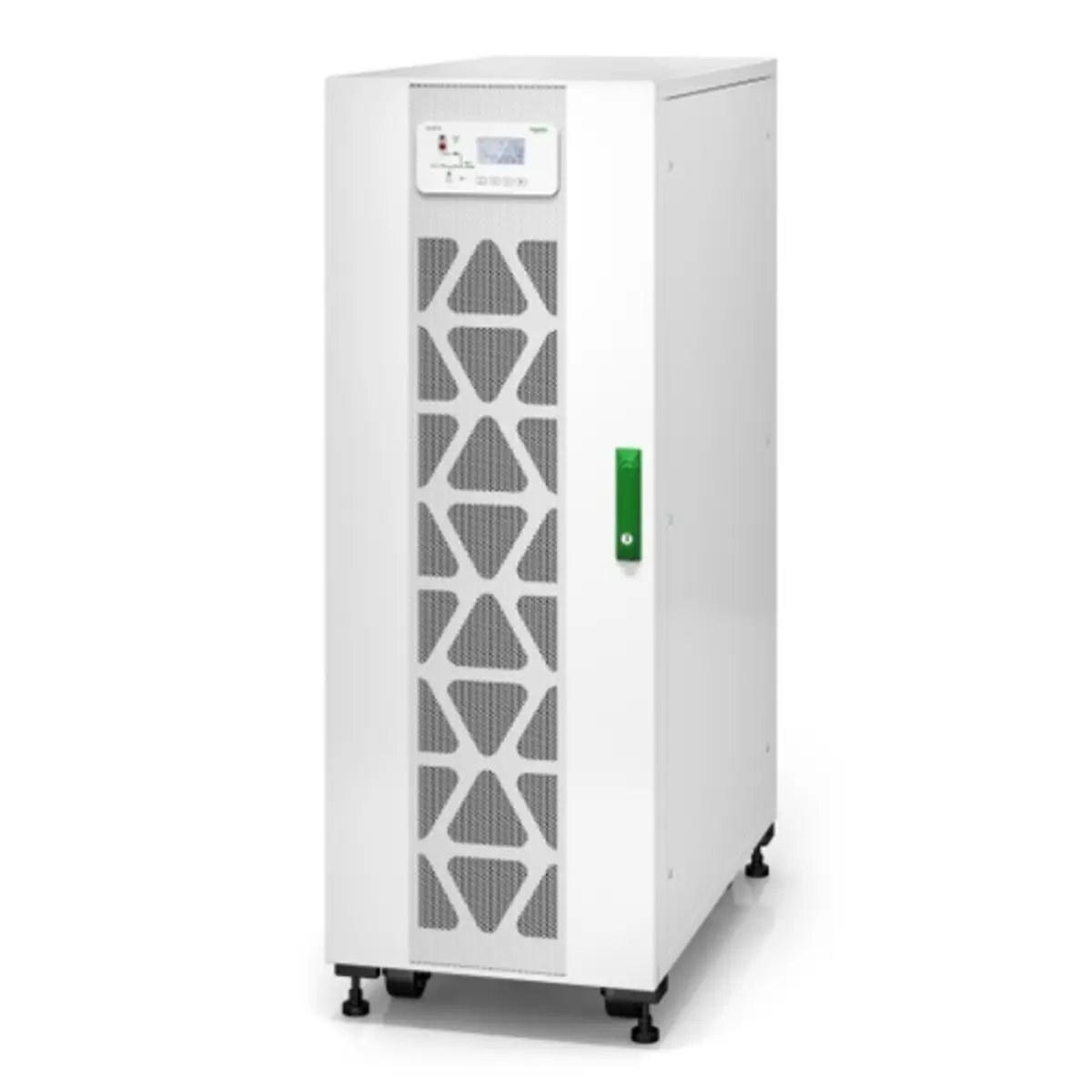

High-efficiency 3-phase UPS that features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 30 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. This UPS is for internal batteries, but is supplied without batteries, so you can easily customize the battery runtime. For battery runtime details, see the runtime charts published under the Documents tab.
Technical specifications
Design
| Product colour | White |
| Form factor | Tower |
Maus
| Certification | REACH, CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62 |
Merkmale
| Crest factor | 3:1 |
| UPS topology | Double-conversion (Online) |
| Input power factor | 0.99 |
| Input current Total Harmonic Distortion (THD) | 5 % |
| Output power capacity | 30 kVA |
| Output voltage Total Harmonic Distortion (THD) | 1.5 % |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 |
Batterie
| Battery voltage | 240 V |
Nachhaltigkeit
| Sustainability certificates | RoHS |
Stromversorgung
| Battery technology | Sealed Lead Acid (VRLA) |
Verpackungsdaten
| Package weight | 185,000 g |
| Package depth | 1,114 mm |
| Package width | 683 mm |
| Package height | 1,640 mm |
Leistung
| Number of batteries supported | 4 |
| Maximum current | 55 A |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 40 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 984.3 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Sonstige Funktionen
| International Protection (IP) code | IP20 |
| Input frequency | 45/65 |
| Output power | 30,000 W |
| Noise level | 63 dB |
Gewicht und Abmessungen
| Height | 1,400 mm |
| Width | 500 mm |
| Depth | 996 mm |
ID: 521414
APC ID: E3SUPS30K3IB
E3SUPS30K3IB, Doppelwandler (Online), 30 kVA, 30000 W, 304 V, 477 V, 45/65 Hz
Detailed product title
Detailed product title
APC E3SUPS30K3IB. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 30 kVA, Ausgangsleistung: 30000 W. Akku-/Batterietechnol ogie: Plombierte Bleisäure (VRLA), Akku-/Batteriespannung: 240 V. Formfaktor: Tower, Produktfarbe: Weiß, Internationale Schutzart ( P-Code): IP20. Breite: 500 mm, Tiefe: 996 mm, Höhe: 1400 mm
