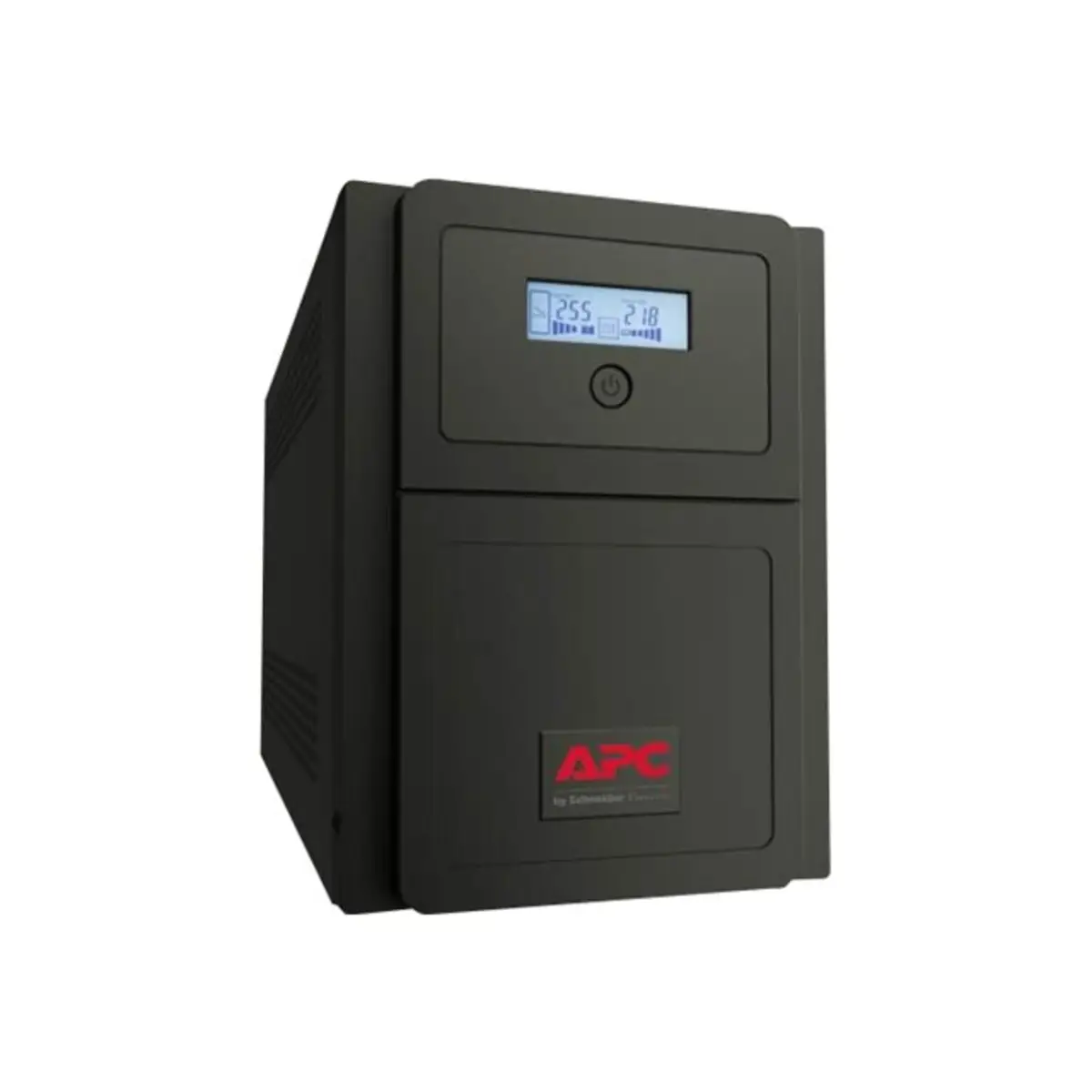

- Easy UPS SMV, Line-Interaktiv, 0,75 kVA, 525 W, Sine, 160 V, 295 V

1 Images


Product description
This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.
Technical specifications
Weight & dimensions
Weight | 13,600 g |
Battery weight | 16,600 g |
Battery width | 272 mm |
Battery height | 339 mm |
Battery depth | 508 mm |
Power
Battery recharge time | 4 std |
Maximum current | 8 A |
Power protection features | Overload,Short circuit |
Lieferumfang
Cables included | USB cable |
Sonstige Funktionen
Manual | Y |
International Protection (IP) code | IP20 |
USB port | Y |
Input frequency | 45/65 |
Output power | 525 W |
Noise level | 45 dB |
Operational conditions
Operating relative humidity (H-H) | 0 - 95 |
Storage temperature (T-T) | -10 - 40 |
Operating temperature (T-T) | 0 - 40 |
Operating altitude | 0 - 3000 |
Storage relative humidity (H-H) | 0 - 95 |
Battery
Battery technology | Sealed Lead Acid (VRLA) |
Number of batteries supported | 2 |
Battery voltage | 12 V |
Waveform | Sine |
Battery capacity | 7 Ah |
Cold start | Y |
Battery life (max) | 5 |
Ergonomics
LED indicators | Y |
Features
Height | 220 mm |
Width | 160 mm |
Depth | 410 mm |
Audible alarm(s) | Y |
Output voltage regulation | -1 - 1 |
Crest factor | 3:1 |
UPS topology | Line-Interactive |
Audible alarm modes | Alarm when on battery,Low battery alarm,Overload alarm |
Automatic Voltage Regulation (AVR) | Y |
Output power capacity | 0.75 kVA |
Input operation voltage (max) | 295 V |
Input operation voltage (min) | 160 V |
Output operation voltage (min) | 230 V |
Output operation voltage (max) | 230 V |
Output frequency | 50/60 |
Mouse
Form factor | Tower |
Ports & interfaces
AC outlet types | IEC 320 |
AC outlets quantity | 6 AC out |
Design
Product colour | Black |
Downloads
356157_document_EN_001
PDF Download
ID: 356157
APC ID: SMV750CAI
Easy UPS SMV, Line-Interaktiv, 0,75 kVA, 525 W, Sine, 160 V, 295 V
Detailed product title
Detailed product title
APC Easy UPS 1 Ph Line Interactive, 750VA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 525 W. AC outlet types: IEC 320, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Cables included: USB cable
