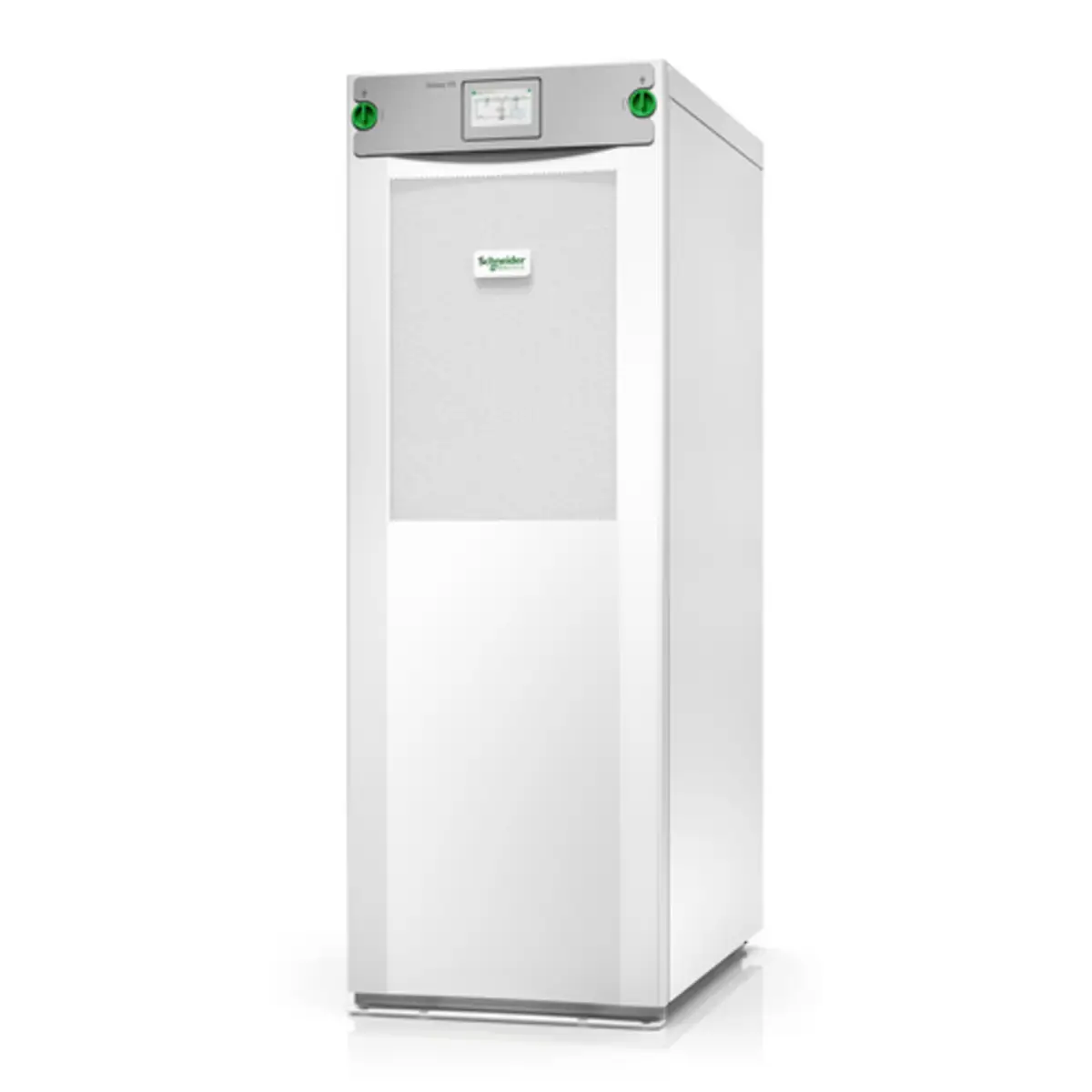

- GVSUPS150KHS, Doppelwandler (Online), 150 kVA, 150000 W, Sine, 340 V, 460 V
1 Images
Product description
GVSUPS15KB4HS Features
- Galaxy VS UPS 15kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 15kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
- Galaxy VS UPS 15kW 400V, 1 internal 9Ah smart modular battery string, expandable to 4, Start-up 5x8
- Highly efficient, easy-to-deploy 15kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service and 1 smart high-capacity modular battery string, expandable to 4 strings for extended runtime. Runtime charts available in the Documents tab.
- Includes: Battery modules ship installed, Dust filter, EcoStruxure Ready ((UPS)), Installation guide, Integrated network management, Power modules ship installed, Start-Up Service
Technical specifications
Design
| Product colour | White |
| Form factor | Tower |
Anschlüsse und Schnittstellen
| SmartSlot | Y |
Maus
| Certification | FCC Part 15 Class A, IEC62040-1-1, IEC 62040-2, I |
Leistungen
| ECO mode | Y |
Merkmale
| Audible alarm(s) | Y |
| Crest factor | 2.5:1 |
| Number of output phases | 3 |
| UPS topology | Double-conversion (Online) |
| Number of input phases | 3 |
| Input power factor | 0.99 |
| Input current Total Harmonic Distortion (THD) | 3 % |
| Output power capacity | 150 kVA |
| Input operation voltage (max) | 460 V |
| Input operation voltage (min) | 340 V |
| Output operation voltage (min) | 380 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 |
Batterie
| Waveform | Sine |
Verpackungsdaten
| Quick installation guide | Y |
| Package weight | 315,000 g |
| Package depth | 990 mm |
| Package width | 640 mm |
| Package height | 1,680 mm |
Leistung
| Maximum current | 270 A |
| Power protection features | Overload,Short circuit |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -25 - 55 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 1000 |
| Storage relative humidity (H-H) | 10 - 80 |
| Non-operating altitude | 0 - 3000 |
Sonstige Funktionen
| International Protection (IP) code | IP21 |
| Input frequency | 40/70 |
| Output power | 150,000 W |
| Noise level | 65 dB |
Gewicht und Abmessungen
| Weight | 290,000 g |
| Height | 1,485 mm |
| Width | 521 mm |
| Depth | 847 mm |
ID: 521408
APC ID: GVSUPS150KHS
GVSUPS150KHS, Doppelwandler (Online), 150 kVA, 150000 W, Sine, 340 V, 460 V
Detailed product title
Detailed product title
APC GVSUPS150KHS. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 150 kVA, Ausgangsleistung: 150000 W. Formfaktor: Tower, Produktfarbe: Weiß, Display-Typ: LCD. Breite: 521 mm, Tiefe: 847 mm, Höhe: 1485 mm
