- Server
- Accessories

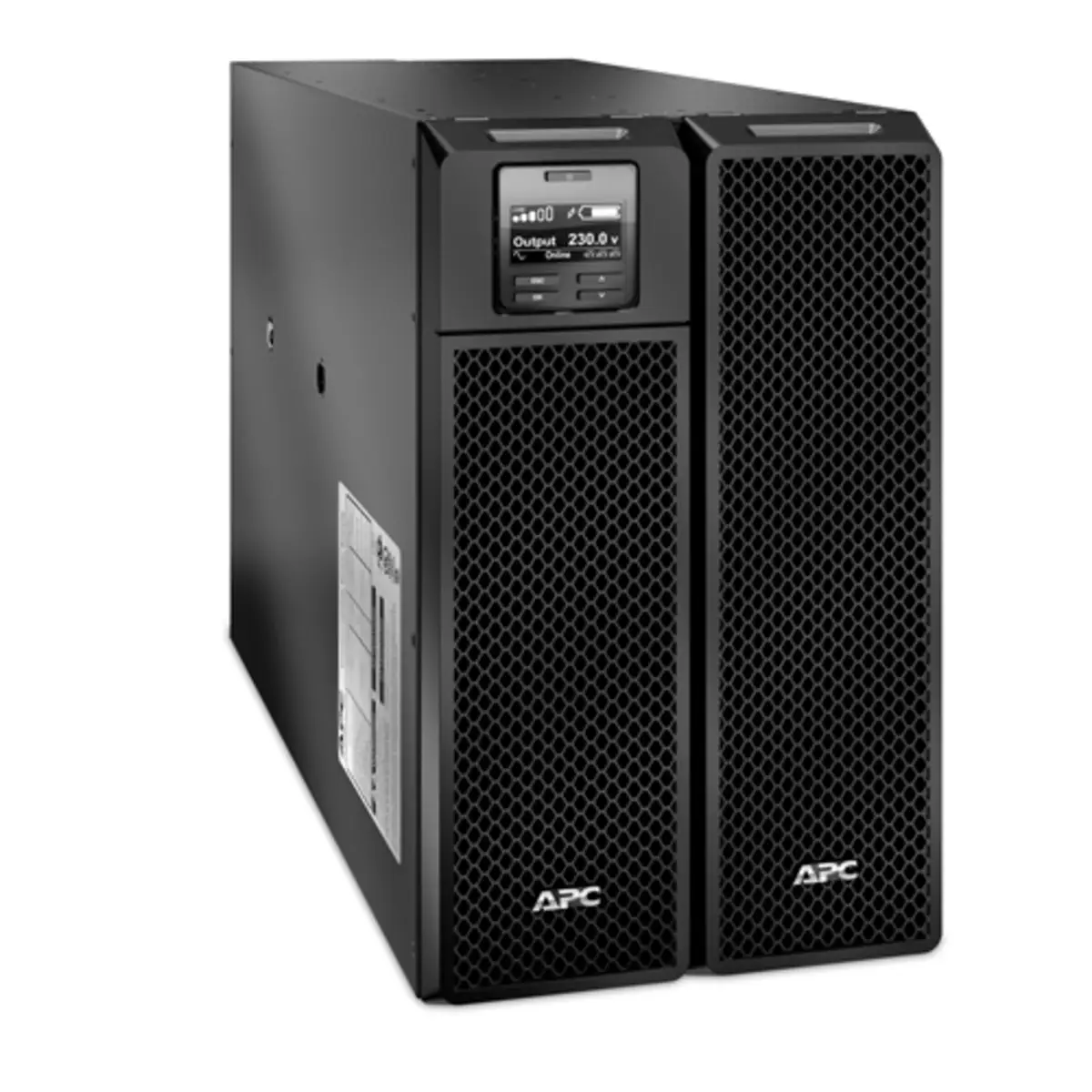

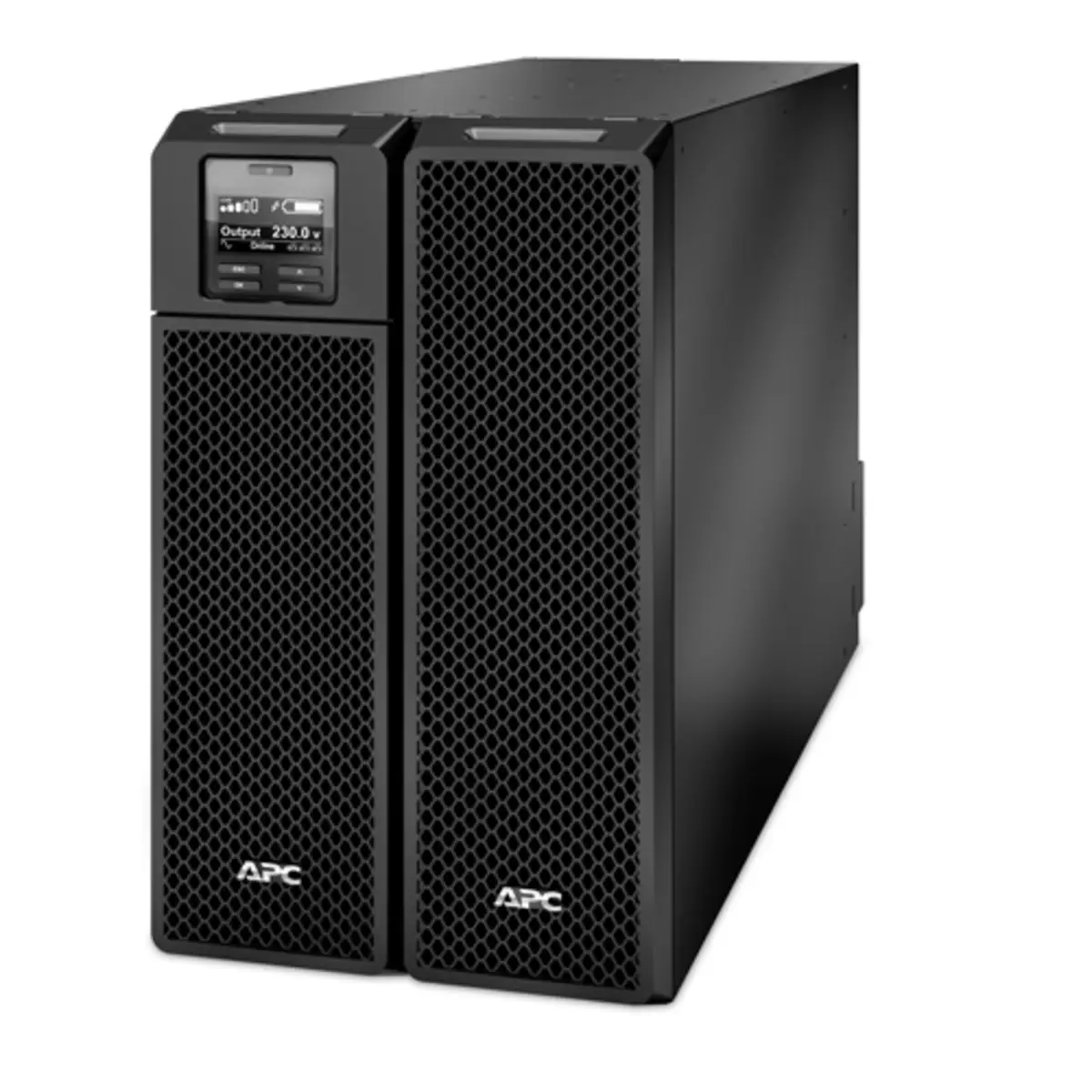

- Smart-UPS On-Line, Doppelwandler (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
4 Images
Product description
Maintain consistent print quality and system uptime with the easy to install 220-volt fuser. Ensure reliable paper picking by refreshing your pick rollers.
Technical specifications
Design
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Temperature sensor | Y |
| LED indicators | Y |

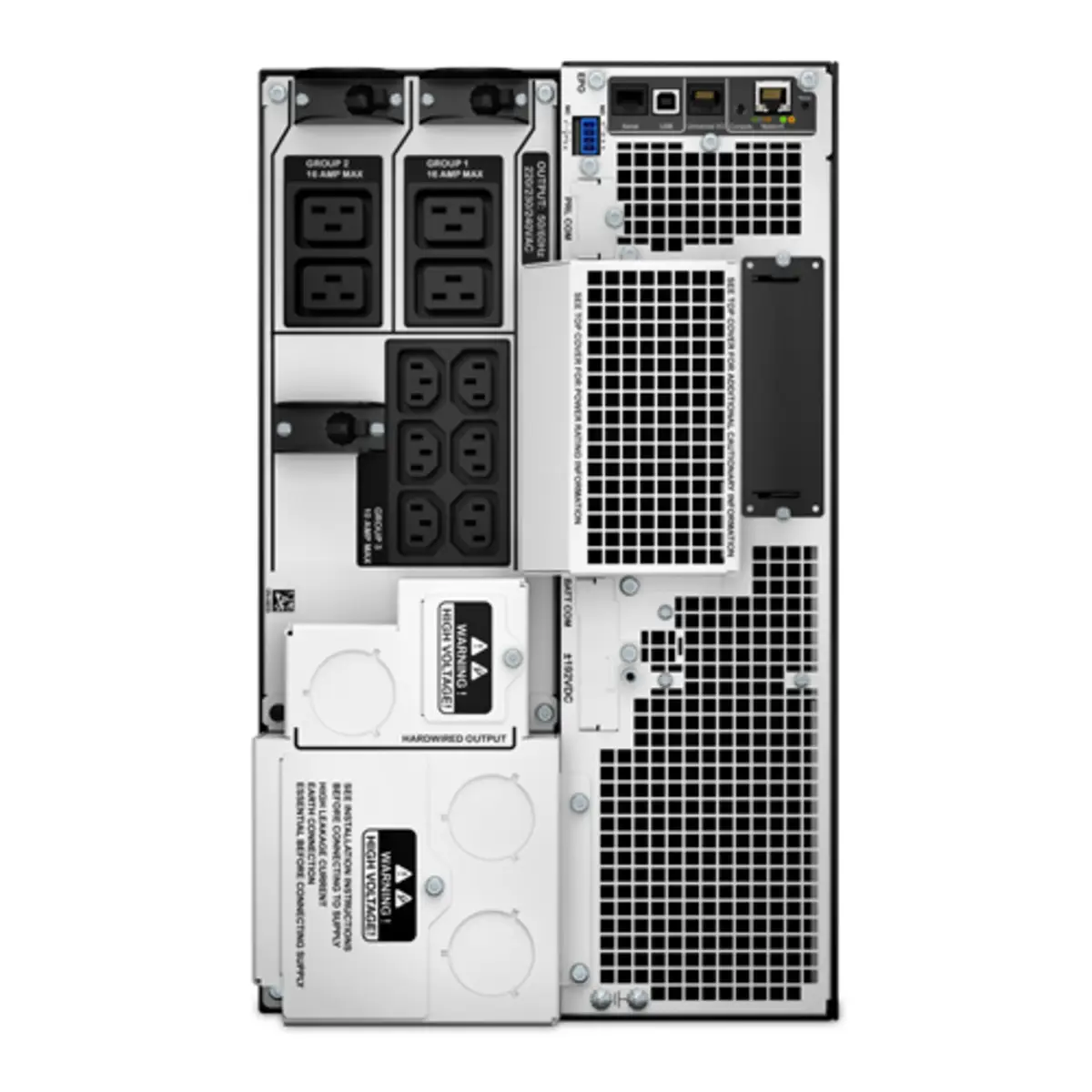

Anschlüsse und Schnittstellen
| Serial interface type | RJ-45 |
| Power plug | Terminal |
| AC outlet types | C13 coupler,C19 coupler |
| Number of output IEC jumpers | 3 |
| Serial interface | Y |
| SmartSlot | Y |
| AC outlets quantity | 10 AC out |
Maus
| Certification | CE, CE Mark, EAC, EN/IEC62040-1, EN/IEC 62040-2, |
Merkmale
| Audible alarm(s) | Y |
| Output frequency regulation | 50/60 |
| Crest factor | 3:1 |
| Number of output phases | 1 |
| UPS topology | Double-conversion (Online) |
| Auto-restart | Y |
| Emergency Power Off (EPO) | Y |
| Efficiency | 94.6 % |
| Surge energy rating | 480 J |
| Output power capacity | 10 kVA |
| Input operation voltage (max) | 476 V |
| Input operation voltage (min) | 100 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
Batterie
| Hot-swap battery | Y |
| Waveform | Sine |
| Cold start | Y |
| Automatic battery test | Y |
| Typical backup time at half load | 11.5 min |
| Battery capacity | 1,805 Vah |
| Typical backup time at full load | 3.8 min |
| Battery life (max) | 5 |
Nachhaltigkeit
| Sustainability certificates | RoHS,ENERGY STAR |
Stromversorgung
| Battery technology | Sealed Lead Acid (VRLA) |
Lieferumfang
| Cables included | USB cable |
Verpackungsdaten
| Warranty card | Y |
| Software CD | Y |
| Quick installation guide | Y |
| Package weight | 126,820 g |
| Package depth | 1,000 mm |
| Package width | 600 mm |
| Package height | 461 mm |
Leistung
| Battery recharge time | 1.5 std |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -15 - 45 |
| Operating temperature (T-T) | 0 - 40 |
| Operating altitude | 0 - 3000 |
| Storage relative humidity (H-H) | 0 - 95 |
| Non-operating altitude | 0 - 15000 |
Sonstige Funktionen
| Interface | RJ-45 10/100 Base-T |
| International Protection (IP) code | IP20 |
| USB port | Y |
| Input frequency | 40/70 |
| Output power | 10,000 W |
| Noise level | 55 dB |
| Nominal input voltage | 230 |
| Nominal output voltage | 230 |
Gewicht und Abmessungen
| Weight | 111,820 g |
| Height | 432 mm |
| Width | 263 mm |
| Depth | 715 mm |
ID: 126048
APC ID: SRT10KXLI
Smart-UPS On-Line, Doppelwandler (Online), 10 kVA, 10000 W, Sine, 100 V, 476 V
Detailed product title
Detailed product title
APC Smart-UPS On-Line. USV-Topologie: Doppelwandler (Online), Ausgangskapazität: 10 kVA, Ausgangsleistung: 10000 W. AC-Steckertypen: C13-Koppler, C19-Koppler, Stecker: Terminal, Anzahl der AC-Ausgänge: 10 AC-Ausgänge. Akku-/Batterietechnologie: Plombierte Bleisäu e (VRLA), Batteriekapazität: 1805 VAh, Typische Backup-Zeit bei voller Belastung: 3,8 min. Formfaktor: Rackmount/Tower, Produktfarb : Schwarz, Internationale Schutzart (IP-Code): IP20. Breite: 263 mm, Tiefe: 715 mm, Höhe: 432 mm
