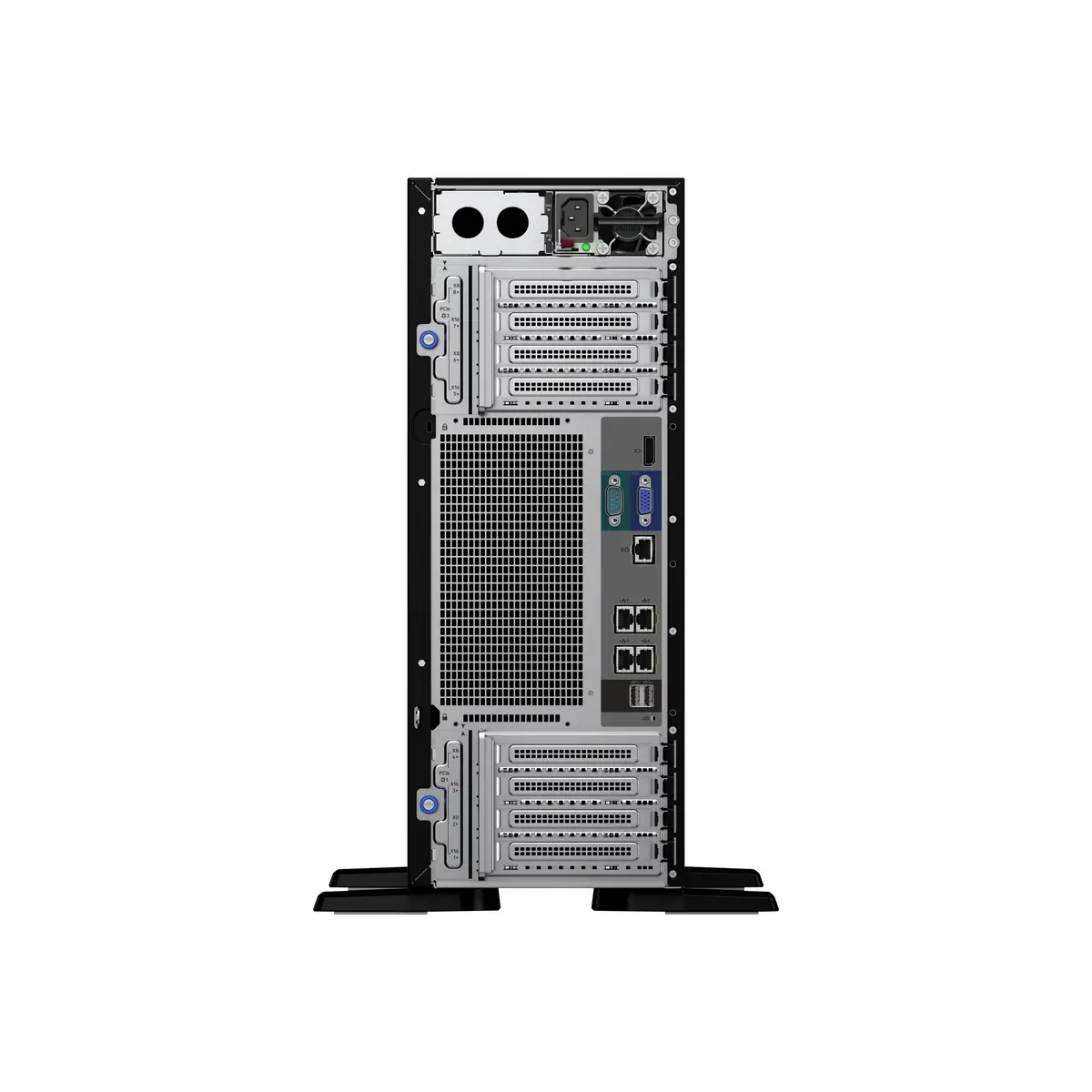

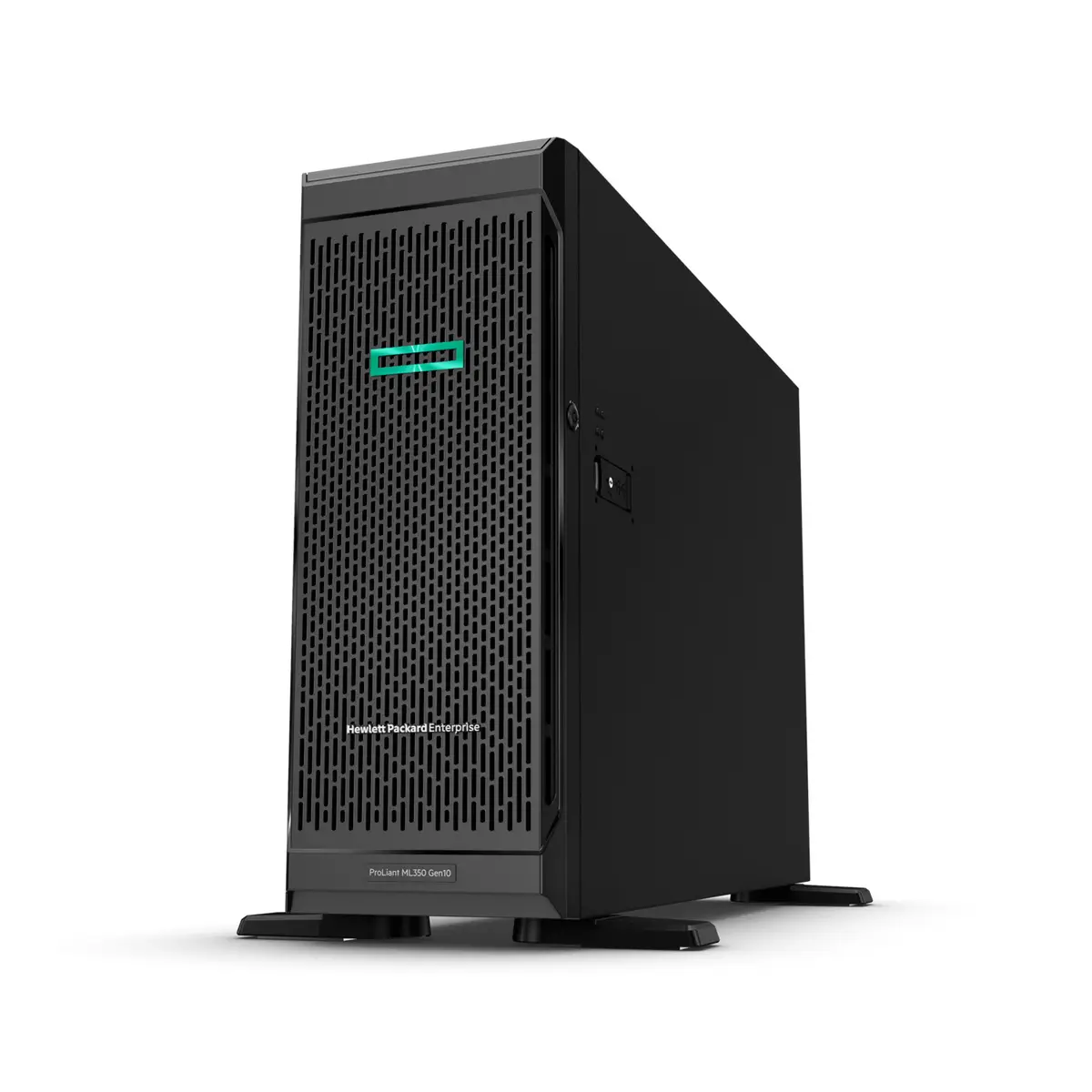

2 Images
Product description
Do you need a robust server for your SMB and remote offices? HPE ProLiant ML350 Gen10 Server delivers a secure dual-socket tower server with performance, expandability, and proven reliability making it the choice for expanding SMBs, remote offices of larger businesses, and enterprise data centers. HPE ML350 Gen10 Server leverages the Intel® Xeon® Scalable processors with up to 71% performance gain and 27% increase in cores, along with the 2666 MT/s HPE DDR4 SmartMemory supports up to 3.0 TB and 11% faster than 2400 MT/s. The shorter re-designed rackable chassis with multiple upgrade options provides flexibility that can expand as your business needs grow. It supports 12 Gb/s SAS, NVMe SSD, embedded 4x1GbE NIC with a broad range of graphics and compute options. Supported by the HPE Pointnext industry-leading service organization and ease of deployment, HPE ML350 Gen10 Server helps you transform to a digital business with more agility and all within your limited IT budget.
Features
Perform with Unmatched Versatility
- HPE ProLiant ML350 Gen10 Server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.
- Up to 24 DIMM slots to support the 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
- It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.
- GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.
- With the new addition of NVIDIA Tesla T4 and NVIDIA Quadro RTX8000/6000/4000 GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.
Expand When Your Business Needs Grow
- HPE ProLiant ML350 Gen10 Server delivers expandability with a wide range of drive upgrade options. Supporting 8 to 24 SFF or 16 SFF when mixed with optional 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive options protecting your IT investment in hybrid environment.
- Large expansion capacity with (8) PCIe slots, (6) USB ports, 5U rack conversion, and power supply options.
- Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Security Innovations
- HPE Integrated Lights Out 5 (iLO 5) enables the world's most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- iLO 5 security features include Server Configuration Lock to ensure secure transit, iLO Security Dashboard helps detect and address possible security vulnerabilities in server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.
- With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Industry Leading Services and Ease of Deployment
- The HPE ProLiant ML350 Gen10 Server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.
- Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
- Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Features
Perform with Unmatched Versatility
- HPE ProLiant ML350 Gen10 Server supports up to two Intel Xeon Scalable processors, starting from Bronze through Platinum, 4 cores expanding up to 28 core processors offering unparalleled performance.
- Up to 24 DIMM slots to support the 2600 MT/s HPE DDR4 SmartMemory, reducing data loss and downtime with the HPE Gen10 technology licensed Fast Fault Tolerance feature while increasing workload performance and power efficiency.
- It supports a wide range of solutions from Azure to Docker to ClearOS along with the traditional operating systems.
- GPU expansion supports up to four units to accelerate performance in VDI applications and machine learning for financial services, surveillance and security, educational and scientific research, as well as retail and medical imaging.
- With the new addition of NVIDIA Tesla T4 and NVIDIA Quadro RTX8000/6000/4000 GPU option support, it transforms into a even more powerful AI Tower server with high-speed GPU connection, ray-tracing and AI.
Expand When Your Business Needs Grow
- HPE ProLiant ML350 Gen10 Server delivers expandability with a wide range of drive upgrade options. Supporting 8 to 24 SFF or 16 SFF when mixed with optional 8 NVMe PCIe solid state drives, 4 to 12 LFF hot plug or non-hot plug drive options protecting your IT investment in hybrid environment.
- Large expansion capacity with (8) PCIe slots, (6) USB ports, 5U rack conversion, and power supply options.
- Embedded 4x1GbE and the choice of PCIe standup 1GbE, 10GbE or 25GbE adapters provide you the flexibility of networking bandwidth and fabric so you can scale and adapt to different needs as your business grows.
Security Innovations
- HPE Integrated Lights Out 5 (iLO 5) enables the world's most secure industry standard servers with HPE Silicon Root of Trust technology to protect your servers from attacks, detect potential intrusions and recover your essential server firmware securely.
- iLO 5 security features include Server Configuration Lock to ensure secure transit, iLO Security Dashboard helps detect and address possible security vulnerabilities in server setup. Workload Performance Advisor provides server tuning recommendations for better server performance.
- With Runtime Firmware Verification the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware. Secure Recovery allows server firmware to rollback to the to last known good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Industry Leading Services and Ease of Deployment
- The HPE ProLiant ML350 Gen10 Server comes with a complete set of HPE Pointnext services, delivering confidence, reducing risk, and helping customers realize agility and stability.
- Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
- Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.
- HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.
Technical specifications
Design
Chassis type | Tower (4U) |
Anschlüsse und Schnittstellen
Ethernet LAN ports | 4 |
VGA (D-Sub) ports | 1 |
DisplayPorts ports | 1 |
Serial ports quantity | 1 |
USB 3.2 Gen 1 Typ A ports | 4 |
Ethernet LAN | Y |
Prozessor
Processor | 4214R |
Processor cores | 12 |
Execute Disable Bit | Y |
Maximum number of SMP processors | 2 |
Number of processors installed | 1 |
Processor cache | 16.5 MB |
Processor boost frequency | 3.5 GHz |
Processor frequency | 2.4 GHz |
Speicher
Internal memory type | DDR4-SDRAM |
Memory slots | 24x DIMM |
Max. RAM memory | 1,536 GB |
Memory clock speed | 2,933 MHz |
RAM memory | 32 GB |
Memory layout (slots x size) | 1 x 32 |
Netzwerk
LAN controller | Intel 369i |
Ethernet interface type | Gigabit Ethernet |
Speichermedium
Optical drive | N |
SSD interface | SATA,Serial Attached SCSI(SAS) |
HDD interface | SATA,Serial Attached SCSI(SAS) |
RAID support | Y |
Number of HDDs supported | 8 |
Supported SSD sizes | 2.5" |
Number of SSDs supported | 8 |
Supported HDD sizes | 2.5 |
Software
Operating system | N |
Prozessor Besonderheiten
Enhanced Intel SpeedStep Technology | Y |
Intel VT-x with Extended Page Tables (EPT) | Y |
Intel TSX-NI | Y |
Intel 64 | Y |
Intel Virtualization Technology (VT-x) | Y |
Leistungen
Trusted Platform Module (TPM) version | 2.0 |
Trusted Platform Module (TPM) | Y |
Hot-Plug support | Y |
Computersystem
Processor manufacturer | Intel |
Processor family | Intel Xeon Silver |
Grafik
On-board graphics card | Y |
Thin Client
Motherboard chipset | Intel C622 |
Management-Funktionen
Remote administration | iLO 5 ASIC |
Nachhaltigkeit
Sustainability certificates | ENERGY STAR |
Festplatte
RAID levels | 0,1,5,6,10,50,60 |
Leistung
Redundant power supply (RPS) support | Y |
Sonstige Funktionen
Compatible operating systems | Windows Server 2012R2 Windows Server 2016LTSC Wi |
Intel Trusted Execution Technology | Y |
Embedded options available | Y |
Intel Virtualization Technology for Directed I/O (VT-d) | Y |
Power supply | 800 W |
Maximum graphics adapter memory | 16 MB |
Gewicht und Abmessungen
Weight | 21,000 g |
Height | 462.5 mm |
Width | 174 mm |
Depth | 648 mm |
Downloads
550323_document_EN_001
PDF Download
ID: 550323
HP Enterprise ID: P59549-421
HPE ML350 Gen10 Intel Xeon Silver 4214R 1P 32G 8SFF Svr
Detailed product title
Detailed product title
HPE ML350 Gen10 Intel Xeon Silver 4214R 1P 32G 8SFF Svr
