Characteristics

• One USB console controls eight computers with single link DVI or VGA graphics cards and two additional USB 2.0 devices
• Supports both digital (DVI) and analogue (VGA) image output - mixed playback possible
• Cascade connection possible in three levels - control of up to 512 computers
• Multiview operation - connect up to four CS1768 units together and display the image on up to four monitors (two-, three- and four-screen systems)

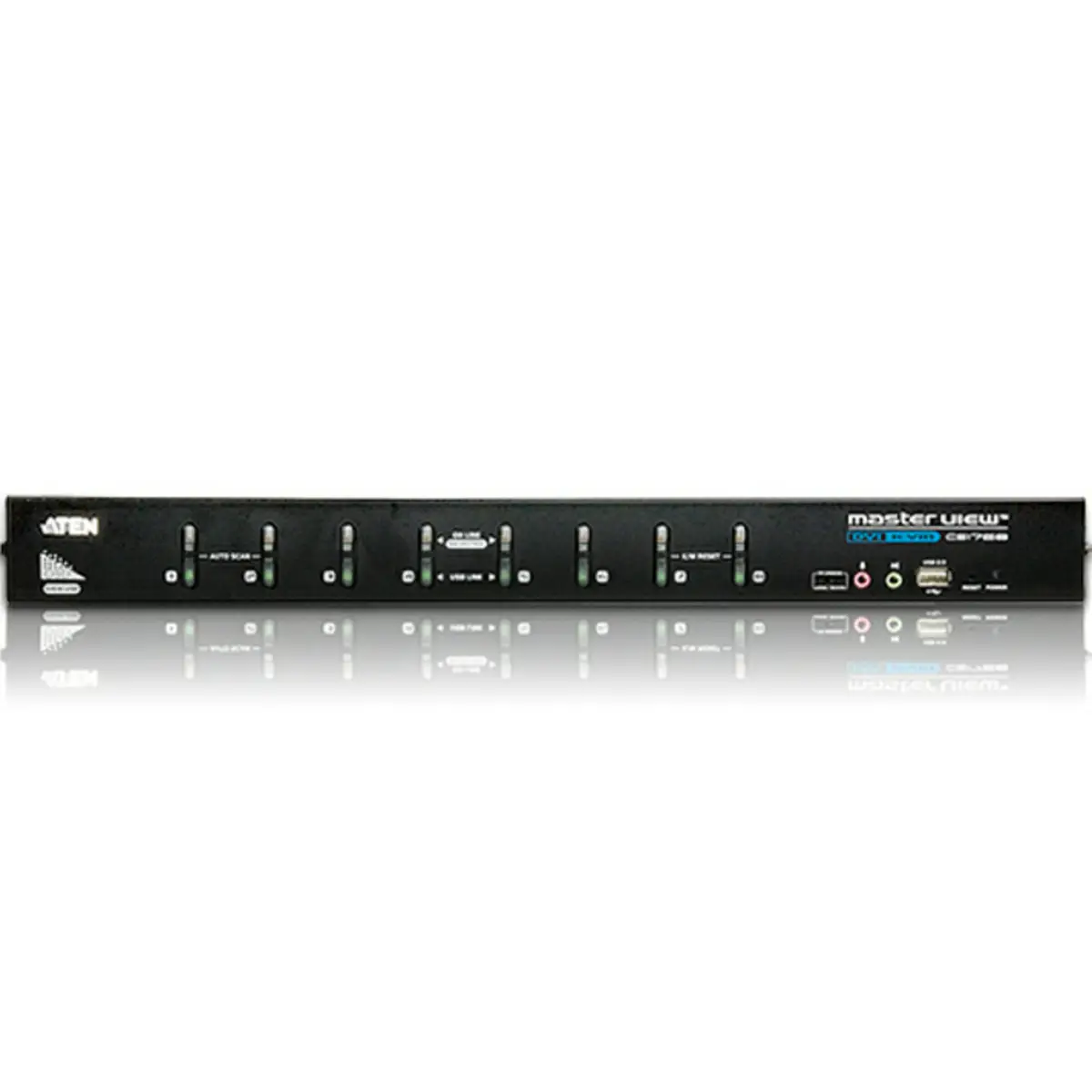

• Selection of computers via push buttons on the front of the device, hotkey shortcuts and multilingual OSD (screen menu)
• OSD backup/restore feature - allows the administrator to back up the switch's configuration and user profiles
• Built-in 2-port USB 2.0 hub
• Fully compatible with USB 2.0 specifications
• Dual level password authentication (administrator/user) for increased security
• Multilingual OSD menu in English, German, Japanese, Chinese (Traditional), Chinese (Simplified), Spanish, Russian and French
• Sound transmission - full bass range for an exceptional sound experience on 2.1 surround sound systems
• Front console audio ports for simplified connection
• Supports numerous platforms - Windows, Linux, Mac, Sun
• Supports common widescreen resolutions
• Outstanding image quality - resolutions up to 1920 x 1200 (DVI Single Link); 2048x1536 (VGA); DDC2B
• Independent switching of KVM and USB
• Supports digital DVI and analog monitors - fully compatible with DVI specifications
• HDCP compatible
• Video DynaSync™- exclusive technology from ATEN to avoid display problems on reboot and optimize resolution when switching ports
• Console with mouse port emulation and bypass function supports most mouse drivers and multifunction mice
• Keyboard emulation for error-free booting
• Supports and emulates Macintosh and Sun keyboards*
• Multilingual keyboard layout - supports English (US), English (UK), French, German, Japanese, Korean
• Automatic port switching for monitoring the connected computers
• Broadcast operation - allows commands to be sent from the console to all computers simultaneously to perform specific tasks at the same time
• Firmware update possible

Note: PC keyboard shortcuts emulate Sun/Mac keyboards; Mac/Sun keyboards only work with Macintosh or Sun computers

Scope of delivery

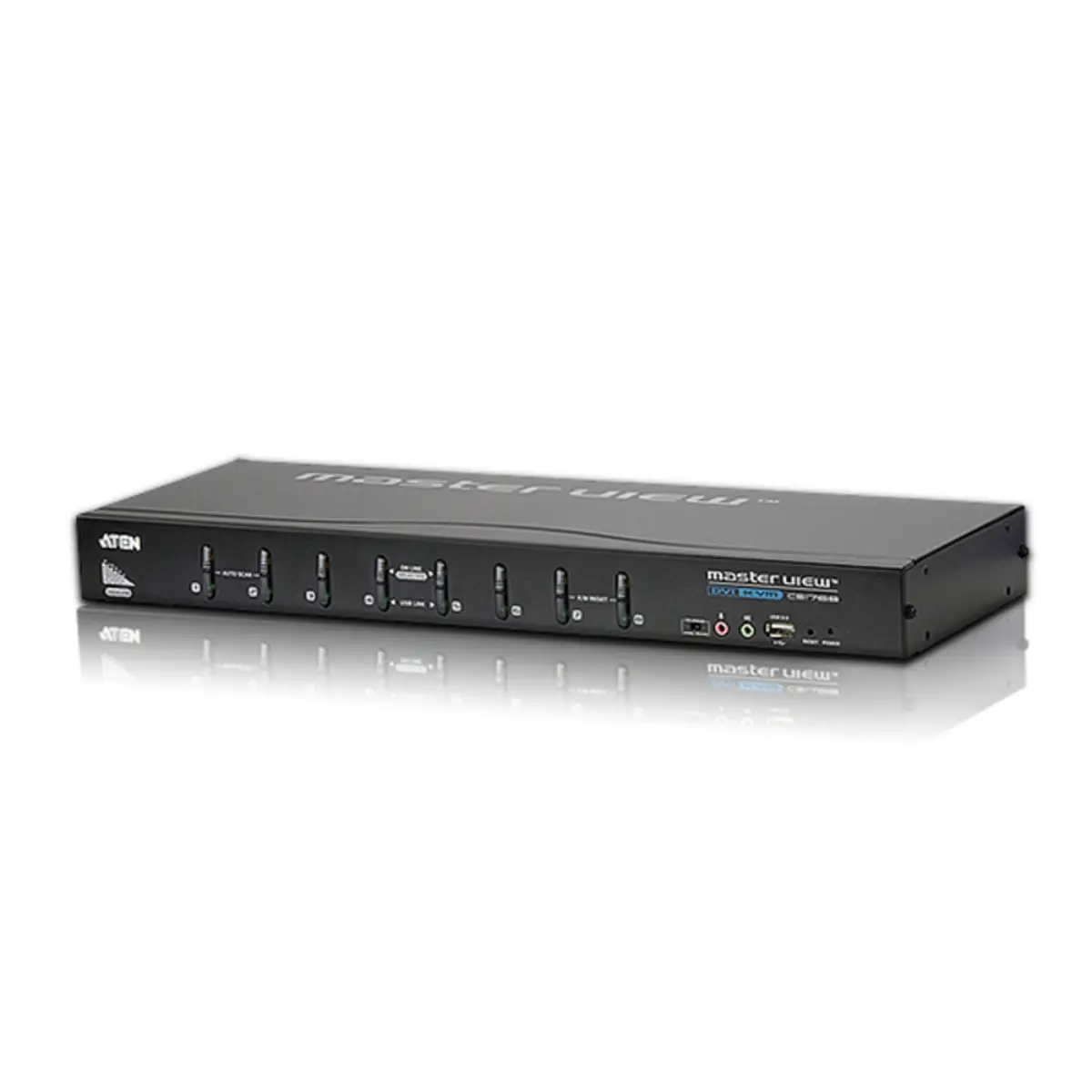

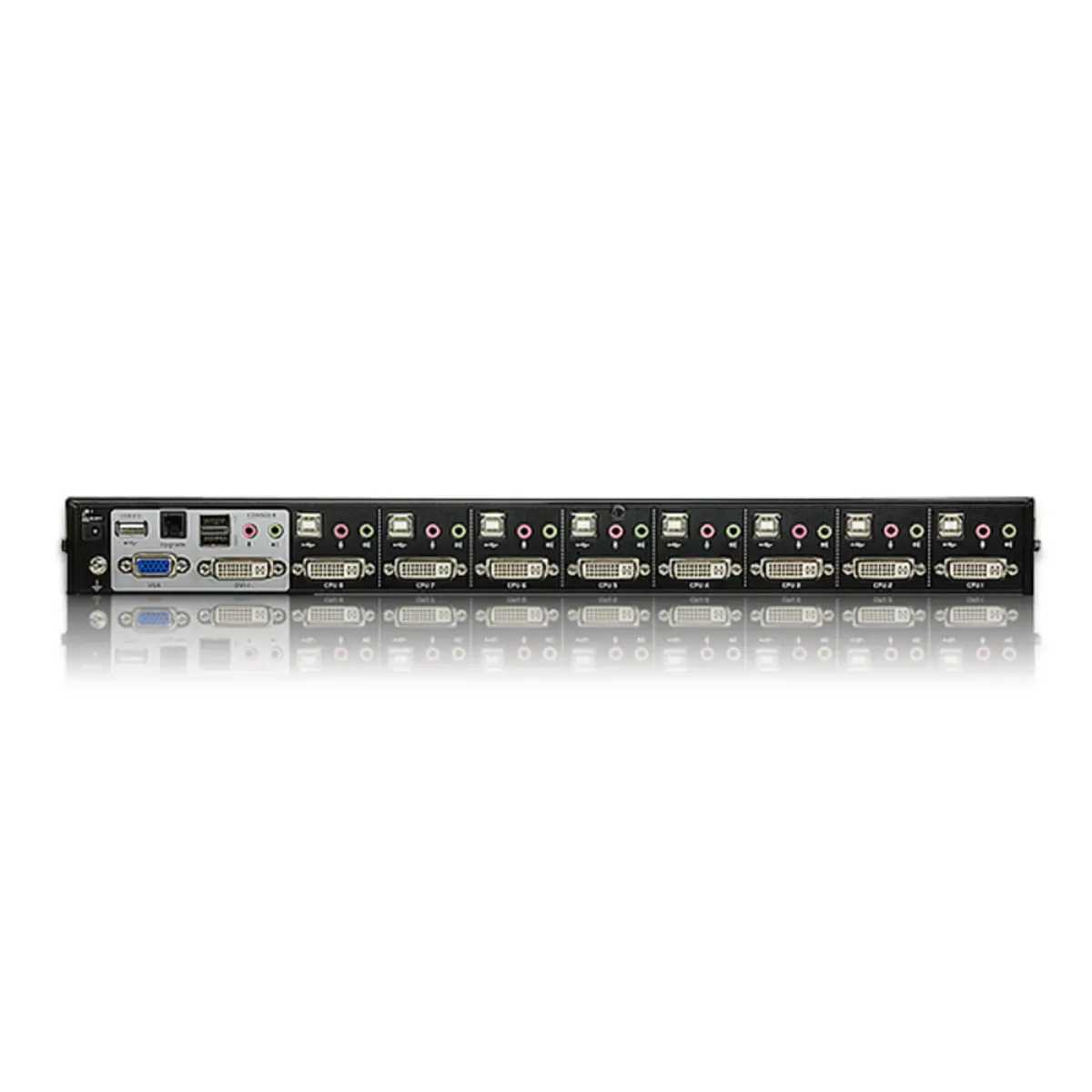

• 1x CS1768 8-Port KVM Switch with USB for DVI Graphics with Rack Mount Kit
• 2x 2L-7D02U KVM cables with USB and DVI-D connectors
• 1x cable for firmware update
• 1x 0AD6-1605-24EG power supply
• 1x stand set (4 pieces)
• 1x user manual
• 1x quick guide
