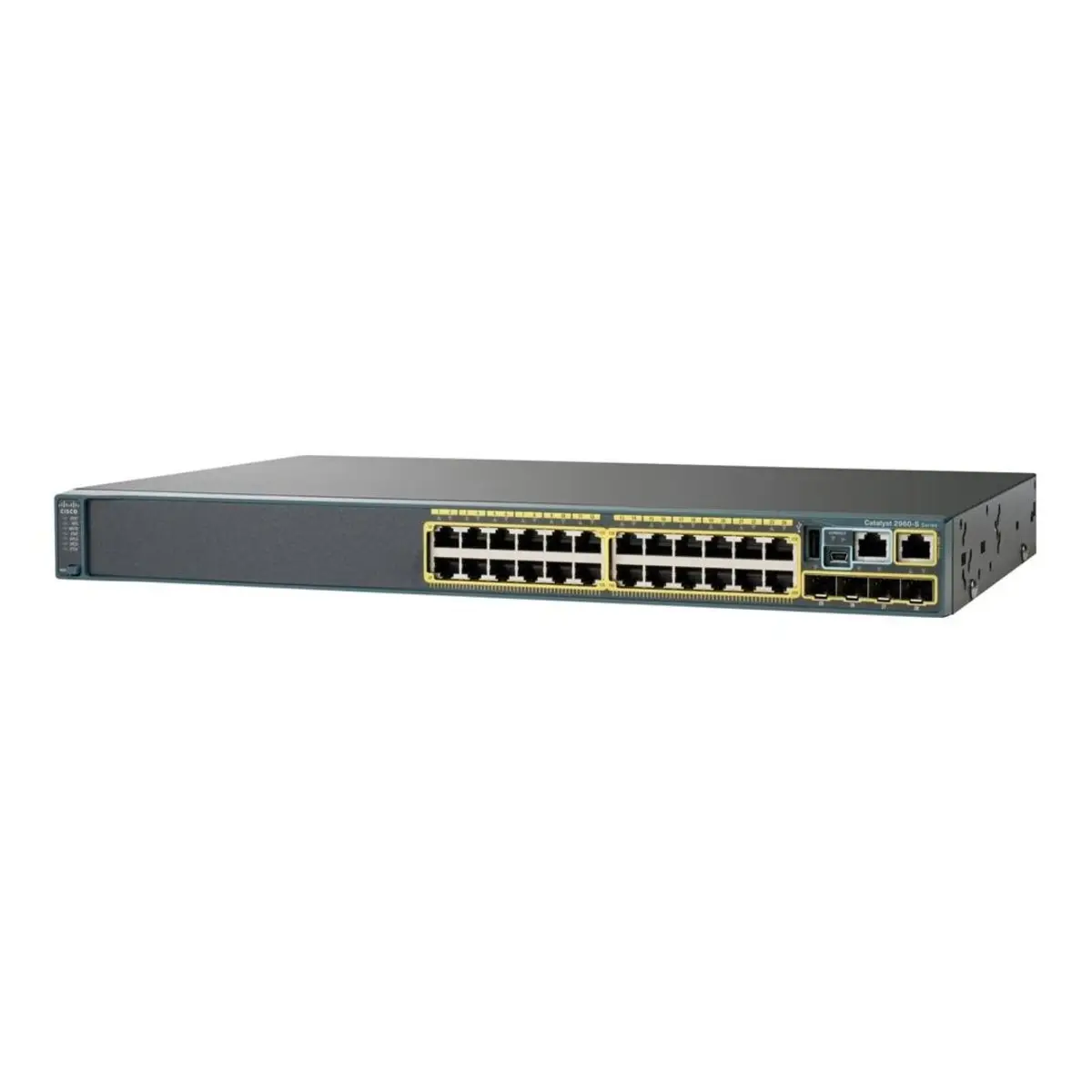

Catalyst 2960X-24TS-L Gigabit Ethernet Switch 24ports + 4x Gigabit SFP 1HE

ID: 119674 Cisco ID: WS-C2960X-24TS-L

Catalyst 2960X-24TS-L Gigabit Ethernet Switch 24ports + 4x Gigabit SFP 1HE

Detailed product title

Cisco Catalyst 2960X-24TS-L Gigabit Ethernet Switch 24ports + 4x Gigabit SFP 1HE

Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)

Basic switching RJ-45 Ethernet ports quantity 24

Switch type Managed

immediately

Added to cart

immediately

Product description

Cisco offers a comprehensive portfolio of switching solutions for enterprise networks, data centers and small businesses. Our solutions are optimized for a wide range of industries such as service providers, financial services or the public sector.

More safety
Gain comprehensive visibility and ability to contain threats by using your network as a sensor and control tool.
Accelerated Services
Optimize application performance with greater network intelligence.
Simplified operation
Increase network flexibility through automation and programmability.

Technical specifications

Logistics data

Harmonized System (HS) code

85176990

Leistungen

Memory type	DRAM
Mean time between failures (MTBF)	564,910
Physical stacking (units)	8

Protokolle

Switching protocols

UDP, TCP, RADIUS/TACACS+

Design

Stackable

Systemanforderung

Processor frequency

600

Thin Client

Internal memory

512

Power

Number of power supply units	1
Redundant power supply (RPS) support	Yes
Power consumption (typical)	36.9
AC input voltage	100 - 240
AC input frequency	50 - 60

Lieferumfang

Cables included

Data transmission

Number of static routes	1,000
Number of queues	8
Throughput	71.4

Verpackungsdaten

User guide

Certificates

Safety

UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1,

Sonstige Funktionen

Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I
Rack mounting	Yes
Power LED	Yes
Flash memory	128
Noise level	42
Switching capacity	216

Operational conditions

Operating relative humidity (H-H)	10 - 95
Storage temperature (T-T)	-25 - 70
Operating temperature (T-T)	-5 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	10 - 95
Non-operating altitude	0 - 4000

Ergonomics

LED indicators

Computer system

Built-in processor

Network

Full duplex	Yes
MAC address table	16,000
Jumbo frames support	Yes
Auto MDI/MDI-X	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	1,023
Jumbo frames	9,216
Auto-negotiation	Yes
Rate limiting	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
10G support	Yes

Ports & interfaces

USB 2.0 ports quantity	2
Console port	RJ-45
Gigabit Ethernet (copper) ports quantity	24
SFP module slots quantity	4
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	24

Weight & dimensions

Weight	4,000
Height	45
Width	445
Depth	279

Multicast features

Multicast support	Yes
Number of multicast groups filtered	1,000

Security

Security algorithms	SNMP,SSH
Access Control List (ACL)	Yes
Access Control List (ACL) rules	3
IGMP snooping	Yes
Authentication	MAC-based authentication,Port-based authentication
DHCP features	DHCP server
SSH/SSL support	Yes

Management features

Management protocols	SNMPv3
Web-based management	Yes
Quality of Service (QoS) support	Yes
Switch type	Managed
MIB support	Yes
Switch layer	L2/L3
ARP inspection	Yes
