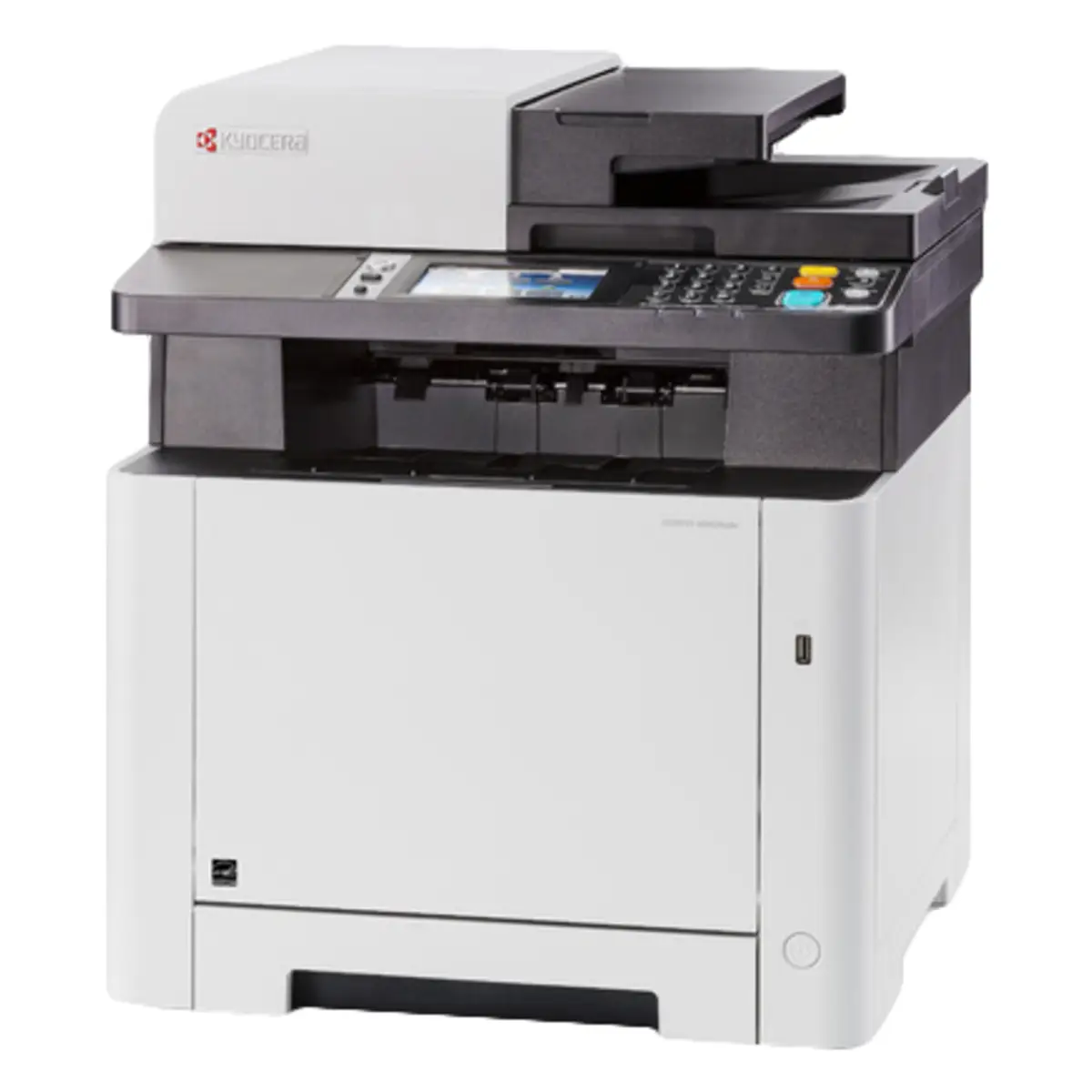

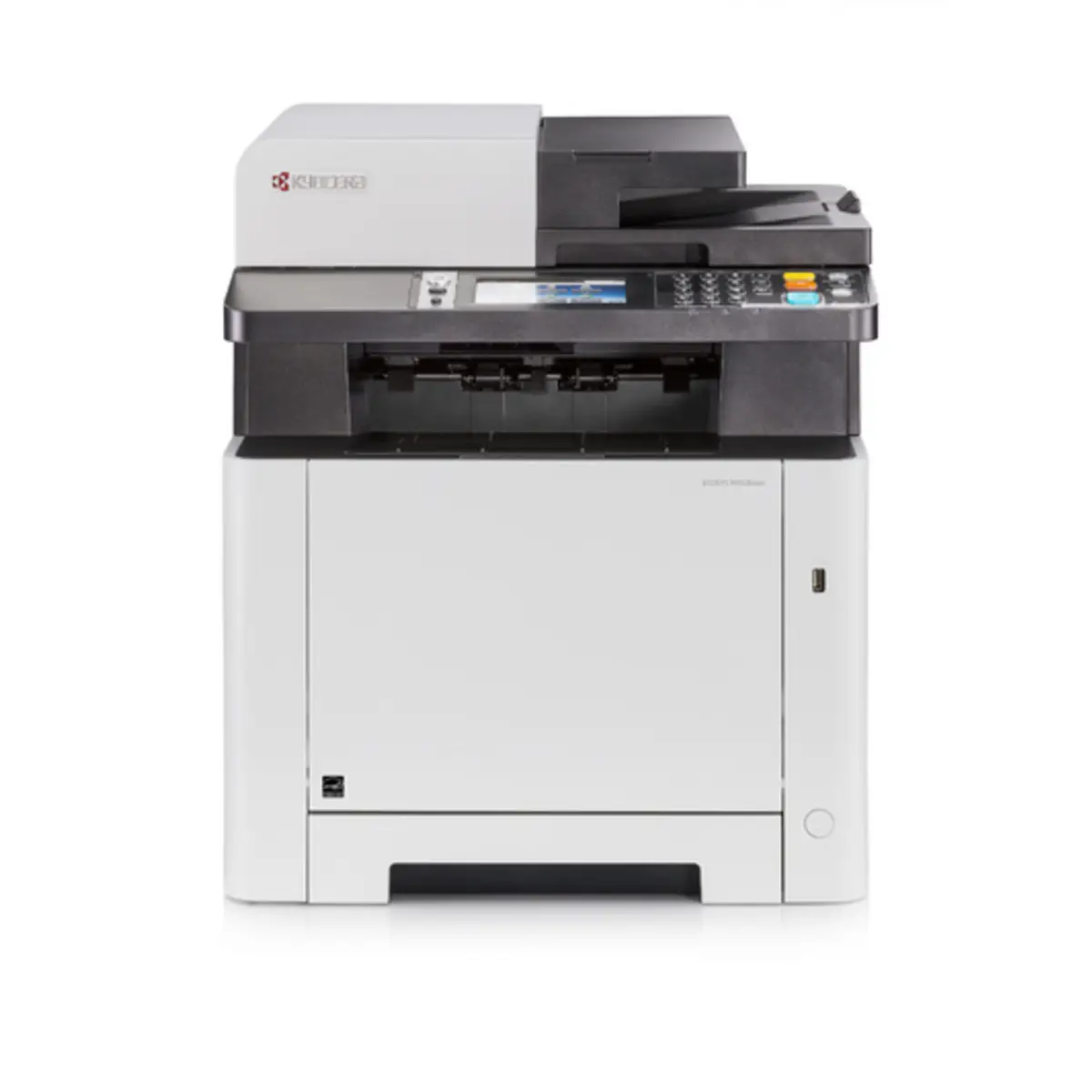

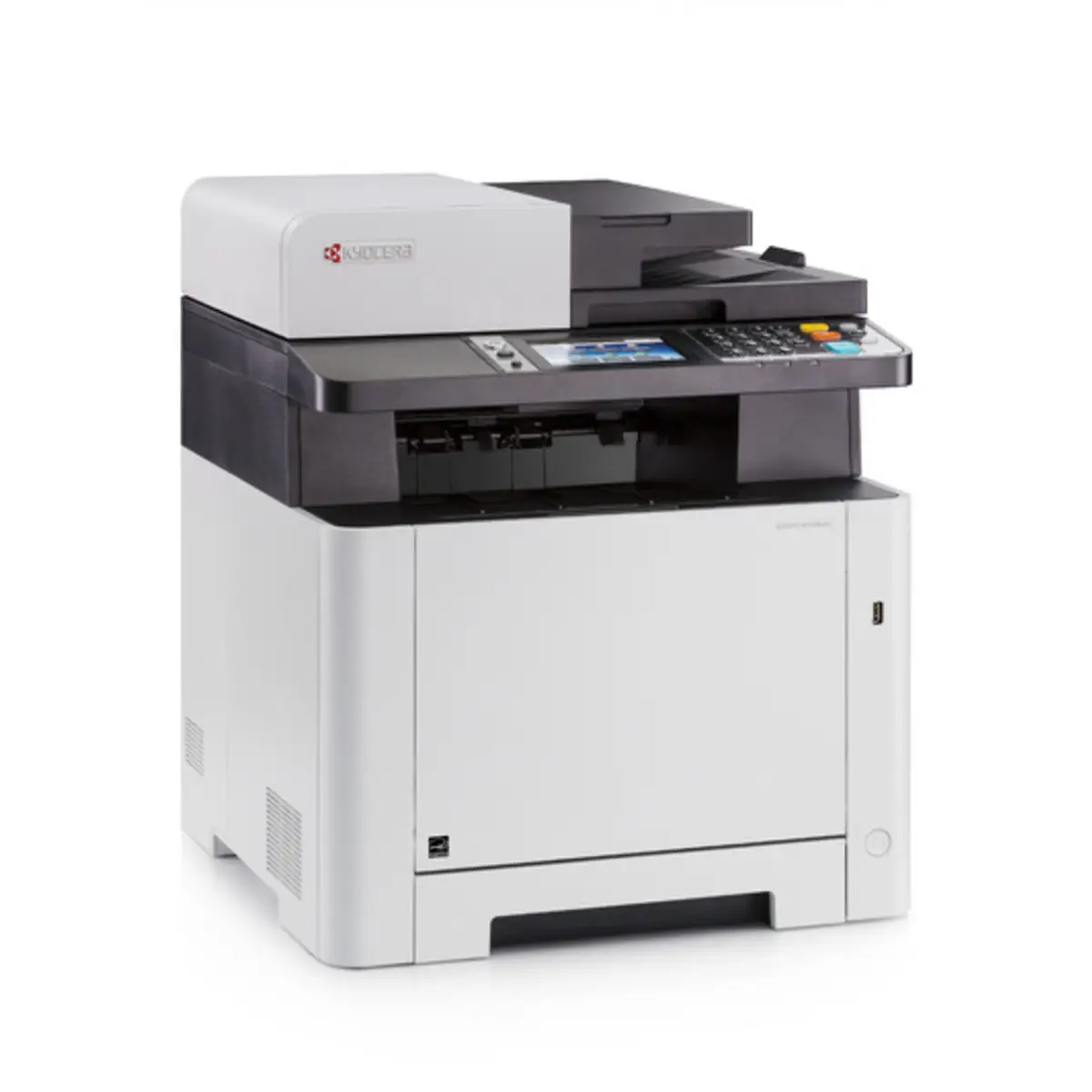

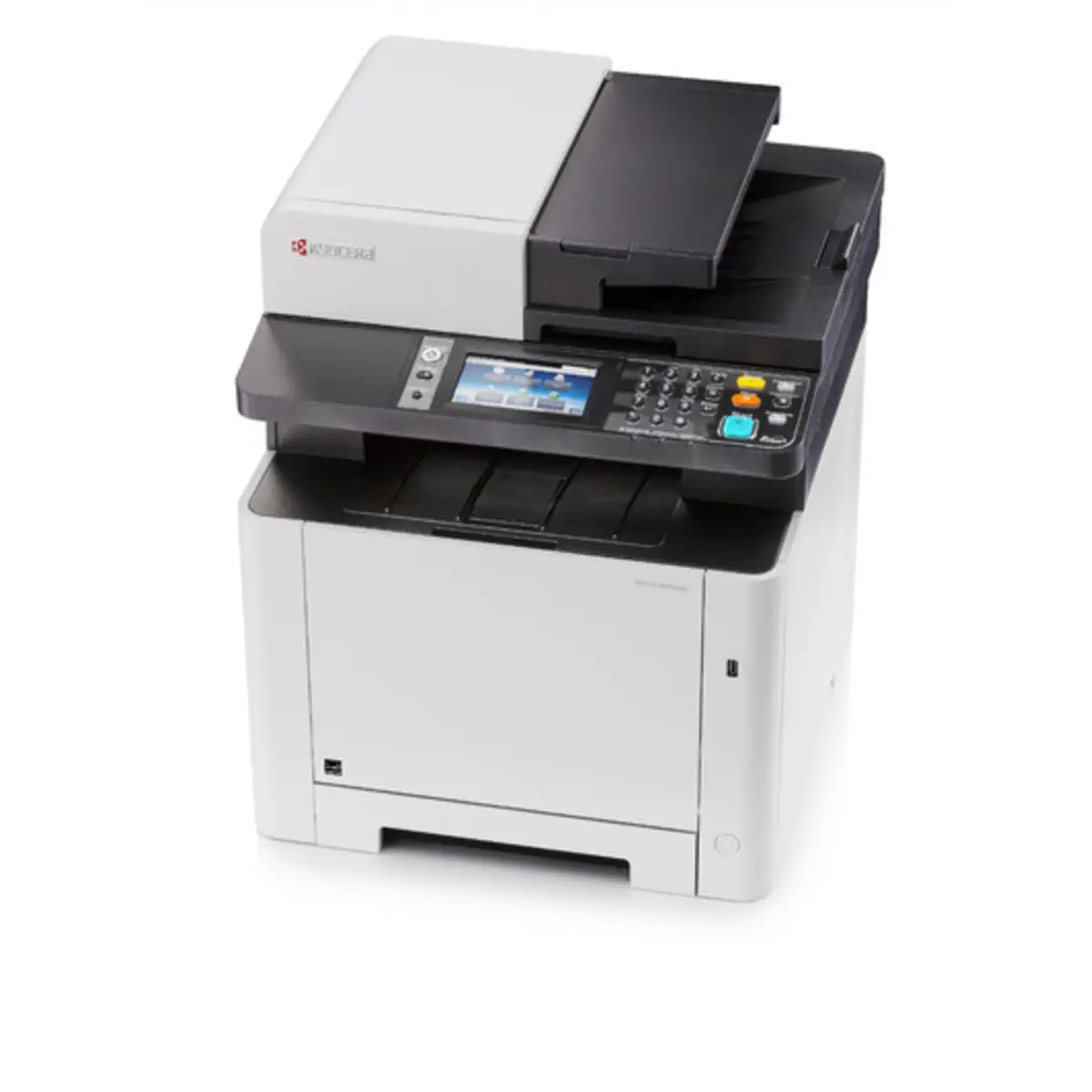

- ECOSYS M5526cdn Multifunktionsdrucker Farbe Laser Legal (216 x 356 mm)//A4 (210 x 297 mm) (Original) A4/Legal (Medien) bis zu 26 Seiten/Min. (Kopieren) bis zu 26 Seiten/Min. (Drucken) 300 Blatt 33.6 Kbp
4 Images
Product description
The ECOSYS M5526cdn combines excellent color quality with low costs - and it will significantly improve your workflows. The dual-scan document feeder, the 4.3-inch touchscreen for intuitive operation and the program keys to simplify complex workflows increase productivity and make this device an absolute all-rounder. With a toner yield of up to 3,000 pages in color, the systems achieve unrivaled low costs per page in their class.
The system is the perfect multifunctional partner for your company and offers you a future with brilliant colors.
* All toners (from May 1, 2013) and devices (from October 1, 2019) sold by KYOCERA Document Solutions Germany are climate-neutral through certified CO2 compensation; devices with the exception of accessories, software, spare parts and deliveries from delivery obligations established before October 1, 2019.
The system is the perfect multifunctional partner for your company and offers you a future with brilliant colors.
* All toners (from May 1, 2013) and devices (from October 1, 2019) sold by KYOCERA Document Solutions Germany are climate-neutral through certified CO2 compensation; devices with the exception of accessories, software, spare parts and deliveries from delivery obligations established before October 1, 2019.
Technical specifications
Design
| Product colour | Schwarz, Weiß |
| Built-in display | Ja |
| Colour display | Y |
Bildschirm
| Touchscreen | Y |
| Display diagonal | 4.3 " |
Software
| Drivers included | Y |
Nachrichtenübertragung
| Email protocols | POP3,SMTP |
Leistungen
| Compatible memory cards | SD,SDHC |
| Maximum internal memory | 1,536 MB |
| Sound pressure level (printing) | 47.1 dB |
| Sound pressure level (quiet mode) | 44 dB |
| Sound pressure level (copying) | 47.1 dB |
| Sound pressure level (standby) | 30 dB |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan, |
| Processor frequency | 800 MHz |
Power
| Power consumption (off) | 0.2 W |
| AC input voltage | 220 - 240 |
| AC input frequency | 50 |
| Power consumption (sleep) | 1 W |
| Energy Star Typical Electricity Consumption (TEC) | 1.024 kWh/we |
| Power consumption (printing) | 375 W |
| Power consumption (ready) | 41 W |
| Power consumption (copying) | 375 W |
Lieferumfang
| Cables included | AC |
| Power cord included | Y |
| Cartridge(s) included | Ja |
Technische Details
| Market positioning | Business |
| Card reader integrated | Ja |
| Mobile printing technologies | Apple AirPrint,GoogleCloud Print,KyoceraMobile P |
Verpackungsdaten
| Software CD | Y |
| Quick installation guide | Ja |
| Quantity per pack | 1 ST |
| Included cartridge capacity (black) | 1,200 pages |
| Included cartridge capacity (CMY) | 1,200 pages |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
Input & output capacity
| Paper input type | Cassette,Paper tray |
| Total number of input trays | 2 |
| Maximum number of input trays | 2 |
| Multi-Purpose tray | Y |
| Auto document feeder (ADF) | Y |
| Auto document feeder (ADF) input capacity | 50 sheets |
| Multi-Purpose tray input capacity | 50 sheets |
| Total input capacity | 250 sheets |
| Paper tray 1 input capacity | 250 sheets |
| Total output capacity | 150 sheets |
| Maximum output capacity | 150 sheets |
| Auto document feeder (ADF) output capacity | 50 sheets |
| Maximum input capacity | 550 sheets |
Fax
| Faxing | Mono-Faxen |
| Fax coding methods | JBIG,MH,MMR (Fax codingmethod),MR |
| Duplex faxing | Y |
| Modem speed | 33.6 Kbit/s |
| Fax memory | 100 pages |
| Fax transmission speed | 3 sec/pa |
| Fax resolution (black) | 400 x 400 |
Paper handling
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Maximum print size | 216 x 356 mm |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Maximum ISO A-series paper size | A4 |
| Non-ISO print media sizes | Legal (media size),Letter(media size) |
| Paper tray media types | Normales Papier |
| Duplex media weight | 60 - 120 |
| Multi-Purpose Tray media weight | 60 - 220 |
| Custom media length | 216 - 356 |
| Auto Document Feeder (ADF) media weight | 50 - 160 |
| Custom media width | 105 - 148 |
| Paper tray media weight | 60 - 163 |
Scanning
| Image formats supported | JPG,MMR,TIF |
| Document formats supported | PDF,XPS |
| Scan technology | CIS/CCD |
| Greyscale levels | 256 |
| Scanner type | Flachbett- & ADF-Scanner |
| Scanning | Farbscan |
| Scan to | E-mail,FTP,SMB,TWAIN,USB,WIA |
| Scan drivers | TWAIN,WIA |
| Duplex scanning | Ja |
| Optical scanning resolution | 600 x 600 DPI |
| Duplex scan speed (colour) | 16 ppm |
| Scan speed (colour) | 23 ppm |
| Scan speed (black) | 30 ppm |
| Duplex scan speed (black) | 24 ppm |
Copying
| Copying | Farbkopieren |
| N-in-1 copy function (N=) | 2,4 |
| Duplex copying mode | Auto |
| ID-card copy function | Y |
| N-in-1 copy function | Y |
| Copy programming function | Y |
| Duplex copying | Ja |
| Copy speed (black, normal quality, A4) | 26 cpm |
| Maximum number of copies | 999 copies |
| Time to first copy (black, normal) | 8 s |
| Time to first copy (colour, normal) | 10 s |
| Copier resize | 25 - 400 |
| Maximum copy resolution | 600 x 600 DPI |
Sonstige Funktionen
| Display | TFT |
| Manual | Y |
| Control type | Touch |
| USB port | Ja |
| Documentation CD | Y |
| Energy saving mode | Y |
| Internal memory | 512 MB |
| Copy speed (colour, normal quality, A4) | 26 cpm |
Sustainability
| Sustainability certificates | Blue Angel,ENERGY STAR,EPEAT Silver,Nordic SwanEc |
Operational conditions
| Operating relative humidity (H-H) | 10 - 80 |
| Storage temperature (T-T) | -20 - 40 |
| Operating temperature (T-T) | 10 - 32.5 |
| Operating altitude | 0 - 3500 |
| Storage relative humidity (H-H) | 10 - 90 |
| Non-operating altitude | 0.6 - 15000 |
Printing
| Page description languages | Microsoft XPS,PCL 5c,PCL6,PCL XL,PostScript 3 |
| Economical printing | Y |
| Duplex printing mode | Auto/Manual |
| Duplex printing | Ja |
| Printing | Farbdruck |
| N-up printing | 2,4,6,8,9,16,25 |
| Watermark printing | Y |
| Secure printing | Y |
| Eco printing function | Y |
| Skip blank page function | Y |
| Secure PDF printing function | Y |
| Poster printing function | Y |
| Auto tray switching function | Y |
| N-in-1 print function | Y |
| Tray priority settings function | Y |
| Print speed (colour, normal quality, A4/US Letter) | 26 ppm |
| Warm-up time | 29 s |
| Time to first page (colour, normal) | 10.5 s |
| Duplex print speed (colour, normal quality, A4/US Letter) | 13 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 13 ppm |
| Time to first page (black, normal) | 9.5 s |
| Print margins (top, bottom, right, left) | 4.2 mm |
| Maximum resolution | 9600 x 600 DPI |
| Print resolution black | 1200 x 1200 |
| Print resolution colour | 1200 x 1200 |
Gewicht und Abmessungen
| Weight | 26,000 g |
| Height | 495 mm |
| Width | 417 mm |
| Depth | 429 mm |
Features
| Number of print cartridges | 4 |
| Printing colours | Cyan, Magenta, Gelb |
| Print technology | Laser |
| Replacement cartridges | TK-5240K, TK-5240C, TK-5240M, TK-5240Y |
| Number of printer fonts | 93 |
| Duplex functions | Copy,Print |
| Maximum duty cycle | 2,600 pages |
| Recommended duty cycle | 500 - 2000 |
Computer system
| Built-in processor | Y |
Mouse
| Certification | TÜV/GS, CE, ISO 9001, ISO14001 |
Network
| Cabling technology | 10/100/1000Base-T(X) |
| Email over SSL | Y |
| Ethernet LAN data rates | 10,100,1000 |
Processor
| Processor family | ARM Cortex-A9 |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Direct printing | Ja |
Security
| Security algorithms | 3DES,AES,DES,HTTPS,IPPS,IPSec,SHA-1,SHA-2,SNMPv3,S |
Downloads
520034_document_DE_001
PDF Download
ID: 520034
Kyocera ID: 870B61102R83NL3
