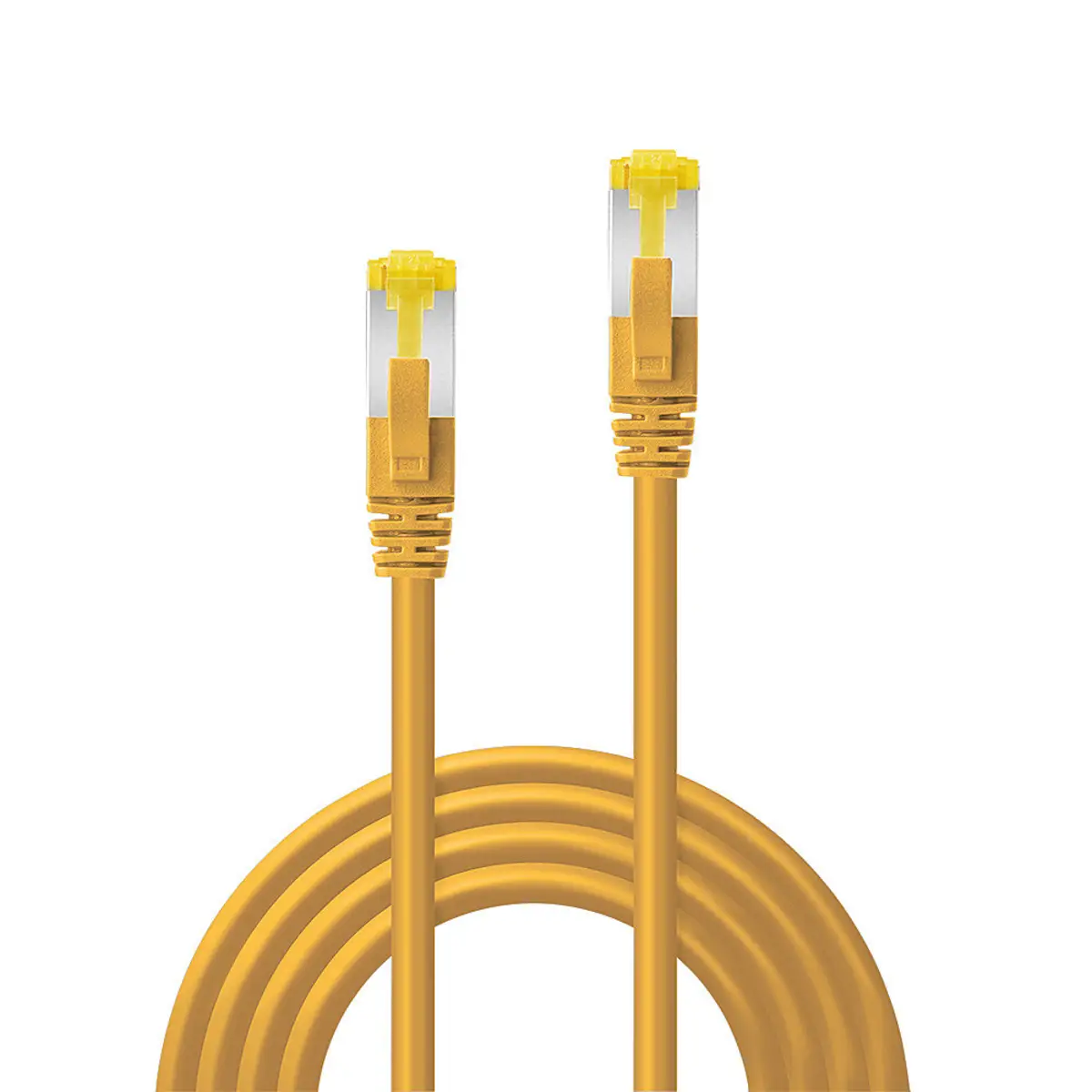

- Patchkabel Cat7 Kabel mit Cat 6a Anschlüssen RJ45/RJ45 Stecker/Stecker Gelb 20m
The Cat.7 cable material for operating frequencies up to 600MHz with total braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White. Yellow, Green
Produktfarbe | Grey |
Beschichtung Steckerkontakte | Nickel/Gold |
Verkabelungstechnologie | 10GBase-T |
Kabelstandard | Cat6a |
Zertifizierung | RoHS, REACH, UL,California Proposition 65 |
Steckverbinder 1 Geschlecht | Male connector |
Steckverbinder 2 Geschlecht | Male connector |
Kabellänge | 20 m |
Anschluss 1 | RJ-45 |
Anschluss 2 | RJ-45 |
Jackenmaterial | Low smoke zero halogen (LSZH) |
AWG Kabelgröße | 26 |
Kabelschirmung | S/FTP (S-STP) |
Material Stecker-Gehäuse | Polycarbonate (PC) |
Leitermaterial | Copper |
Material der Abschirmung des S | Copper alloy |
Kabelform | Round |
Knickschutz-Kabelschuh | Y |
Frequenz | 600 MHz |
Plug & Play | Y |
Nachhaltigkeitszertifikate | REACH,RoHS |
Nachhaltigkeitskonformität | Y |
Datenübertragungsrate | 500 Mbit/s |
Verpackungsart | Polybag |
Menge pro Packung | 1 ST |
Temperaturbereich bei Lagerung | -20 - 75 |
Temperaturbereich in Betrieb | -10 - 60 |
Menge pro Behälter | 1 ST |
Höhe | 8,3 mm |
Breite | 11,6 mm |
Tiefe | 22,8 mm |
Biegeradius (min.) | 78 mm |
Außendurchmesser | 6,5 mm |
Kabelschirmung S/FTP (S-STP)
Kabellänge 20 m
Produktfarbe Grey
Anschluss 1 RJ-45
Anschluss 2 RJ-45
Kabelstandard Cat6a
The Cat.7 cable material for operating frequencies up to 600MHz with total braided shielding and foil single-wire shielding (S/FTP) was developed for use in data centres, server rooms, rack mounting of network and control cabinets etc. for networks up to 10GBaseT. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
This product uses Cat.7 cable material. The Cat.7 standard originally defined the GG45 connectors, which were intended as a further development of RJ45, but were not able to establish themselves on the market. In the meantime, the RJ45 connector developed to easily meet the requirements of Cat.7, but has never been defined for Cat.7. Therefore the imprint on the cable reads as follows: "Cat.6A S/FTP patch cords with 600MHz raw cable".
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White. Yellow, Green
Produktfarbe | Grey |
Beschichtung Steckerkontakte | Nickel/Gold |
Verkabelungstechnologie | 10GBase-T |
Kabelstandard | Cat6a |
Zertifizierung | RoHS, REACH, UL,California Proposition 65 |
Steckverbinder 1 Geschlecht | Male connector |
Steckverbinder 2 Geschlecht | Male connector |
Kabellänge | 20 m |
Anschluss 1 | RJ-45 |
Anschluss 2 | RJ-45 |
Jackenmaterial | Low smoke zero halogen (LSZH) |
AWG Kabelgröße | 26 |
Kabelschirmung | S/FTP (S-STP) |
Material Stecker-Gehäuse | Polycarbonate (PC) |
Leitermaterial | Copper |
Material der Abschirmung des S | Copper alloy |
Kabelform | Round |
Knickschutz-Kabelschuh | Y |
Frequenz | 600 MHz |
Plug & Play | Y |
Nachhaltigkeitszertifikate | REACH,RoHS |
Nachhaltigkeitskonformität | Y |
Datenübertragungsrate | 500 Mbit/s |
Verpackungsart | Polybag |
Menge pro Packung | 1 ST |
Temperaturbereich bei Lagerung | -20 - 75 |
Temperaturbereich in Betrieb | -10 - 60 |
Menge pro Behälter | 1 ST |
Höhe | 8,3 mm |
Breite | 11,6 mm |
Tiefe | 22,8 mm |
Biegeradius (min.) | 78 mm |
Außendurchmesser | 6,5 mm |
