- Cabel & Adapter
- Patch cable
- Patch Cable RJ-45 S/FTP Cat6a Grey 1 m
4 Images
Product description

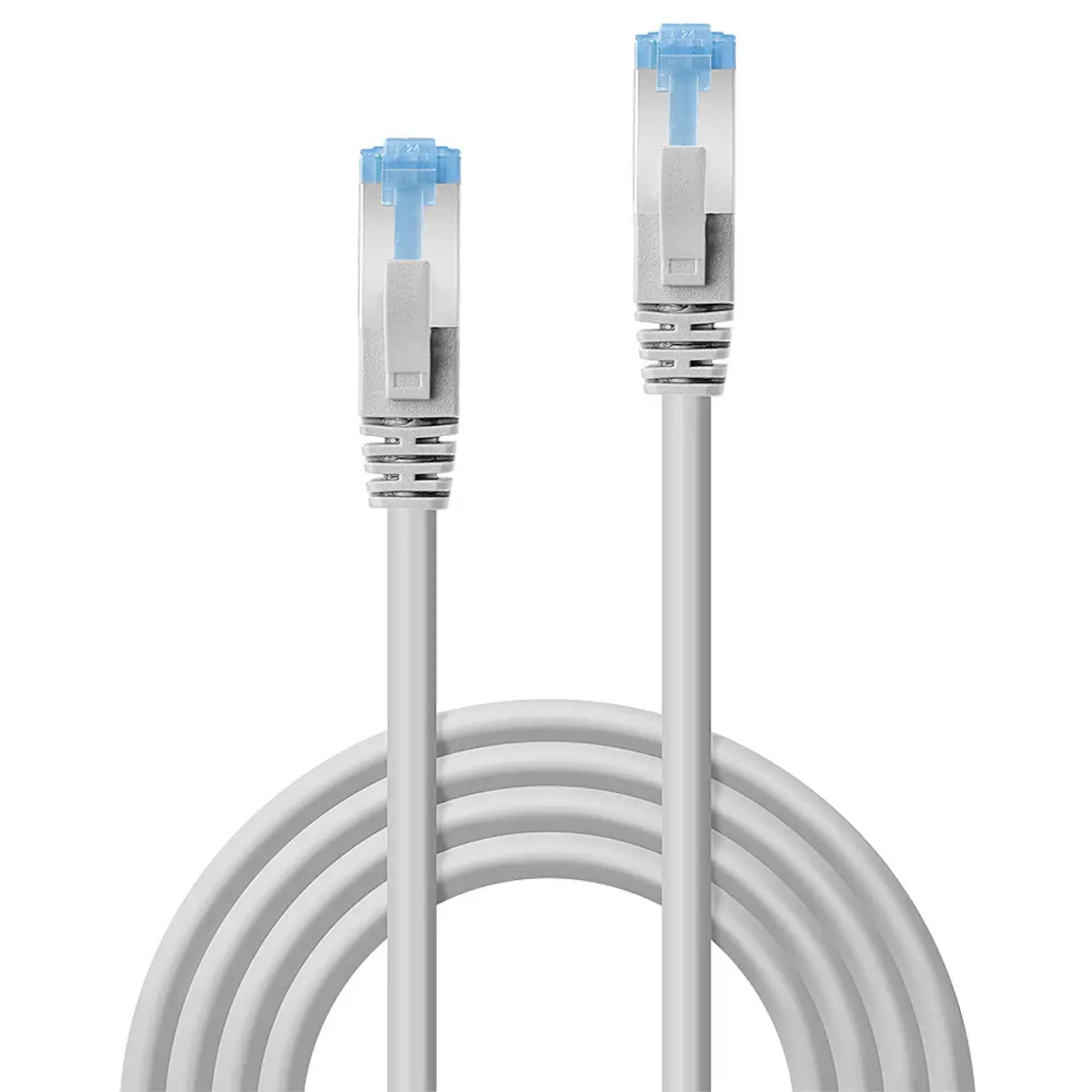

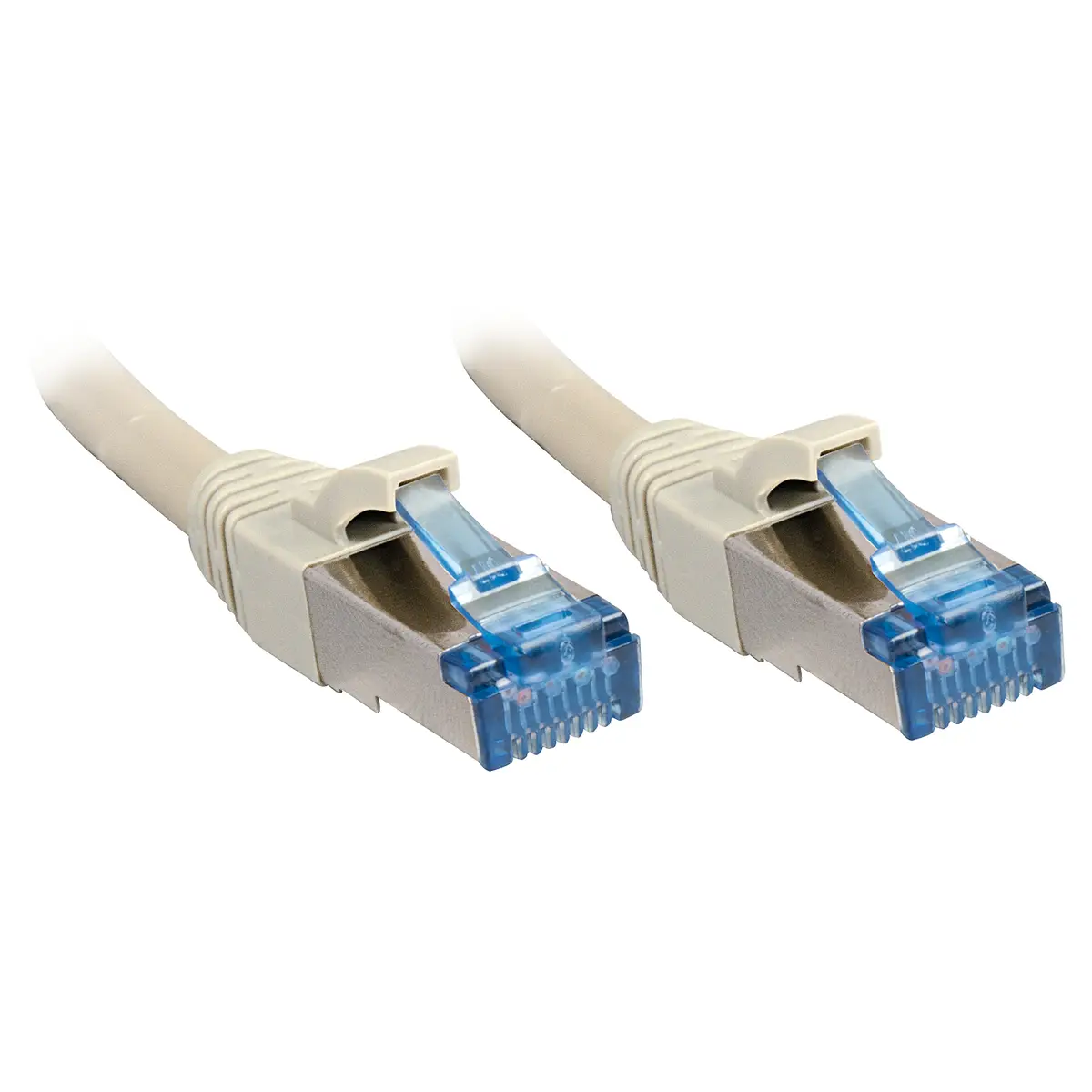

Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH

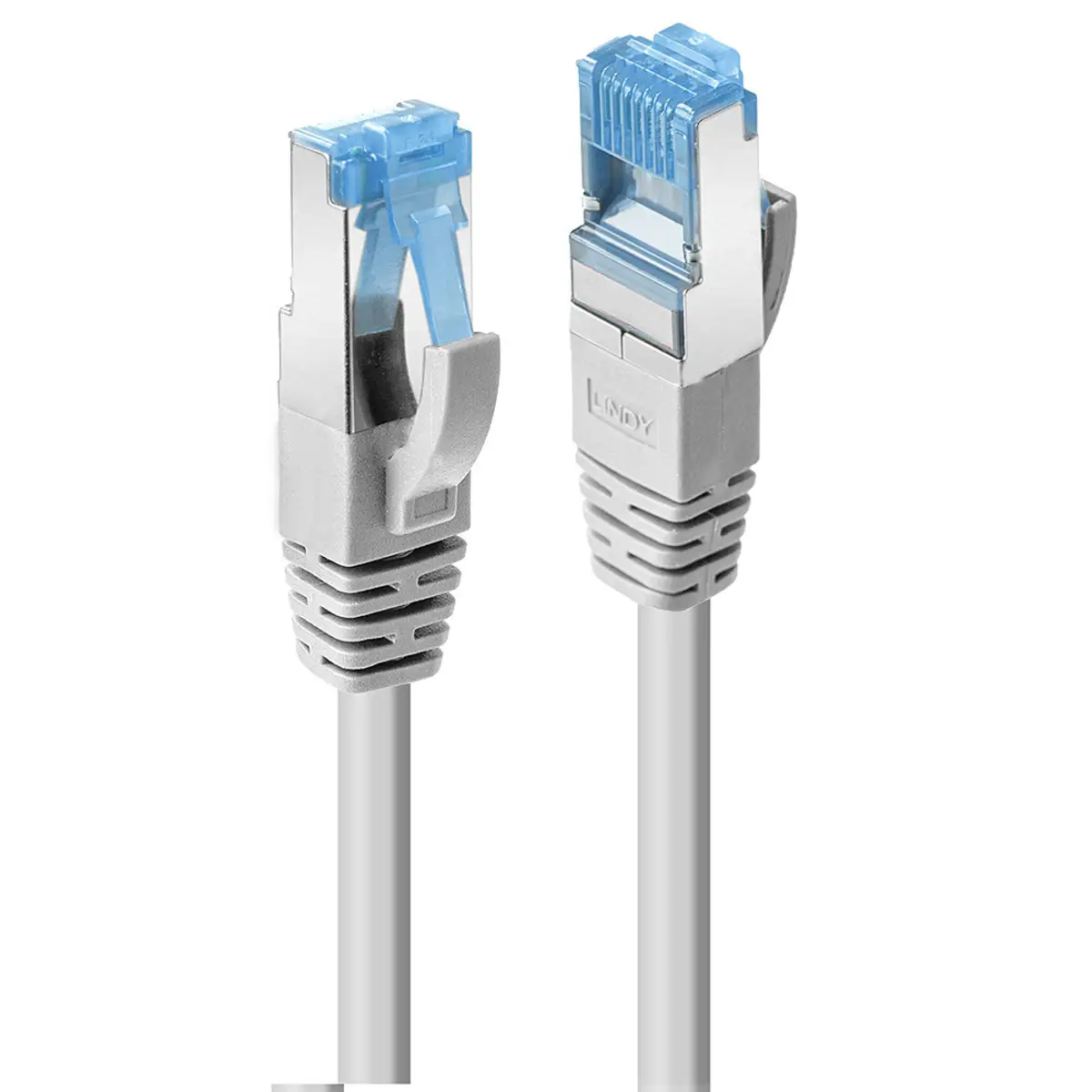

Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

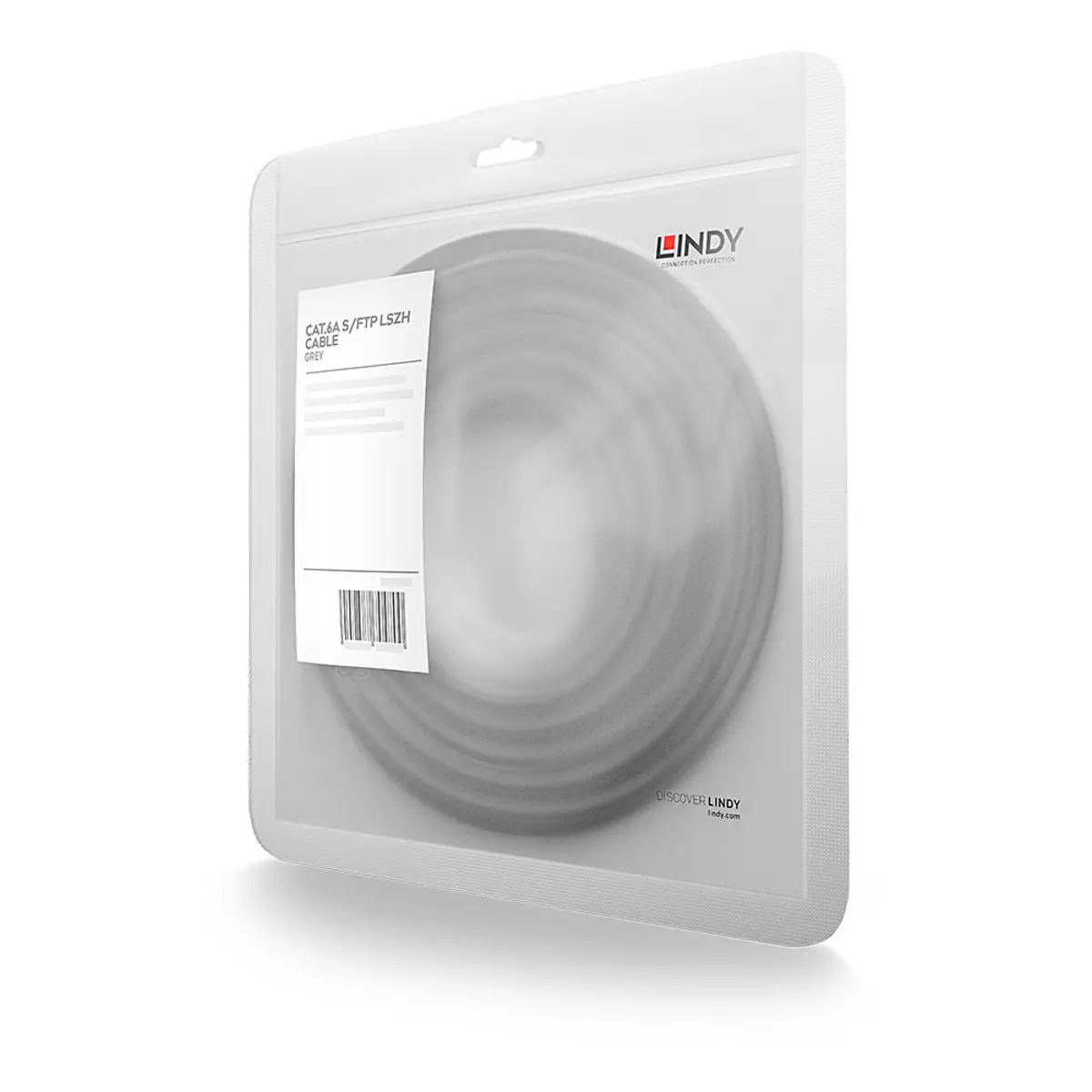

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Technical specifications
Eingabegerät
| Connector contacts plating | Gold |
Netzwerk
| Cabling technology | 10/100/1000Base-T(X) |
Maus
| Certification | RoHS, REACH, UL,California Proposition 65 |
Leistungen
| Connector 1 gender | Male connector |
| Connector 2 gender | Male connector |
Merkmale
| Cable length | 1 m |
| Jacket material | Low smoke zero halogen (LSZH) |
| AWG wire size | 27 |
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Cable class | Ea |
| Conductor material | Copper |
| Connector shield material | Aluminium |
| Cable shape | Round |
| Connector shielding | Y |
| Frequency | 500 MHz |
Ergonomie
| Plug and Play | Y |
Datenübertragung
| Data transfer rate | 1,000 Mbit/s |
Verpackungsdaten
| Package type | Polybag |
| Quantity per pack | 1 ST |
Betriebsbedingungen
| Storage temperature (T-T) | -20 - 75 |
| Operating temperature (T-T) | -10 - 60 |
Gewicht und Abmessungen
| Bend radius (min) | 72 mm |
| Outer diameter | 6 mm |
Logistische Daten
| Harmonized System (HS) code | 84733080 |
ID: 134327
Lindy ID: 47132
Patch Cable RJ-45 S/FTP Cat6a Grey 1 m
Detailed product title
Detailed product title
Lindy Patchkabel RJ-45 S/FTP Cat6a Grau 1 m
4 Images
Cable length 1 m
Gross:
incl.
vat.
ship in 2-3 days
Added to cart
Gross:
incl.
vat.
ship in 2-3 days
Product description
Twisted Pair Patch Cable with RJ45 connectors
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Cat.6A S/FTP PIMF, LSZH
Integrated snagless connector for latch protection
Gold plated pins for better conductivity and elimination of signal loss
10 year warranty
Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.
Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m.
Available colours: Black, Blue, Grey, Red, White
Technical specifications
Eingabegerät
| Connector contacts plating | Gold |
Netzwerk
| Cabling technology | 10/100/1000Base-T(X) |
Maus
| Certification | RoHS, REACH, UL,California Proposition 65 |
Leistungen
| Connector 1 gender | Male connector |
| Connector 2 gender | Male connector |
Merkmale
| Cable length | 1 m |
| Jacket material | Low smoke zero halogen (LSZH) |
| AWG wire size | 27 |
| Nominal attenuation | 49.3dB/100m @ 500MHz |
| Cable class | Ea |
| Conductor material | Copper |
| Connector shield material | Aluminium |
| Cable shape | Round |
| Connector shielding | Y |
| Frequency | 500 MHz |
Ergonomie
| Plug and Play | Y |
Datenübertragung
| Data transfer rate | 1,000 Mbit/s |
Verpackungsdaten
| Package type | Polybag |
| Quantity per pack | 1 ST |
Betriebsbedingungen
| Storage temperature (T-T) | -20 - 75 |
| Operating temperature (T-T) | -10 - 60 |
Gewicht und Abmessungen
| Bend radius (min) | 72 mm |
| Outer diameter | 6 mm |
Logistische Daten
| Harmonized System (HS) code | 84733080 |
