- Cabel & Adapter
- RJ45
- Gigabit Konverter RJ-45/LC bis zu 500m
+3 Images
8 Images
Product description
- These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
- Provides media conversion from STP to multimode LC media type
- RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber
- Supports transparent conversion of any packet types with no packet length limitation
- Supports auto-negotiation with link partners
- Provides link pass through between copper and fiber link
- Provides SFP on fiber port for mounting variety of fiber options
- Supports optional DIN-Rail installation
- Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
- Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
- Compliant with IEEE 802.3ab, 802.3z

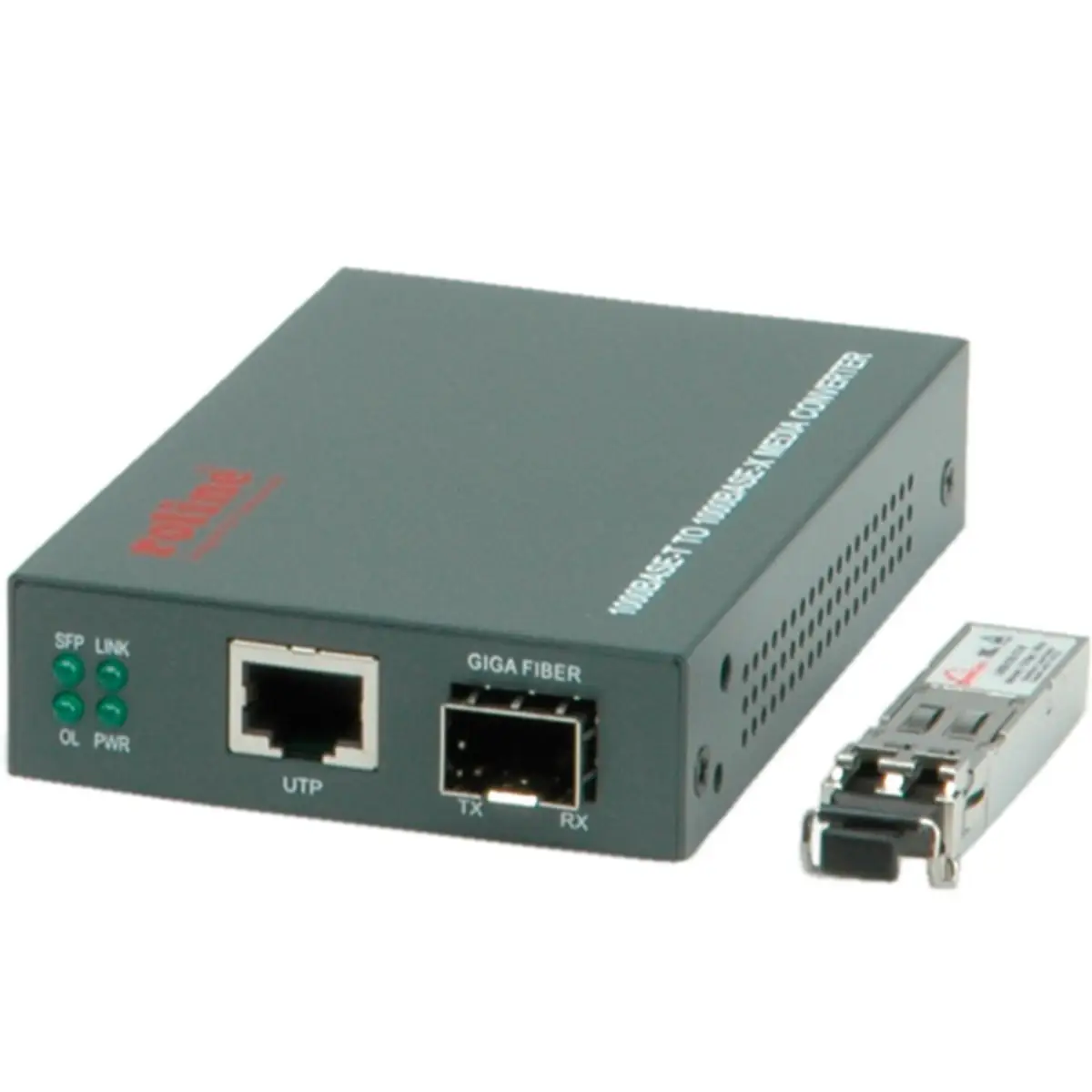

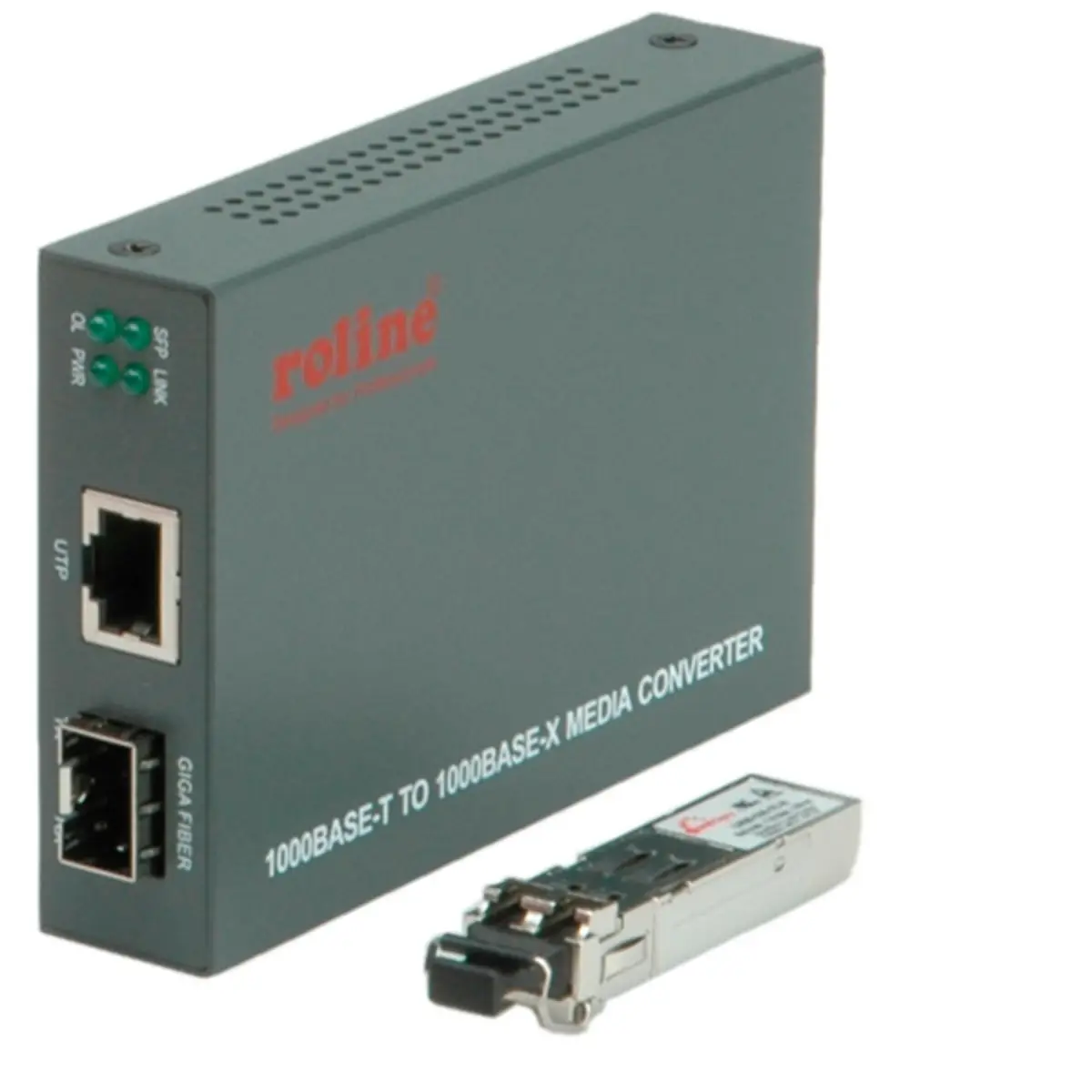

- Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fiber transceiver
- Power: Operating voltage range : +5 ~ +12V DC (+/-5%), consumption: 2W max. @7.5V
- Dimensions (WxDxH): 108 x 72.5 x 23 mm
- Contents: Converter, power supply, ROLINE Mini-GBIC Modul SX/LC, Multimode (21.14.3500), manual
ID: 106594
Roline ID: 21.13.1069
Gigabit Konverter RJ-45/LC bis zu 500m
Detailed product title
Detailed product title
Roline Gigabit Konverter RJ-45/LC bis zu 500m
8 Images
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
- These converters are the ideal connectivity solution for networks using a combination of STP and fiber optic types
- Provides media conversion from STP to multimode LC media type
- RC-1000SX/LC: The maximum cable length for fiber is 500m by using a 50/125µm fiber
- Supports transparent conversion of any packet types with no packet length limitation
- Supports auto-negotiation with link partners
- Provides link pass through between copper and fiber link
- Provides SFP on fiber port for mounting variety of fiber options
- Supports optional DIN-Rail installation
- Supports center chassis installation to achieve the advantages of central power, optional power redundancy and management
- Ideal solution for multimode, short reach up to long reach single mode fiber, Bi-Di and CWDM applications
- Compliant with IEEE 802.3ab, 802.3z
- Network ports: 1x shielded RJ-45, 1000Mbps, Auto-negotiation capable, Auto-MDI/MDI-X; 1x SFP connector with pre-configured SFP fiber transceiver
- Power: Operating voltage range : +5 ~ +12V DC (+/-5%), consumption: 2W max. @7.5V
- Dimensions (WxDxH): 108 x 72.5 x 23 mm
- Contents: Converter, power supply, ROLINE Mini-GBIC Modul SX/LC, Multimode (21.14.3500), manual
