- Industrieller Seriell RS232 auf RS422/485 Konverter mit ESD-Schutz
5 Images
Product description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter

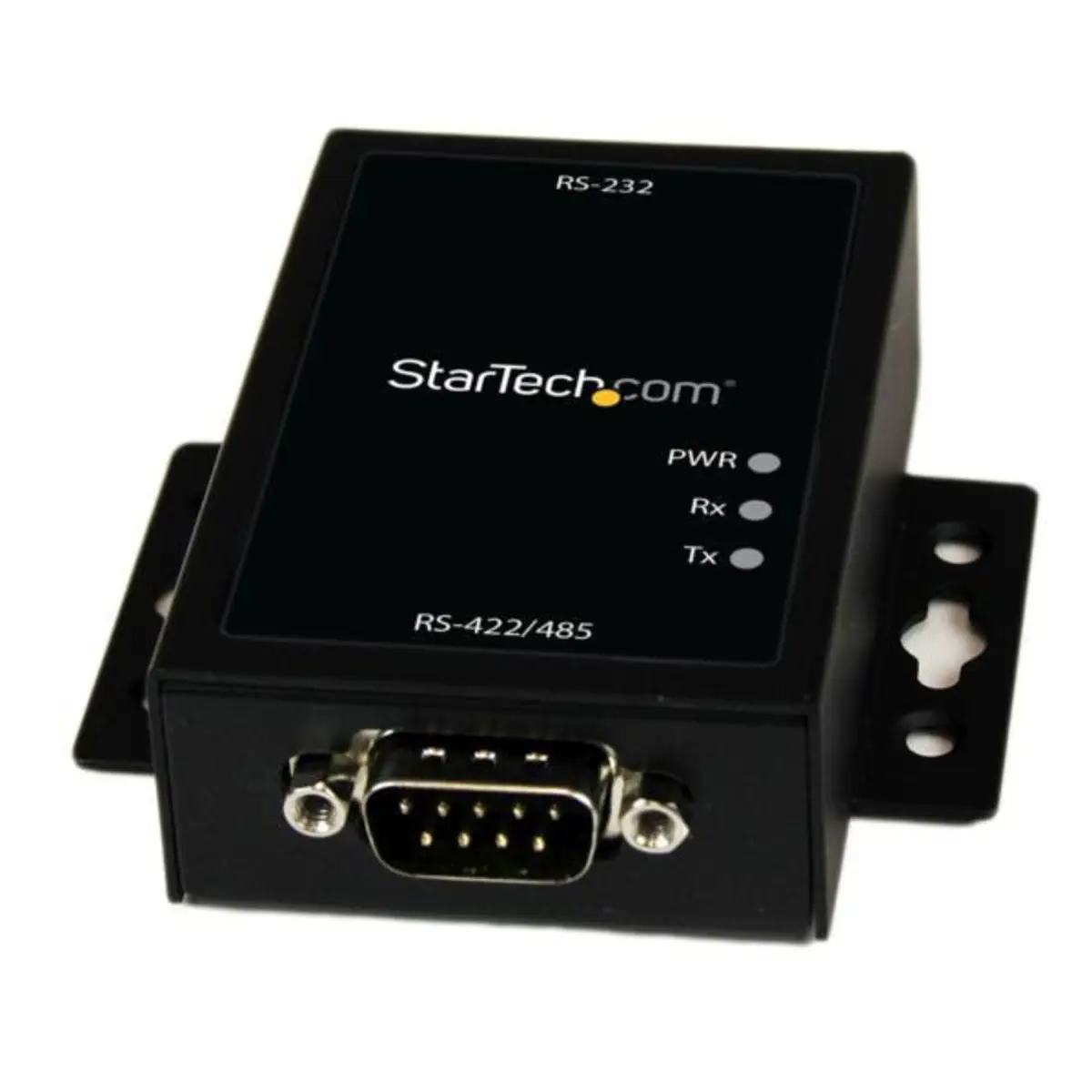

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
Technical specifications
Maus
Certification | CE, FCC, REACH |
Merkmale
Connector 1 | DB-9 |
Connector 2 | DB-9 |
Nachhaltigkeit
Sustainability certificates | RoHS |
Technische Details
Connector gender | Male connector/Femaleconnector |
Verpackungsdaten
Package weight | 351 g |
Package depth | 146 mm |
Package width | 208 mm |
Package height | 41 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 85 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Sonstige Funktionen
Input voltage | 110 - 240 |
Input current | 0.3 |
Gewicht und Abmessungen
Weight | 143 g |
Height | 22 mm |
Width | 59 mm |
Depth | 117 mm |
ID: 124602
StarTech.com ID: IC232485S
Industrieller Seriell RS232 auf RS422/485 Konverter mit ESD-Schutz
Detailed product title
Detailed product title
StarTech.com Industrieller Seriell RS232 auf RS422/485 Konverter mit ESD-Schutz
5 Images
Connector 1 DB-9
Connector 2 DB-9
Gross:
incl.
vat.
will be ordered especially for you
Added to cart
Gross:
incl.
vat.
will be ordered especially for you
Product description
Convert an RS232 data signal to either RS485 or RS422 with this wall-mountable, ESD-protected adapter
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps.
Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring.
The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m).
Backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Protect sensitive industrial equipment with integrated ESD protection
- Communicate efficiently with connected devices through high-speed 921Kbps support
- Suitable for industrial environments with a rugged, wall-mountable enclosure
Technical specifications
Maus
Certification | CE, FCC, REACH |
Merkmale
Connector 1 | DB-9 |
Connector 2 | DB-9 |
Nachhaltigkeit
Sustainability certificates | RoHS |
Technische Details
Connector gender | Male connector/Femaleconnector |
Verpackungsdaten
Package weight | 351 g |
Package depth | 146 mm |
Package width | 208 mm |
Package height | 41 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 85 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Sonstige Funktionen
Input voltage | 110 - 240 |
Input current | 0.3 |
Gewicht und Abmessungen
Weight | 143 g |
Height | 22 mm |
Width | 59 mm |
Depth | 117 mm |
