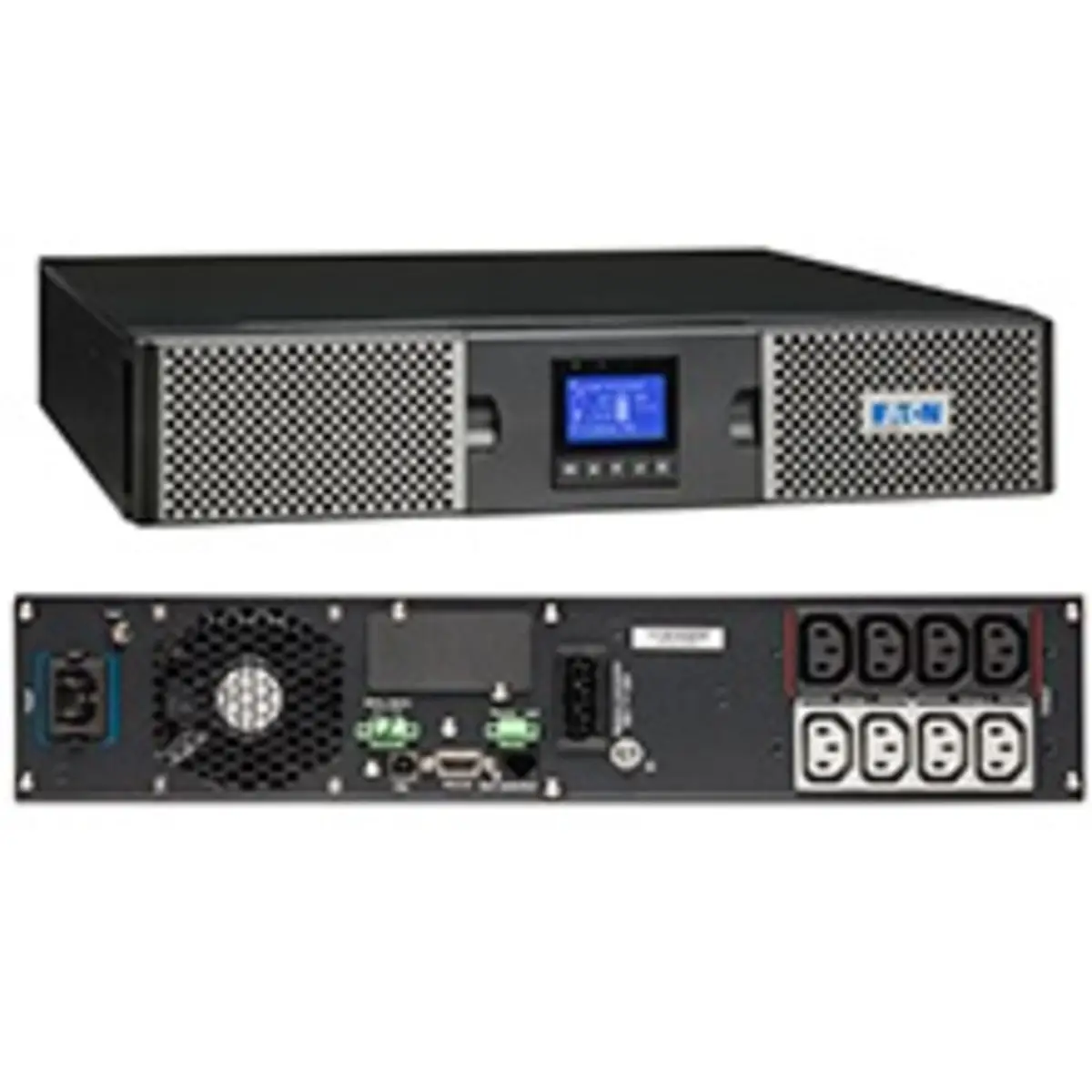

9PX 1500i RT2U USV 1500 Watt 1500 VA RS-232, USB 2 U PFC

ID: 155615 Eaton ID: 9PX1500IRT2U

9PX 1500i RT2U USV 1500 Watt 1500 VA RS-232, USB 2 U PFC

Detailed product title

Detailed product title

Eaton 9PX 1500i RT2U USV 1500 Watt 1500 VA RS-232, USB 2 U PFC

9PX 1500i RT2U USV 1500 Watt 1500 VA RS-232, USB 2 U PFC

Product colour Black

ship in 4-7 days

Added to cart

ship in 4-7 days

Product description

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Technical specifications

Design

Product colour	Black
Rack capacity	2U

Power

Battery technology	Sealed Lead Acid (VRLA)
Power protection features	Battery discharge

Lieferumfang

Rack mount kit

Verpackungsdaten

Bundled software	Intelligent Power Software suite
Management card included	No

Certificates

Safety

IEC/EN 62040-1, UL 1778, CSA 22.2

Sonstige Funktionen

USB port	Yes
Input frequency	40/70
Output power	1,500
Noise level	35
Nominal input voltage	230
Nominal output voltage	230

Sustainability

Sustainability certificates

ENERGY STAR

Operational conditions

Operating temperature (T-T)

0 - 40

Battery

Hot-swap battery	Yes
Waveform	Pure sine
Automatic battery test	Yes
Typical backup time at half load	14
Typical backup time at full load	5

Ergonomics

LED indicators

Features

Power factor	1
UPS topology	Double-conversion (Online)
Number of input phases	1
Efficiency	92.5
Output power capacity	1.5
Input operation voltage (max)	276
Input operation voltage (min)	176
Output operation voltage (min)	200
Output operation voltage (max)	240
Output frequency	50/60

Mouse

Form factor	Rackmount/Tower
Certification	IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Ports & interfaces

USB 2.0 ports quantity	1
RS-232 ports	1
Serial interface type	RS-232
Power plug	C14 coupler
AC outlet types	C13 coupler
Serial interface	Yes
AC outlets quantity	8

Weight & dimensions

Weight	18,900
Height	86.5
Width	440
Depth	450
