Name: SmartConnect UPS SMT 1000 VA Tower
Brand: 60000582
SKU: 168259

text.skipToContent text.skipToNavigation

ID: 168259 APC ID: SMT1000IC

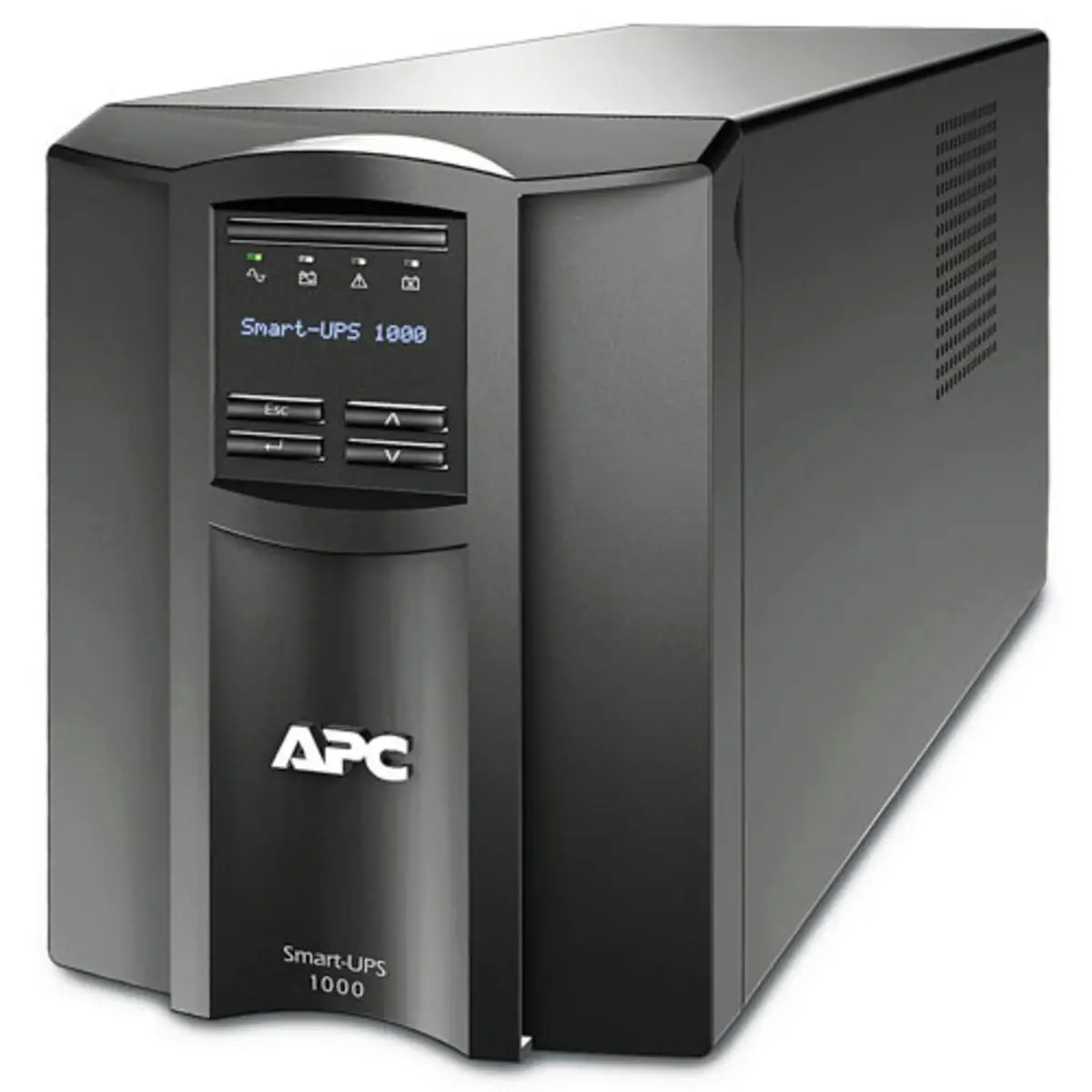

SmartConnect UPS SMT 1000 VA Tower

Detailed product title

APC SmartConnect UPS SMT 1000 VA Tower

Product colour Schwarz

immediately

Added to cart

immediately

Product description

Hassle-free operation thanks to full compatibility and the reliability of a leading provider
Ensures a pure sinusoidal output signal by using power factor corrected power supplies recommended by server manufacturers. The Smart-UPS has been tested and certified to safety standards, so you can be confident that the system meets or exceeds the most stringent industry guidelines.
Higher productivity by adapting to your individual requirements
Intuitive LCD interface with precise information and support for on-site configuration of the UPS with convenient navigation buttons. Over 15 programmable settings, including control of groups of switchable outputs, enable application-specific settings, thresholds and notifications.
Avoids costly performance issues by keeping your IT equipment and data secure and available
Voltage conditioning optimized for network operation provides protection against harmful overvoltages and electrical noise. Automatic electronic voltage regulation increases a low input voltage by up to 30% and reduces excessive voltages by up to 12% without activating the battery. Reliable battery-backed emergency power supply in the event of a mains power failure or for a controlled system shutdown. Patented Green mode for an efficiency over 97%. The Smart-UPS was the first network UPS to receive the Energy Star seal. The intelligent battery management from the technology pioneer APC optimizes the performance and service life of the battery through the intelligent precision charging function with temperature compensation. Dynamic date display for battery replacement and automatic self-tests ensure high reliability and provide timely information when a battery replacement is required. The battery modules are convenient, easy to connect and can be replaced during operation. The Smart-UPS developed by APC has been in production for 23 years and, with over 25 million units sold, is the UPS trusted by most customers worldwide.
Time savings through simple and convenient remote access
With management function via the network, via serial interface, USB or optional Ethernet connection. Includes Powerchute Business Edition software for convenient monitoring and control, secure operating system shutdown and innovative energy management features.

Technical specifications

Technical details

Compliance certificates

RoHS

Logistics data

Products per pallet

12 ST

Packaging content

Quick installation guide

Packaging data

Package weight	22,770 g
Package depth	595 mm
Package width	328 mm
Package height	376 mm

Sustainability

Sustainability certificates

Green Premium

Operational conditions

Operating relative humidity (H-H)	0 - 95
Operating temperature (T-T)	0 - 40
Operating altitude	0 - 3000

Packaging content

Cables included

RJ-45,USB cable

Power

Surge protection

Ports & interfaces

USB port

Battery

Hot-swap battery	Yes
Waveform	Sine
Replacement battery cartridge	RBC6
Cold start	Yes
Automatic battery test	Yes
Battery life (max)	5

Features

Audible alarm(s)	Yes
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery,Low battery alarm,Overload alarm
Automatic Voltage Regulation (AVR)	Yes
Temperature voltage compensation	Yes
Auto-restart	Yes
Surge energy rating	459 J
Output power capacity	1 kVA
Output voltage Total Harmonic Distortion (THD)	5 %
Input operation voltage (max)	302 V
Input operation voltage (min)	151 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V

Weight & dimensions

Weight	18,860 g
Height	219 mm
Width	171 mm
Depth	439 mm

Certificates

Certification

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE, REACH

Operational conditions

Storage temperature (T-T)	-15 - 45
Storage relative humidity (H-H)	0 - 95
Non-operating altitude	0 - 15000

Features

Noise level

41 dB

Battery

Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 std

Ports & interfaces

USB 2.0 ports quantity	1
Serial ports quantity	1

Features

Input frequency	50/60
Output power	700 W
Output frequency	50/60

Display

Response time

10 ms

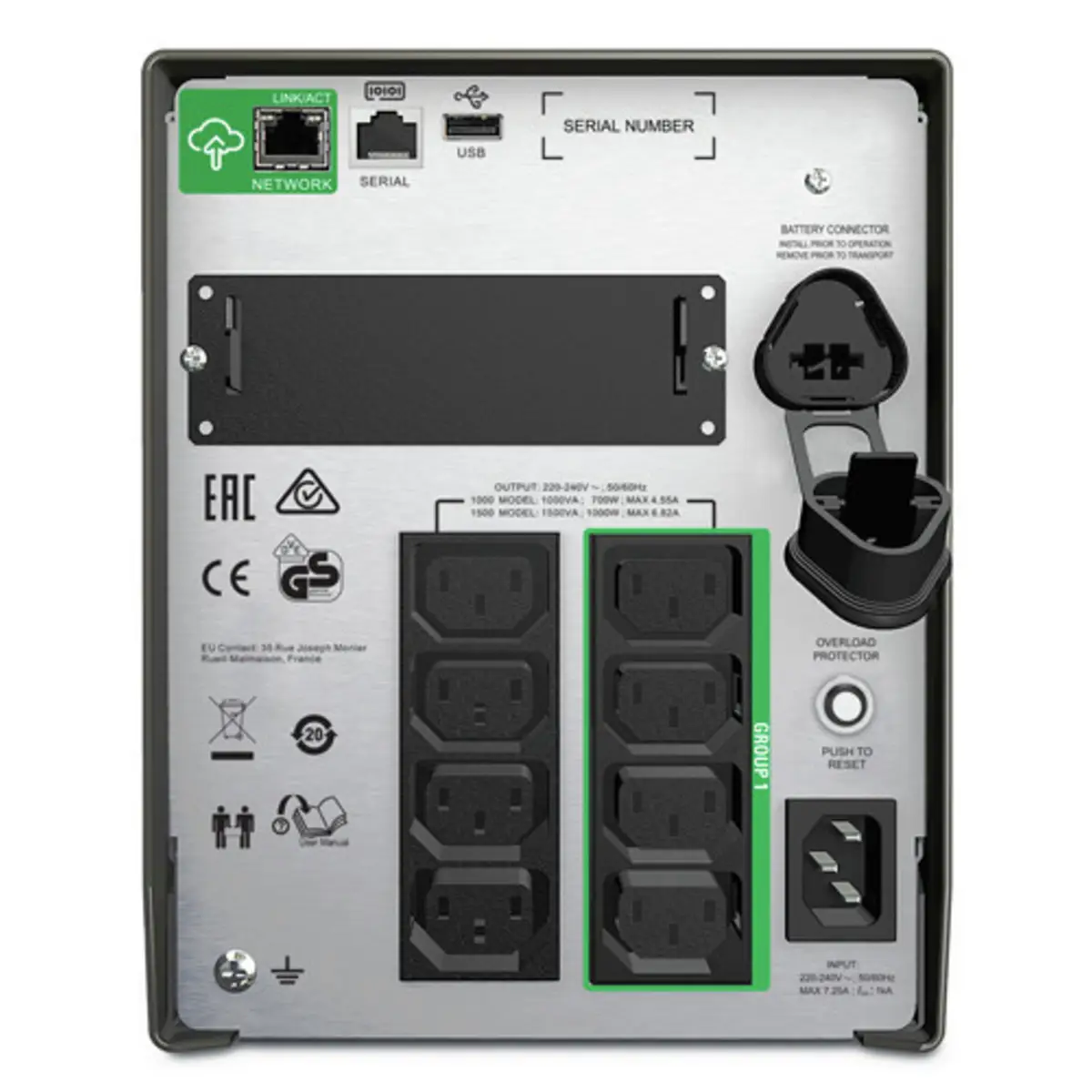

Ports & interfaces

Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-A
Power plug	C14 coupler
AC outlet types	C13 coupler,IEC Jumpers
Serial interface	Yes
SmartSlot	Yes
AC outlets quantity	8 AC out
