- 2-Port SATA III PCIe Schnittstellenkarte
+4 Images
9 Images
Product description

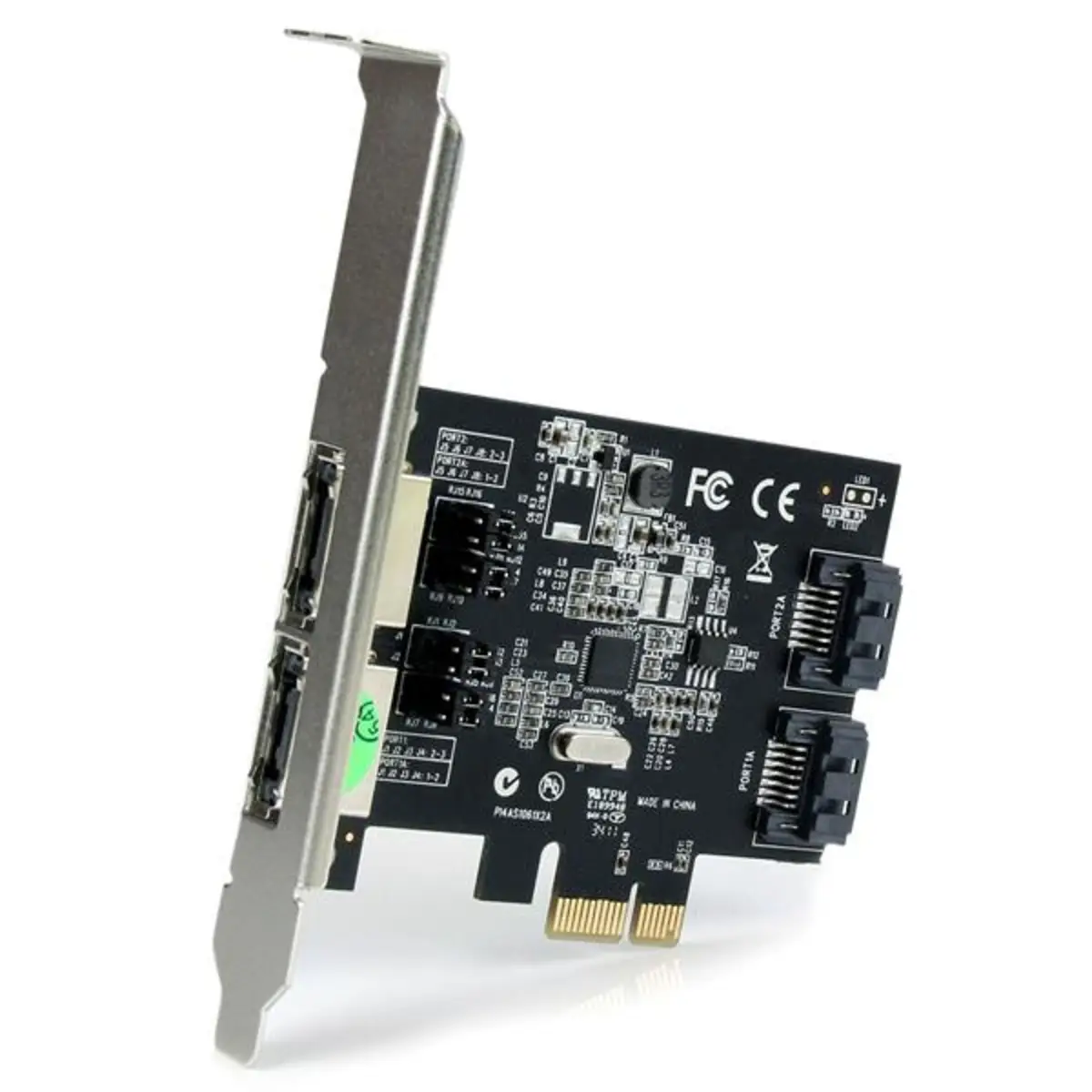

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slotThe PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Anschlüsse und Schnittstellen
Host interface | PCIe |
Maus
Certification | CE, FCC, REACH |
Nachhaltigkeit
Sustainability certificates | RoHS |
Systemanforderung
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Wind |
Kopfhörer
Chipset | ASMedia - ASM1061 |
Verpackungsdaten
Package weight | 152 g |
Package depth | 144 mm |
Package width | 173 mm |
Package height | 30 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 85 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Sonstige Funktionen
Manual | Y |
Gewicht und Abmessungen
Weight | 48 g |
Height | 20 mm |
Width | 92 mm |
Depth | 121 mm |
Logistische Daten
Master (outer) case height | 360 mm |
Master (outer) case width | 307 mm |
Master (outer) case length | 586 mm |
Products per master (outer) case | 80 ST |
Downloads
124393_document_EN_001
PDF Download
ID: 124393
StarTech.com ID: PEXESAT322I
2-Port SATA III PCIe Schnittstellenkarte
Detailed product title
Detailed product title
StarTech.com 2-Port SATA III PCIe Schnittstellenkarte
9 Images
Gross:
incl.
vat.
ship in 4-7 days
Added to cart
Gross:
incl.
vat.
ship in 4-7 days
Product description
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slotThe PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Anschlüsse und Schnittstellen
Host interface | PCIe |
Maus
Certification | CE, FCC, REACH |
Nachhaltigkeit
Sustainability certificates | RoHS |
Systemanforderung
Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Wind |
Kopfhörer
Chipset | ASMedia - ASM1061 |
Verpackungsdaten
Package weight | 152 g |
Package depth | 144 mm |
Package width | 173 mm |
Package height | 30 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 85 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 50 |
Sonstige Funktionen
Manual | Y |
Gewicht und Abmessungen
Weight | 48 g |
Height | 20 mm |
Width | 92 mm |
Depth | 121 mm |
Logistische Daten
Master (outer) case height | 360 mm |
Master (outer) case width | 307 mm |
Master (outer) case length | 586 mm |
Products per master (outer) case | 80 ST |
Downloads
124393_document_EN_001
PDF Download
