- 8 Port Serielle RS232 PCI Express Schnittstellenkarte - Low Profile - RS232
+3 Images
8 Images
Product description
Low Profile Serial Card | Full Profile Brackets Incl | 921.4Kbps | Windows and Linux

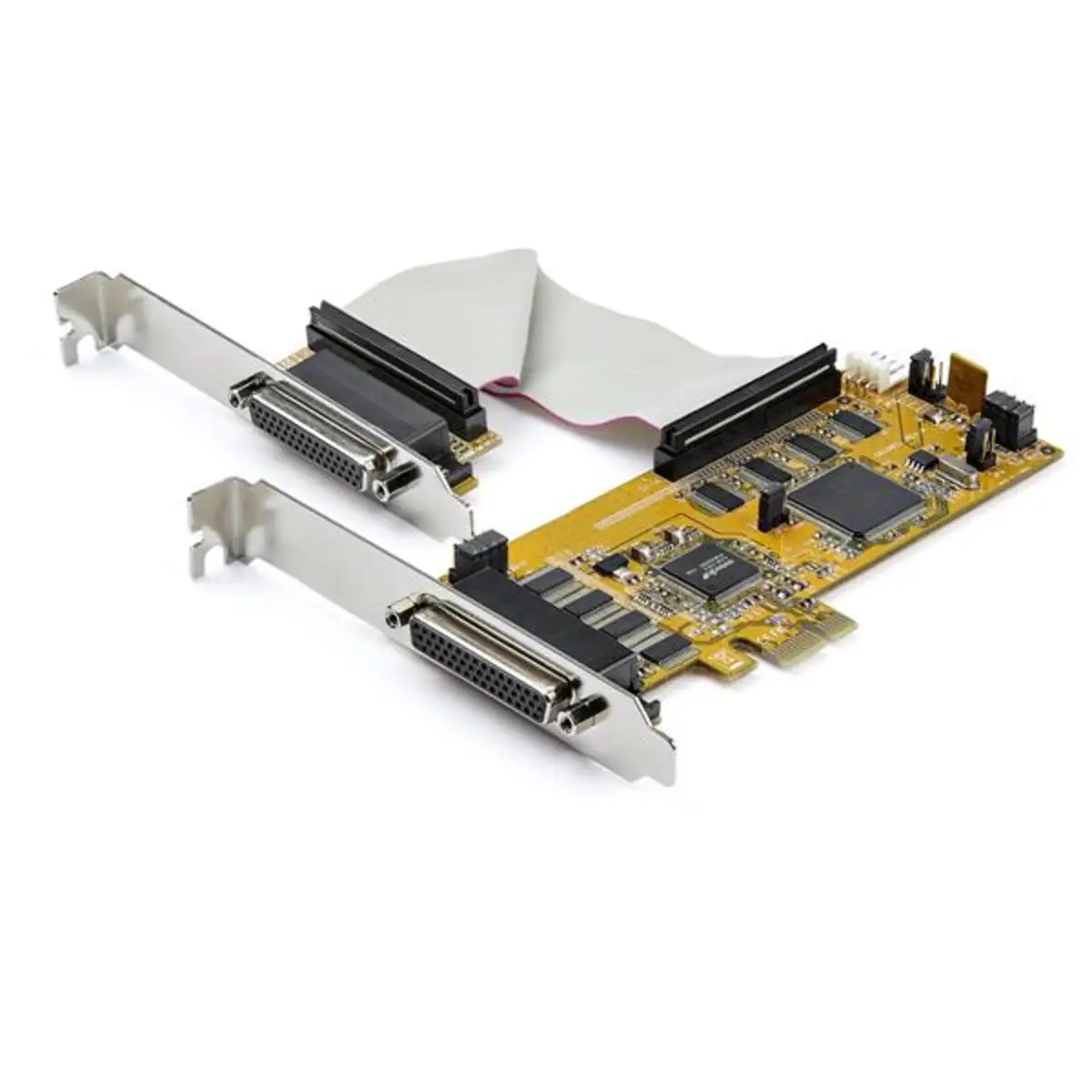

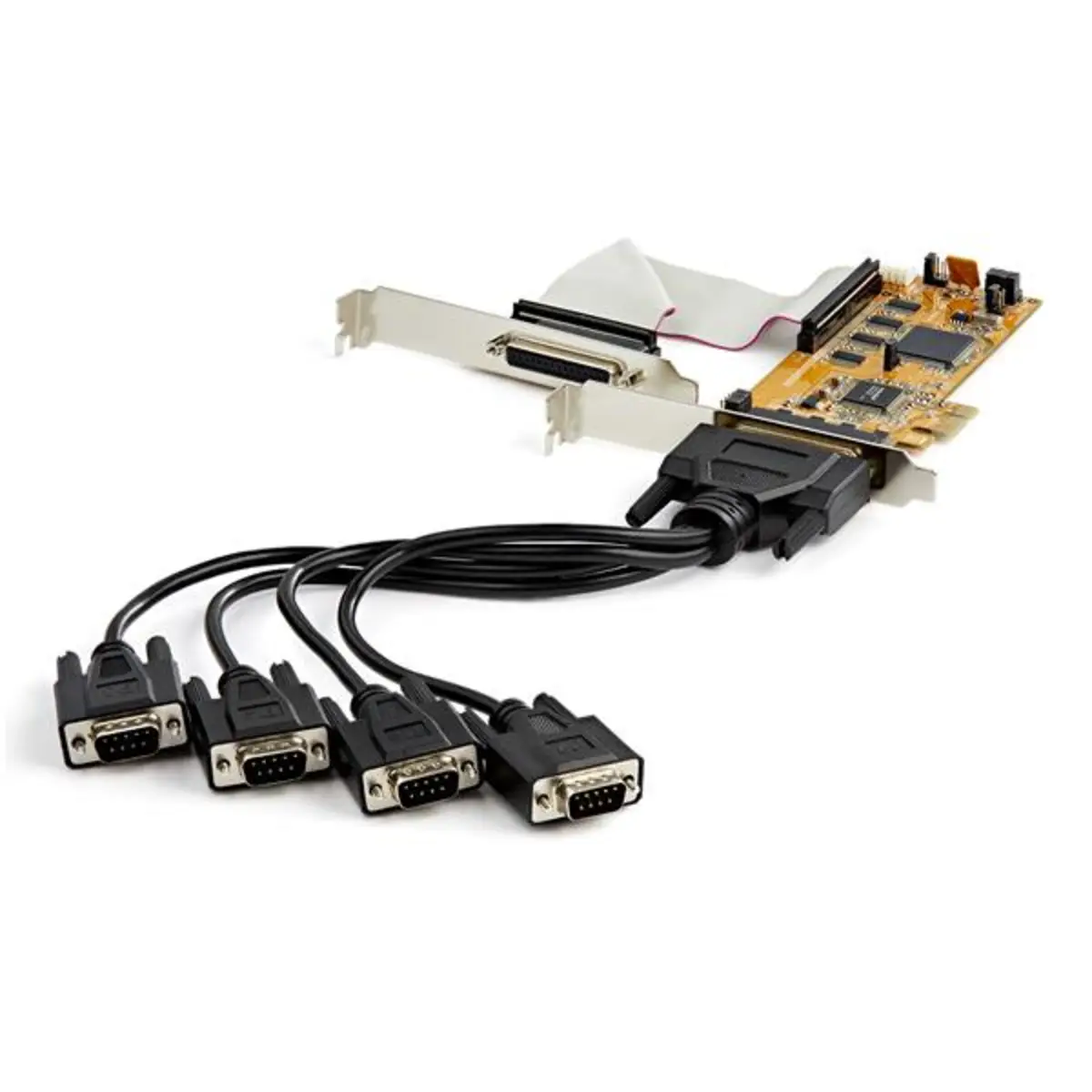

Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage

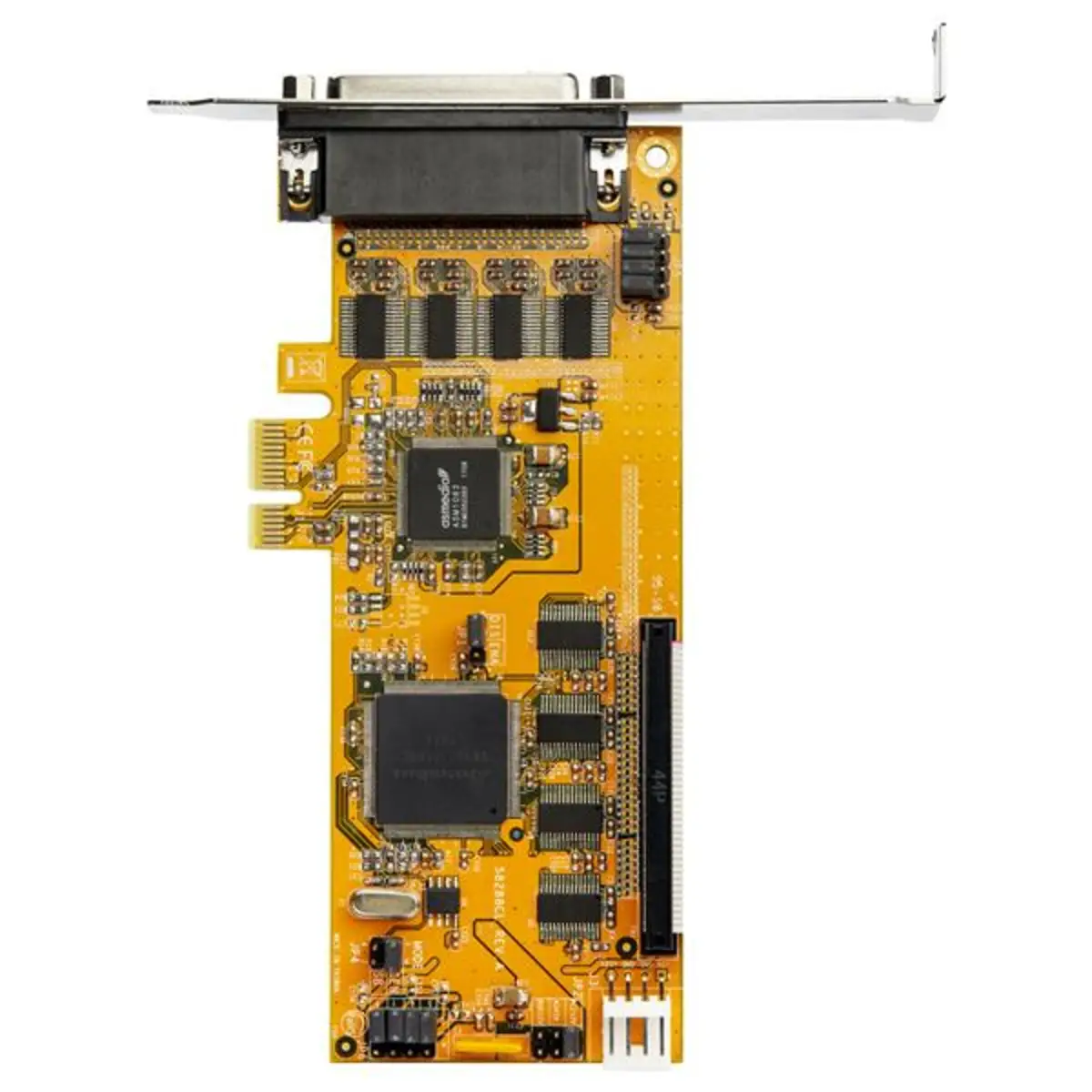

- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
- COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers
Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.Connect your Peripherals with 8 Serial PortsThe PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.Versatile UseThe low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.Maximum CompatibilityWith broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.PEX8S1050LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 2 (1xDB44 to 4xDB9) breakout cables incl; Hex nuts incl for opt screw or nut DB9 interface
- COMPATABILITY: 2 low profile brackets for PCI-e 1x card; Fully compliant w/ PCI Express Base Spec, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For low profile desktop/servers
Technical specifications
Design
Product colour | Yellow |
Anschlüsse und Schnittstellen
Serial ports quantity | 8 |
Host interface | PCIe |
Maus
Certification | CE, FCC, TAA |
Nachhaltigkeit
Sustainability certificates | RoHS |
Systemanforderung
Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Kopfhörer
Chipset | ASMEDIA - ASM1083,SYSTEMBASE - SB16C1058PCI |
Technische Details
Parity bit | Even,N,Odd |
Data bits | 5,6,7,8 |
Stop bits | 1,1.5,2 |
Baud rate | 926.1 Kbit/s |
Verpackungsdaten
Package weight | 750 g |
Package depth | 290 mm |
Package width | 190 mm |
Package height | 70 mm |
Betriebsbedingungen
Operating relative humidity (H-H) | 5 - 95 |
Storage temperature (T-T) | -20 - 85 |
Operating temperature (T-T) | 0 - 55 |
Gewicht und Abmessungen
Weight | 116 g |
Height | 60 mm |
Width | 22 mm |
Depth | 145 mm |
Logistische Daten
Master (outer) case height | 315 mm |
Master (outer) case width | 400 mm |
Master (outer) case length | 510 mm |
Products per master (outer) case | 14 ST |
Downloads
194302_document_EN_001
PDF Download
ID: 194302
