- Components
- USB Hubs / cardreader
- StarTech industrieller 7-Port USB 3.0 Hub with overVoltagesprotection
+4 Images
9 Images
Product description

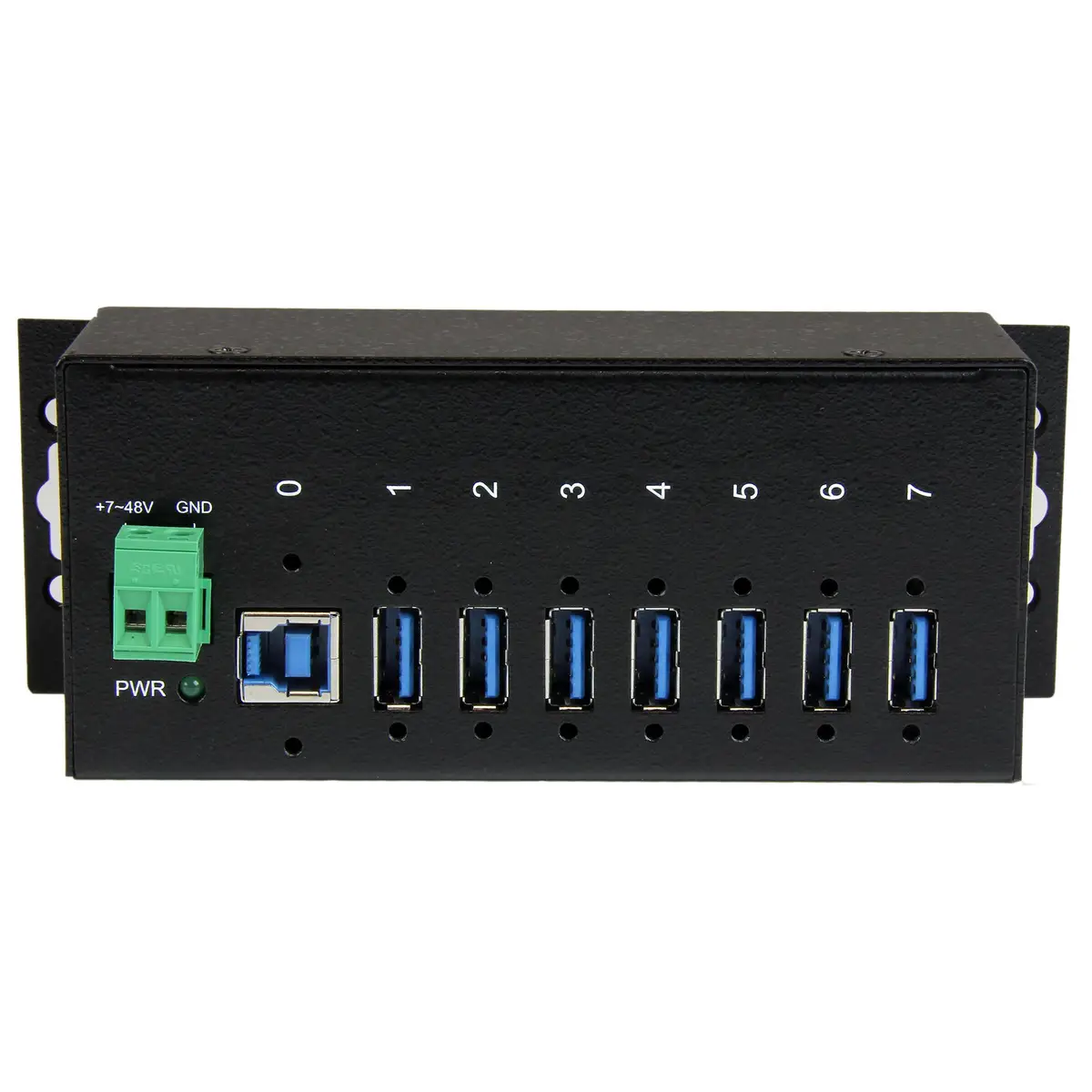

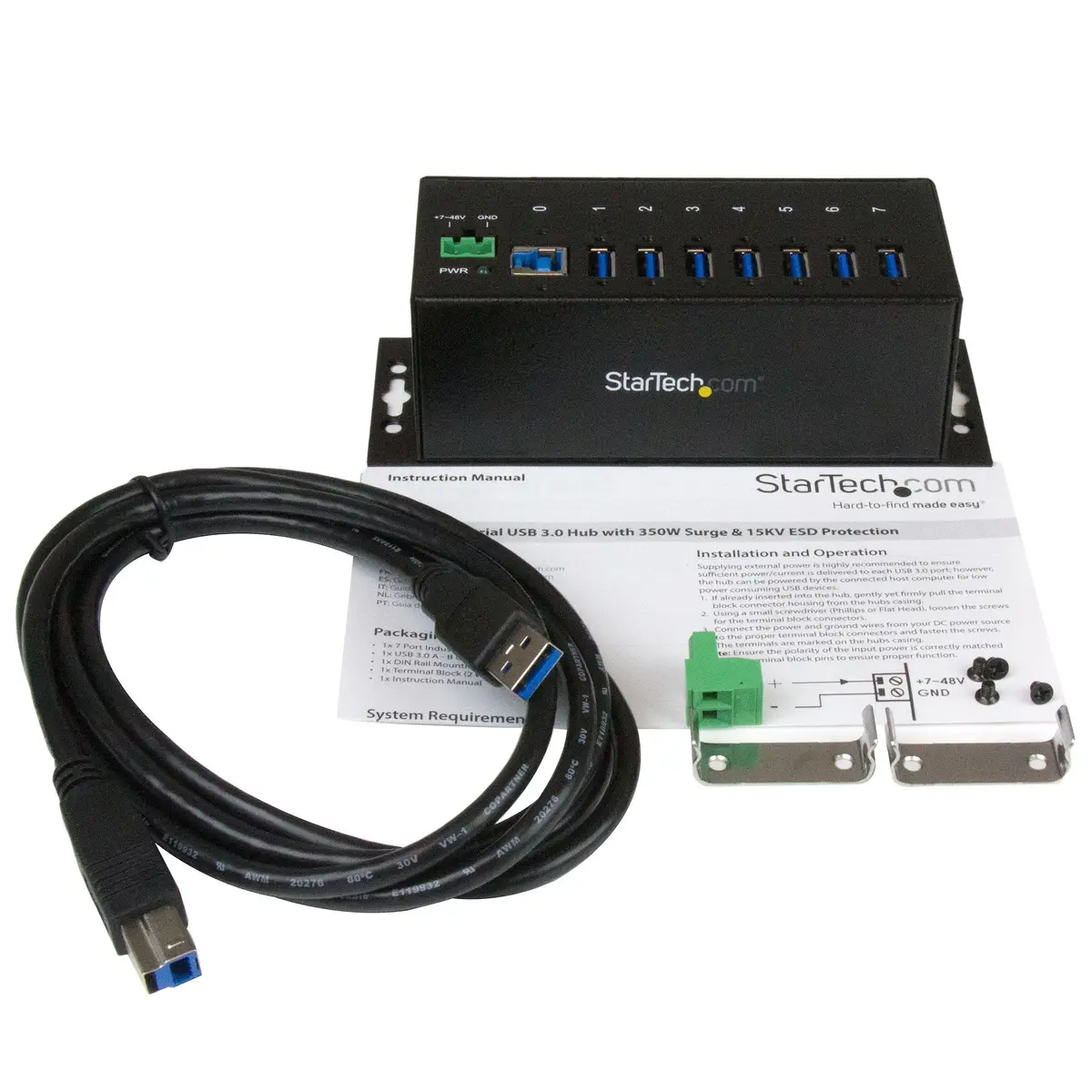

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 GbpsThis TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.Perfect for Harsh EnvironmentsThis industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.Connect & Charge More USB DevicesDesigned for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.Locate the Hub Where You Need It MostWith versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.Works with Older USB DevicesThe rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Technical specifications
Design
LED indicators | Power |
Maus
Certification | CE, FCC, RoHS, TAA, REACH |
Technische Details
Ports quantity | 7 |
Verpackungsdaten
Package weight | 600 g |
Package depth | 190 mm |
Package width | 295 mm |
Package height | 69 mm |
Betriebsbedingungen
Storage temperature (T-T) | -20 - 85 |
Operating temperature (T-T) | 0 - 70 |
Sonstige Funktionen
Manual | Y |
Input voltage | 7 - 48 |
Gewicht und Abmessungen
Weight | 325 g |
Height | 45 mm |
Width | 54 mm |
Depth | 145 mm |
Logistische Daten
Master (outer) case height | 326 mm |
Master (outer) case width | 397 mm |
Master (outer) case length | 511 mm |
Products per master (outer) case | 14 ST |
Downloads
134607_document_EN_001
PDF Download
ID: 134607
StarTech.com ID: ST7300USBME
