ID: 713729 EIZO ID: CG2400S

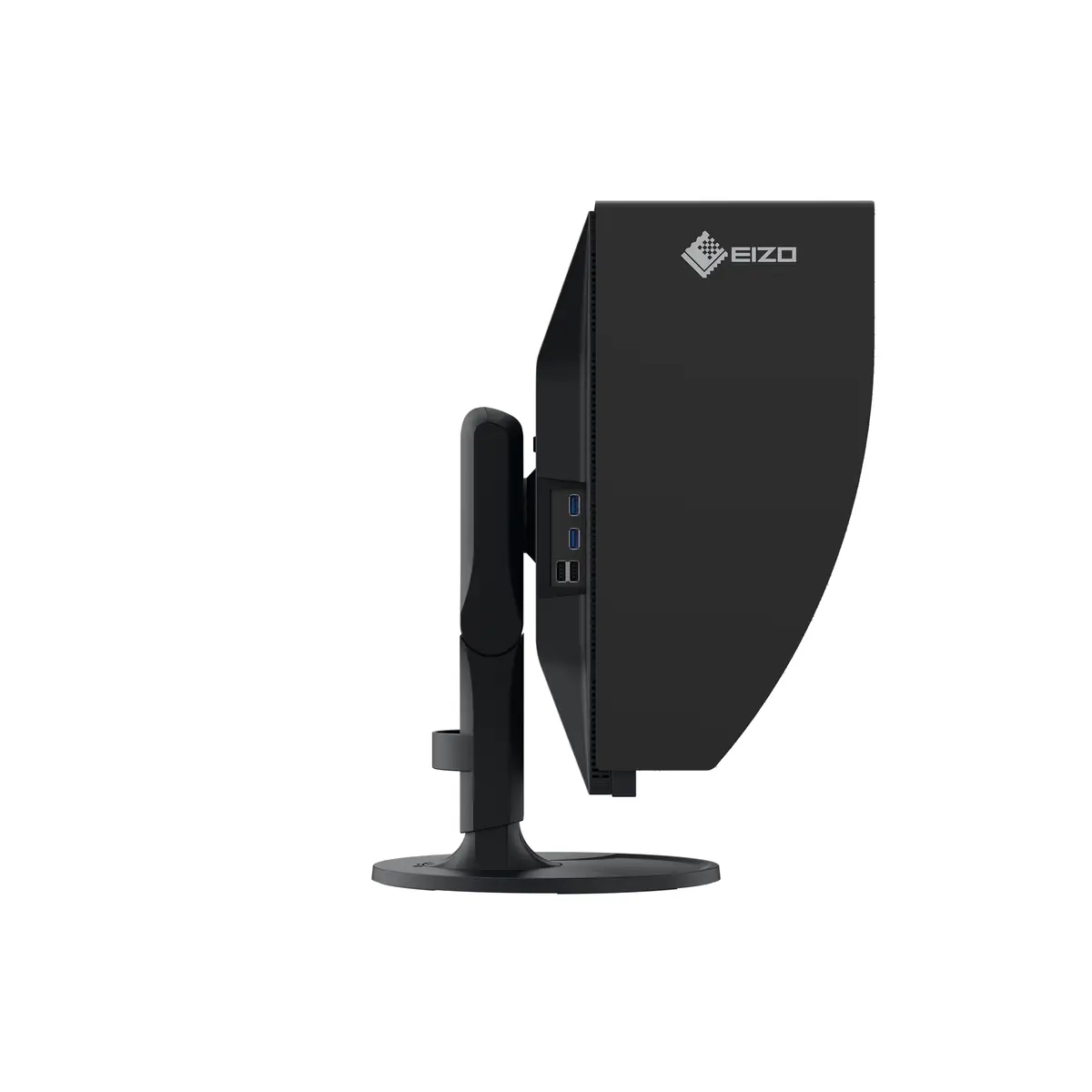

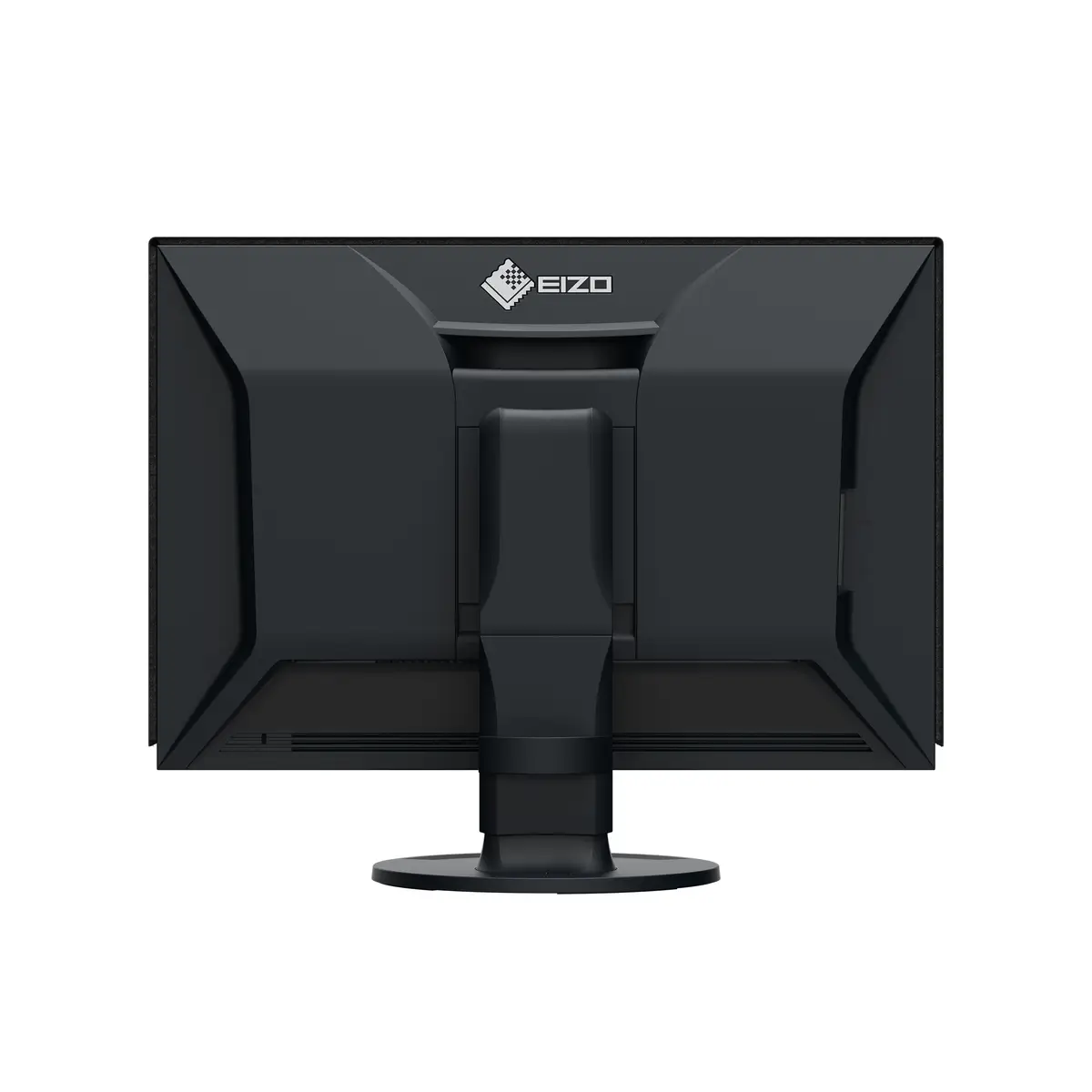

ColorEdge CG2400S 61cm (24") 1920x1200 Pixel 1800:1 400cd/m² 11ms

Detailed product title

EIZO ColorEdge CG2400S 61cm (24") 1920x1200 Pixel 1800:1 400cd/m² 11ms

Response time 11 ms

Display resolution 1920 x 1200 pixels

Contrast ratio (typical) 1800:1

Display brightness (typical) 400 cd/m²

Display diagonal 24.1 "

Product colour Schwarz

Height adjustment Yes

Built-in speaker(s) No

please ask for availability

Added to cart

please ask for availability

Product description

With its wide color gamut, enormous 1800:1 contrast ratio, state-of-the-art USB-C connectivity and pre-installed HDR presets, the CG2400S is the ideal tool for professional creatives. The CG2400S with Wide Gamut IPS panel, 10-bit color depth and 16-bit 3D Look-Up-Table (LUT) offers perfect precision, smooth color transitions and nuances. The Adobe RGB color space is covered by 99% and the DCI-P3 color space by 98%. Thanks to the presets for HLG and the PQ gamma curves, even the smallest model in the ColorEdge CG series can be ideally integrated into HDR production workflows. The integrated calibration sensor enables effortless, automatic calibration. Thanks to the universal connectivity via USB-C, a single cable is used to transmit the image signal and power the monitor’s USB hub. It can also be used to supply a mobile device with up to 70 watts of charging current. In combination with the integrated USB hub, the CG2400S becomes the central dock for creative workflows in a single operation. Of course, an HDMI and DisplayPort connection are also on board. The supplied light protection screen rounds off the CG2400S’s extensive features.

Technical specifications

Other features

Certification	CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC
Compliance certificates	CB,CCC,CE,China RoHS,Federal Communications Commission (FCC),PSE,RCM,RoHS,TÜV mark,UKCA,VCCI,WEEE,cTUVus

Logistics data

Harmonized System (HS) code

85285210

Power

USB Power Delivery (USB PD)

Packaging content

Cables included	HDMI,USB Type-A to USB Type-B,USB Type-C to USB Type-C,AC
Stand included	Yes
Quick start guide	Yes

Weight & dimensions

Height (with stand)	408.1 mm
Depth (with stand)	245 mm
Width (with stand)	554.4 mm
Weight (with stand)	8,500 g
Weight (without stand)	5,500 g
Width (without stand)	554.4 mm
Height (without stand)	374.1 mm
Depth (without stand)	70.2 mm

Operational conditions

Operating relative humidity (H-H)	20 - 80
Storage temperature (T-T)	-20 - 60
Operating temperature (T-T)	0 - 35
Storage relative humidity (H-H)	10 - 90

Power

Power supply type	Internal
Energy efficiency scale	A to G
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Power consumption (typical)	17 W
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240
AC input frequency	50/60
Power consumption (max)	150 W
Energy consumption (SDR) per 1000 hours	16 kW.h

Ergonomics

Cable lock slot type	Kensington
Cable lock slot	Yes
VESA mounting	Yes
On Screen Display (OSD) languages	DEU,ENG,ESP,FRE,ITA,SWE
Height adjustment	Yes
Pivot	Yes
On Screen Display (OSD)	Yes
Swivelling	Yes
Swivel angle range	0 - 344
Tilt angle range	-5 - 35
Panel mounting interface	100 x 100 mm
Pivot angle	-90 - 90

Ports & interfaces

HDMI ports quantity	1
DisplayPorts quantity	1
HDCP	Yes
HDMI	Yes
Headphone out	No
USB hub version	2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B,USB Type-C
Number of upstream ports	2
USB Type-A downstream ports quantity	4
Number of USB Type-C upstream ports quantity	1
Number of USB Type-B upstream ports quantity	1
Built-in KVM switch	Yes
Built-in USB hub	Yes
USB Power Delivery up to	70 W

Design

Market positioning	Photo editing
Feet colour	Black

Multimedia

Built-in camera	No
Built-in speaker(s)	No

Performance

NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Display

Supported graphics resolutions	1920 x 1200 (WUXGA)
Backlight type	W-LED
Display technology	LCD
Native aspect ratio	16:10
HD type	WUXGA
Panel type	IPS
Screen shape	Flat screen
Display number of colours	1.07 billion colours
Anti-glare screen	Yes
Contrast ratio (typical)	1800:1
Touchscreen	No
Supported video modes	1080p,1080i,720p,576p,576i,480i,480p
Pixel pitch	0.27 x 0.27
Viewable size, vertical	518.4 mm
Viewable size diagonal	324 mm
Response time	11 ms
Display diagonal	24.1 "
Digital horizontal frequency	15 - 76
Digital vertical frequency	23 - 61
Display resolution	1920 x 1200 pixels
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Colour depth	10 bit
Display diagonal (metric)	61 cm
Maximum refresh rate	60 Hz
Adobe RGB coverage	99 %
sRGB coverage (typical)	100 %
Display brightness (typical)	400 cd/m²
