- Displays
- Desktop Displays
- FlexScan EV4340X-WT Flachbildschirm 108 cm (42,5") 3840x2160 Pixel 350 cd/m² 5ms Weiß
+2 Images
7 Images
Product description

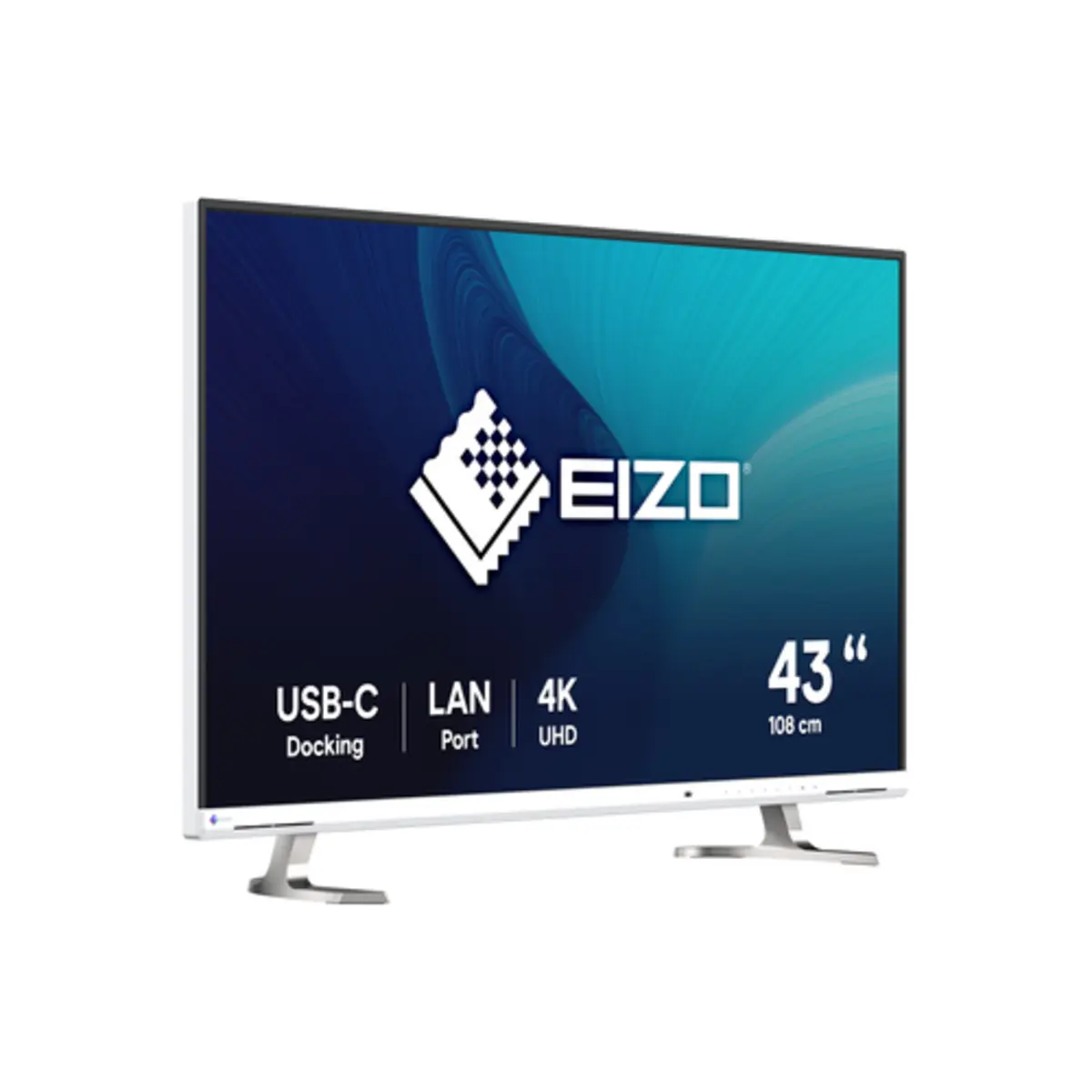

With a 42.5 inch screen diagonal, the EIZO FlexScan EV4340X is ideal for use in control rooms, control centers, trading floors or similar work environments: Its 4K resolution (3840 x 2160 pixels) offers four times as much information as a Full HD monitor. In addition to two HDMI inputs and a DisplayPort connection, the monitor has full USB-C docking functionality including DisplayPort Alt Mode, transmission of video, audio and USB data signals and a power supply of up to 94 watts. The EV4340X also masters operation with multiple computers or image sources with ease. The integrated KVM switch allows the use of a keyboard and mouse combination on two computers. Thanks to its picture-in-picture (PbP) function, the monitor can display up to four video signals side by side. The button on the front can be used to conveniently switch between 12 available layouts. The picture-in-picture (PiP) function for two signal sources offers efficient screen utilization for presentations and meetings. These and other important functions can be controlled on the monitor or via the supplied remote control. Therefore, the EIZO FlexScan EV4340X is also well suited for wall mounting when buttons on the device are not accessible. Its slim design makes grouping in multi-screen systems particularly easy.
Technical specifications
Design
| Product colour | White |
| Anti-glare screen | Y |
Bildschirm
| Supported graphics resolutions | 640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x |
| Display technology | LED |
| Panel type | IPS |
| Screen shape | Flat screen |
| Display number of colours | 16.7 million colours |
| Touchscreen | N |
| Pixel pitch | 0.245 x 0.245 |
| Viewable size, horizontal | 941.2 mm |
| Viewable size, vertical | 529.4 mm |
| Display diagonal | 42.5 " |
| Display resolution | 3840 x 2160 |
| Viewing angle, horizontal | 178 deg |
| Viewing angle, vertical | 178 deg |
| Pixel density | 104 ppi |
| Display brightness (typical) | 350 cd/m² |
Kamera
| High Dynamic Range (HDR) supported | N |
Leistungen
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
Power
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (standby) | 0.4 W |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Energy consumption (SDR) per 1000 hours | 31 kW.h |
Lieferumfang
| Cables included | AC,DisplayPort,USB Type-Ato USB Type-B,USB Type-C |
| Stand included | Y |
| Remote control included | Y |
Technische Details
| Market positioning | Office |
| Response time | 5 ms |
Verpackungsdaten
| Quick start guide | Y |
Sonstige Funktionen
| Manual | Y |
| Picture-by-Picture (PbP) | Y |
| Digital horizontal frequency | 31 - 134 |
| Digital vertical frequency | 29 - 61 |
| Display diagonal (metric) | 108 cm |
Sustainability
| Sustainability certificates | ENERGY STAR,EPEAT Climate+,EPEAT Silver,TCO |
Gewicht und Abmessungen
| Height (with stand) | 631 mm |
| Depth (with stand) | 225.3 mm |
| Width (with stand) | 966.8 mm |
| Weight (with stand) | 15,900 g |
| Weight (without stand) | 15,200 g |
| Width (without stand) | 966.8 mm |
| Height (without stand) | 571 mm |
| Depth (without stand) | 89.9 mm |
Ergonomics
| VESA mounting | Y |
| On Screen Display (OSD) languages | DEU,ENG,ESP,FRE,ITA,SWE |
| Height adjustment | N |
| On Screen Display (OSD) | Y |
| Picture-in-Picture | Y |
| Panel mounting interface | 100 x 100,200 x 200 |
Multimedia
| Built-in camera | N |
| Built-in speaker(s) | Yes |
Graphics
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Mouse
| Certification | CERTIFICATION &STANDARDS CertificationCE, UKCA, |
Video
| HD type | 4K Ultra HD |
Projector
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDCP | Y |
| USB Type-C DisplayPort Alternate Mode | Y |
| USB Power Delivery (USB PD) | Y |
| Ethernet LAN | Y |
| HDMI | Y |
| Headphone out | Y |
| USB upstream port type | USB Type-B,USB Type-C |
| USB Type-A downstream ports quantity | 2 |
| USB Type-C downstream ports quantity | 1 |
| Number of USB Type-C upstream ports quantity | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| Built-in KVM switch | Y |
| Built-in USB hub | Y |
| USB Power Delivery up to | 94 W |
Downloads
526719_document_DE_001
PDF Download
526719_document_EN_001
PDF Download
