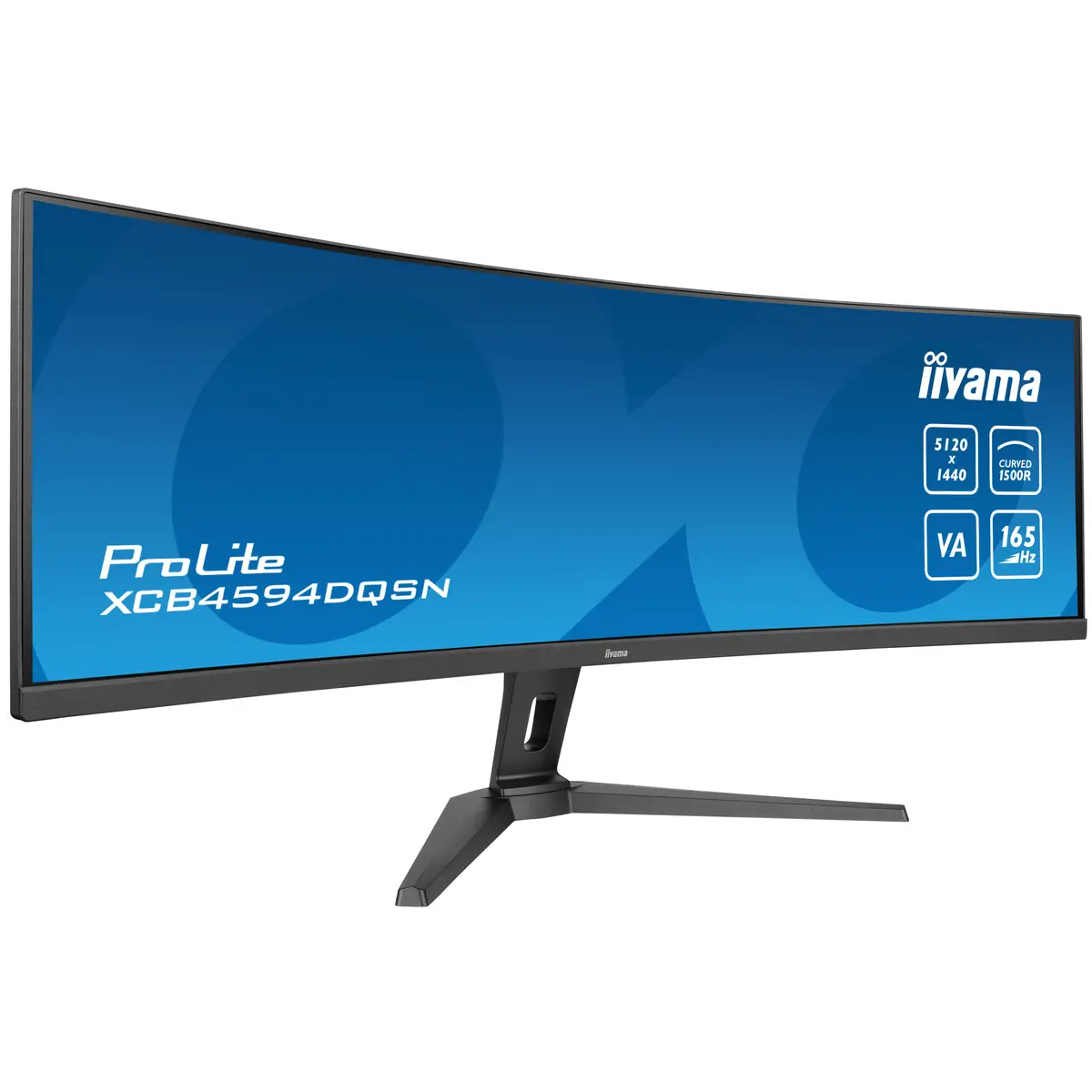

- ProLite XCB4594DQSN-B1 LED-Monitor gebogen 113cm 44,5" 5120x1440 Dual Quad HD 165 Hz VA 450 cd/m² 3000:1 HDR400 0.8 ms 2xHDMI DisplayPort USB-C Lautsprecher Schwarz Matte
+8 Images
13 Images
Product description
45’’ Dual QHD VA panel with KVM switch, USB-C dock and RJ45 (LAN) and height adjustable stand
The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1140 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.
DQHD
Ultra-wide 32:9 monitors with a DQHD 5120x1440 resolution, also called dual QHD, deliver razor-sharp images. They make it possible to divide the workspace into multiple windows and simultaneously open all the documents you need.

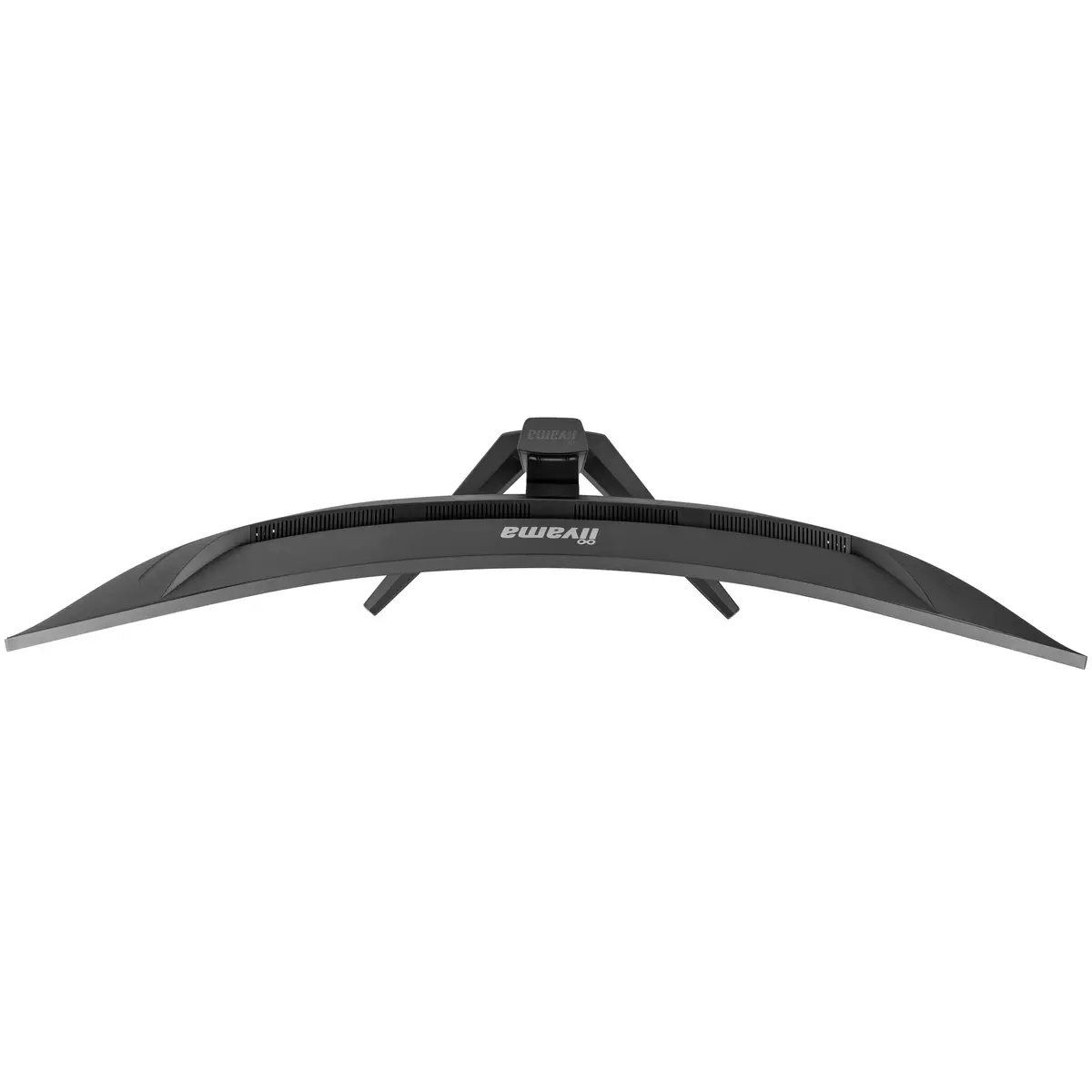

CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
The XCB4594DQSN features a 1500R curved VA panel with a 165Hz refresh rate, 0.8ms MPRT, and a 5120x1140 (DQHD) resolution for superb image quality. The KVM switch allows you to connect multiple computers that can be operated over one console (monitor, keyboard, mouse). The USB-C dock simplifies setup with one cable for laptop signal transmission, power, and charging. Connecting to the Internet via LAN automatically links your notebook to the network. The VA panel ensures expansive viewing angles and vivid colours, and the 1500R curvature minimizes eye strain for a lifelike and fully immersive gaming experience. The dual QHD resolution provides sharp visuals, and the height-adjustable stand adds a comfortable and highly ergonomic experience.
DQHD
Ultra-wide 32:9 monitors with a DQHD 5120x1440 resolution, also called dual QHD, deliver razor-sharp images. They make it possible to divide the workspace into multiple windows and simultaneously open all the documents you need.
CURVED DESIGN 1500R
The 1500R curvature of the screen reduces the strain on your eyes while providing a realistic viewing experience. It allows a comprehensive and more natural viewing angle than you’ll have with flat monitors lined up side by side. The result is a more immersive experience which boosts productivity and focus whether it be for work, gaming, entertainment, editing or more.
USB-C DOCK
The dock allows you to connect your laptop with a single cable to the monitor to both make sure it is charged and connected to a wired network and signal from the laptop is sent to the monitor. With additional USB-ports, your mouse, keyboard or webcam can also be connected to the monitor. All thanks to a single cable connecting your laptop* to the USB C dock in the monitor.
KVM SWITCH
Having a monitor with a KVM switch allows you to share the devices connected via USB to your monitor with two different PCs. Just change the signal input in the OSD menu of the monitor and your keyboard, mouse and webcam will switch from your work laptop to your gaming PC.
VA
VA panel technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Technical specifications
Leistungen
| Volume control | Buttons |
| ConnectShare (USB) | Y |
| Flicker-free technology | Y |
| Low Blue Light technology | Y |
Weight & dimensions
| Height (with stand) | 409 mm |
| Depth (with stand) | 275 mm |
| Width (with stand) | 1,090 mm |
| Weight (with stand) | 11,200 g |
Power
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | G |
| Power consumption (typical) | 37 W |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Energy consumption (HDR) per 1000 hours | 67 kW.h |
| Energy consumption (SDR) per 1000 hours | 37 kW.h |
Lieferumfang
| Cables included | DisplayPort,HDMI,Power,USB |
| Stand included | Y |
| Power adapter included | Y |
Technische Details
| Market positioning | Gaming |
Verpackungsdaten
| Quick start guide | Y |
| Package weight | 16,400 g |
| Package depth | 315 mm |
| Package width | 1,260 mm |
| Package height | 470 mm |
Sonstige Funktionen
| Power supply type | External |
| Manual | Y |
| Digital horizontal frequency | 30 - 260 |
| Display diagonal (metric) | 113 cm |
Sustainability
| Sustainability certificates | ErP |
| Sustainability compliance | Y |
| Compliance certificates | CE,PSE,REACH,RoHS,cTUVus,UKCA,VCCI,WEEE |
Operational conditions
| Operating temperature (T-T) | 5 - 35 |
Ergonomics
| Cable lock slot type | Kensington |
| Cable lock slot | Y |
| VESA mounting | Y |
| On Screen Display (OSD) languages | CZE,DEU,ENG,FRE,HUN,ITA,JPN,POL,RUS |
| Height adjustment | Y |
| Number of OSD languages | 9 |
| On Screen Display (OSD) | Y |

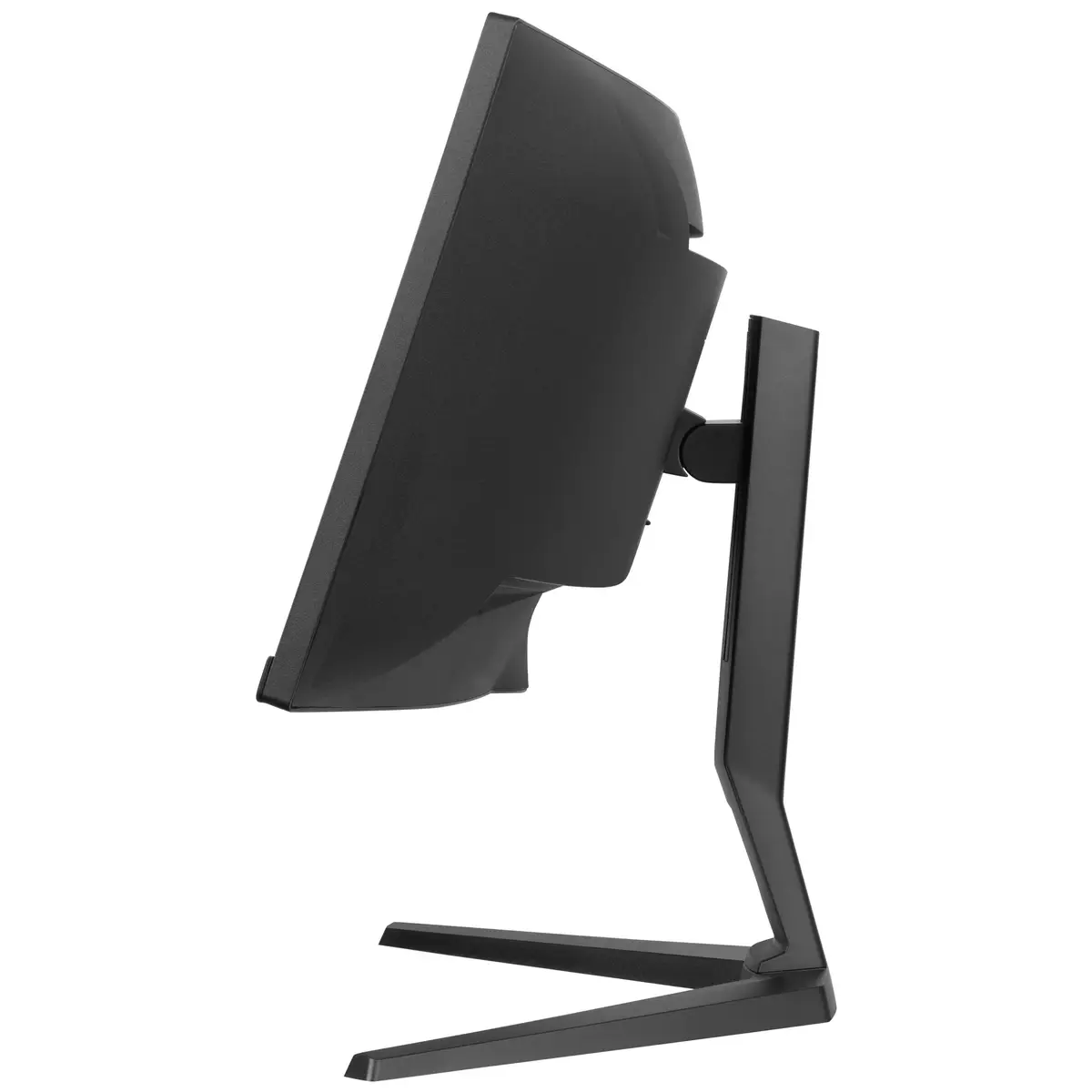

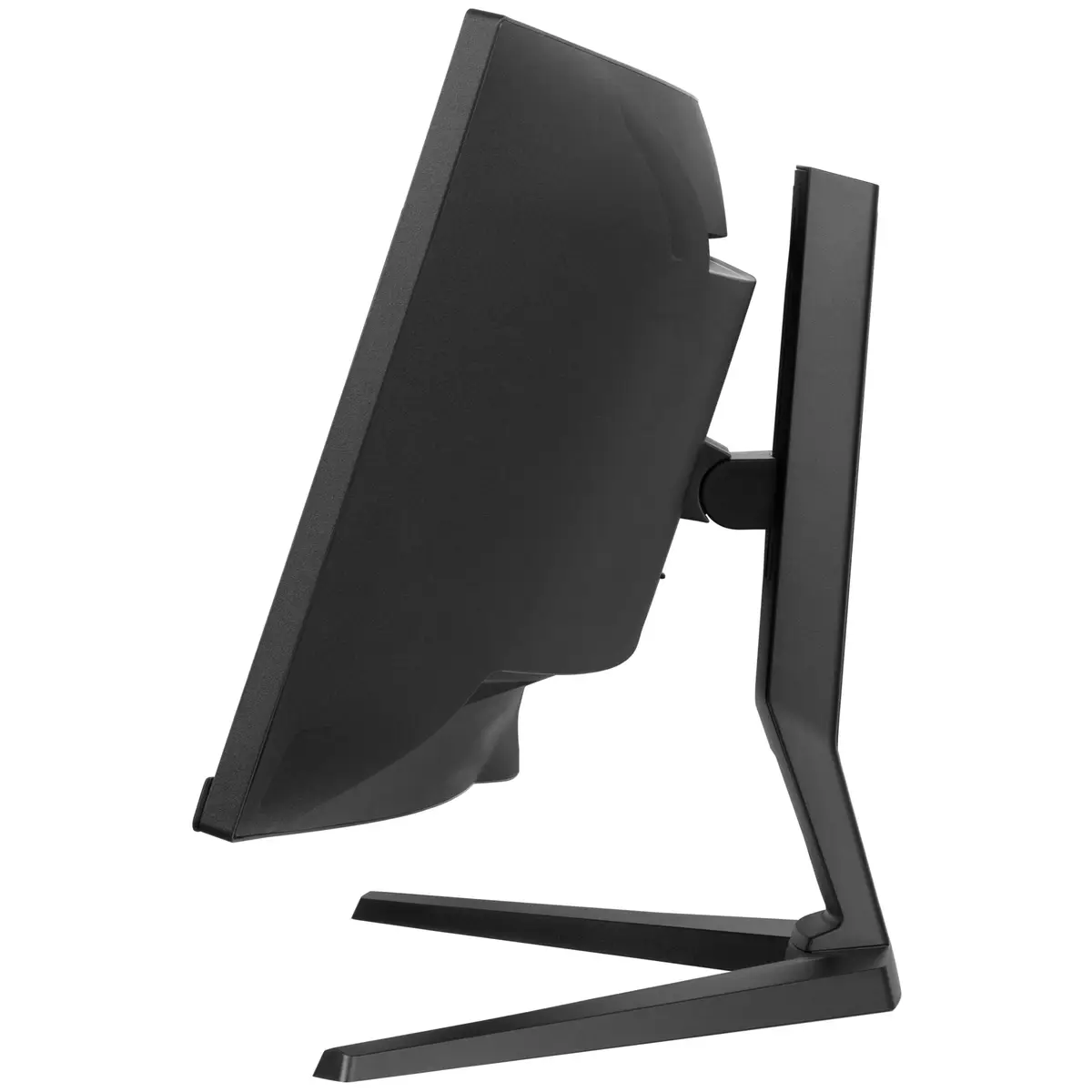

| Tilt angle range | 3 - 20 |
| Panel mounting interface | 200 x 100 mm |
| Height adjustment | 130 mm |
Multimedia
| Number of speakers | 2 |
| Built-in camera | N |
| Built-in speaker(s) | Y |
| RMS rated power | 6 W |
Graphics
| AMD FreeSync | Y |
Video
| HD type | Dual QHD |
Camera
| High Dynamic Range (HDR) supported | Y |
Network
| Ethernet LAN | Y |
Projector
| Native aspect ratio | 32:9 |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 80000000:1 |

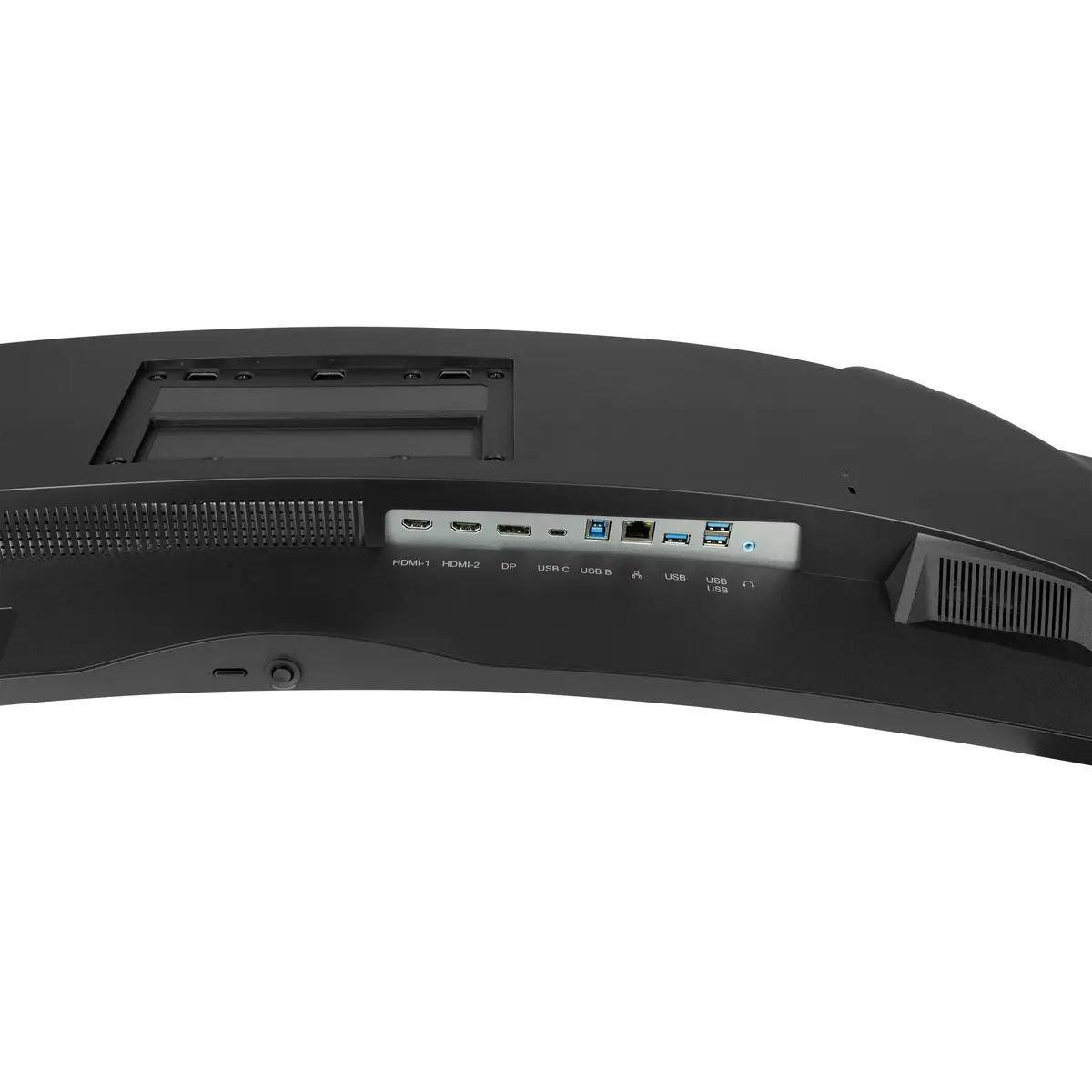

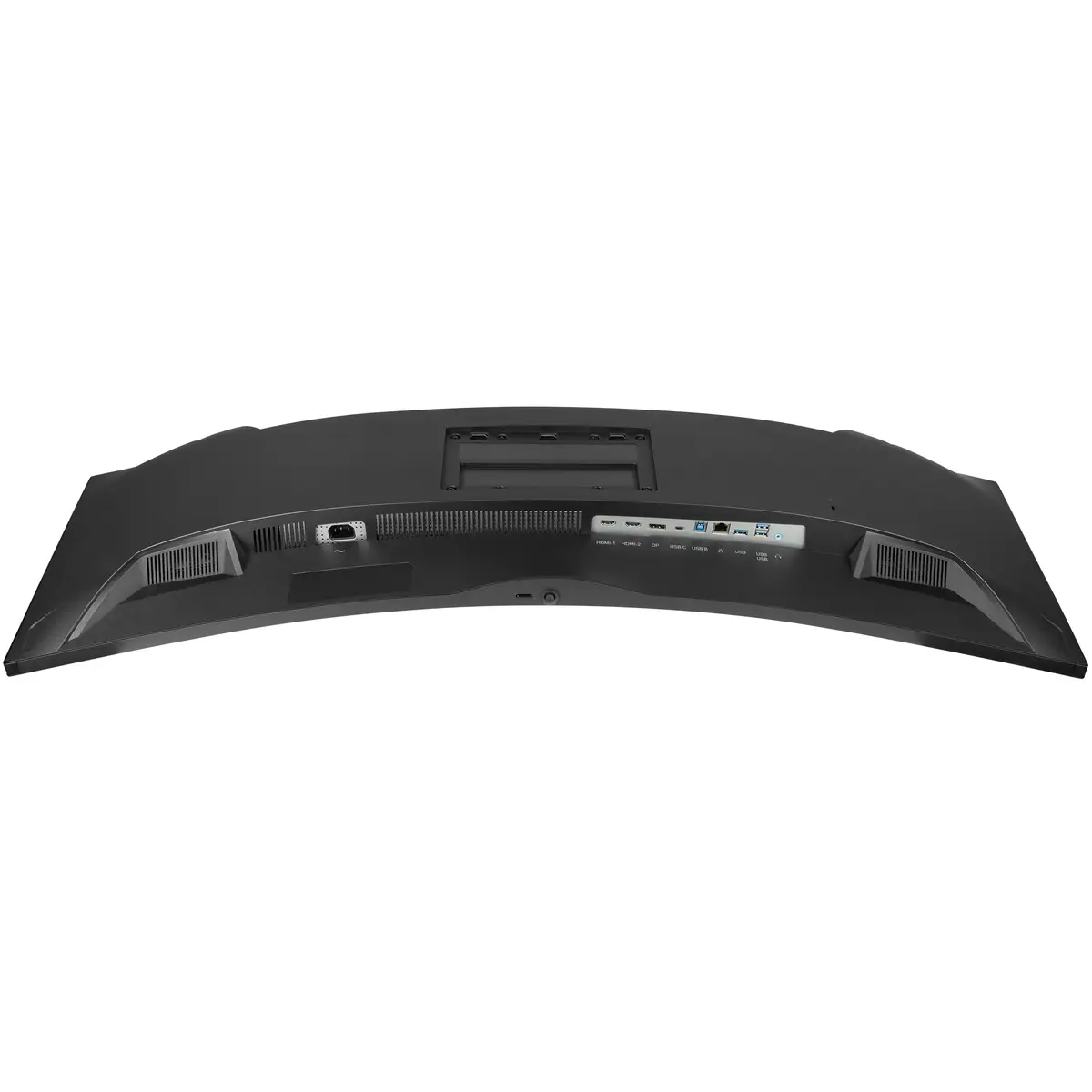

Ports & interfaces
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDCP | Y |
| USB Power Delivery (USB PD) | Y |
| HDMI | Y |
| DC-in jack | Y |
| KVM switch ports quantity | 1 |
| Headphone out | Y |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| Built-in KVM switch | Y |
| Built-in USB hub | Y |
| USB Power Delivery up to | 90 W |
Display
| Backlight type | LED |
| Display technology | LED |
| Panel type | VA |
| Display surface | Matt |
| Screen shape | Curved screen |
| High Dynamic Range (HDR) technology | High Dynamic Range (HDR) 400 |
| Touchscreen | N |
| Screen curvature rating | 1500R |
| Pixel pitch | 0.212 x 0.212 |
| Viewable size, horizontal | 305.9 mm |
| Viewable size, vertical | 1,087.5 mm |
| Response time | 0.8 ms |
| Display diagonal | 45 " |
| Display resolution | 5120 x 1440 pixels |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| Maximum refresh rate | 165 Hz |
| Display brightness (typical) | 450 cd/m² |
Design
| Product colour | Black |
| Feet colour | Black |
| Detachable stand | Y |
Downloads
507570_document_DE_001
PDF Download
507570_document_EN_001
PDF Download
ID: 507570
Iiyama ID: XCB4594DQSN-B1
ProLite XCB4594DQSN-B1 LED-Monitor gebogen 113cm 44,5" 5120x1440 Dual Quad HD 165 Hz VA 450 cd/m² 3000:1 HDR400 0.8 ms 2xHDMI DisplayPort USB-C Lautsprecher Schwarz Matte
