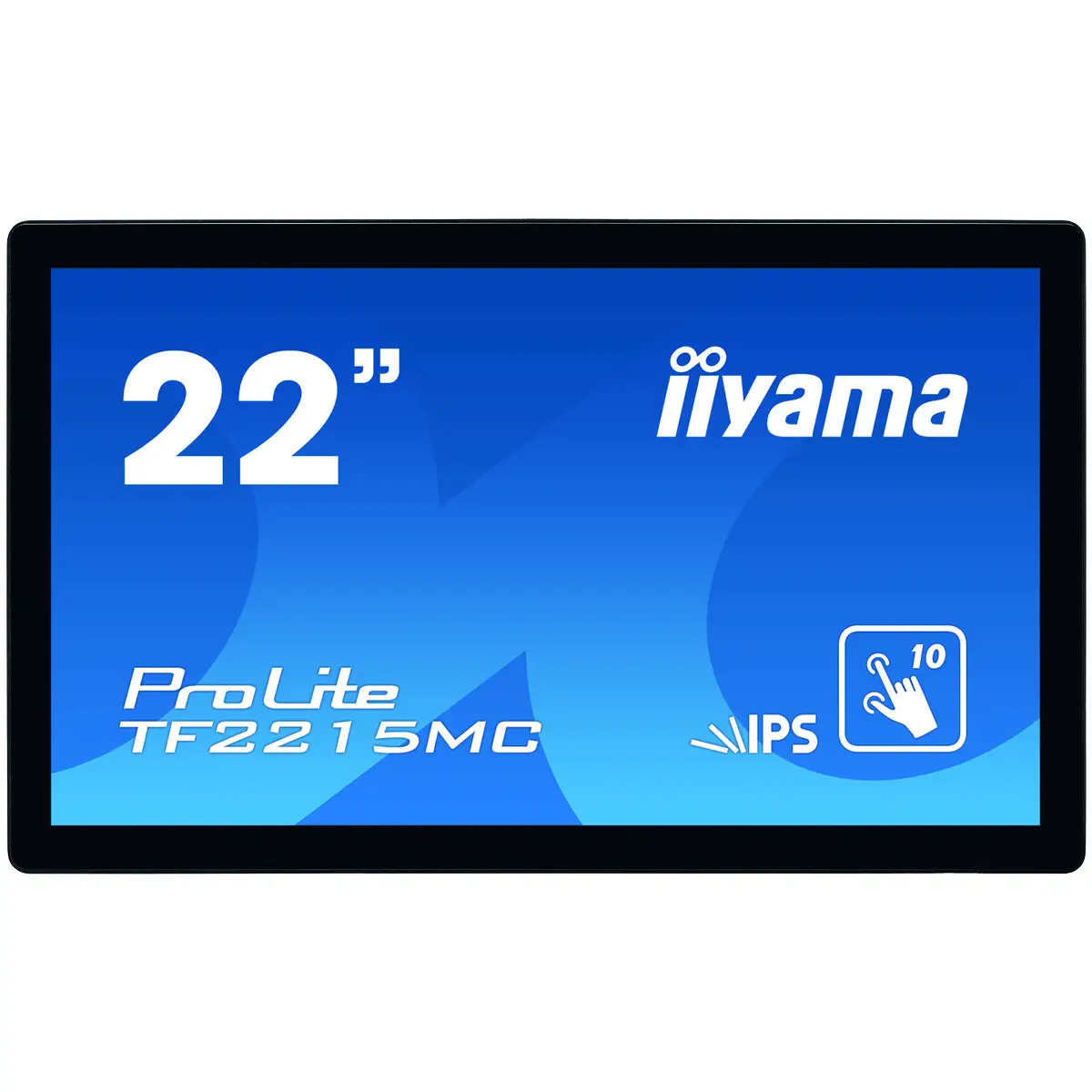

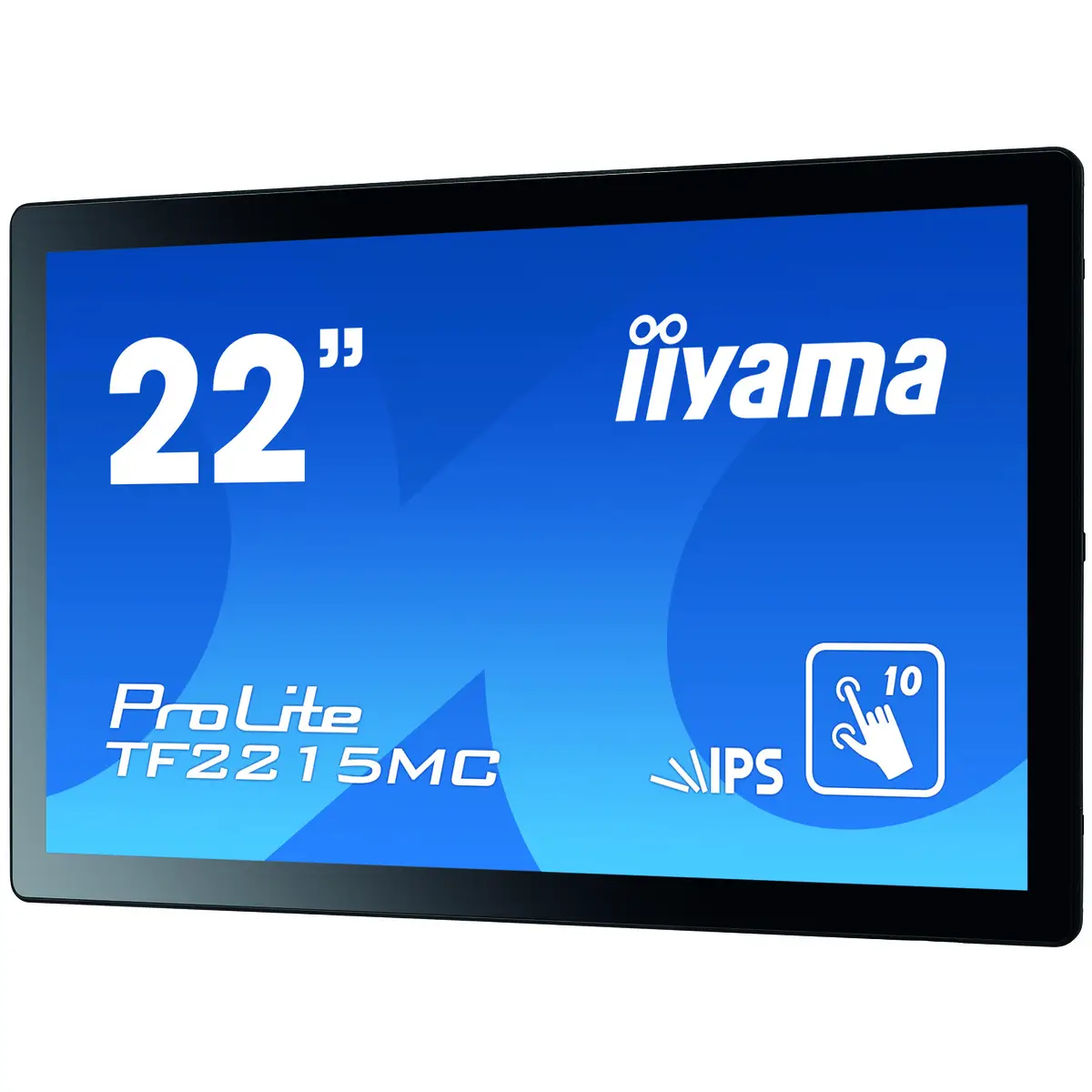

- Prolite TF2215MC-B1 54,6cm (22") 1920x1080 Pixel 350 cd/m² 1000:1 14ms Schwarz
+13 Images
18 Images
Product description

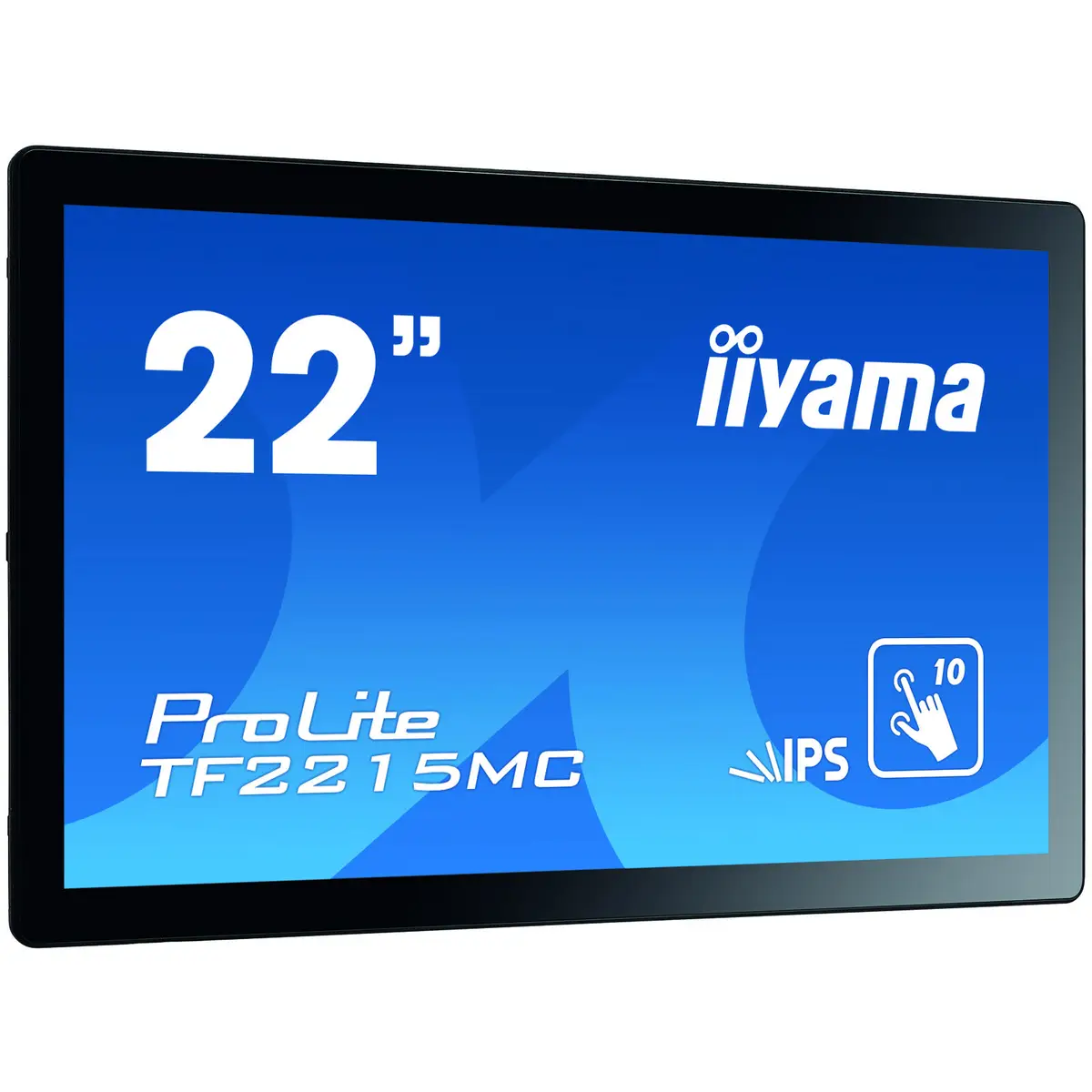

The ProLite TF2215MC-B2 (21.5 inch) uses PCAP touch technology and is built into an eye-catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF2215MC-B2 comes equipped with external mounting brackets making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

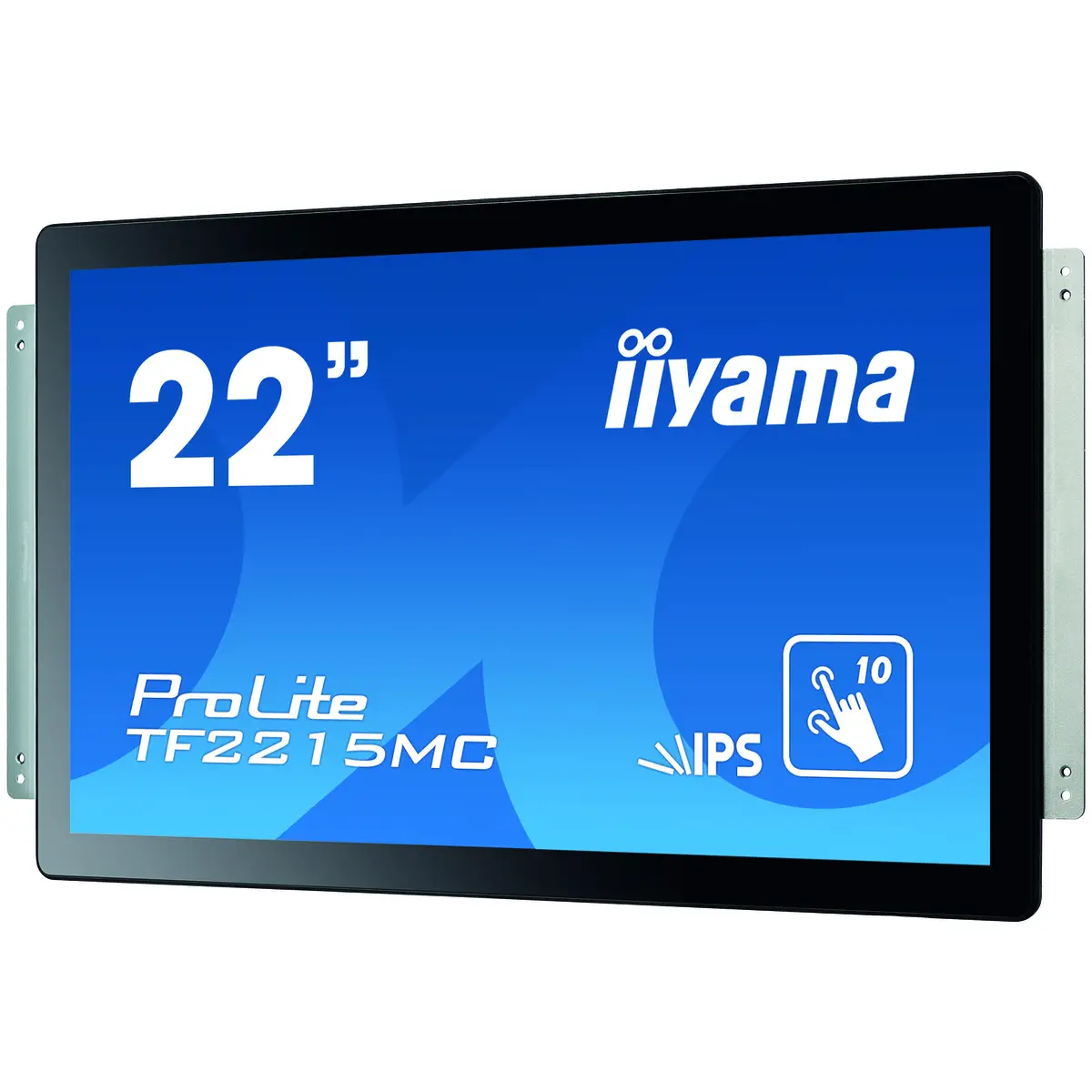

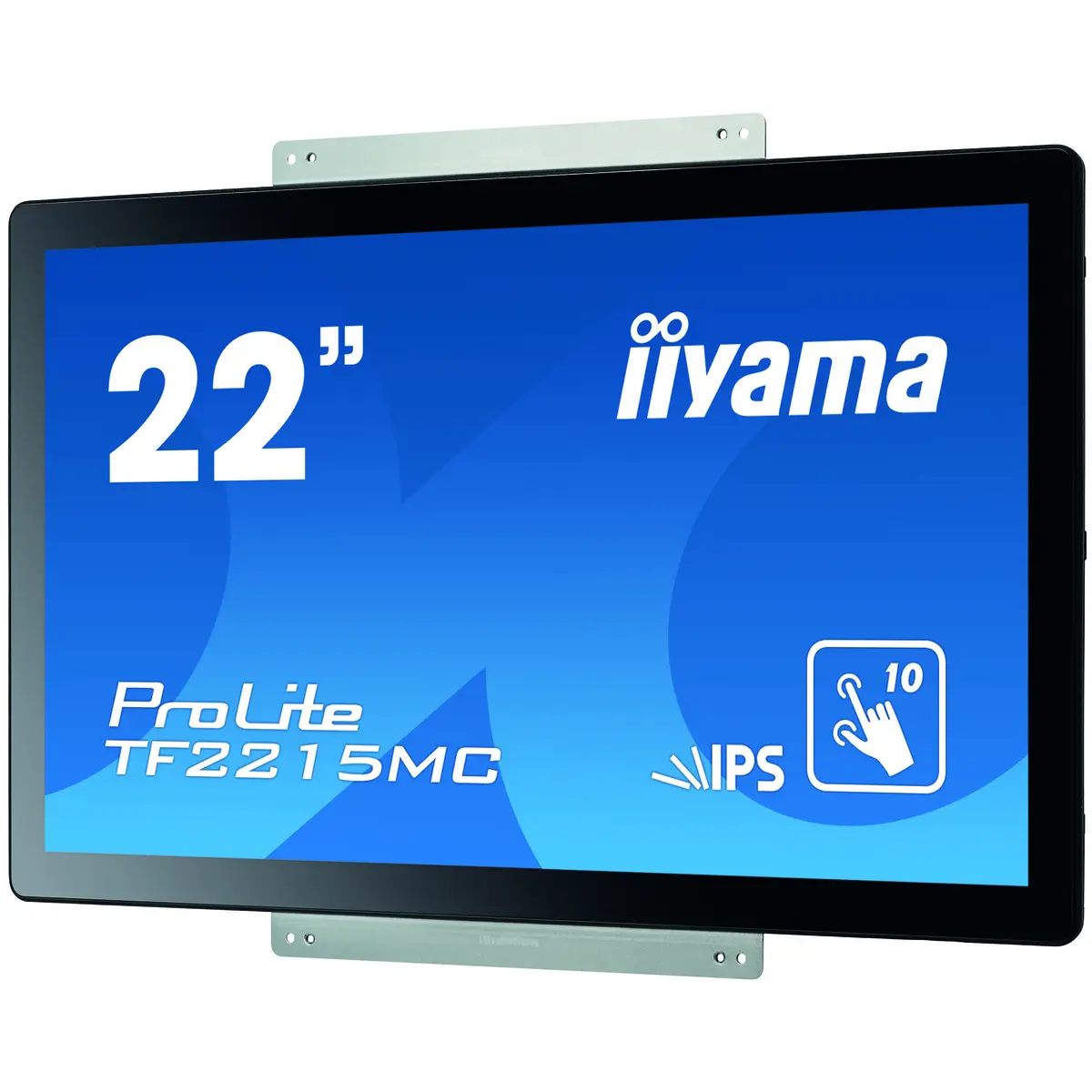

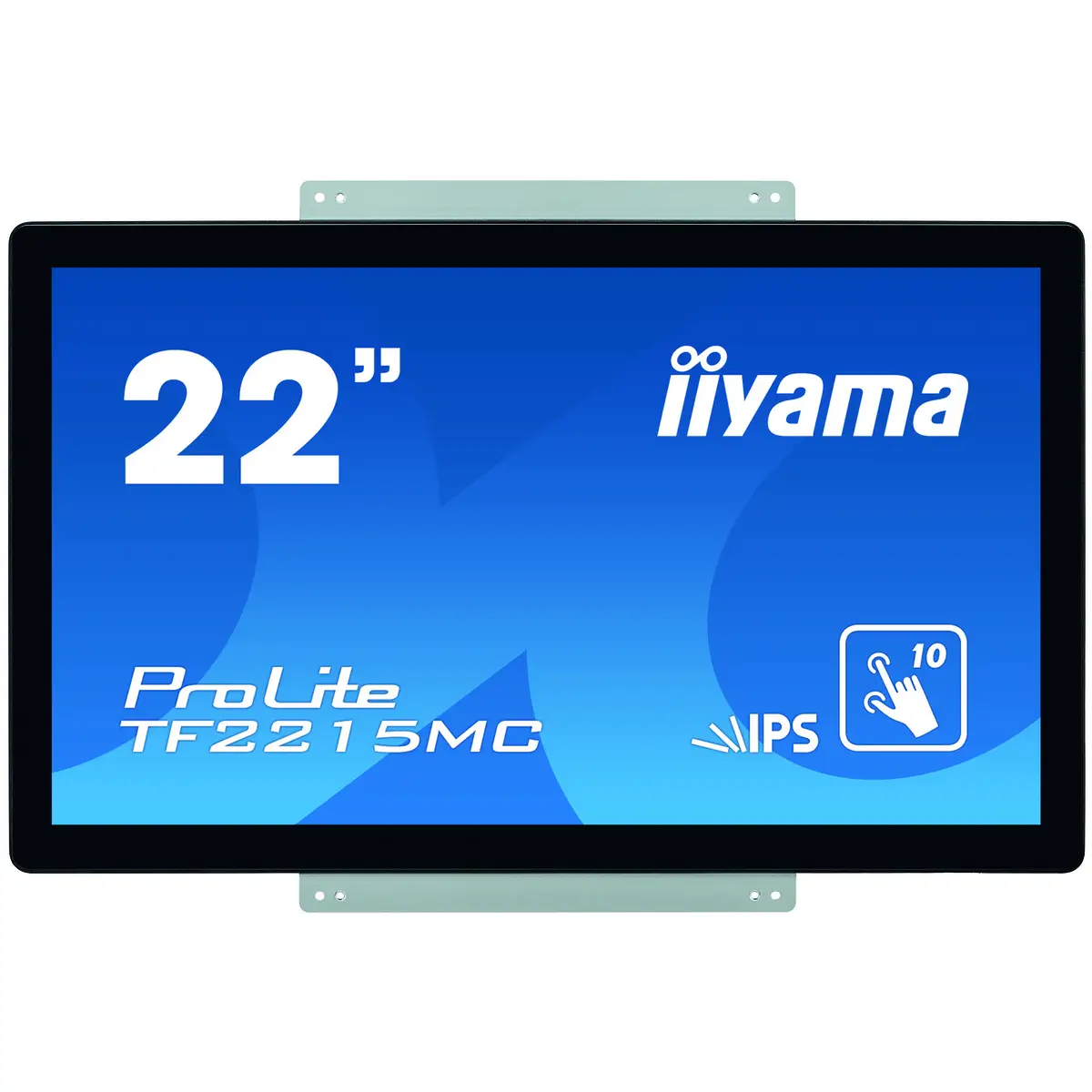

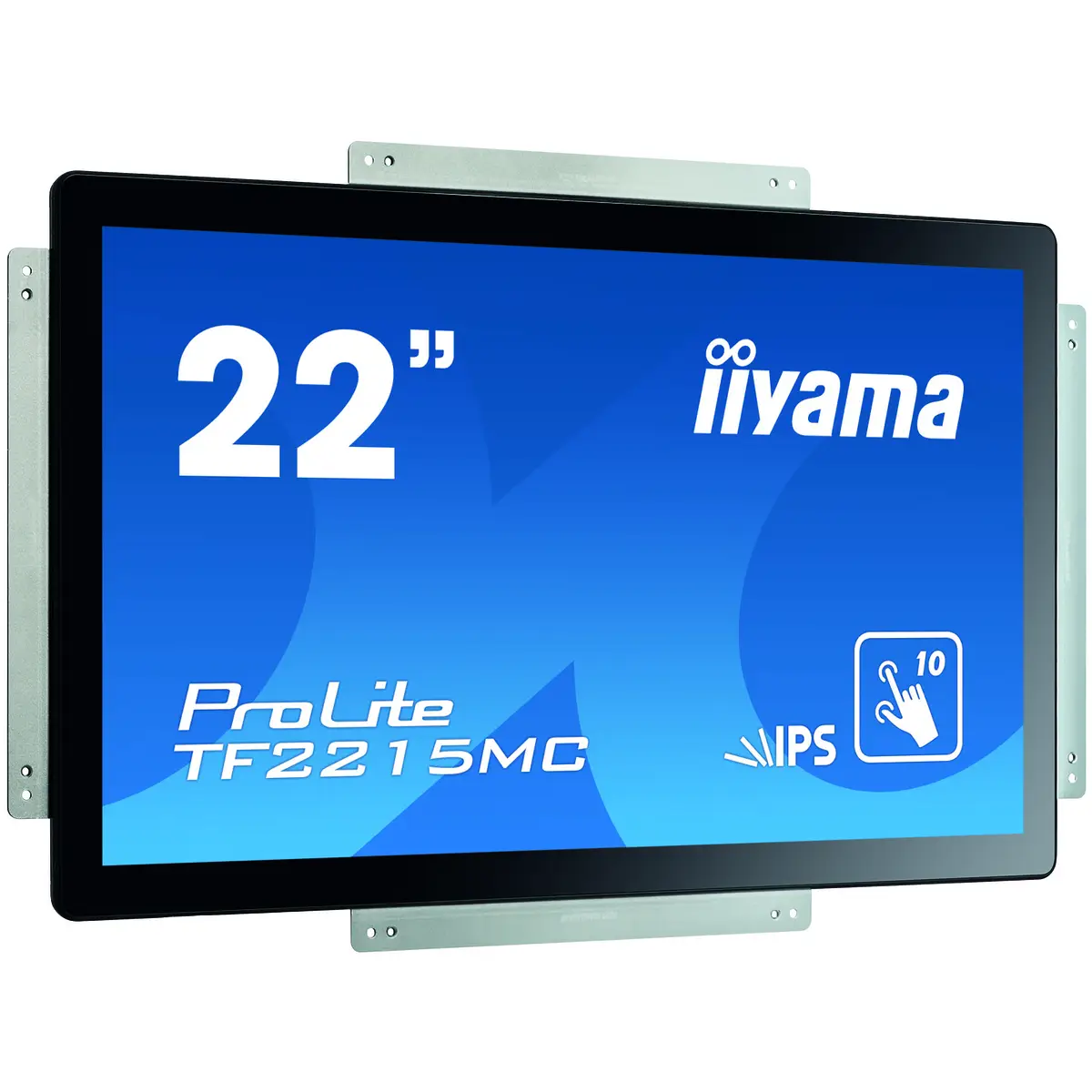

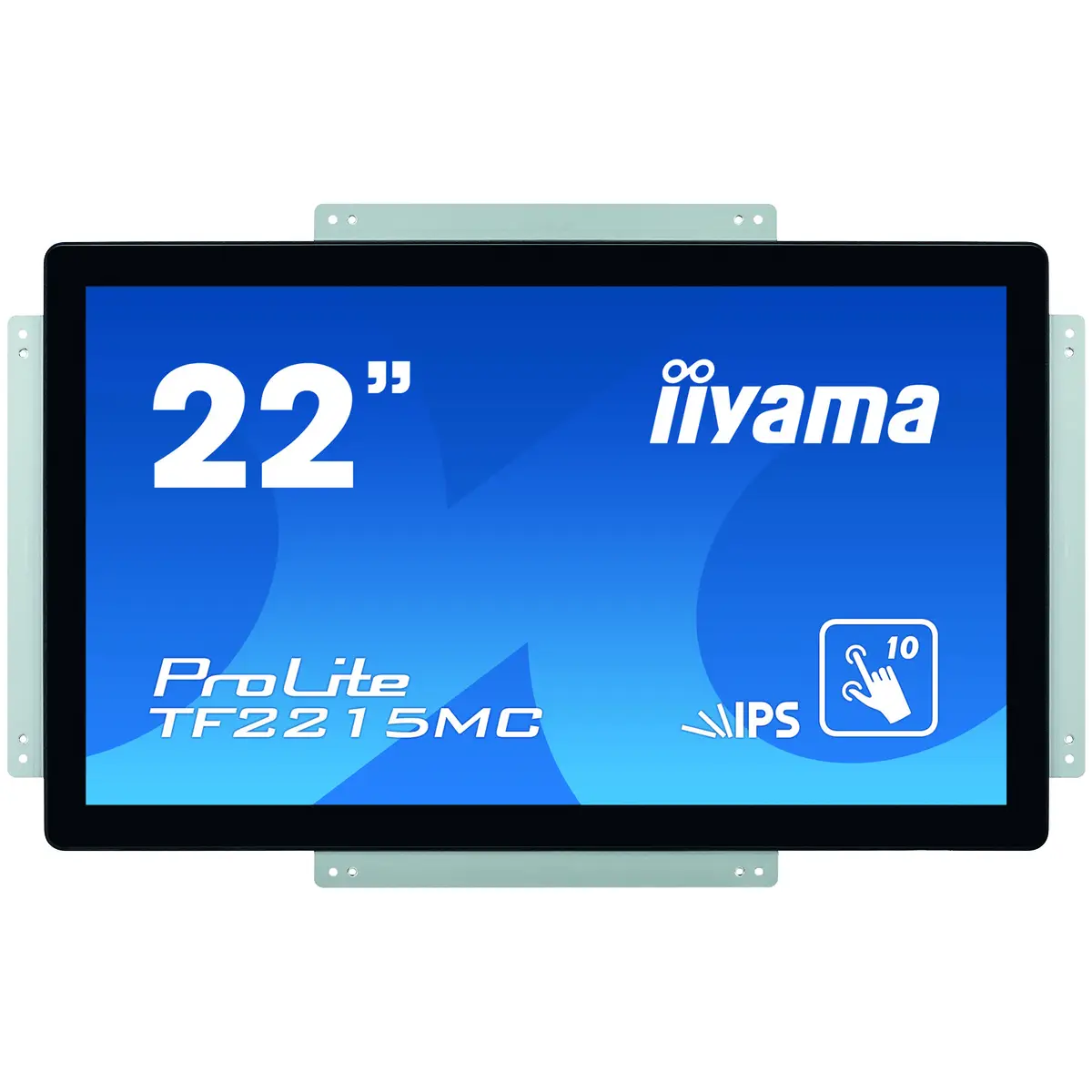

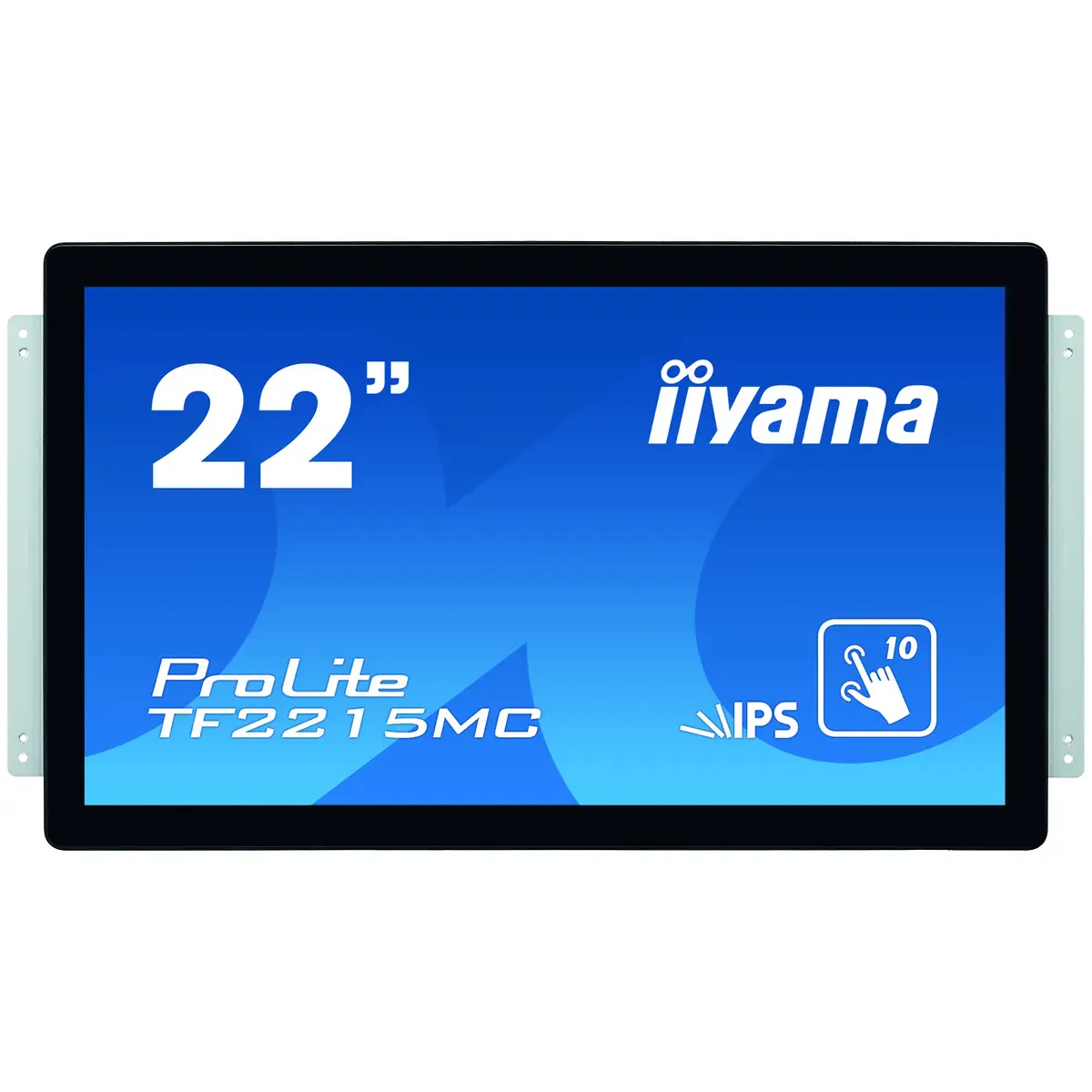

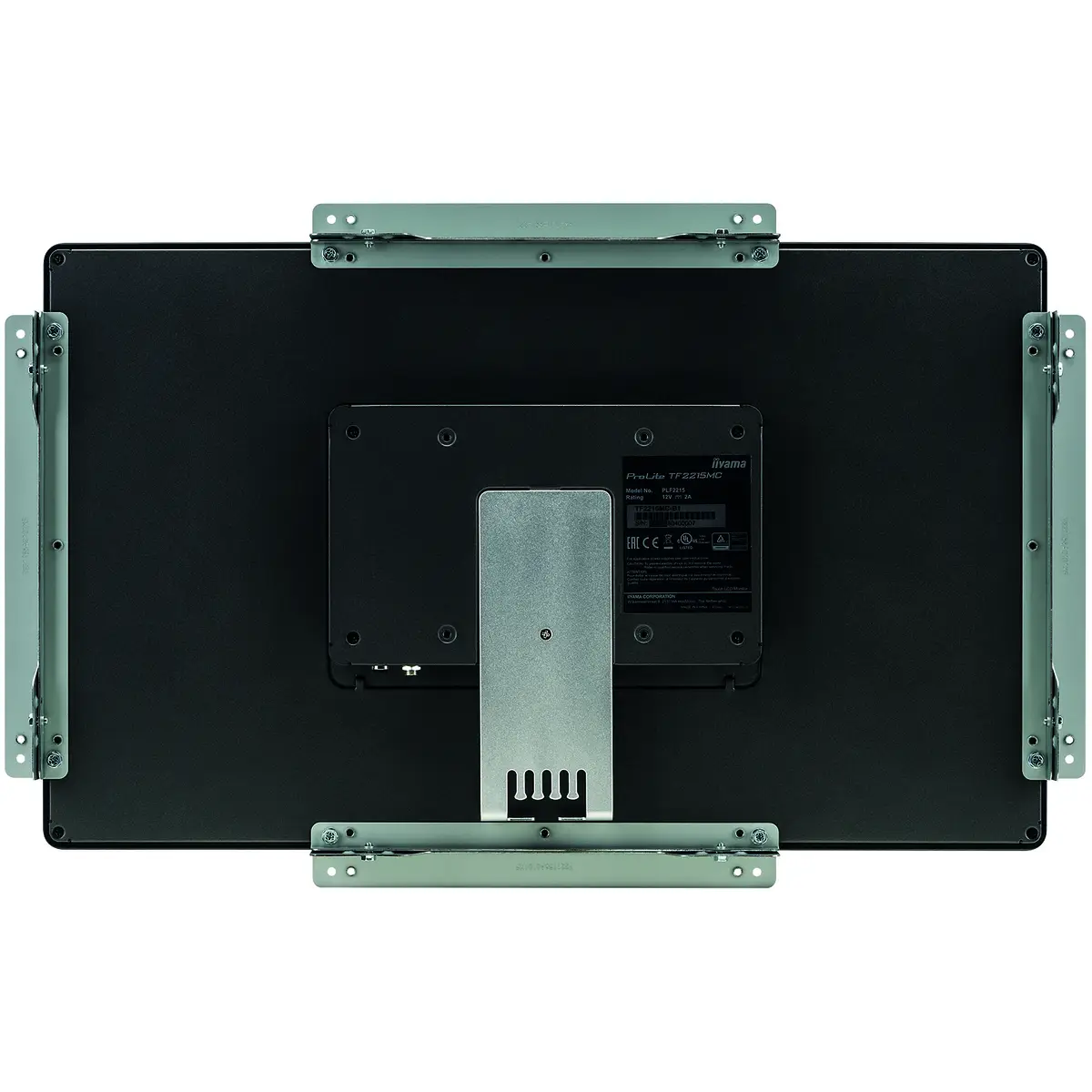

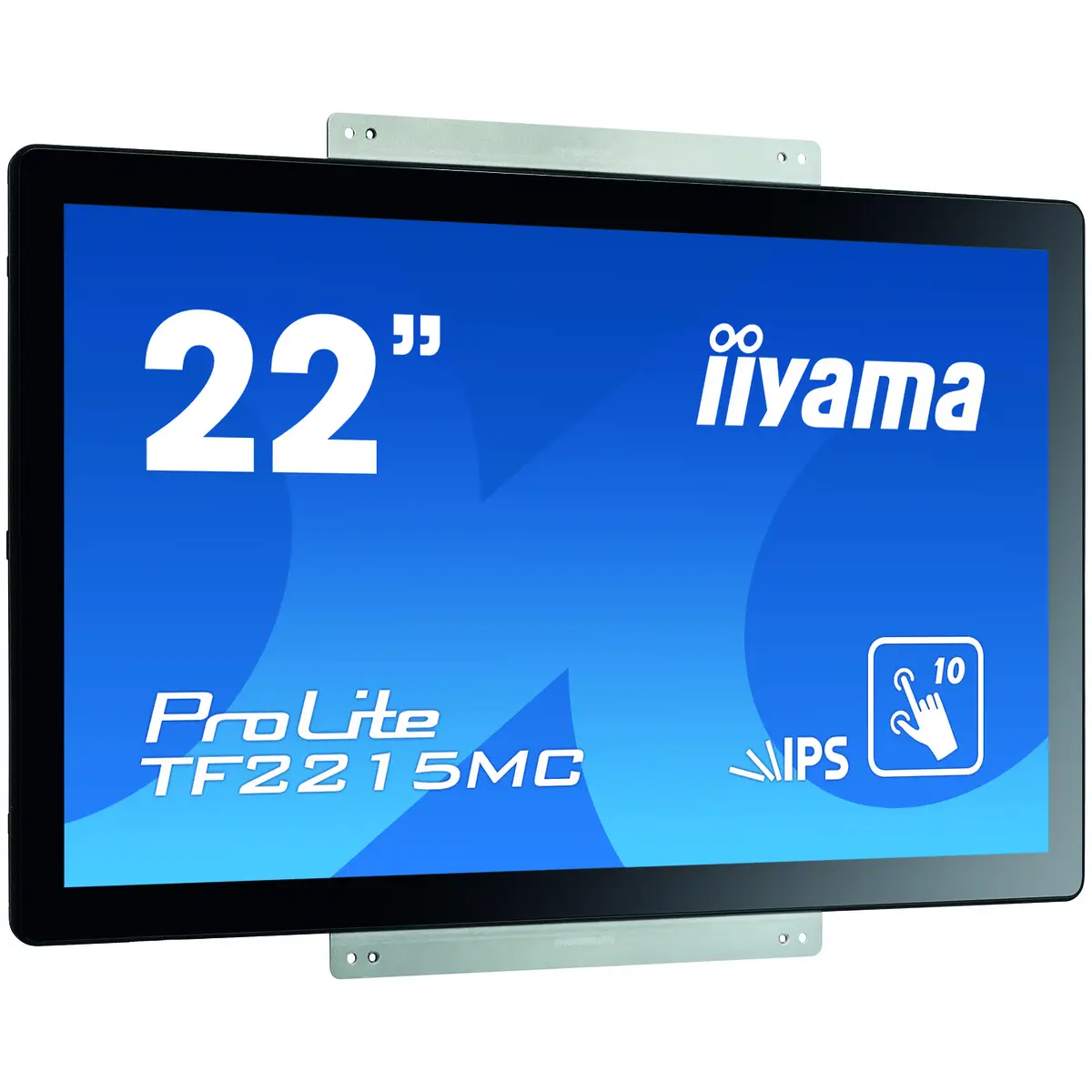

OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
OPEN FRAME BRACKETS
This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and Instore Retail.
FOAM SEAL
A foam seal finish (8mm) around the monitor ensures seamless integration and optimal dust protection.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.
Technical specifications
Logistics data
| Harmonized System (HS) code | 85285210 |
Weight & dimensions
| Weight (without stand) | 4,400 g |
| Width (without stand) | 520 mm |
| Height (without stand) | 315 mm |
| Depth (without stand) | 42.5 mm |
Power
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | F |
| Power consumption (typical) | 19 W |
| Power consumption (off) | 1.2 W |
| Power consumption (standby) | 1.2 W |
| Energy consumption (SDR) per 1000 hours | 19 kW.h |
Lieferumfang

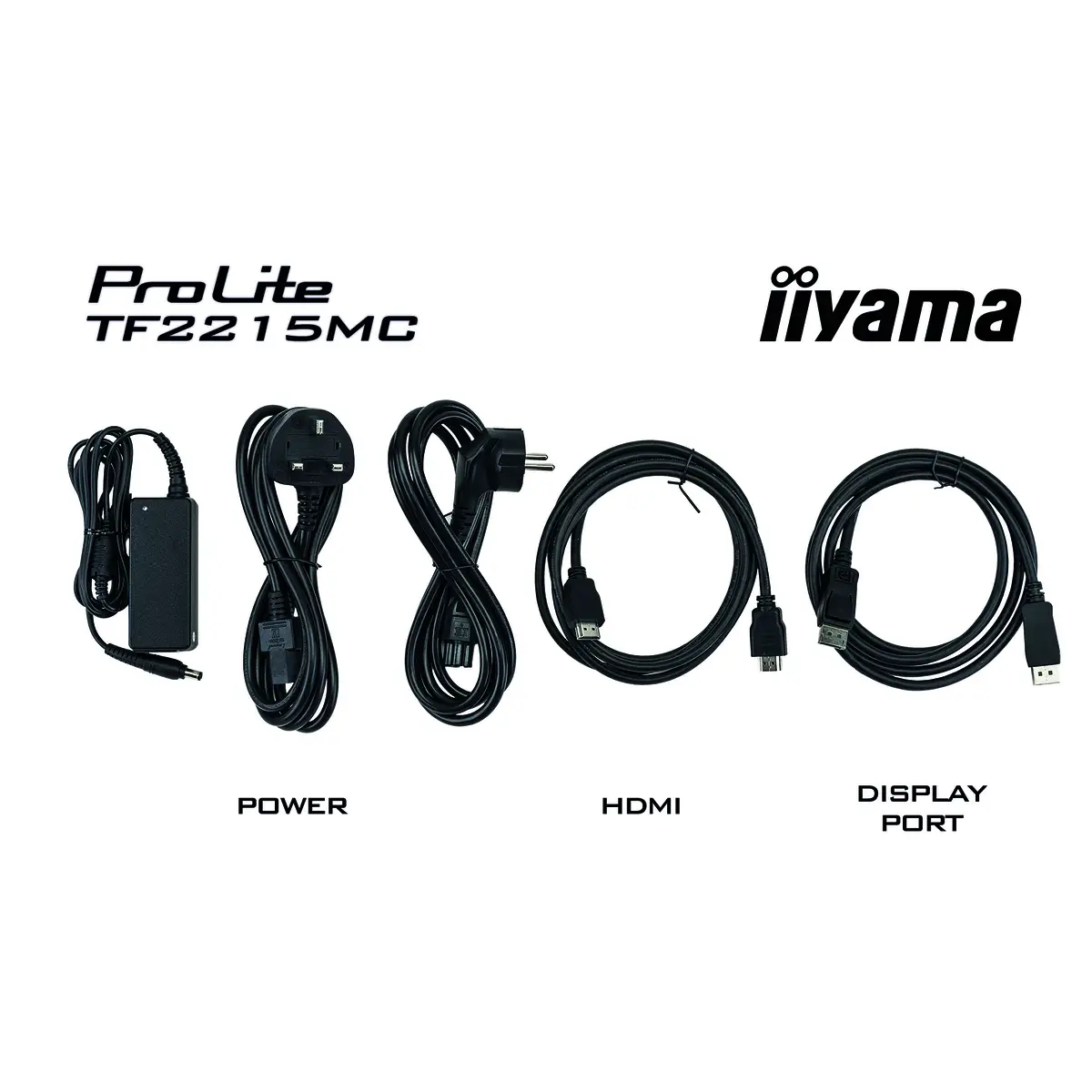

| Cables included | AC,DisplayPort,HDMI,USB |
Verpackungsdaten
| AC adapter included | Y |
| Quick start guide | Y |
Sonstige Funktionen
| Power supply type | DC |
| International Protection (IP) code | IP65 |
| Separate H/V sync | Y |
| Display viewable area (HxV) | 476.064 x 267.786 |
| Display diagonal (metric) | 54.6 cm |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 |
| Storage temperature (T-T) | -20 - 60 |
| Operating temperature (T-T) | 0 - 40 |
| Storage relative humidity (H-H) | 10 - 90 |
Ergonomics
| Plug and Play | Y |
| VESA mounting | Y |
| On Screen Display (OSD) languages | DEU,ENG,ESP,FRE,ITA,JPN |
| Number of OSD languages | 6 |
| Panel mounting interface | 100 x 100 mm |
Multimedia
| Built-in camera | N |
| Built-in microphone | N |
Graphics
| NVIDIA G-SYNC | N |
| AMD FreeSync | N |
Mouse
| Certification | CB, CE, TÜV-Bauart, CU, cULus, REACH |
Video
| HD type | Full HD |
Projector
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Horizontal scan range | 31.4 - 82 |
| Vertical scan range | 56 - 75 |

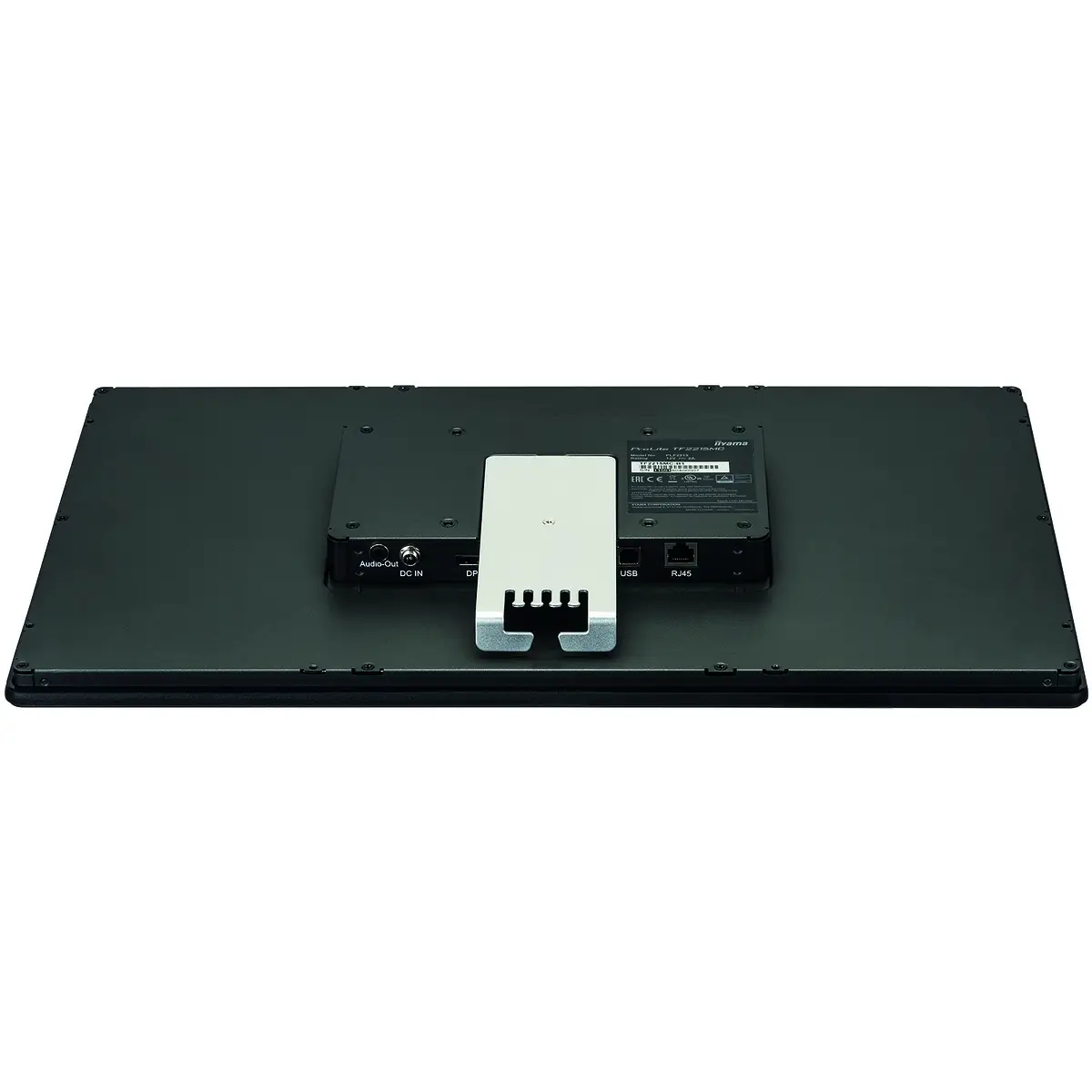

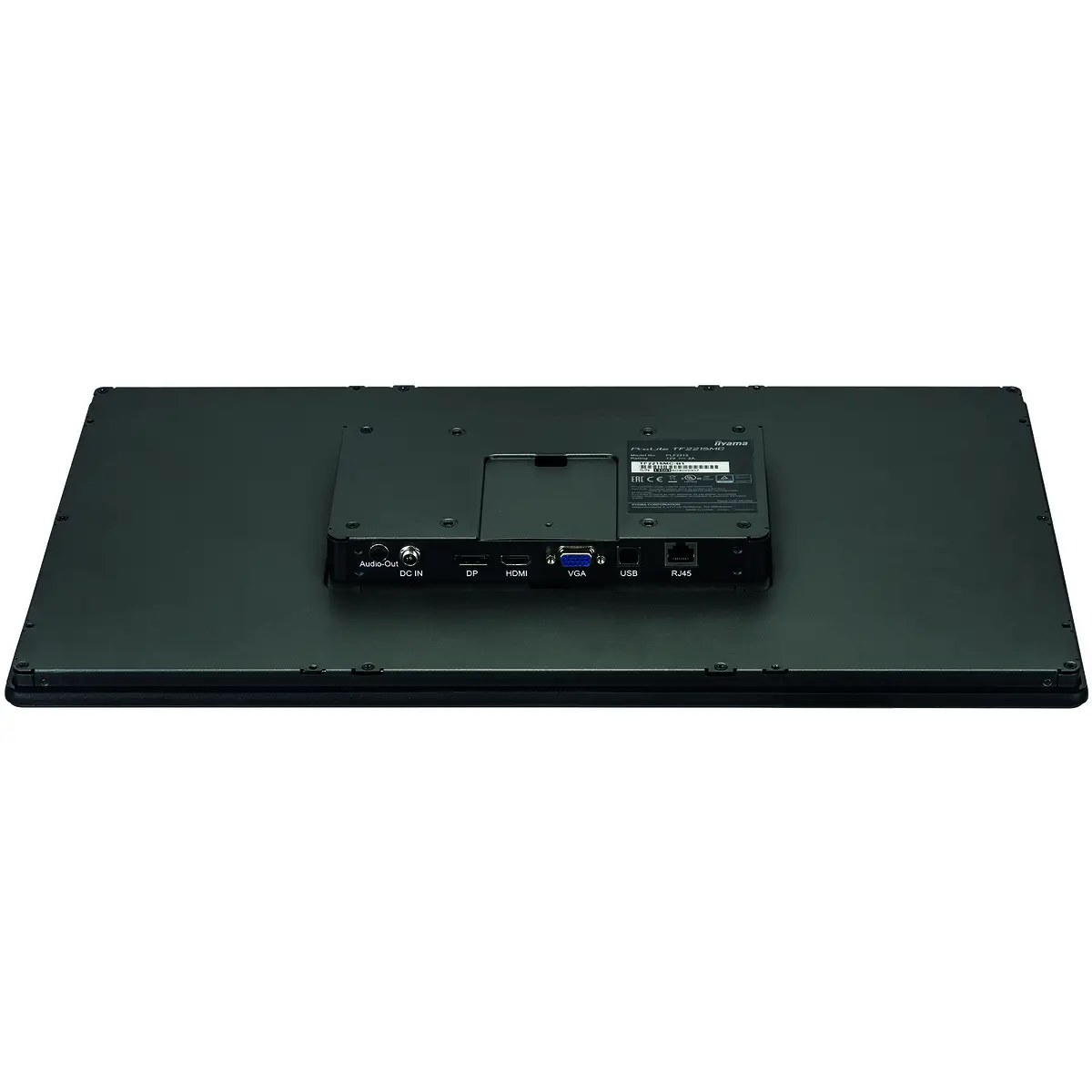

Ports & interfaces
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| HDCP | Y |
| HDMI | Y |
Display
| Display technology | LED |
| Touchscreen type | Multi-user |
| Panel type | IPS |
| Screen shape | Flat screen |
| Display number of colours | 16.78 million colours |
| Touchscreen | Y |
| Number of simultaneous touchpoints | 10 |
| Aspect ratio | 16:9 |
| Pixel pitch | 0.24795 x 0.24795 |
| Response time | 14 ms |
| Display diagonal | 21.5 " |
| Display resolution | 1920 x 1080 pixels |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
Design
| Product colour | Black |
| Placement supported | Horizontal/Vertical |
Downloads
189166_document_DE_001
PDF Download
189166_document_DE_002
PDF Download
189166_document_EN_001
PDF Download
