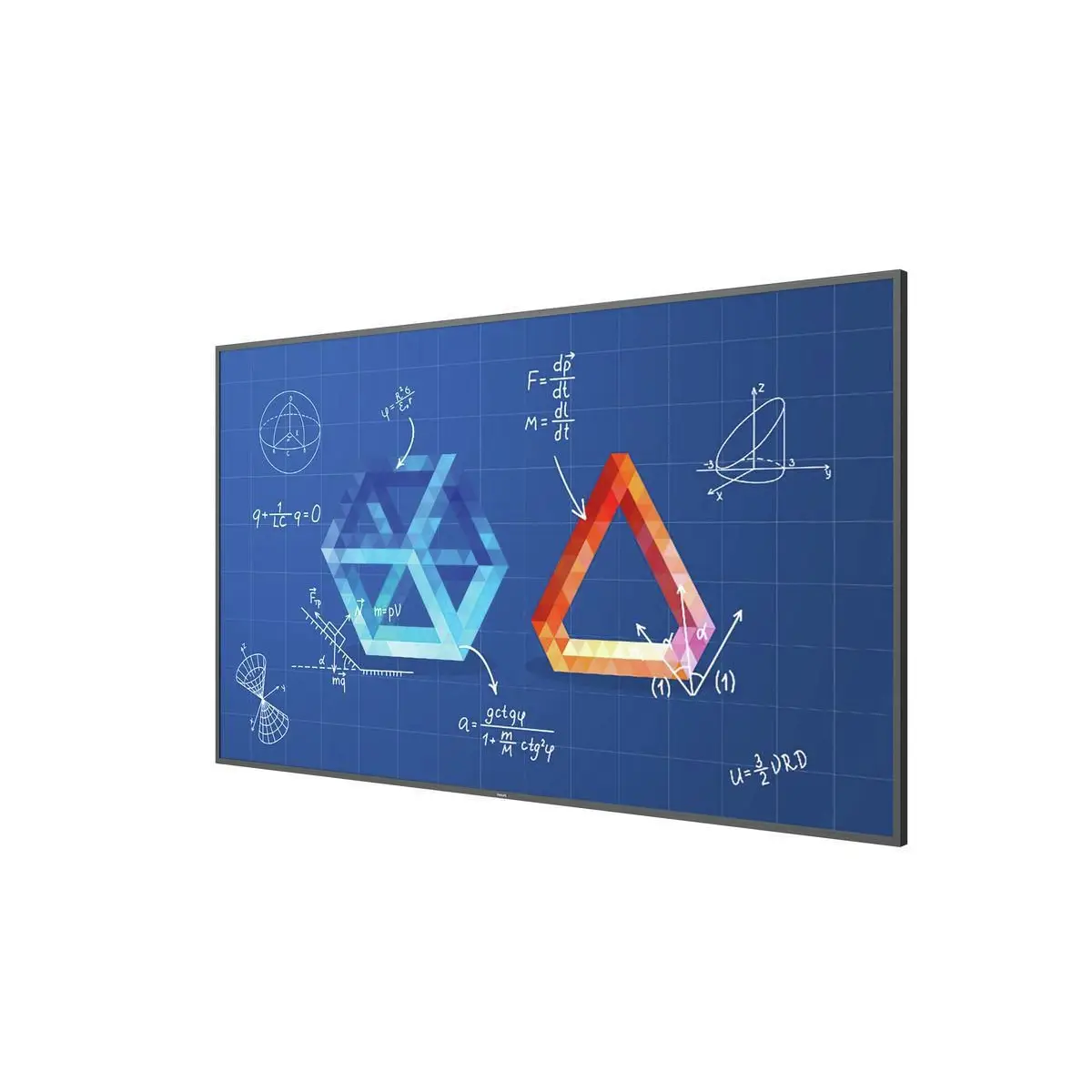

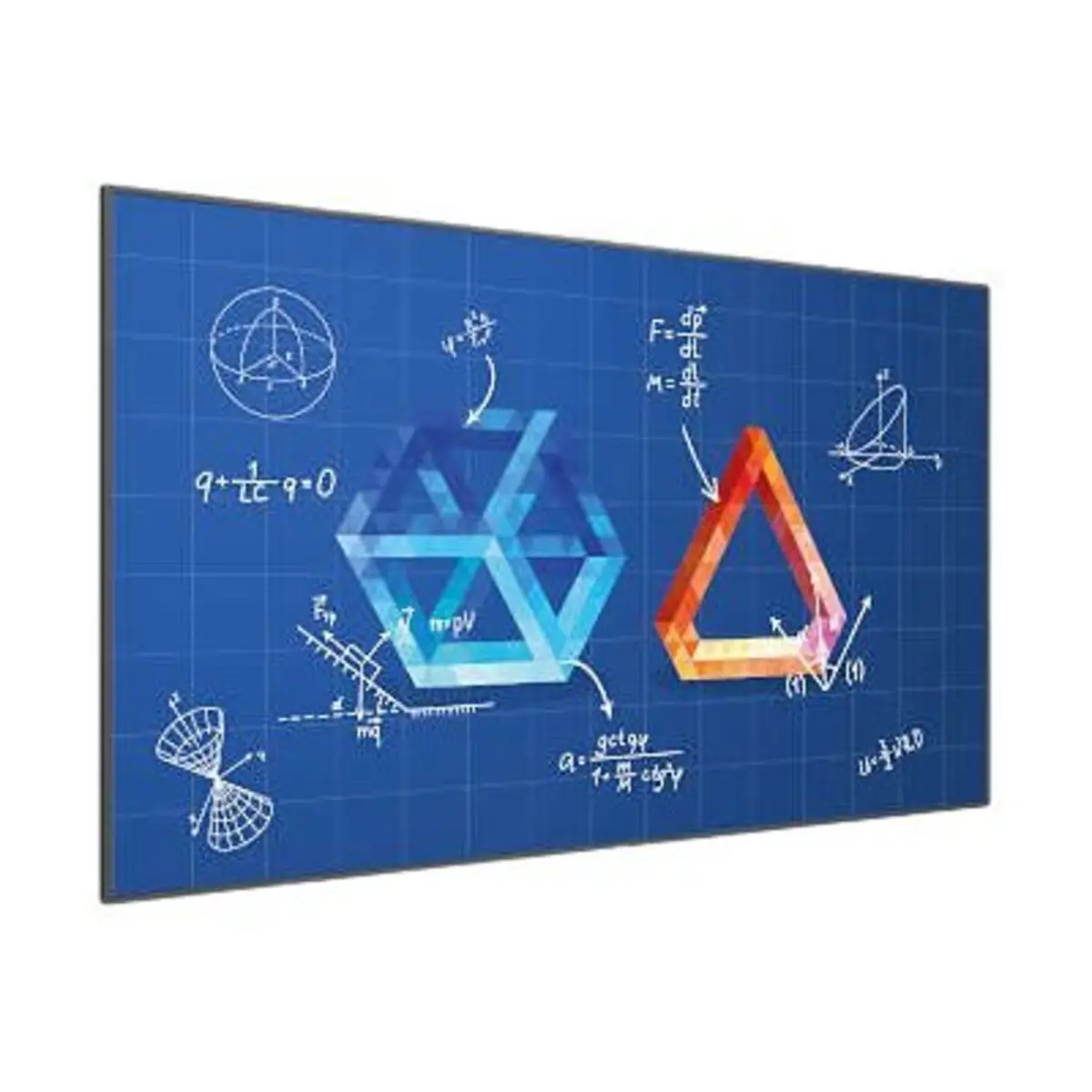

- 86BDL3652T 86" T-Line Android UHD HEIR 20 points wireless screen sharing smart I/O even bezels safety glass 2x passive pens OPS SDM-L whiteboard included WiFi Smart Insert high quality speakers
2 Images
Product description
- Interactive display in the classroom
- Maximize interaction and inspire collaboration with a Philips T-Line interactive monitor. These Android-powered displays are made of anti-glare tempered glass, suitable for everyday use and have up to 20 contact points.
- OPS slot enables PC integration without wiring
- Integrate a full-featured PC or an Android-powered CRD50 module directly into your Philips professional monitor. The OPS slot contains all the connections you need for your slot solution, including a power supply.
- Operate, monitor and manage with CMND and Control
- Operate your monitor network via a local area connection (LAN). With CMND and Control, you can perform key functions such as controlling inputs and monitoring monitor status, whether you're responsible for one screen or 100.
- Multi-touch technology with 20 contact points
- Create an unforgettable interactive experience with up to 20 contact points simultaneously. Perfect for collaboration and competition applications, this display gives your audience access to any content - ideal for education, public institutions, companies, hospitality and retail. The control panel is HID compliant and offers a plug-and-play function.
- Integrated whiteboard mode
- Inspire flexible collaboration with whiteboard mode. Simply activate this function to turn your display into a blank canvas on which multiple users can draw by hand or with special markers. Everything on the screen can be captured for quick printing or file sharing.
- Wireless screen sharing and modern collaboration
- Show four different areas on one screen. Wireless screen sharing lets you connect multiple devices at once and quickly switch between content when needed. Use your Wi-Fi network to connect devices instantly and securely.
Technical specifications
Design
| Product colour | Black |
Bildschirm
| Display number of colours | 1.07 billion colours |
| Contrast ratio (dynamic) | 500000:1 |
| Pixel pitch | 0.4935 x 0.4935 |
| Display diagonal | 86 " |
| Display resolution | 3840 x 2160 |
| Viewing angle, horizontal | 178 deg |
| Viewing angle, vertical | 178 deg |
Leistungen
| Placement supported | Indoor |
| Mean time between failures (MTBF) | 50,000 std |
Power
| Energy efficiency class (HDR) | G |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
Lieferumfang
| Cables included | AC,DVI,HDMI,IR sensor,USBType-A to Micro USB-B |
Technische Details
| Response time | 8 ms |
Power supply
| Power consumption (typical) | 390 W |
Sonstige Funktionen
| Display diagonal (metric) | 217.4 cm |
Sustainability
| Sustainability certificates | CE,Federal CommunicationsCommission (FCC),RoHS |
Music player
| Audio formats supported | M4A,MP3,WMA |
Operational conditions
| Operating relative humidity (H-H) | 20 - 80 |
| Operating temperature (T-T) | 0 - 40 |
| Storage relative humidity (H-H) | 20 - 80 |
Ergonomics
| VESA mounting | Y |
| On Screen Display (OSD) languages | ARA,DAN,DEU,DUT,ENG,ESP,FIN,FRE,ITA,NOR,POL,POR,RU |
| Number of OSD languages | 18 |
| Panel mounting interface | 100 x 100,600 x 400 |
Multimedia
| Built-in speaker(s) | Yes |
| RMS rated power | 40 W |
Computer system
| Image formats supported | BMP,JPEG,JPG,PNG |
| Video formats supported | ASF,AVI,DAT,FLV,MKV,MP4,MPEG,MPG,TS,VOB,WEBM,WMV |
Projector
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1200:1 |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DVI port | Y |
| Ethernet LAN | Y |
| USB ports quantity | 4 |
| DC-in jack | Y |
