Product description

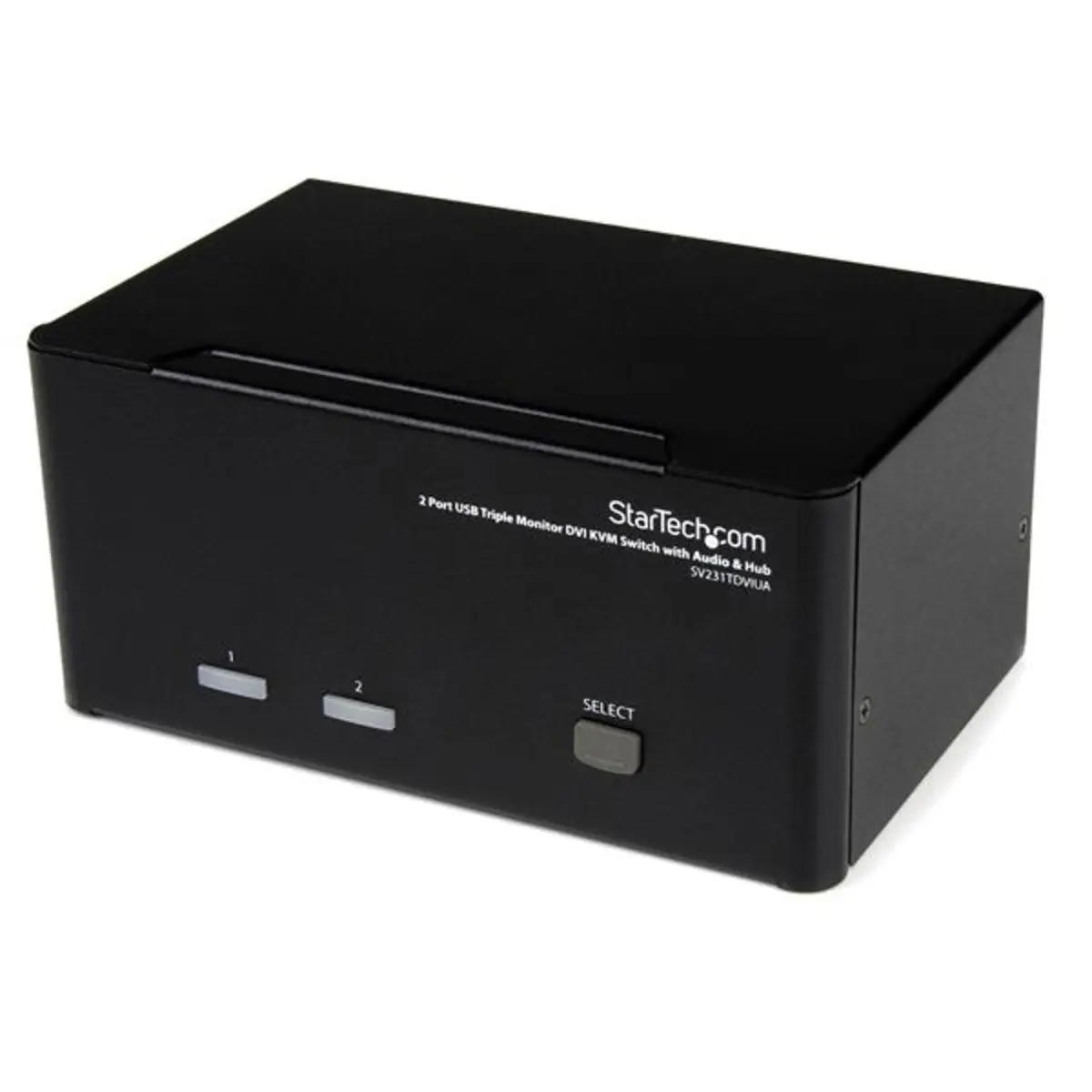

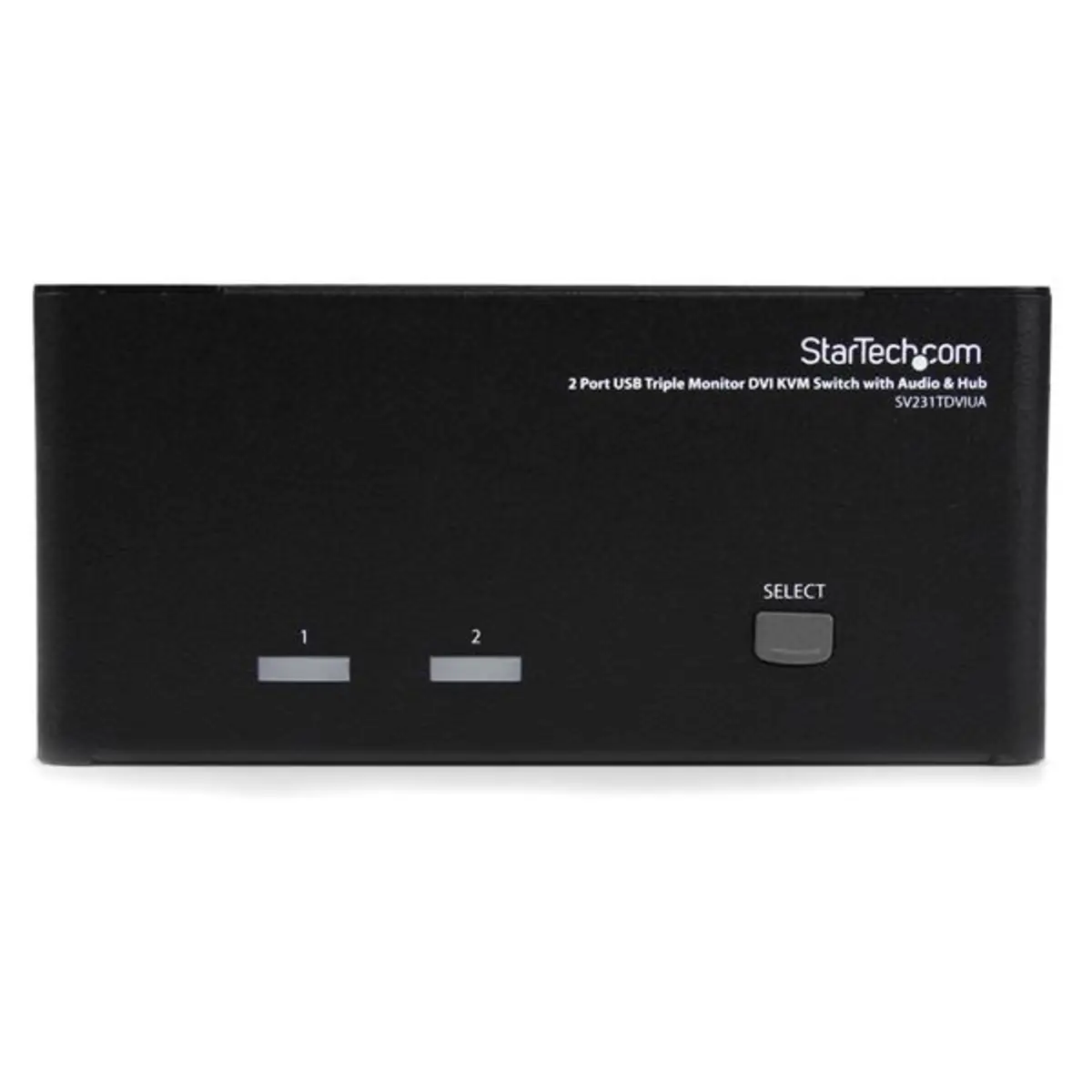

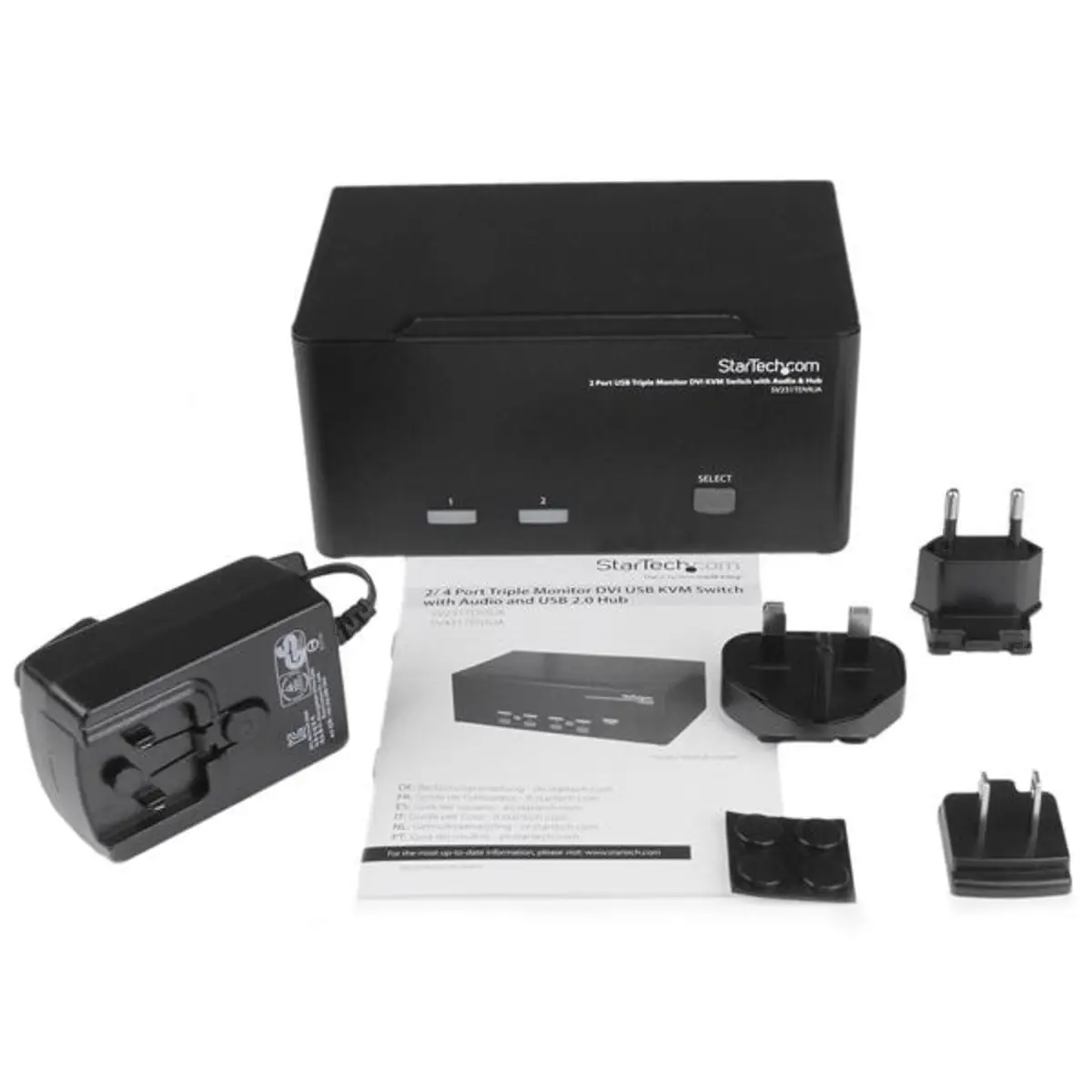

The SV231TDVIUA 2-Port Triple Monitor DVI USB KVM Switch allows 2 PCs (each with 3 DVI video outputs) to share monitors, 1 microphone and set of speakers, 1 keyboard and 1 mouse, as well as an additional USB 2.0 peripheral such as an external hard drive, thumb drive, printer, or webcam.
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
The Triple DVI KVM switch enables you to switch back and forth between 2 multi DVI PCs at the touch of a button, while maintaining professional-level video quality on all monitors at resolutions up to 1920x1200. The triple monitor DVI switch also features an integrated USB hub port which allows USB 2.0 peripherals to be shared between attached systems, eliminating duplicate peripheral costs and offering the convenience of sharing stored data between PCs.
The SV231TDVIUA 2-Port Triple Head DVI KVM Switch is backed by a StarTech.com 3-year warranty and free lifetime technical support.
PLEASE NOTE: While the DVI connector on this KVM is DVI-I, the KVM only supports single-link DVI-D (digital only) video sources. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to console connections.
The StarTech.com Advantage
- By enabling control of two triple display computer systems using a single set of peripherals, the switch helps saves cost and work space
- With support for high definition resolutions (1920x1200) on each of the 3 connected monitors, the triple head KVM switch offers maximum screen real estate for optimized productivity
- Integrated USB 2.0 hub and mic/audio ports enable you to have full multimedia control of two computers, while sharing USB peripherals
Technical specifications
Logistics data
| Harmonized System (HS) code | 85176200 |
Leistungen
| Daisy chain | N |
| Mean time between failures (MTBF) | 62,000 std |
| Number of users | 1 |
| Scan interval | 3,8,15,30 |
Power
| AC input voltage | 110-240 |
| Output current | 1.5 A |
Verpackungsdaten
| AC adapter included | Y |
| Package weight | 1,410 g |
| Package depth | 240 mm |
| Package width | 185 mm |
| Package height | 95 mm |
| Rubber feet | Y |
Power supply
| Power consumption (typical) | 18 W |
Sonstige Funktionen
| Power plug type | Type M |
| Manual | Y |
| Rack mounting | N |
| External power adapter | Y |
| Audio connections | Y |
| Maximum resolution | 1920 x 1200 |
| Output voltage | 12 |
| Input current | 0.8 |
| Maximum digital resolution | 1920 x 1200 |
| Audio support | Y |
| IP control | N |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 |
| Storage temperature (T-T) | -10 - 60 |
| Operating temperature (T-T) | 0 - 40 |
Gewicht und Abmessungen
| Weight | 900 g |
| Height | 74 mm |
| Width | 159 mm |
| Depth | 100 mm |
Ergonomics
| Plug and Play | Y |
| LED indicators | Activity |
| On Screen Display (OSD) | N |
Mouse
| Certification | CE, FCC |
Keyboard
| Hot keys | Y |
Ports & interfaces
| USB 2.0 ports quantity | 2 |
| Headphone outputs | 2 |
| HDCP | Y |
| DC-in jack | Y |
| DVI-I ports quantity | 6 |
| Number of microphone inputs | 2 |
| Video port type | DVI-I |
| Keyboard port type | USB |
| Mouse port type | USB |

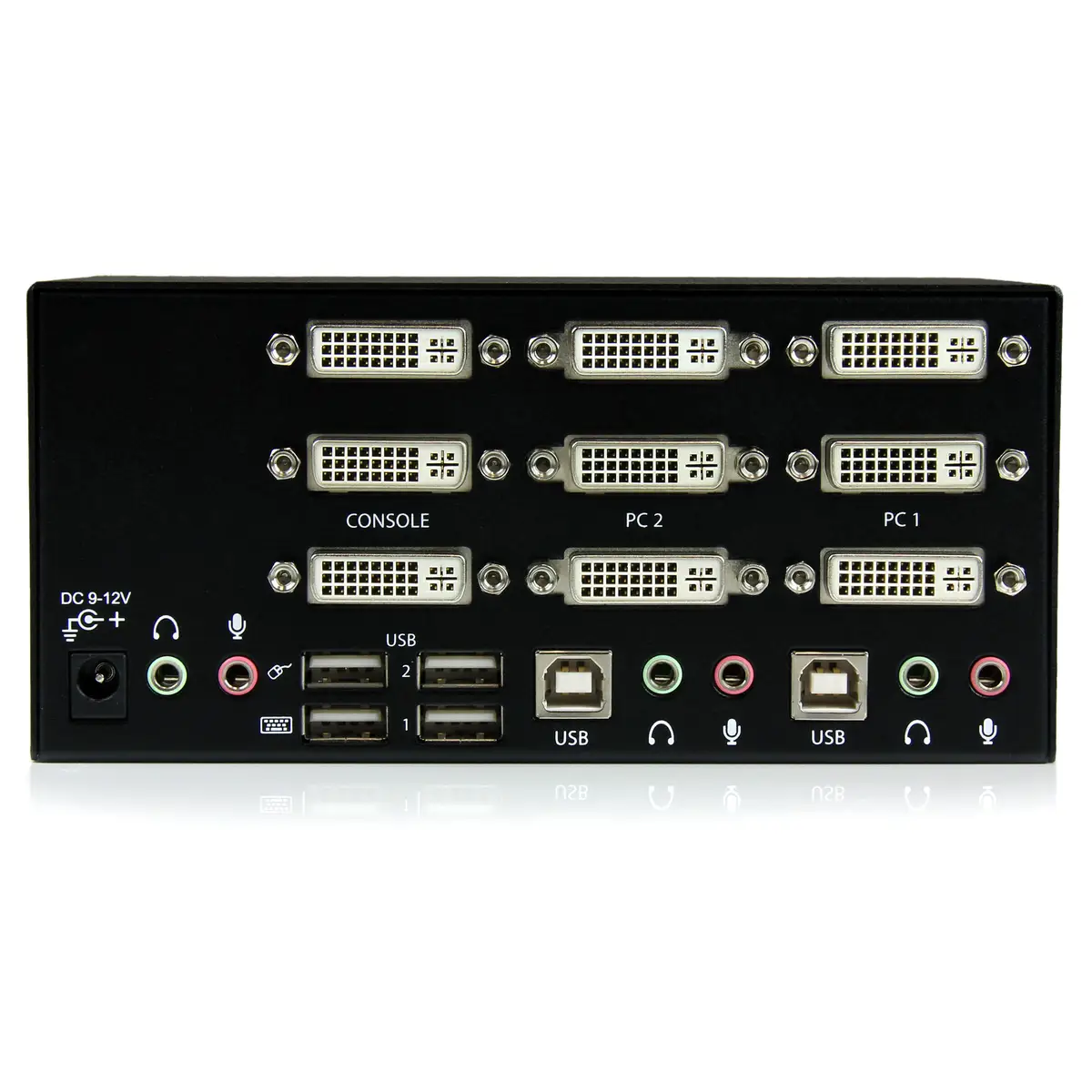

| Console ports | DVI-I,3.5mm headphone,3.5mm mic,USB A |
| Number of computers controlled | 2 |
| Console USB ports quantity | 4 |
Design
| Product colour | Black |
| Built-in display | N |
