- 4 Port Dual DisplayPort KVM Switch
+3 Images
8 Images
Product description

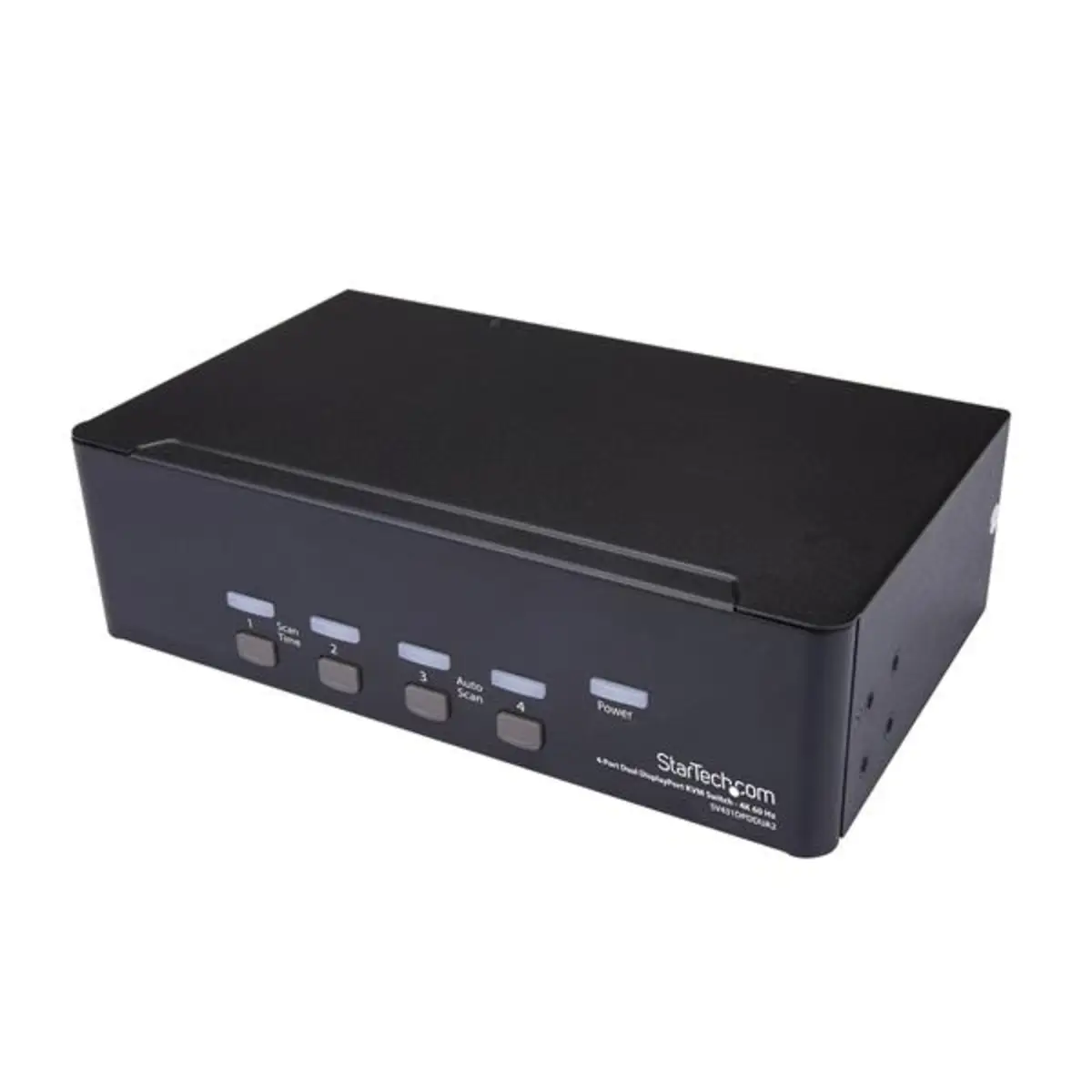

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video
With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Maximum productivity with dual-display, multi-computer access
- Full multimedia control with separate 3.5 mm microphone and speaker support
- Astonishing picture quality with support for Ultra HD 4K resolutions at 60Hz
Technical specifications
Design
| Product colour | Black |
| Built-in display | N |
| Rack capacity | 2U |
Logistics data
| Harmonized System (HS) code | 85176200 |
Leistungen
| Housing material | Steel |
| Daisy chain | N |
| Mean time between failures (MTBF) | 142,000 std |
| Data transfer rate (max) | 0.5 Gbit/s |
| Scan interval | 3,8,15,30 |
Stromversorgung
| Power consumption (typical) | 18 W |
Power
| Power source | AC |
| AC input voltage | 100 - 240 |
| Output current | 1.5 A |
| Compatible power plug types | AU,EU,JP,UK,US |
Verpackungsdaten

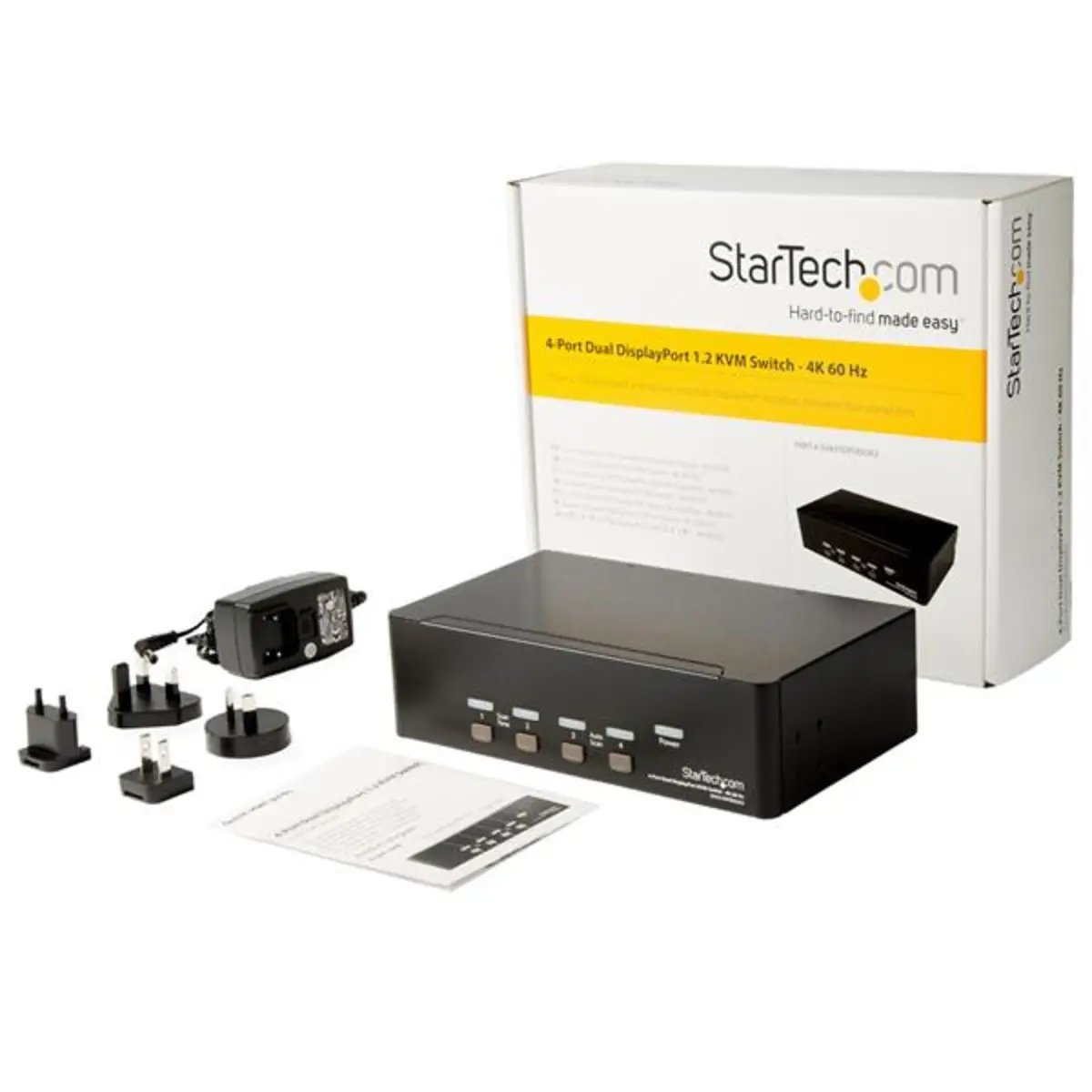

| Quick installation guide | Y |
| Package weight | 1,800 g |
| Package depth | 297 mm |
| Package width | 243 mm |
| Package height | 87 mm |
| Rubber feet | Y |
Sonstige Funktionen
| Power plug type | Type M |
| Rack mounting | Y |
| External power adapter | Y |
| Audio connections | Y |
| Maximum resolution | 3840 x 2160 |
| Output voltage | 12 |
| Input current | 0.6 |
| Audio support | Y |
| IP control | N |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 80 |
| Storage temperature (T-T) | -10 - 60 |
| Operating temperature (T-T) | 0 - 40 |
Gewicht und Abmessungen
| Weight | 1,200 g |
| Height | 63 mm |
| Width | 216 mm |
| Depth | 127 mm |
Ergonomics
| LED indicators | Power |
Mouse
| Certification | CE, FCC, TAA, REACH |
Keyboard
| Hot keys | Y |
| USB hub | Y |
Ports & interfaces
| DisplayPorts quantity | 10 |
| USB connector type | USB Type-A |
| DC-in jack | Y |
| Video port type | DisplayPort |
| Keyboard port type | USB |
| Mouse port type | USB |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Number of computers controlled | 4 |
| Console USB ports quantity | 4 |
