- 4 Port KVM Switch DisplayPort 4K 60Hz
+5 Images
10 Images
Product description
DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.
4K60 Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.
PC and Mac Compatible
While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.
Simple to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- IMPROVE EFFICIENCY: 4 Port DisplayPort KVM Switch with hotkey and manual switching to access 4 computers with DP video and USB hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
Technical specifications
Design
| Product colour | Black |
| Rack capacity | 1U |
Logistics data
| Harmonized System (HS) code | 85176200 |
| Master (outer) case height | 258 mm |
| Master (outer) case width | 433 mm |
| Master (outer) case length | 545 mm |
| Products per master (outer) case | 6 ST |
Leistungen
| Housing material | Steel |
| Daisy chain | N |
| Mean time between failures (MTBF) | 138,327 std |
| Data transfer rate (max) | 0.48 Gbit/s |
| Number of users | 1 |
| Scan interval | 3,8,15,30 |
Stromversorgung
| Power consumption (typical) | 18 W |
Power
| AC input voltage | 100 - 240 |
| Output current | 1.5 A |
| Compatible power plug types | AU,EU,JP,UK,US |
Verpackungsdaten
| AC adapter included | Y |
| Quick installation guide | Y |
| Package weight | 1,600 g |
| Package depth | 409 mm |
| Package width | 212 mm |
| Package height | 87 mm |
| Rubber feet | Y |
Sonstige Funktionen
| Power plug type | Type M |
| Rack mounting | Y |
| External power adapter | Y |
| Audio connections | Y |
| Maximum resolution | 3840 x 2160 |
| Output voltage | 12 |
| Input current | 0.6 |
| Audio support | Y |
| IP control | N |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 0 - 40 |
| Storage temperature (T-T) | -10 - 60 |
| Operating temperature (T-T) | 0 - 40 |
Gewicht und Abmessungen
| Weight | 1,000 g |
| Height | 45 mm |
| Width | 131 mm |
| Depth | 220 mm |
Ergonomics
| Plug and Play | Y |
| LED indicators | Y |
| On Screen Display (OSD) | Y |
Mouse
| Certification | CE, FCC, TAA, REACH |
Keyboard
| Hot keys | Y |

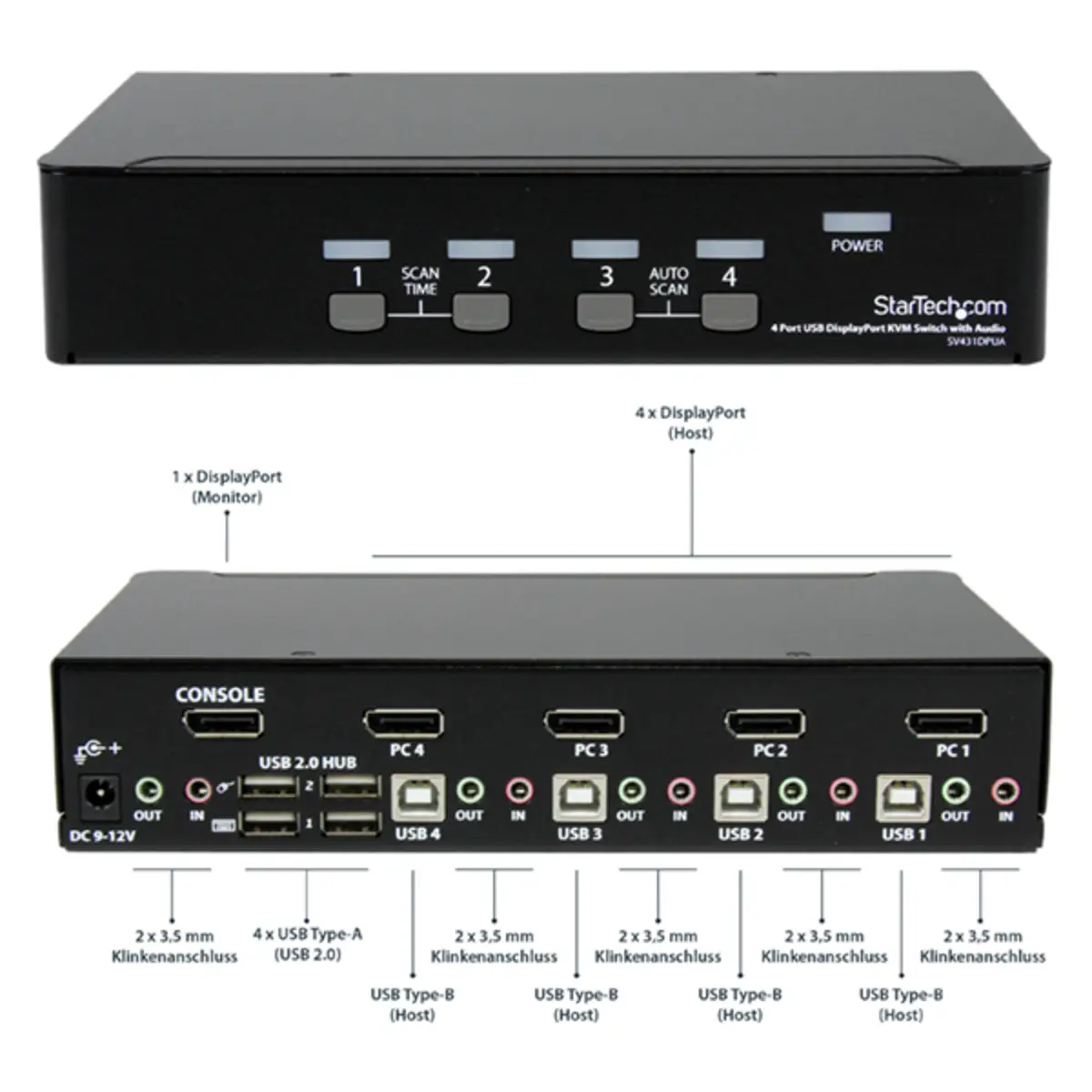

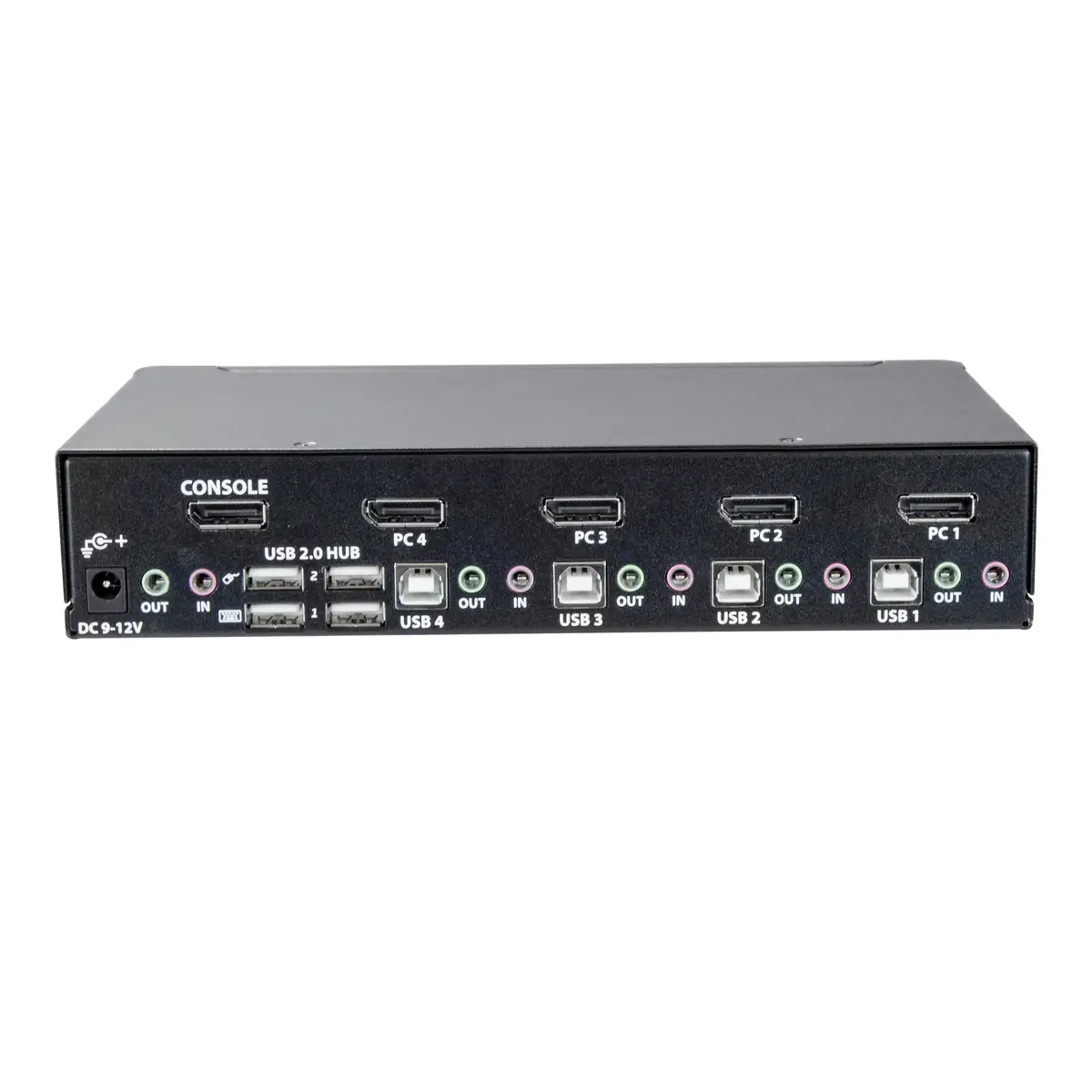

Ports & interfaces
| DisplayPorts quantity | 5 |
| Headphone outputs | 5 |
| Ethernet LAN | N |
| DC-in jack | Y |
| USB 2.0 Type-B ports quantity | 4 |
| Number of microphone inputs | 5 |
| Video port type | DisplayPort |
| Keyboard port type | USB |
| Mouse port type | USB |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Number of computers controlled | 4 |
| Console USB ports quantity | 4 |
Downloads
167730_document_DE_001
PDF Download
167730_document_EN_001
PDF Download
ID: 167730
StarTech.com ID: SV431DPUA2
4 Port KVM Switch DisplayPort 4K 60Hz
