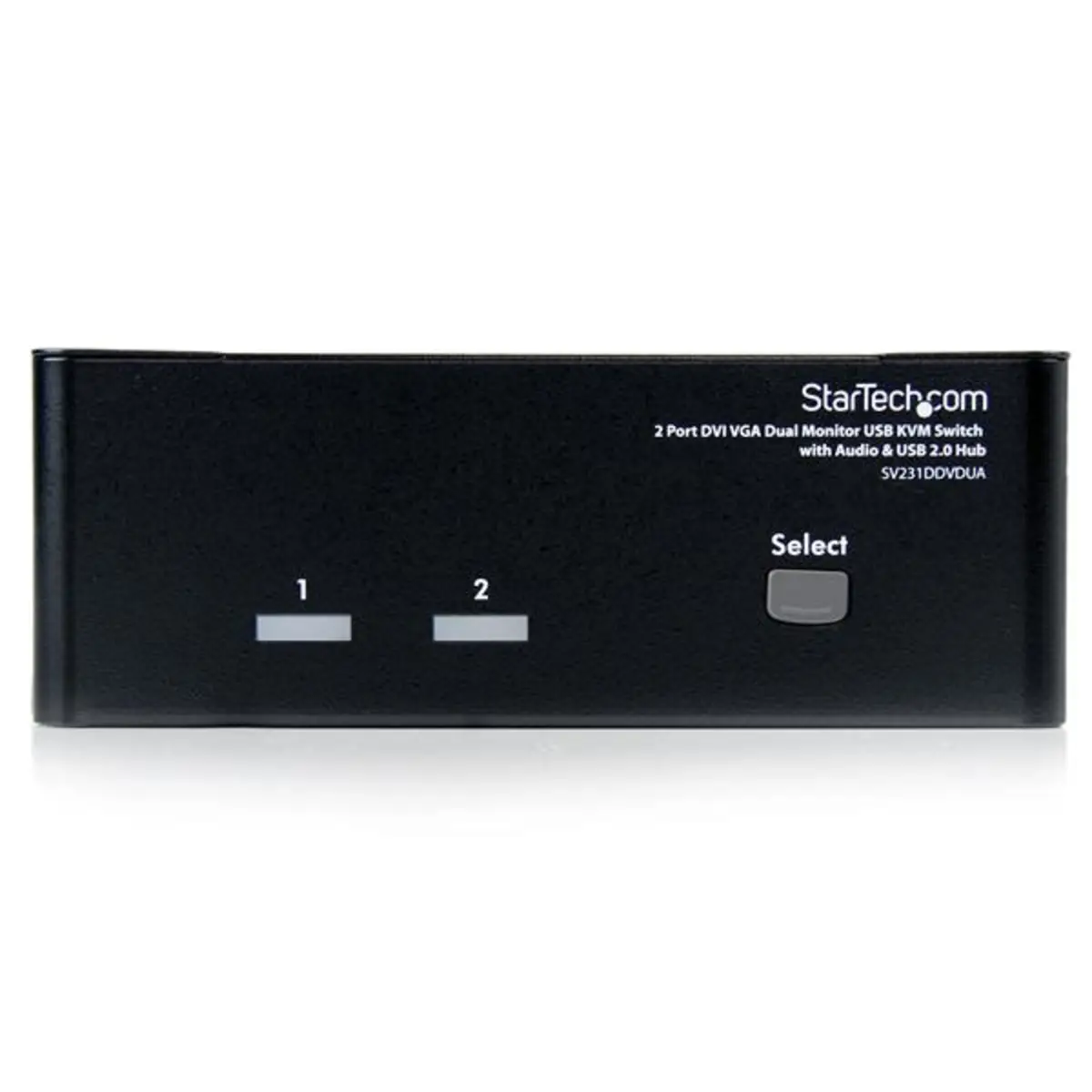

- StarTech DVI/VGA Dual-Monitor KVM-Switch USB with Audio and USB 2.0 Hub 2 Port
+2 Images
7 Images
Product description
Share a keyboard and mouse as well as 1 VGA and 1 DVI displays/monitors between 2 multimedia computers
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

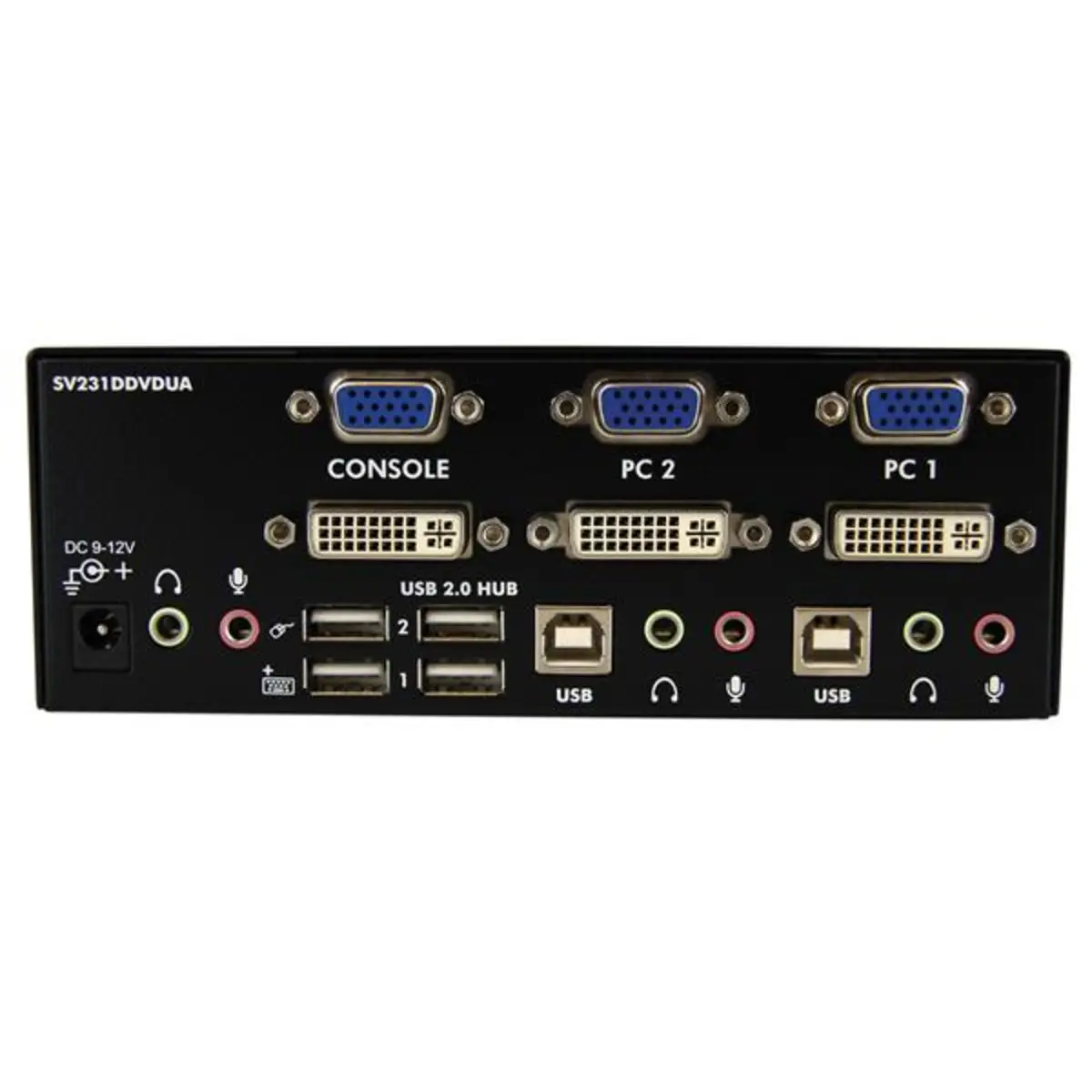

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Please Note: This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Absolutely no software or drivers required providing a completely OS independent KVM solution
Technical specifications
Design
| Built-in display | N |
| LED indicators | Power |
Anschlüsse und Schnittstellen
| HDCP | Y |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| Video port type | VGA/DVI-I |
| Keyboard port type | USB |
| Mouse port type | USB |
| Console ports | 3.5mm headphone,DVI-I,VGA(D-Sub) |
| Number of computers controlled | 2 |
Video
| HD type | WUXGA |
Maus
| Certification | CE, FCC |
Leistungen
| Housing material | Steel |
| Daisy chain | N |
| Mean time between failures (MTBF) | 64,691 std |
| DDC2B support | Y |
| Number of users | 1 |
Nachhaltigkeit
| Sustainability certificates | RoHS |
Technische Details
| AC input voltage | 100-240 |
Verpackungsdaten
| AC adapter included | Y |
| Package weight | 1,288 g |
| Package depth | 199 mm |
| Package width | 295 mm |
| Package height | 72 mm |
| Rubber feet | Y |
Leistung
| Output current | 1.5 A |
| Compatible power plug types | AU,EU,UK,US |
Betriebsbedingungen
| Operating relative humidity (H-H) | 0 - 80 |
| Storage temperature (T-T) | -20 - 60 |
| Operating temperature (T-T) | 0 - 40 |
Sonstige Funktionen
| Power plug type | Type M |
| USB 2.0 ports quantity | 4 |
| Headphone outputs | 3 |
| Manual | Y |
| Rack mounting | N |
| External power adapter | Y |
| Audio connections | Y |
| Maximum resolution | 1920 x 1200 |
| Power consumption (typical) | 18 W |
| Output voltage | 12 |
| Input current | 0.8 |
| Maximum digital resolution | 1920 x 1200 |
| Audio support | Y |
| IP control | N |
Gewicht und Abmessungen
| Weight | 750 g |
| Height | 57 mm |
| Width | 160 mm |
| Depth | 163 mm |
Logistische Daten
| Harmonized System (HS) code | 85176200 |
Downloads
124227_document_EN_001
PDF Download
ID: 124227
StarTech.com ID: SV231DDVDUA
StarTech DVI/VGA Dual-Monitor KVM-Switch USB with Audio and USB 2.0 Hub 2 Port
Detailed product title
Detailed product title
