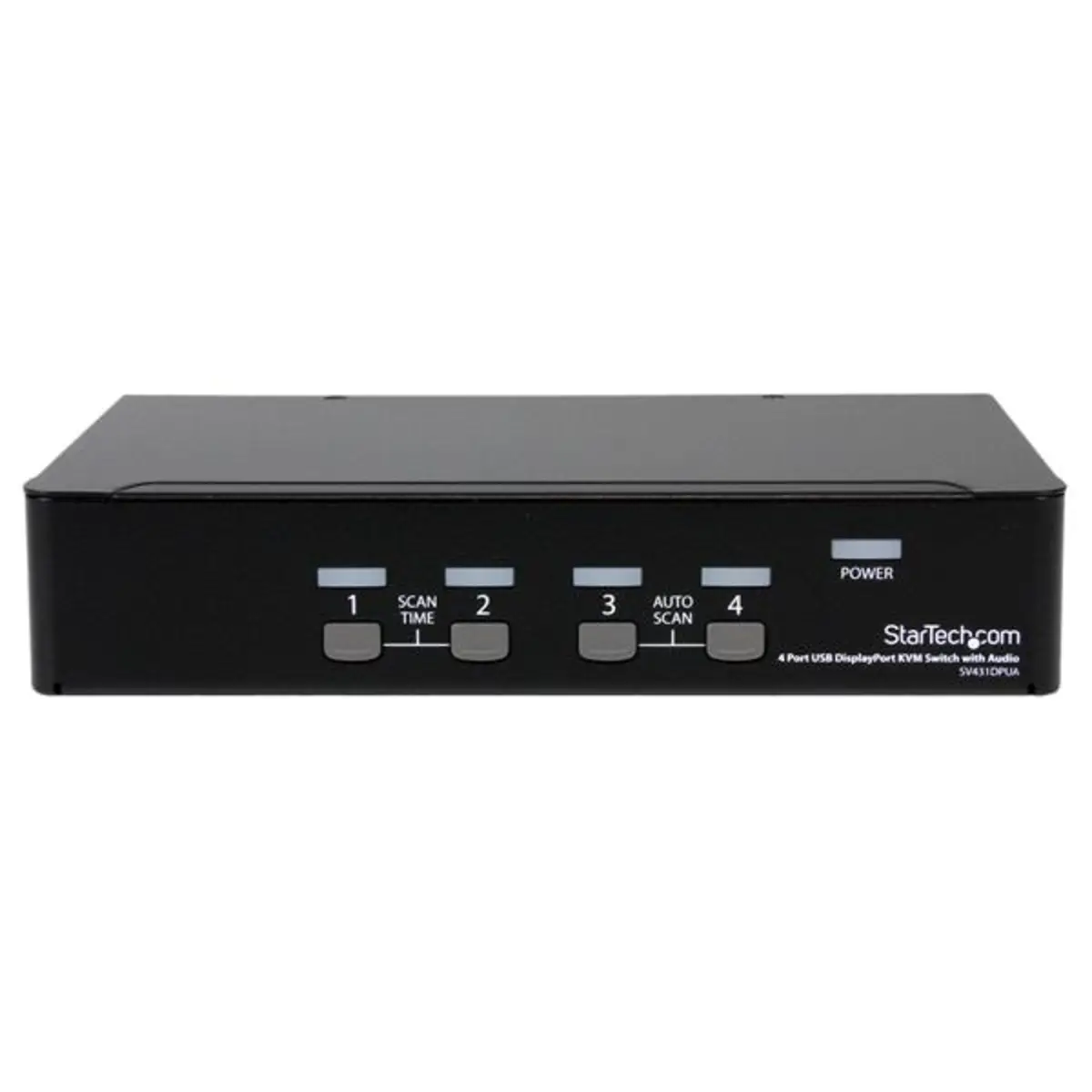

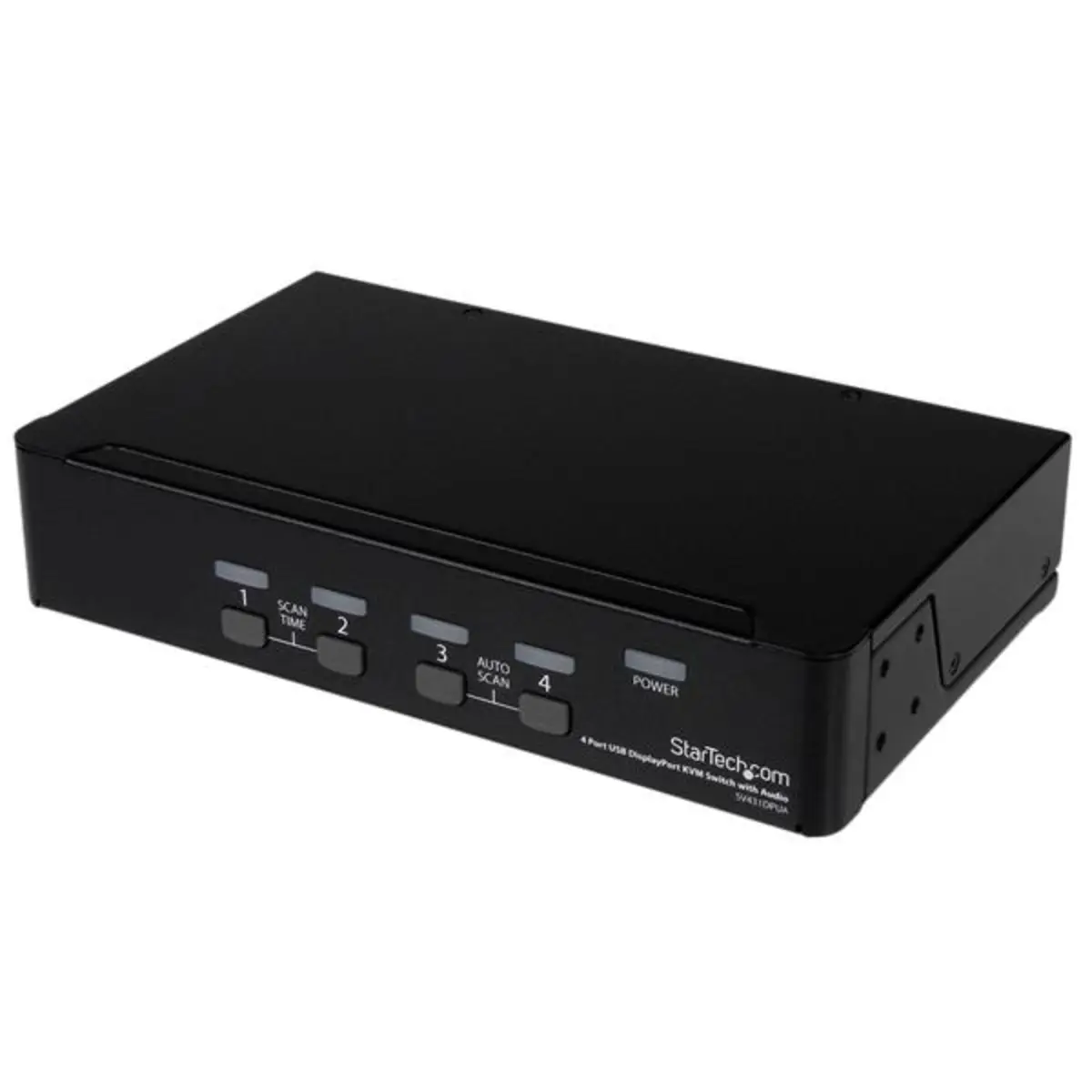

Product description
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Technical specifications
Design
Product colour | Black |
Built-in display | No |
Push button | Yes |
Logistics data
Harmonized System (HS) code | 85176200 |
Leistungen
Housing material | Steel |
Hot-Plug support | Yes |
Daisy chain | No |
Mean time between failures (MTBF) | 136000 std |
Audio channels | 7.1 |
DDC2B support | Yes |
Number of users | 1 user(s) |
Power
AC input voltage | 100 - 240 |
Output current | 1.5 A |
Compatible power plug types | AU, EU, UK, US |
Verpackungsdaten

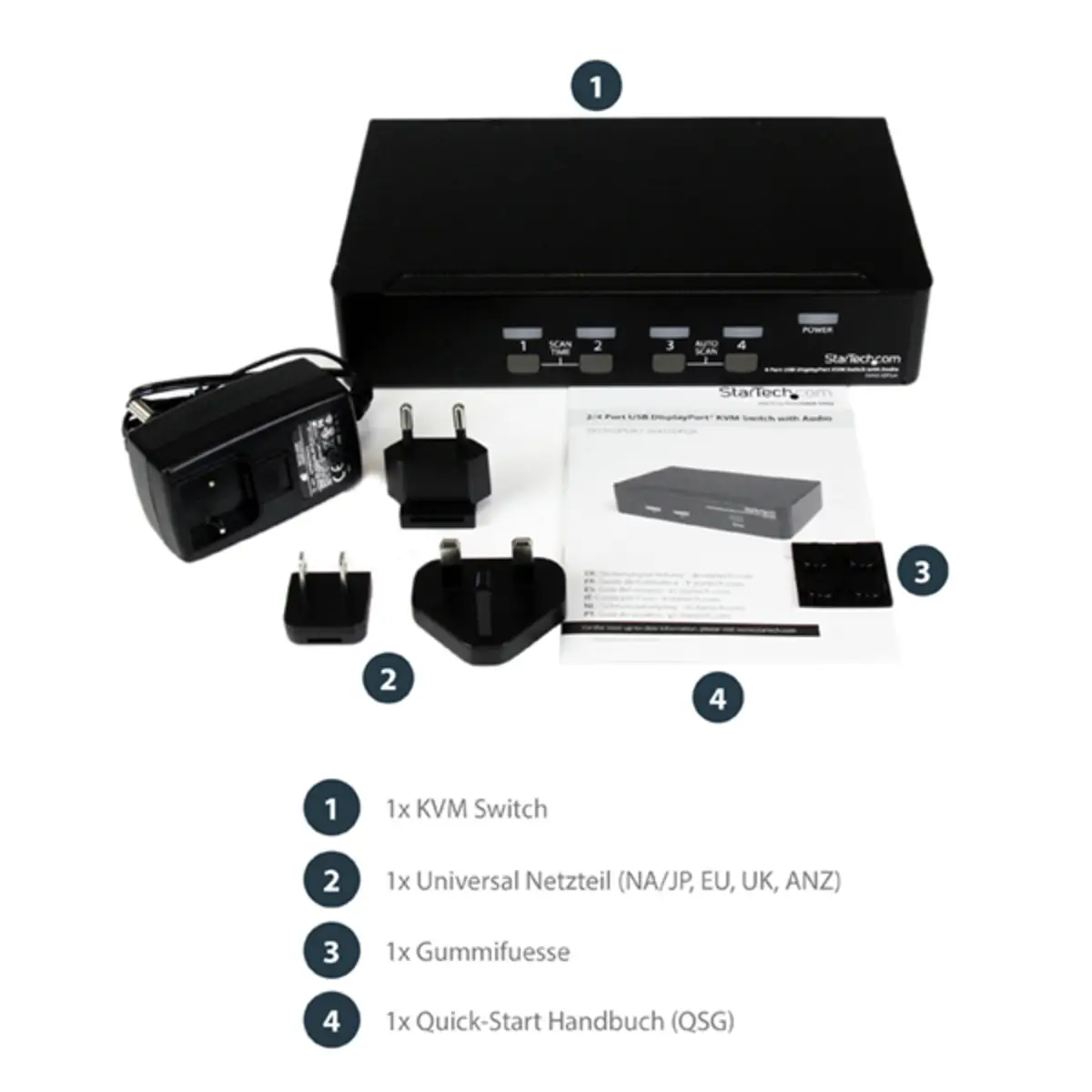

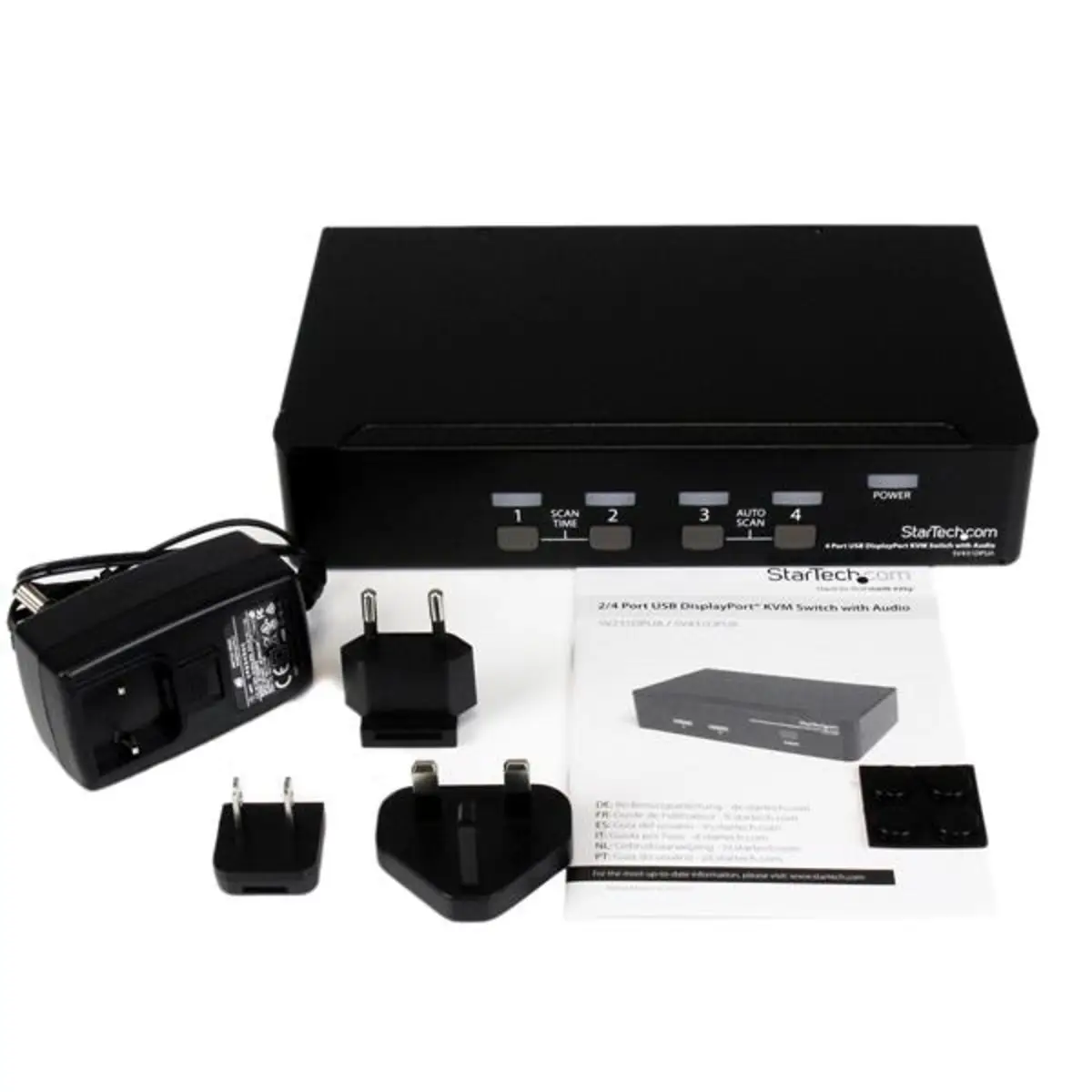

AC adapter included | Yes |
Package weight | 1600 g |
Package depth | 411 mm |
Package width | 214 mm |
Package height | 87 mm |
Rubber feet | Yes |
Sonstige Funktionen
Power plug type | Type M |
Manual | Yes |
External power adapter | Yes |
Audio connections | Yes |
Maximum resolution | 3840 x 2400 pixels |
Output voltage | 12 V |
Input current | 0.8 A |
Maximum digital resolution | 2560 x 1600 pixels |
Audio support | Yes |
IP control | No |
Sustainability
Sustainability certificates | RoHS |
Operational conditions
Operating relative humidity (H-H) | 0 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Gewicht und Abmessungen

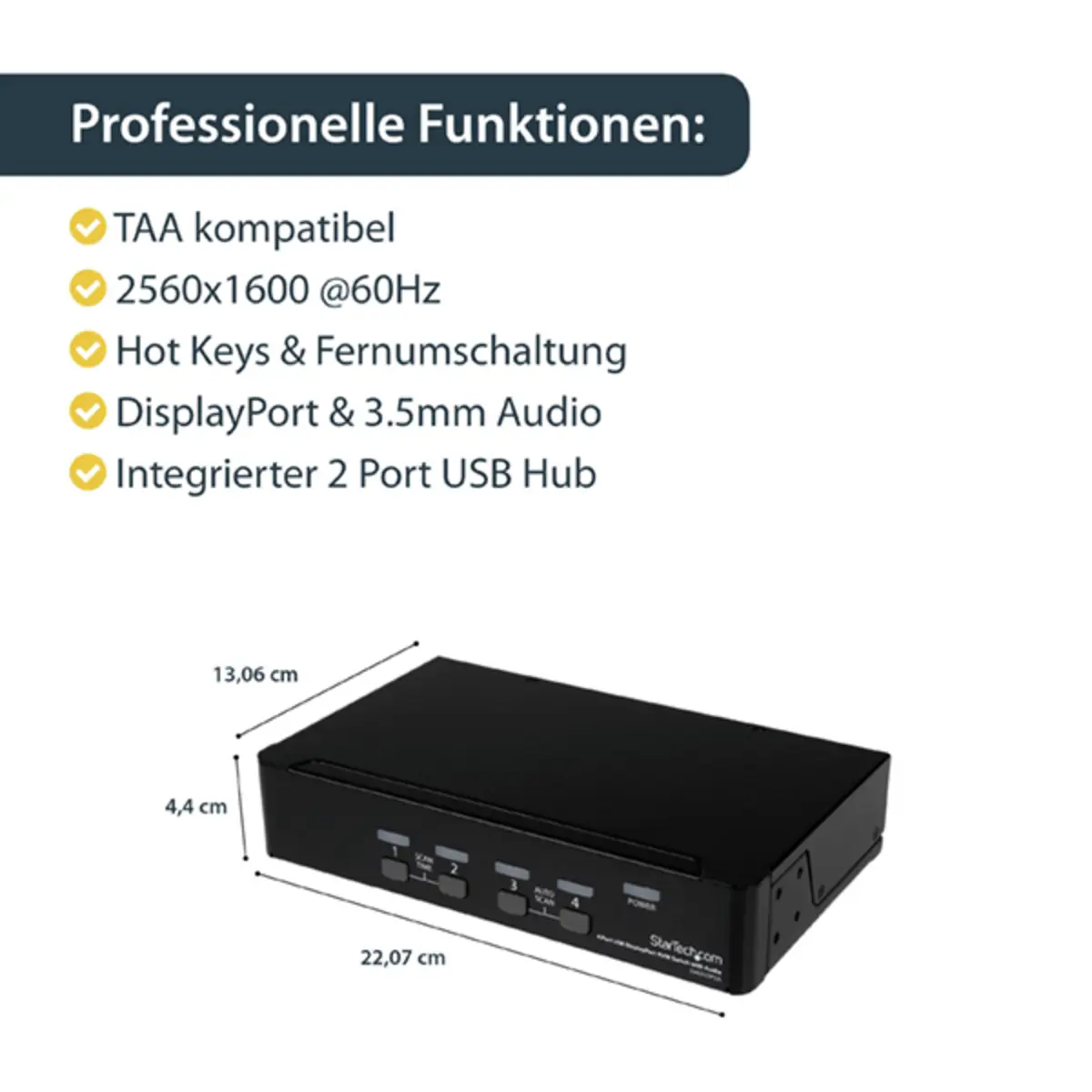

Weight | 1000 g |
Height | 44 mm |
Width | 221 mm |
Depth | 130.6 mm |
Ergonomics
Plug and Play | Yes |
LED indicators | Yes |
On Screen Display (OSD) | No |
Mouse
Certification | CE, FCC, UL, TAA, REACH |
Keyboard
Hot keys | Yes |
USB hub | Yes |
Ports & interfaces
Headphone outputs | 5 |
DC-in jack | Yes |
Number of microphone inputs | 5 |
Video port type | DisplayPort |
Keyboard port type | USB |
Mouse port type | USB |

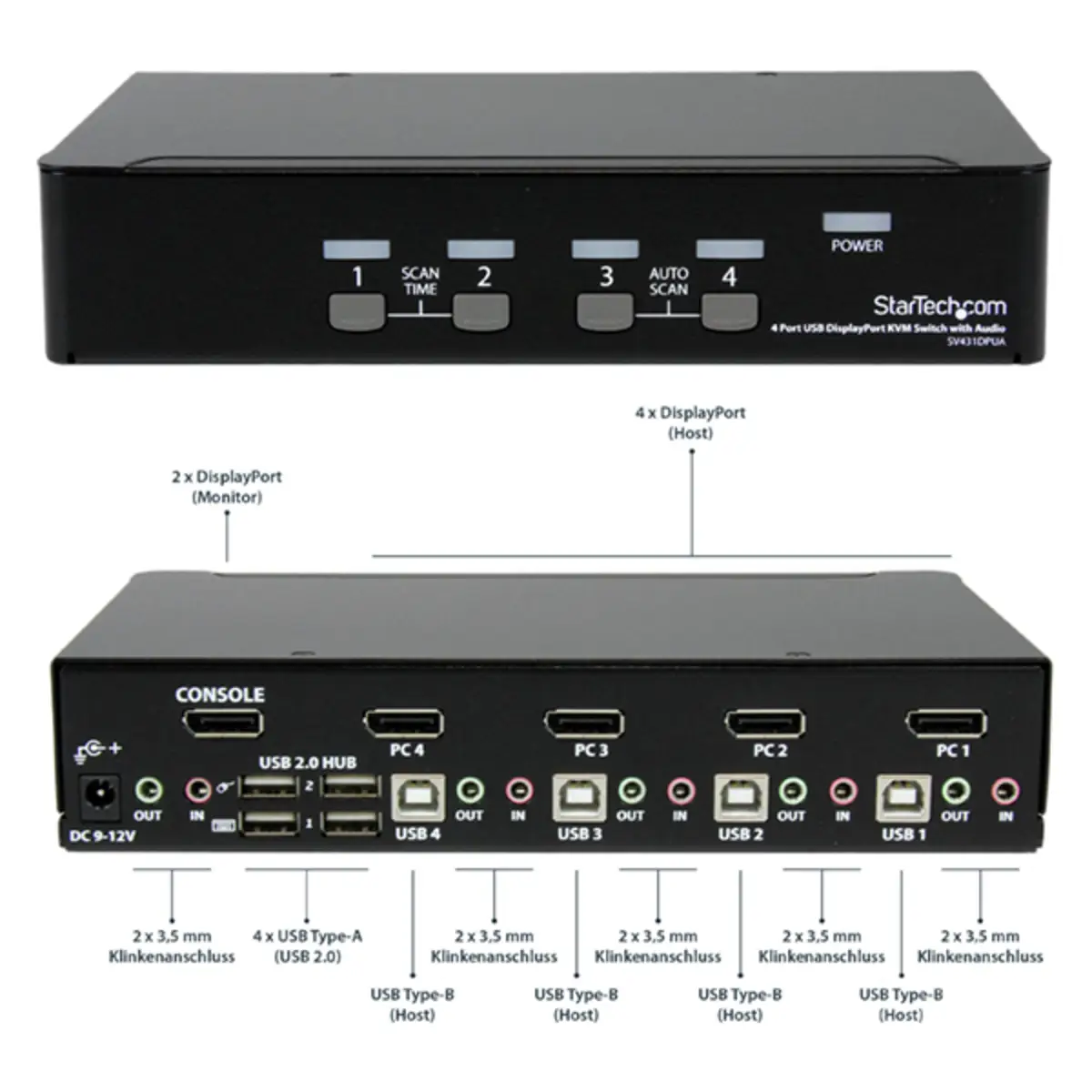

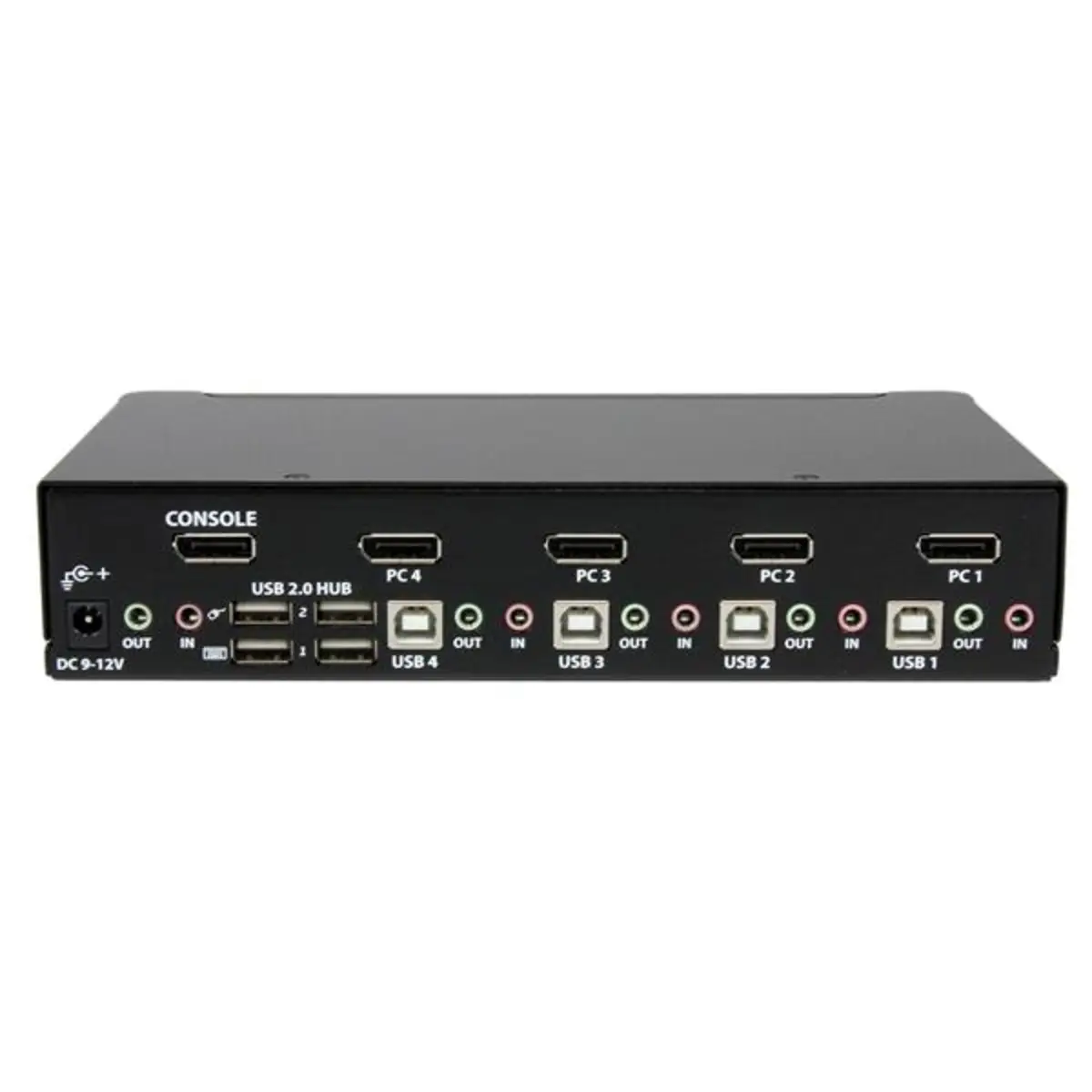

Console ports | DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
Number of computers controlled | 4 |
Console USB ports quantity | 4 |
