- StarTech PCI-Express Network Card Gigabit Ethernet Dual Port
+4 Images
9 Images
Product description

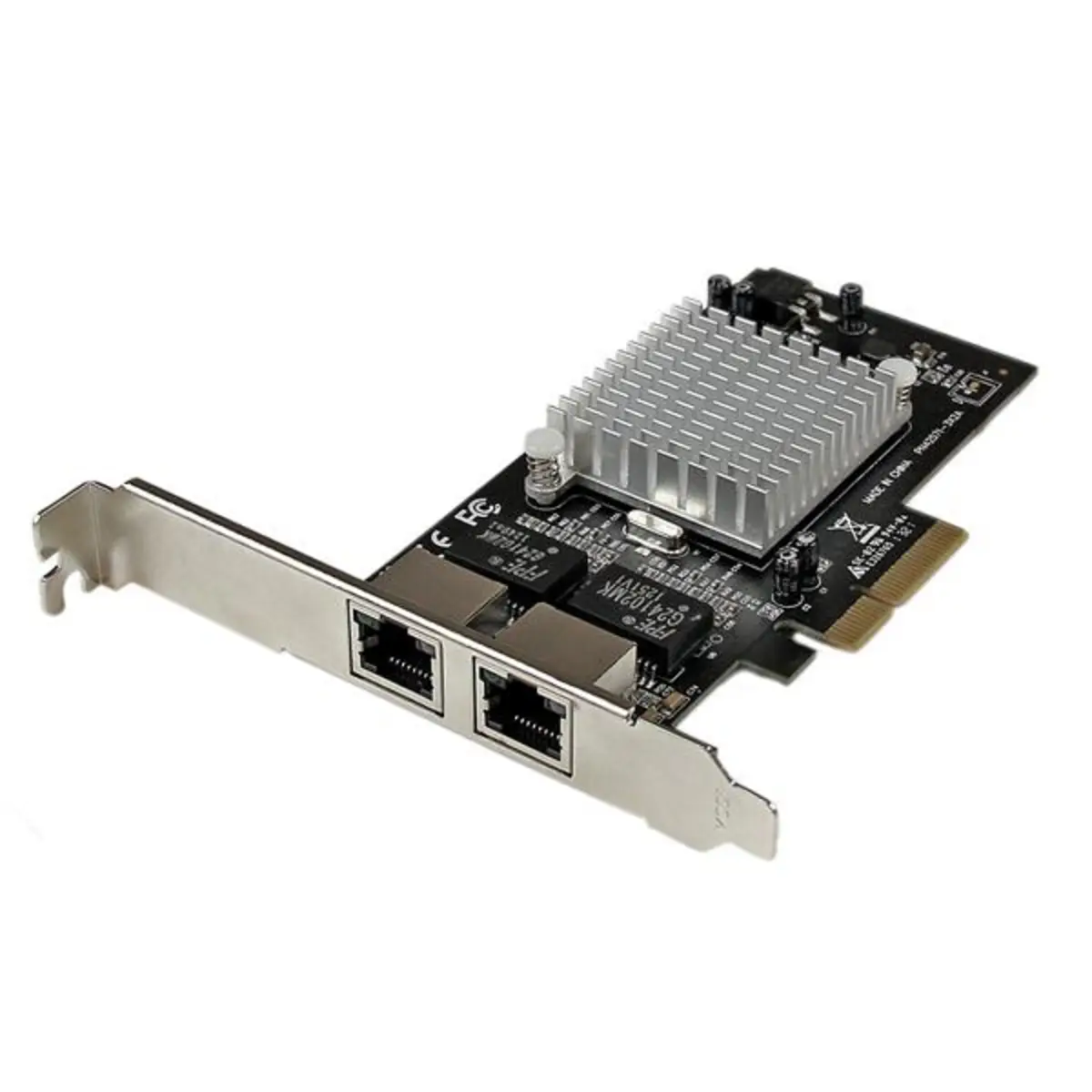

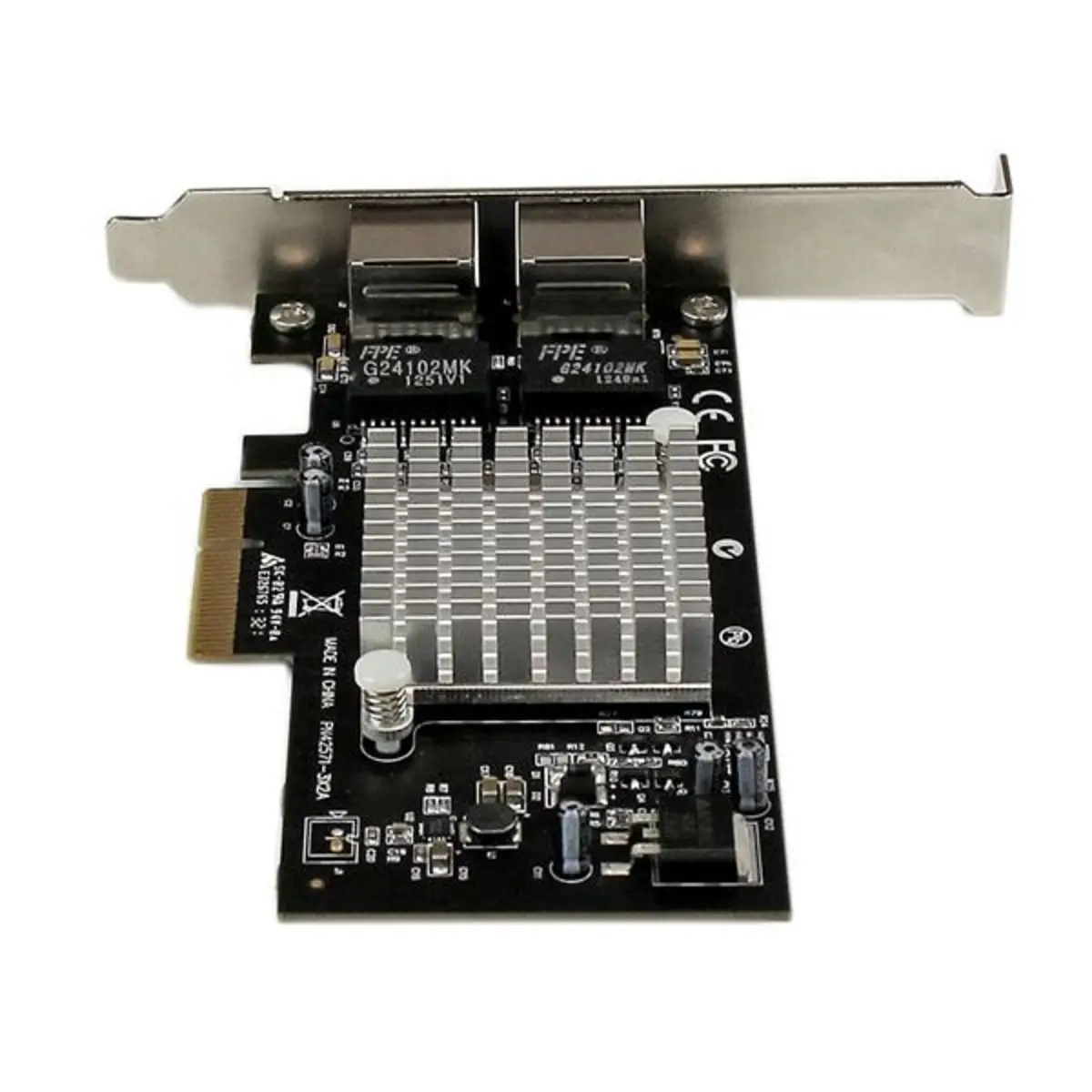

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Technical specifications
Design
| Component for | Server |
Logistics data
| Harmonized System (HS) code | 85176990 |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows |
Leistungen
| Mean time between failures (MTBF) | 432,400 std |
Systemanforderung
| Linux operating systems supported | Y |
| Windows operating systems supported | Windows 10,Windows 10Education,Windows 10Educati |
Kopfhörer
| Chipset | Intel - I350-AM2 |
Verpackungsdaten
| Package weight | 165 g |
| Package depth | 144 mm |
| Package width | 172 mm |
| Package height | 29 mm |
| Low-profile bracket | Y |
Sonstige Funktionen
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,I |
| Manual | Y |
| Power LED | Y |
| Link/Act LED | Y |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 5 - 85 |
| Storage temperature (T-T) | -20 - 60 |
| Operating temperature (T-T) | 0 - 50 |
Audio
| Internal | Y |
Gewicht und Abmessungen
| Weight | 80 g |
| Height | 121 mm |
| Width | 19 mm |
| Depth | 67 mm |
Ergonomics
| LED indicators | Activity,Link |
Features
| Maximum data transfer rate | 2,000 Mbit/s |
Mouse
| Certification | CE, FCC, REACH |
Network
| LAN controller | Intel I350-AM2 |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Y |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| Jumbo frames | 9,000 |
| VLAN tagging | Y |
| Auto MDIX IEEE | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Y |
| Host interface | PCI Express |
| PCI version | 2.1 |
