- StarTech PCI-Express Network Card Gigabit Ethernet Dual Port
5 Images
Product description

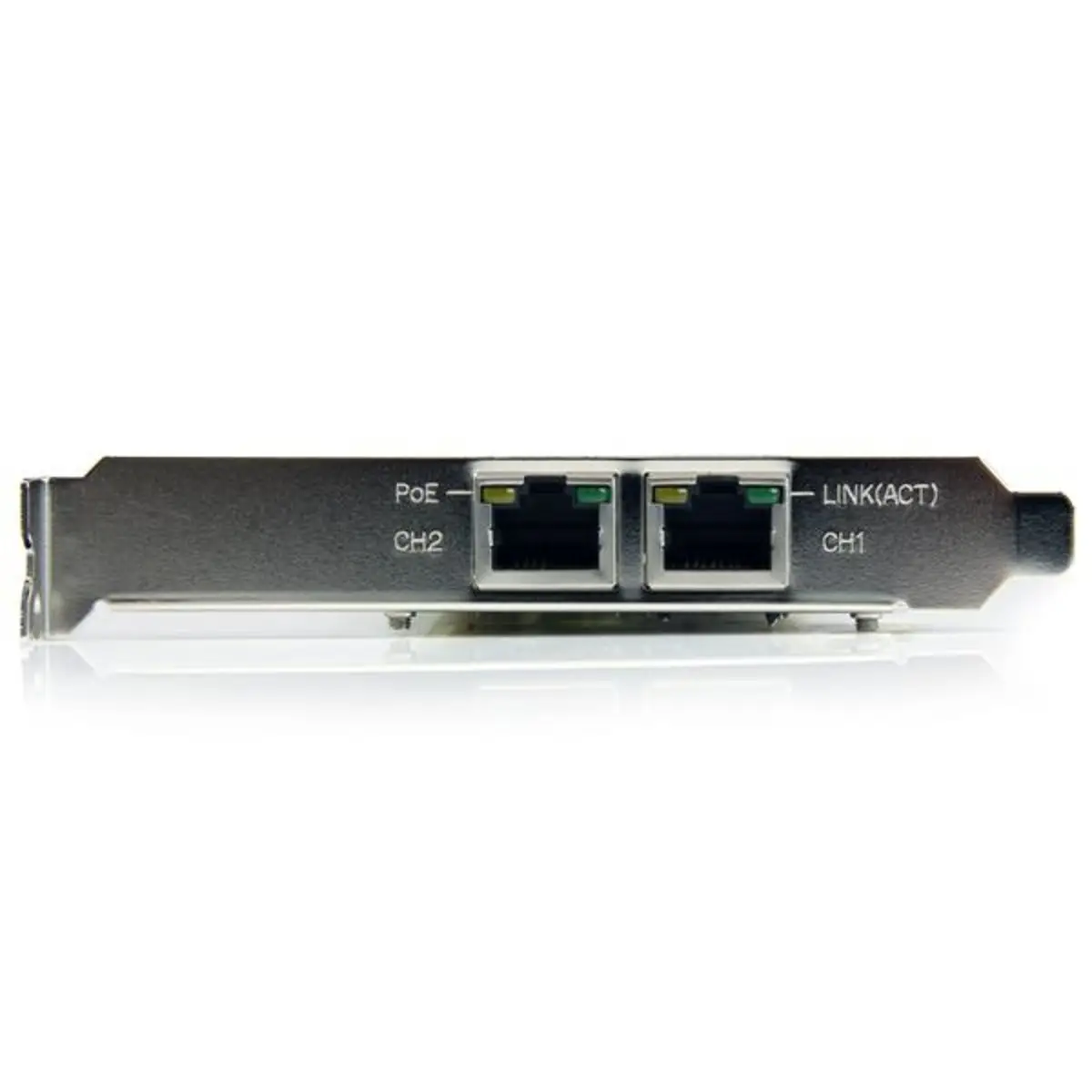

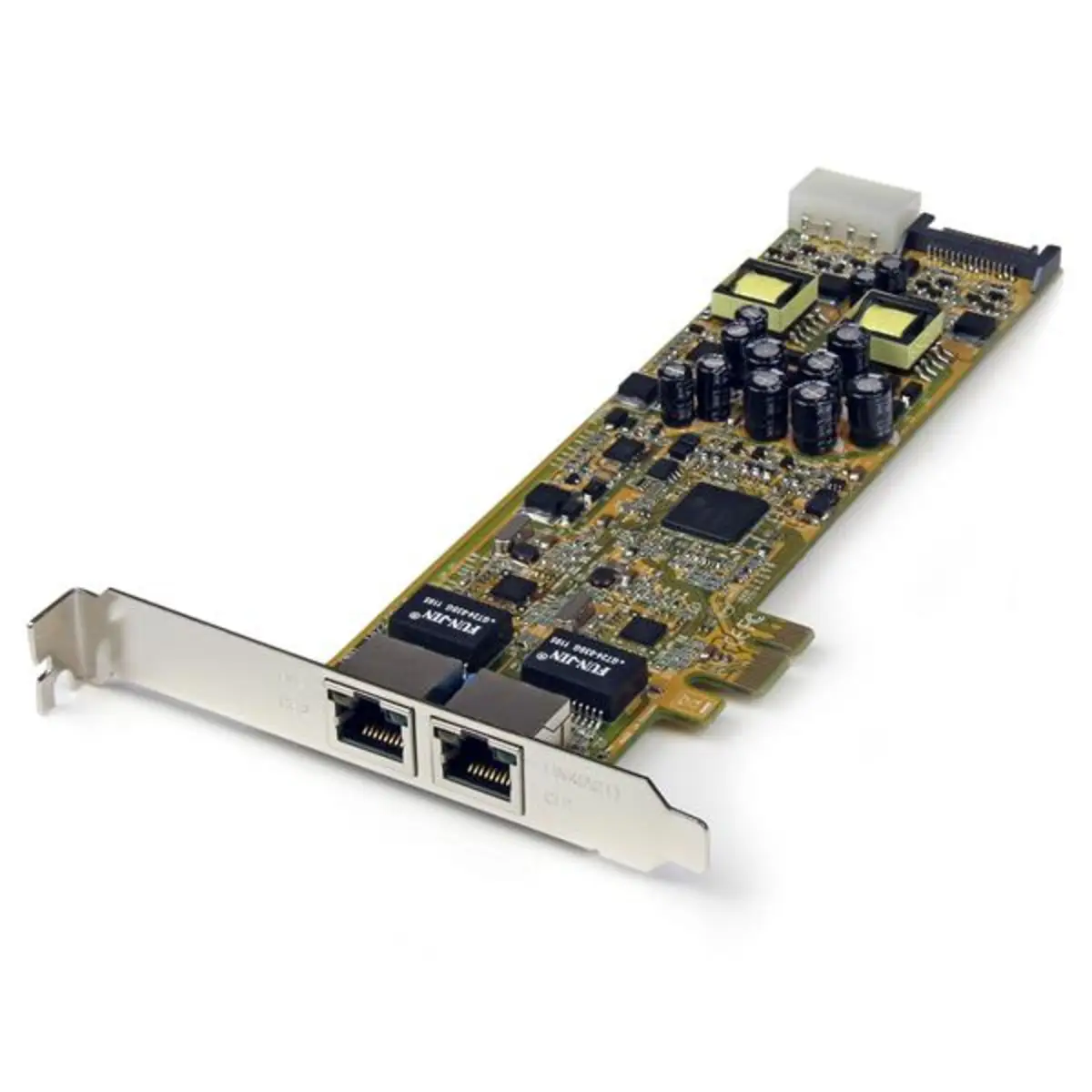

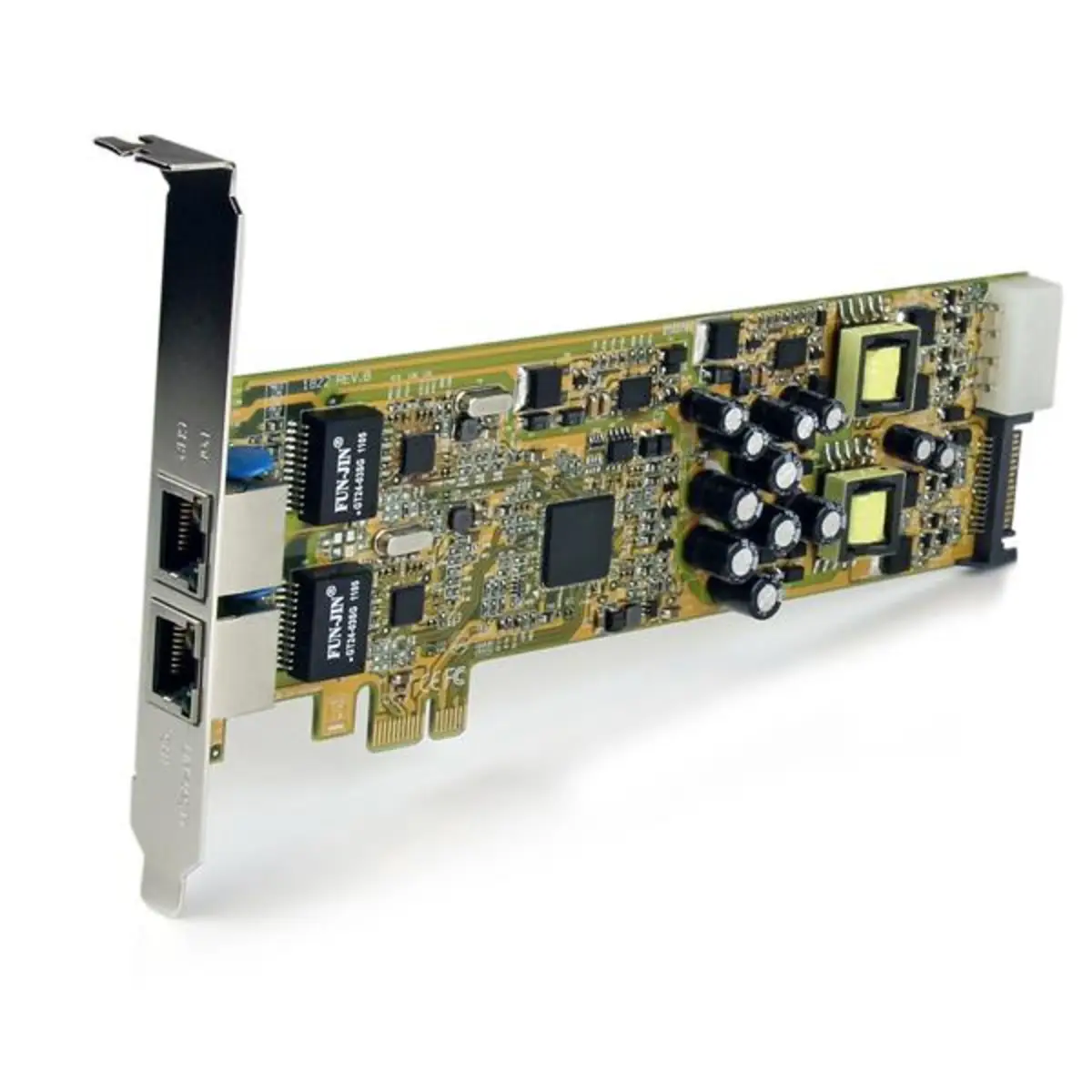

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Reduces cable clutter and makes it easier to install devices in remote locations that are powered by the the PSE network card, with up to 25.5W of power delivery as well as a solid network link over a single cable connection
- Suitable for installation in full profile or small form factor computer cases using the included half-height/low profile bracket, adding two network connection ports using a single PCI Express slot
- Provides versatile network connections with support for advanced features such as Jumbo Frames and VLAN tagging, as well as Wake-On-LAN and Auto MDIX
This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.
Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).
The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Reduces cable clutter and makes it easier to install devices in remote locations that are powered by the the PSE network card, with up to 25.5W of power delivery as well as a solid network link over a single cable connection
- Suitable for installation in full profile or small form factor computer cases using the included half-height/low profile bracket, adding two network connection ports using a single PCI Express slot
- Provides versatile network connections with support for advanced features such as Jumbo Frames and VLAN tagging, as well as Wake-On-LAN and Auto MDIX
Technical specifications
Design
| Component for | PC |
Logistics data
| Harmonized System (HS) code | 85176990 |
Software
| Drivers included | Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows |
Leistungen
| Mean time between failures (MTBF) | 140,981 std |
Systemanforderung
| Linux operating systems supported | Y |
Kopfhörer
| Chipset | Realtek - RTL8111E |
Verpackungsdaten
| Package weight | 246 g |
| Package depth | 165 mm |
| Package width | 231 mm |
| Package height | 45 mm |
| Low-profile bracket | Y |
Sonstige Funktionen
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IE |
| Manual | Y |
| Output voltage | 48 |
| Buffer size | 48 KB |
| Flow control support | Y |
Sustainability
| Sustainability certificates | RoHS |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95 |
| Storage temperature (T-T) | -20 - 85 |
| Operating temperature (T-T) | 0 - 55 |
Audio
| Internal | Y |
Gewicht und Abmessungen
| Weight | 104 g |
| Height | 68 mm |
| Width | 19 mm |
| Depth | 195 mm |
Ergonomics
| LED indicators | Activity,Link,PoE |
Features
| Maximum data transfer rate | 2,000 Mbit/s |
Computer system
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Wind |
| Mac operating systems supported | Mac OS X 10.6 SnowLeopard,Mac OS X 10.7Lion,Mac |
Mouse
| Certification | CE, FCC, REACH |
Network
| LAN controller | Realtek RTL8111E |
| Cabling technology | 10/100/1000BaseT(X) |
| Full duplex | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Jumbo frames support | Y |
| VLAN tagging | Y |
| Auto MDIX IEEE | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Y |
| Host interface | PCI Express |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) ports quantity | 2 |
