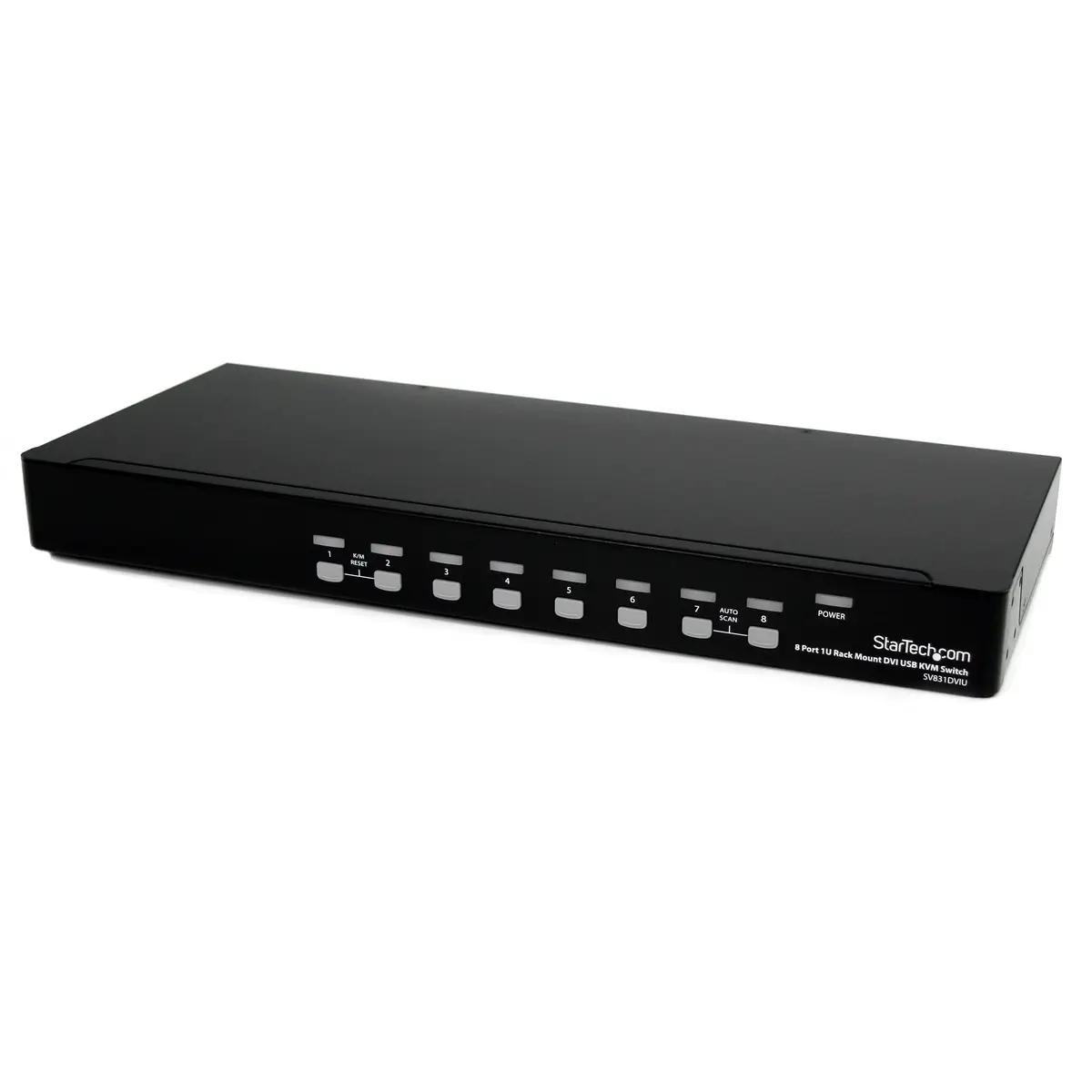

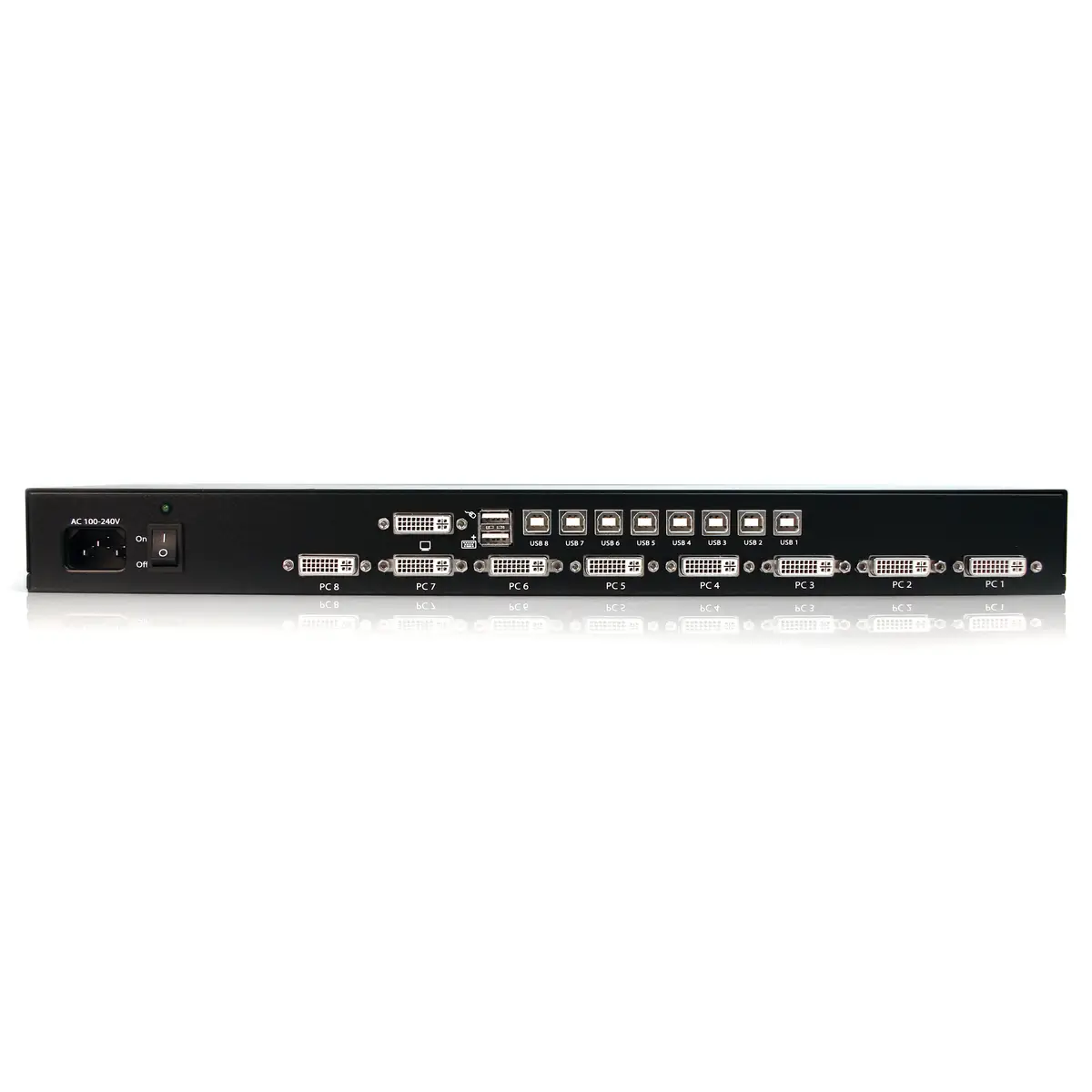

The SV831DVIU 8-Port 1U Rackmount DVI-USB KVM Switch lets you connect up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, one Control a mouse and a monitor. The KVM switch offers maximum control. You can switch between computers using keyboard shortcuts or front panel pushbuttons. The KVM supports digital resolutions up to 1920 x 1200 via DVI or HDMI connection (with DVI to HDMI adapter - see accessories) and offers the high resolutions recommended for newer displays. sung. This means you can make full use of the full capacity of your monitor/screen. This rugged 8-port switch can be rack-mounted in 1U of cabinet space, making it a perfect solution for any server room or software testing lab. Backed by StarTech.com's 3-year warranty and free lifetime technical support.
Note: This KVM only supports digital signals and cannot be used with DVI to VGA adapters.
- The StarTech.com Advantage
- DVI connections with high resolution of 1920 x 1200 support control of DVI systems or HDMI systems (with adapter)
- Supports wireless and combo mouse and keyboard sets for added flexibility
- The robust, stable, rack-mountable steel housing ensures long-term use even in demanding environments.
Product colour | Black |
LED indicators | Y |
Rack capacity | 1U |
USB 2.0 ports | 10 |
Ethernet LAN | N |
Video port type | DVI-I |
Keyboard port type | USB |
Mouse port type | USB |
Number of computers controlled | 8 |
Hot keys | Y |
Certification | CE, FCC |
Housing material | Steel |
Daisy chain | N |
Mean time between failures (MTBF) | 45,254 std |
Sustainability certificates | RoHS |
Rack mount kit | Y |
AC input voltage | 100-240 |
Package weight | 3,775 g |
Package depth | 595 mm |
Package width | 265 mm |
Package height | 90 mm |
Output current | 4 A |
Compatible power plug types | AU,EU,UK,US |
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 0 - 40 |
Power plug type | Type M |
Manual | Y |
Rack mounting | Y |
External power adapter | Y |
Audio connections | N |
Maximum resolution | 1920 x 1200 |
Output voltage | 12 |
Input current | 1.8 |
Maximum analog resolution | 1920 x 1200 |
IP control | Y |
Weight | 3,500 g |
Height | 44 mm |
Width | 438 mm |
Depth | 180 mm |
Harmonized System (HS) code | 85176200 |
