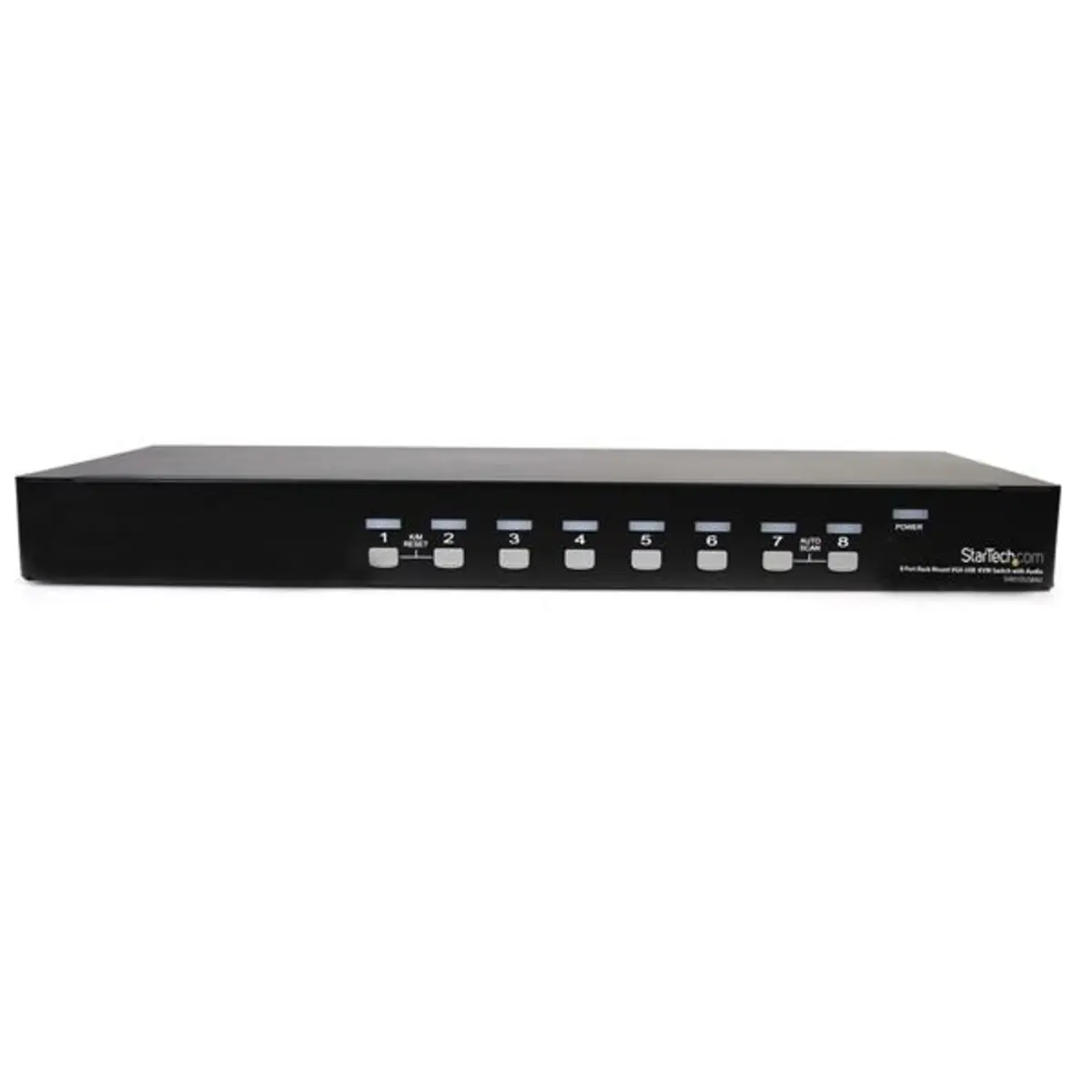

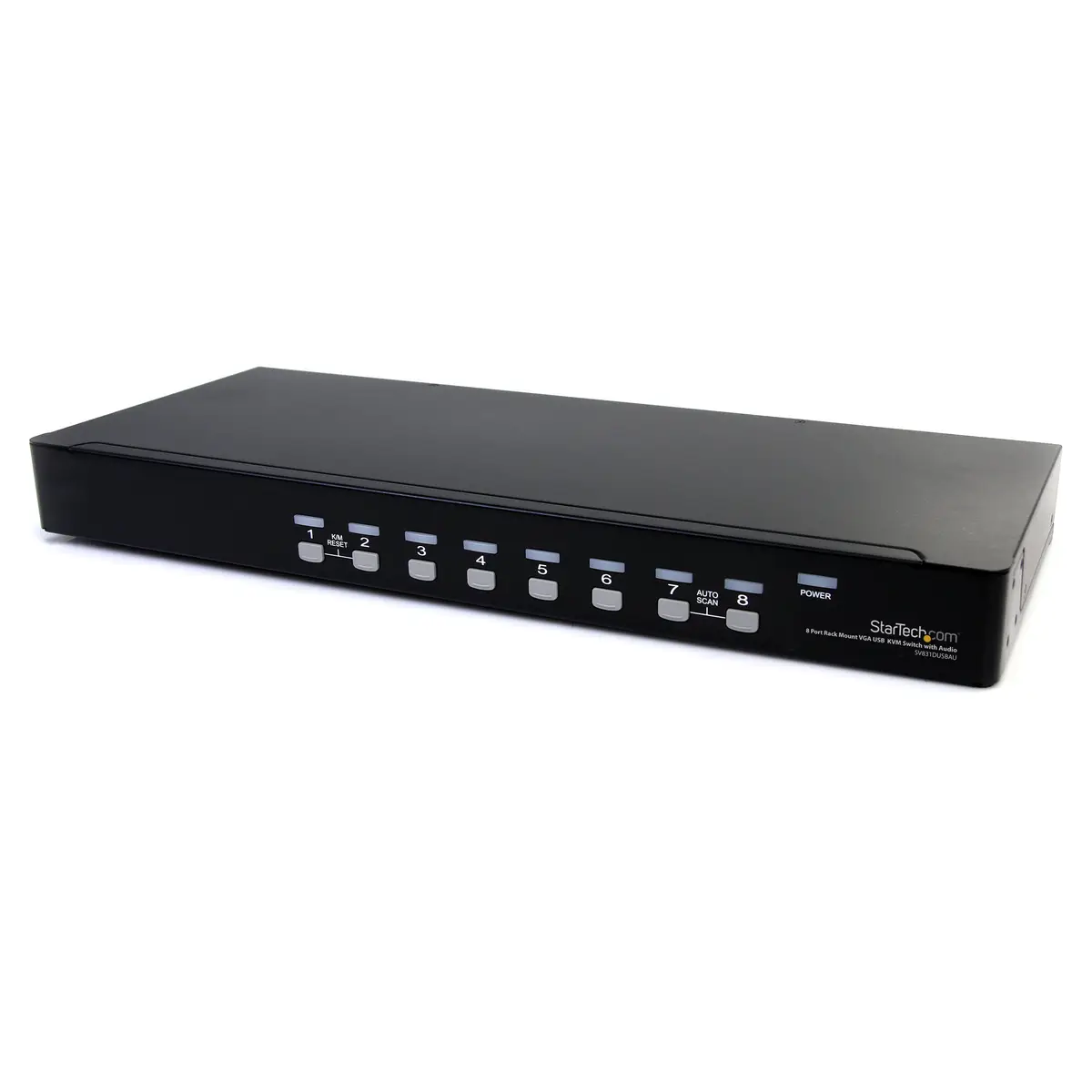

Control up to 8 VGA and USB enabled computers from a single keyboard, mouse and monitor. The SV831DUSBAU 8-Port Rackmount USB VGA KVM Switch (with Audio Cables) lets you control up to 8 USB computers from a single peripheral set of keyboard, mouse and monitor. It has audio and microphone ports for switching between audio signals as well as PC ports. Based on the slim 1U rackmount form, the 8-port USB KVM features rear cable ports for maximum space efficiency. In addition, multiple KVM devices can be connected (cascaded) to control up to 64 computers. Thanks to this scalability, the KVM solution can be expanded as needed. To ensure hassle-free operation, the switch has automatic and manual scanning modes. It supports hotkey and pushbutton switching and offers a practical OSD (On Screen Display) for additional configuration options. Backed by a 3-year StarTech.com warranty and free lifetime technical support.
- The StarTech.com Advantage
- Rugged rackmount 1U metal chassis is ideal for any environment.
- User-friendly access via OSD saves time and frustration during configuration.
- By extracting keystrokes from the USB port, this KVM enables hotkey support for wireless keyboard/mouse sets that use a single USB receiver.
LED indicators | Y |
Rack capacity | 1U |
Cascadable | Y |
On Screen Display (OSD) | Y |
USB connector type | USB Type-A |
DC-in jack | Y |
Number of microphone inputs | 8 |
Video port type | VGA |
Keyboard port type | USB |
Mouse port type | USB |

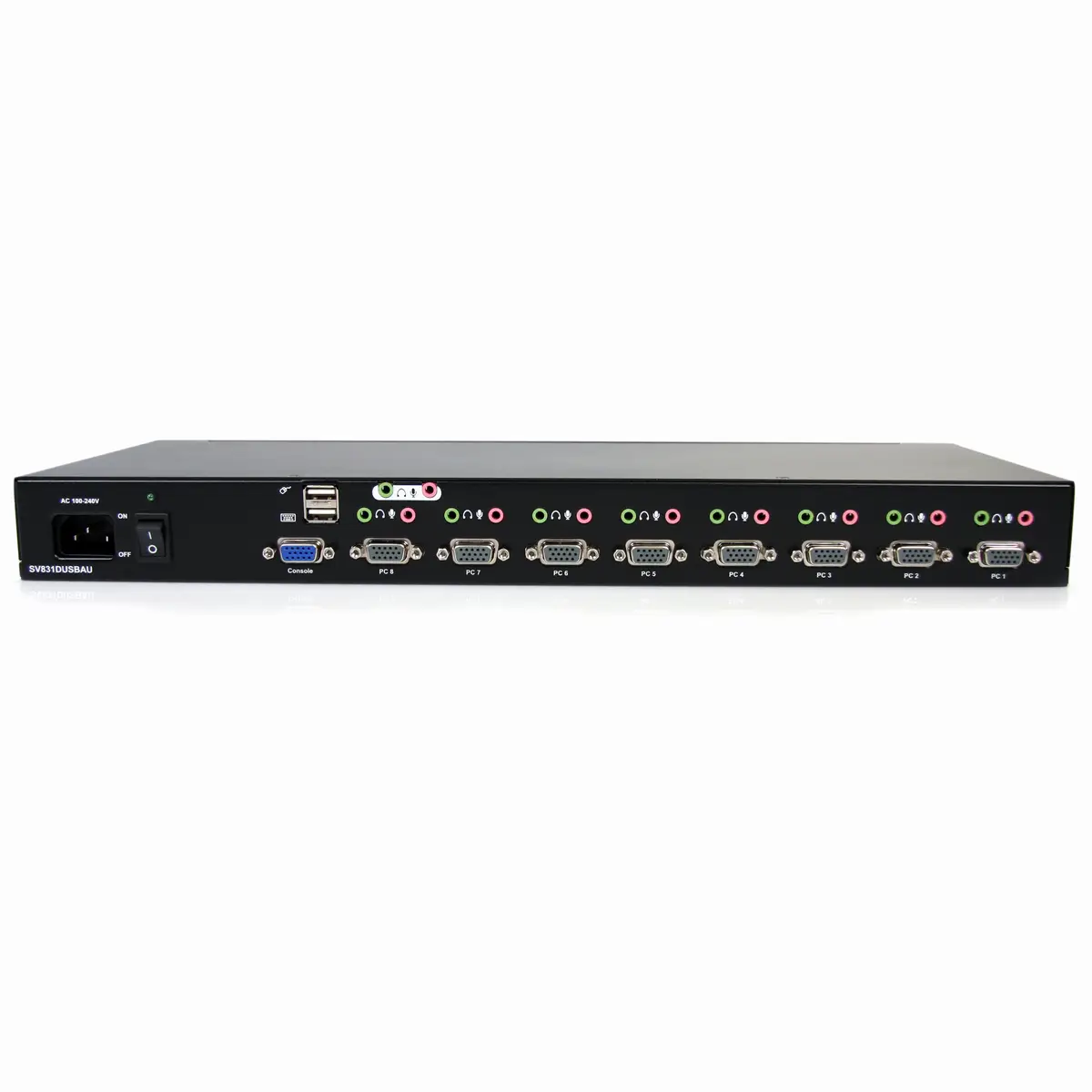

Console ports | 3.5mm headphone,3.5mm mic,USB A,VGA (D-Sub) |
Number of computers controlled | 8 |
Console USB ports quantity | 2 |
Certification | CE, FCC, UL |
Housing material | Steel |
Daisy chain | Y |
Number of users | 1 |
Plug and Play | Y |
Sustainability certificates | RoHS |
AC input voltage | 110-240 |
Cables included | AC |
AC adapter included | Y |
Package weight | 4,700 g |
Package depth | 591 mm |
Package width | 123 mm |
Package height | 264 mm |
Rubber feet | Y |
Output current | 4 A |
Operating relative humidity (H-H) | 0 - 80 |
Storage temperature (T-T) | -20 - 60 |
Operating temperature (T-T) | 5 - 40 |
Power plug type | Type M |
USB 2.0 ports quantity | 2 |
Headphone outputs | 8 |
Manual | Y |
Rack mounting | Y |
Maximum resolution | 1920 x 1440 |
Power consumption (typical) | 48 W |
Output voltage | 12 |
Input current | 1.8 |
Maximum analog resolution | 1920 x 1440 |
Audio support | Y |
IP control | N |
Weight | 2,600 g |
Height | 45 mm |
Width | 540 mm |
Depth | 180 mm |
Harmonized System (HS) code | 85176200 |
