Add up to 10GbE devices to your network with 8 RJ45 (PoE+) and 2 fiber ports, with support for intelligent Layer 2 management.

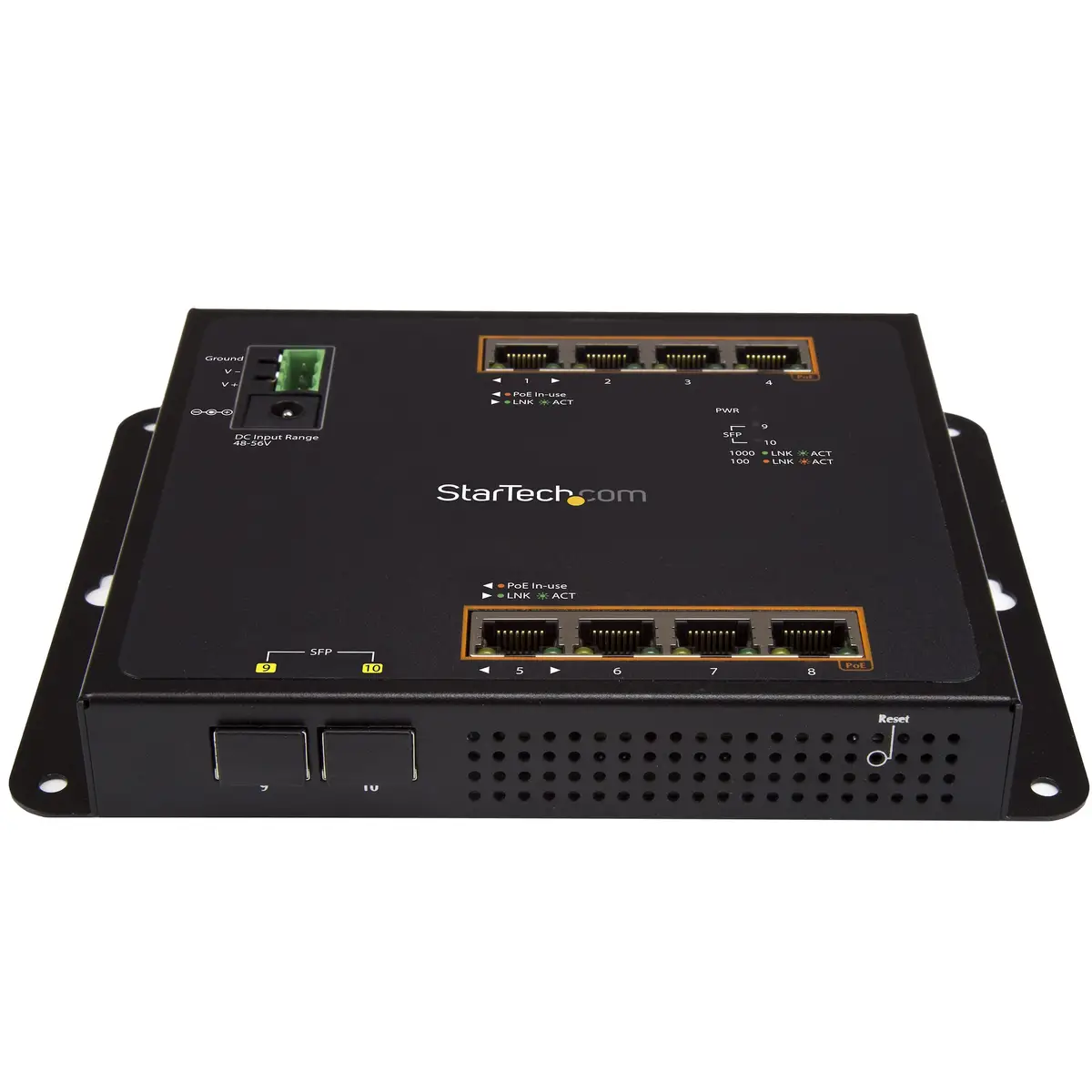

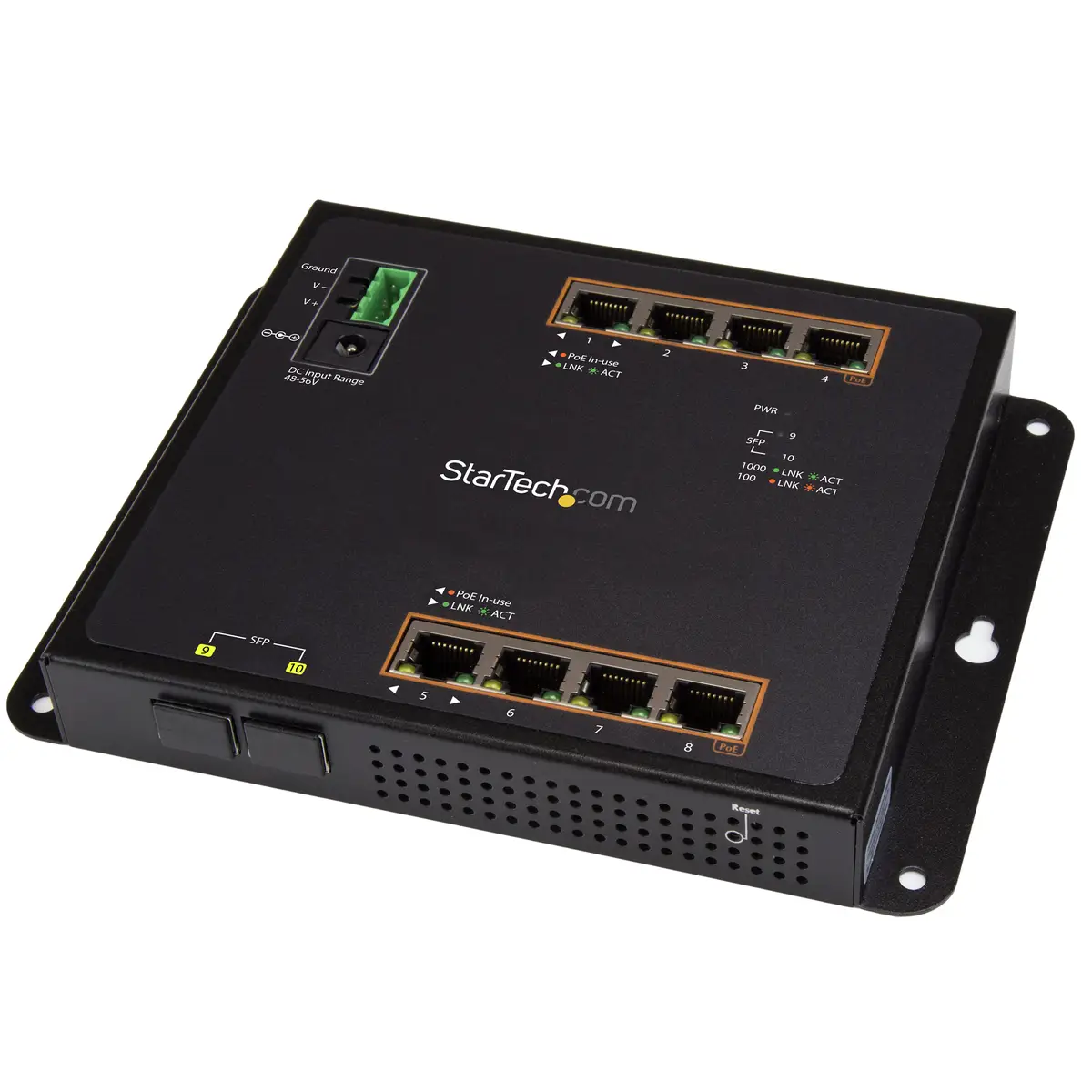

This Gigabit Ethernet switch adds 8 Gigabit to your network -Ethernet copper ports (PoE+) and 2 fiber SFP slots for easy deployment or scaling. The industrial network switch with IP30 protection offers intelligent Layer 2 management. Its rugged, compact design and front-access wall-mounting capability make it ideal for demanding applications, even where space is limited.

Network Expansion

This versatile switch adapts to your needs Network requirements by adding 2 open SFP slots and 8 RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000 Mbps networks. The network switch allows you to connect up to 8 RJ45 (PoE+) devices, allowing different users to share files and devices (such as printers and scanners) over a LAN connection.

Supports PoE+ for Flexible use

The dual power supply (terminal block and DC plug) allows for flexible power supply options. The switch offers the freedom to place devices in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch offers ample PoE power, with up to 30W for each PoE port (budget 200W).

Wall mount with front access

Mount the compact Gigabit -Switch on the wall to provide convenient front access to ports and displays. It is ideal for a wide range of applications, including tight installation areas with strong electromagnetic interference such as control cabinets and control panels. The network switch can also be mounted via a DIN rail.

Efficient Layer 2 Management

The switch offers efficient and stable performance with options for Layer 2 management . This allows you to control packet traffic on a busy network and adjust your settings to achieve optimal network performance and provide greater efficiency and reliability.

Robust IP30 industrial design

This rugged network switch features an IP30-protected metal housing with an extended temperature range (-40°C to 75°C), making it ideal for a wide range of operating conditions. The sturdy metal housing is characterized by durability even in harsh industrial environments.

Reliable connection for seamless network performance

With support for transfer speeds of 10/100/1000 Mbit/s, this supports Managed switch full/half duplex autonegotiation, jumbo frames and automatic MDI/MDIX operation. This allows you to quickly and easily connect your network devices with little or no configuration.

The IES101GP2SFW is backed by a 2-year warranty and free lifetime technical support from StarTech.com.
< br/>The StarTech.com Advantage

- POWER OVER ETHERNET: Industrial Gigabit PoE+ switch with 8 ports and 2 SFP ports; 30W per 4 PoE ports according to IEEE 802.3af and IEEE 802.3at for cameras, sensors, etc. with Cat5e or higher cable Total power budget 120W

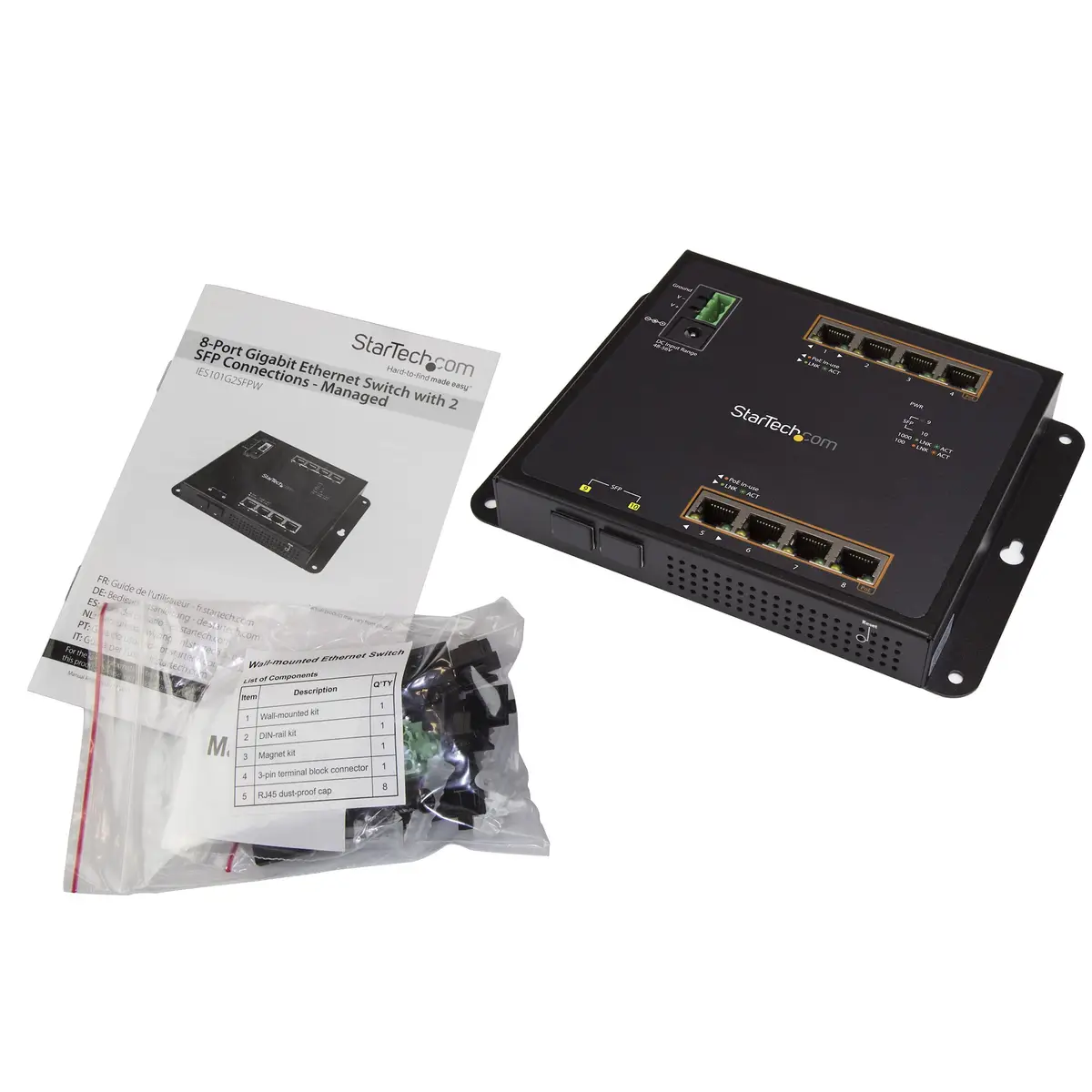

- SLIM DESIGN: Compact housing allows front access and easy installation and troubleshooting; DIN rail or wall mounting options available as all hardware included
- Rugged IP30 industrial design with metal housing and extended temperature range (-40° to +75°C)
