Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

ID: 119675 Cisco ID: WS-C2960X-24TD-L

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Detailed product title

Detailed product title

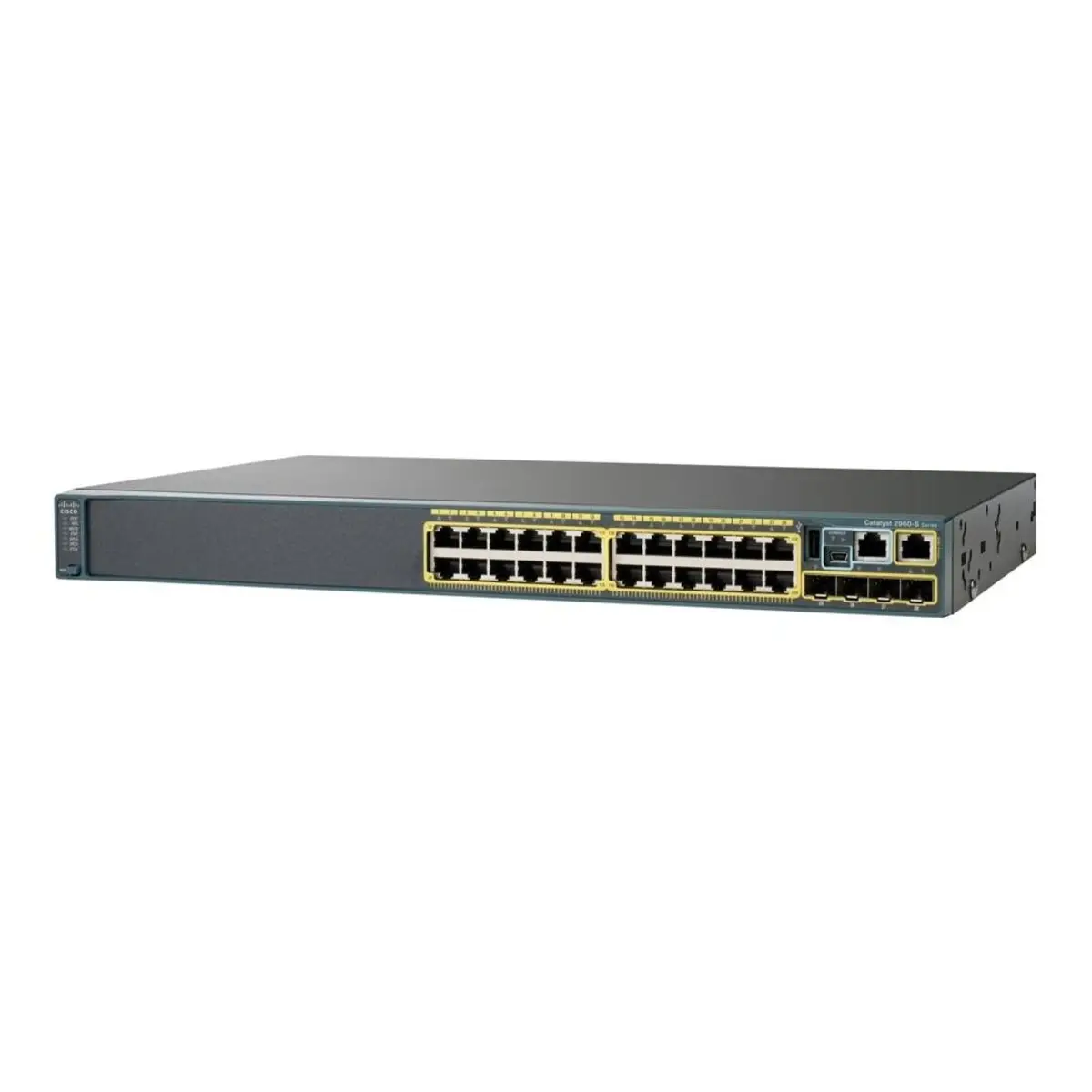

Cisco Catalyst 2960X-24TD-L Gigabit Ethernet Switch, 24ports + 2xSFP

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Catalyst 2960X-24TD-L Gigabit Ethernet Switch 24ports + 2xSFP

Basic switching RJ-45 Ethernet ports quantity 24

please ask for availability

Added to cart

please ask for availability

Product description

Adaptation to dynamic market conditions.

Cisco Access Switches make it easier for your network to adapt to deploy new applications, so your organization can better meet changing business needs.

Technical specifications

Logistics data

Harmonized System (HS) code

85176990

Leistungen

Memory type	DRAM
Mean time between failures (MTBF)	569,520 std

Design

Stackable

Y

Systemanforderung

Processor frequency

600 MHz

Thin Client

Internal memory

512 MB

Power

Number of power supply units	1
Redundant power supply (RPS) support	Y
Power consumption (typical)	32.3 W
AC input voltage	100 - 240
AC input frequency	50 - 60

Data transmission

Throughput

95.2 Mpps

Certificates

Safety

UL 60950-1, CAN/CSA-C22.2No. 60950-1, EN 60950-1,

Sonstige Funktionen

Networking standards	IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,I
Rack mounting	Y
Power LED	Y
Flash memory	128 MB
Noise level	42 dB
Switching capacity	216 Gbit/s

Operational conditions

Operating relative humidity (H-H)	10 - 95
Storage temperature (T-T)	-25 - 70
Operating temperature (T-T)	-5 - 40
Operating altitude	0 - 3000
Storage relative humidity (H-H)	10 - 95
Non-operating altitude	0 - 4000

Ergonomics

LED indicators

Y

Computer system

Built-in processor

Y

Network

Full duplex	Y
MAC address table	16,000 entrie
Jumbo frames support	Y
Auto MDI/MDI-X	Y
Link aggregation	Y
VLAN support	Y
Number of VLANs	1,023
Rate limiting	Y
Broadcast storm control	Y
Spanning tree protocol	Y
10G support	Y

Ports & interfaces

USB 2.0 ports quantity	2
Console port	RJ-45
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24

Weight & dimensions

Weight	4,000 g
Height	45 mm
Width	445 mm
Depth	279 mm

Multicast features

Multicast support

Y

Security

Access Control List (ACL)	Y
IGMP snooping	Y
DHCP features	DHCP server
SSH/SSL support	Y

Management features

Web-based management	Y
Quality of Service (QoS) support	Y
Switch layer	L2

Downloads

119675_document_DE_001

PDF Download
