Product description
- Eight 10/100/1000Mbit/s ports, each with auto-negotiation
- Power supply (via external power supply): 5VDC, 1A
- Dimensions (WxDxH): 155 x 86 x 26 mm
- Shielded RJ-45 ports
- Automatic MDI / MDI-X detection on all ports
- Full duplex mode for 1000Mbit/s
- Supports jumbo frames
- Stores 8K MAC addresses
- Store-and-forward switching with 256KB data buffer
- Supports flow control according to IEEE 802.3x (in full duplex mode)
- Black, fanless metal housing
Technical specifications
Design
| Stackable | N |
Anschlüsse und Schnittstellen
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Netzwerk
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
Leistungen
| Housing material | Metal |
Verpackungsdaten
| Package weight | 527 g |
Leistung
| DC input voltage | 5 |
| Power supply included | Y |
Sonstige Funktionen
| Networking standards | IEEE 802.3x |
| Input current | 1 |
Gewicht und Abmessungen
| Height | 26 mm |
| Width | 155 mm |
| Depth | 86 mm |
ID: 151197
Roline ID: 21.14.3521

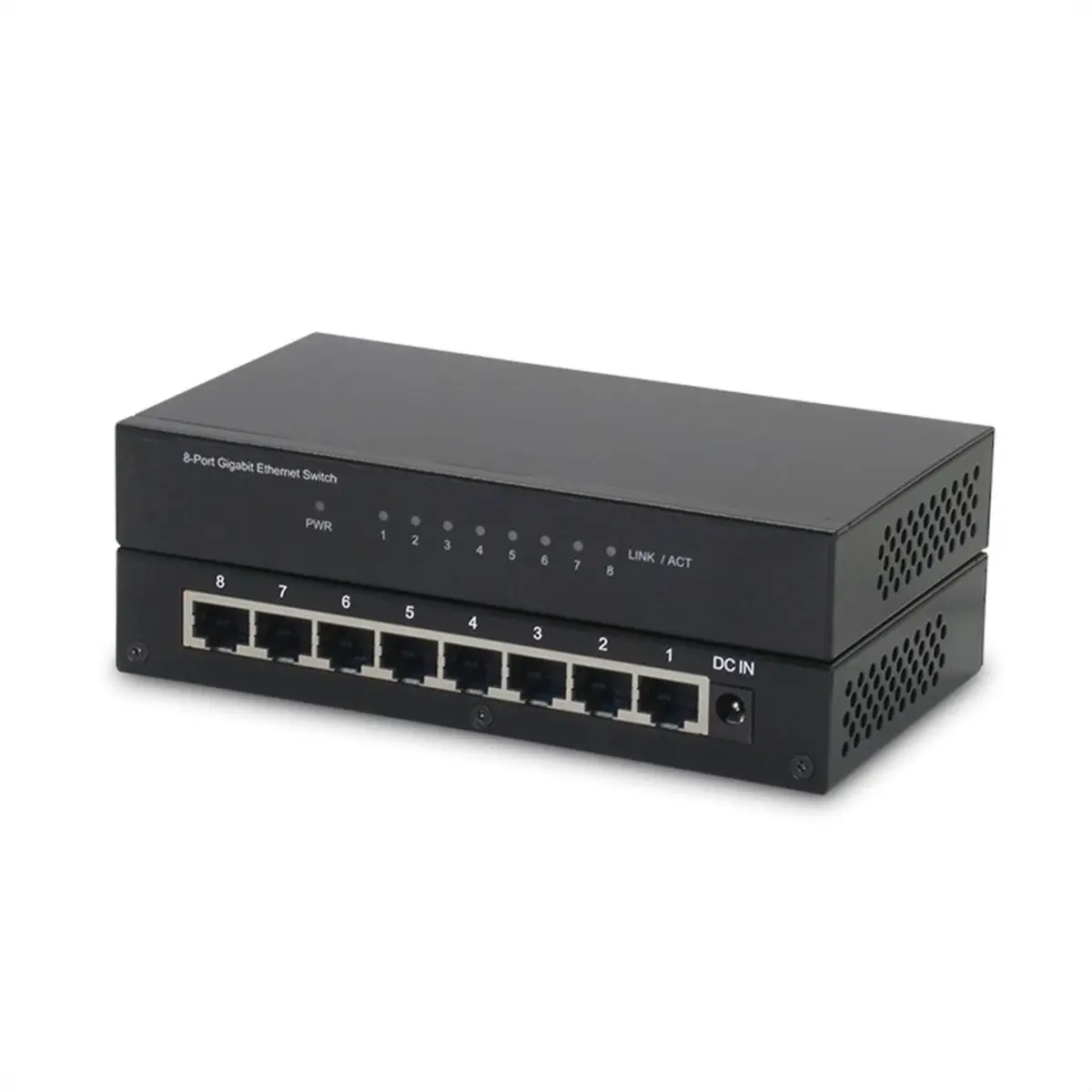

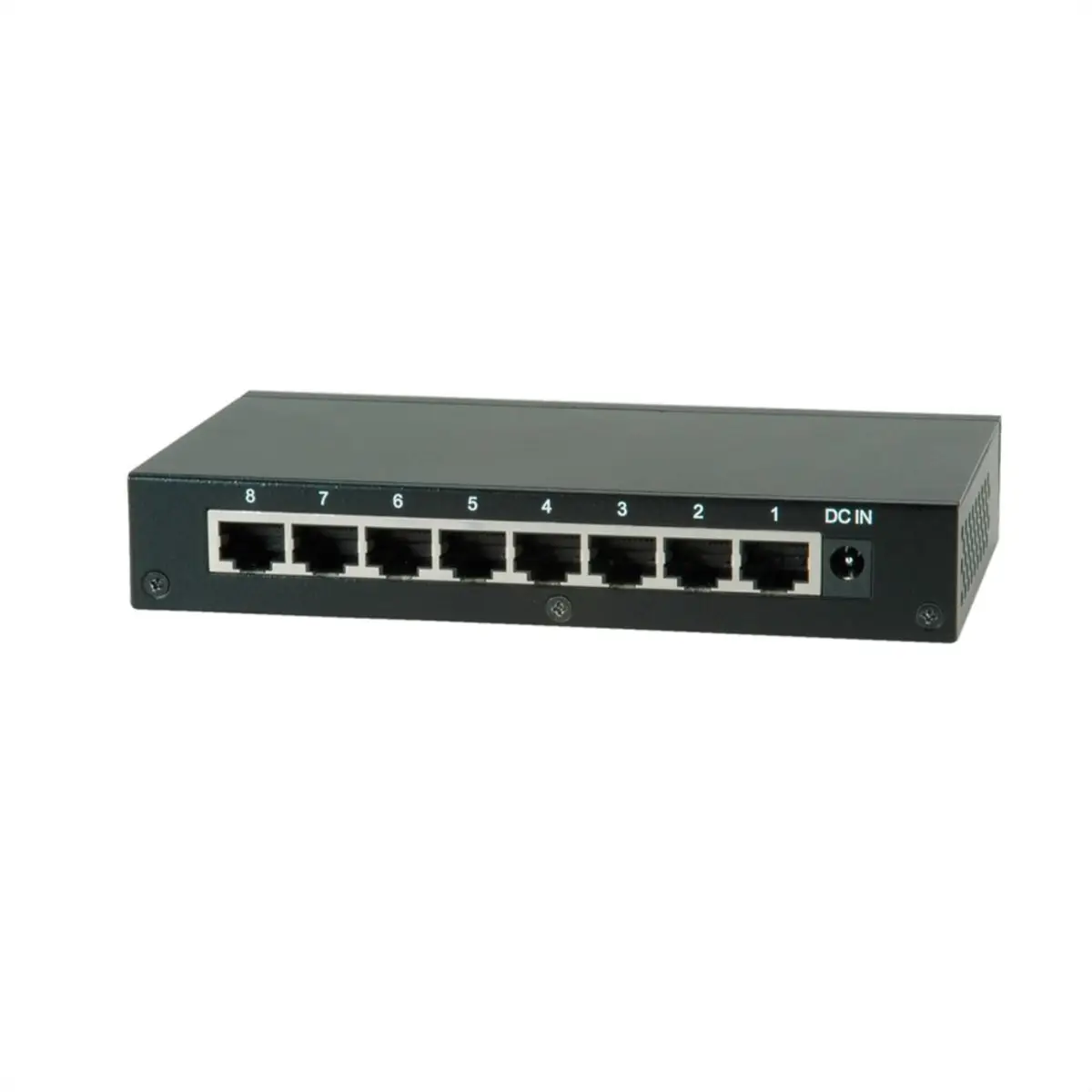

Gigabit Ethernet Switch 8 Ports
Detailed product title
Detailed product title
Roline Gigabit Ethernet Switch 8 Ports
3 Images
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 8
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
- Eight 10/100/1000Mbit/s ports, each with auto-negotiation
- Power supply (via external power supply): 5VDC, 1A
- Dimensions (WxDxH): 155 x 86 x 26 mm
- Shielded RJ-45 ports
- Automatic MDI / MDI-X detection on all ports
- Full duplex mode for 1000Mbit/s
- Supports jumbo frames
- Stores 8K MAC addresses
- Store-and-forward switching with 256KB data buffer
- Supports flow control according to IEEE 802.3x (in full duplex mode)
- Black, fanless metal housing
Technical specifications
Design
| Stackable | N |
Anschlüsse und Schnittstellen
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Netzwerk
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
Leistungen
| Housing material | Metal |
Verpackungsdaten
| Package weight | 527 g |
Leistung
| DC input voltage | 5 |
| Power supply included | Y |
Sonstige Funktionen
| Networking standards | IEEE 802.3x |
| Input current | 1 |
Gewicht und Abmessungen
| Height | 26 mm |
| Width | 155 mm |
| Depth | 86 mm |
