Product description
- Easy setup and management
- The Aruba Instant On mobile app lets you set up, manage and monitor your Instant On switches and access points right from your smartphone. The app guides you step by step through the installation of your Instant On devices. Your network is set up and ready for operation quickly and without any technical expertise. Cloud-based access guarantees you access to your network anywhere, anytime.
- Unobtrusive, aesthetic design
- Aruba Instant On switches perfectly complement the slim and clear design of Instant On access points and blend discreetly into the environment at your location.
- Location inventory
- The location inventory feature of the Instant On-Mobile app shows you all the switches and access points in your area in one display. You can see failed devices at a glance for immediate troubleshooting.
- Management of multiple locations
- Managing multiple locations, networks, distributed or multi-tenant deployments is easy through the cloud-delivered web interface and mobile app. Each location is logically separated and has its own configuration with its own statistics, guest portal and administrator permissions.
- Integrated security
- Built-in security features block malware attacks and unauthorized users, protecting your network from external threats. Network traffic can be filtered and access restricted based on MAC and IP addresses.
Technical specifications
Design
| Product colour | White |
| Form factor | 1U |
| Stackable | N |
Anschlüsse und Schnittstellen
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
Prozessor
| Processor model | ARM Cortex-A9 |
Netzwerk
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Web-based management | Y |
| Full duplex | Y |
| MAC address table | 8,000 entrie |
| Quality of Service (QoS) support | Y |
| Jumbo frames support | Y |
| Auto MDI/MDI-X | Y |
| Link aggregation | Y |
| VLAN support | Y |
| Number of VLANs | 256 |
| Port mirroring | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Auto-sensing | Y |
| 10G support | N |
Leistungen
| Memory type | SDRAM |
Management-Funktionen
| Switch type | Managed |
| Switch layer | L2+ |
Systemanforderung
| Processor frequency | 800 MHz |
Sicherheit
| IGMP snooping | Y |
| SSH/SSL support | Y |
Technische Details
| AC input voltage | 100 - 240 |
Datenübertragung
| Packet buffer memory | 1.5 MB |
| Latency (10-100 Mbps) | 5.2 µs |
| Latency (1 Gbps) | 3 µs |
| Throughput | 14.8 Mpps |
Leistung
| AC input frequency | 50/60 |
| Power consumption (max) | 150.2 W |
| Power over Ethernet (PoE) | Y |
| Power supply included | Y |
Power over Ethernet (PoE)
| Total Power over Ethernet (PoE) budget | 124 W |
Betriebsbedingungen
| Operating relative humidity (H-H) | 15 - 95 |
| Storage temperature (T-T) | -40 - 70 |
| Operating temperature (T-T) | 0 - 40 |
| Storage relative humidity (H-H) | 15 - 95 |
Sonstige Funktionen
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEE |
| Rack mounting | Y |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Flow control support | Y |
| Switching capacity | 20 Gbit/s |
Gewicht und Abmessungen
| Weight | 1,160 g |
| Height | 43.9 mm |
| Width | 254 mm |
| Depth | 254 mm |
ID: 222592
HP Enterprise ID: JL681A#ABB

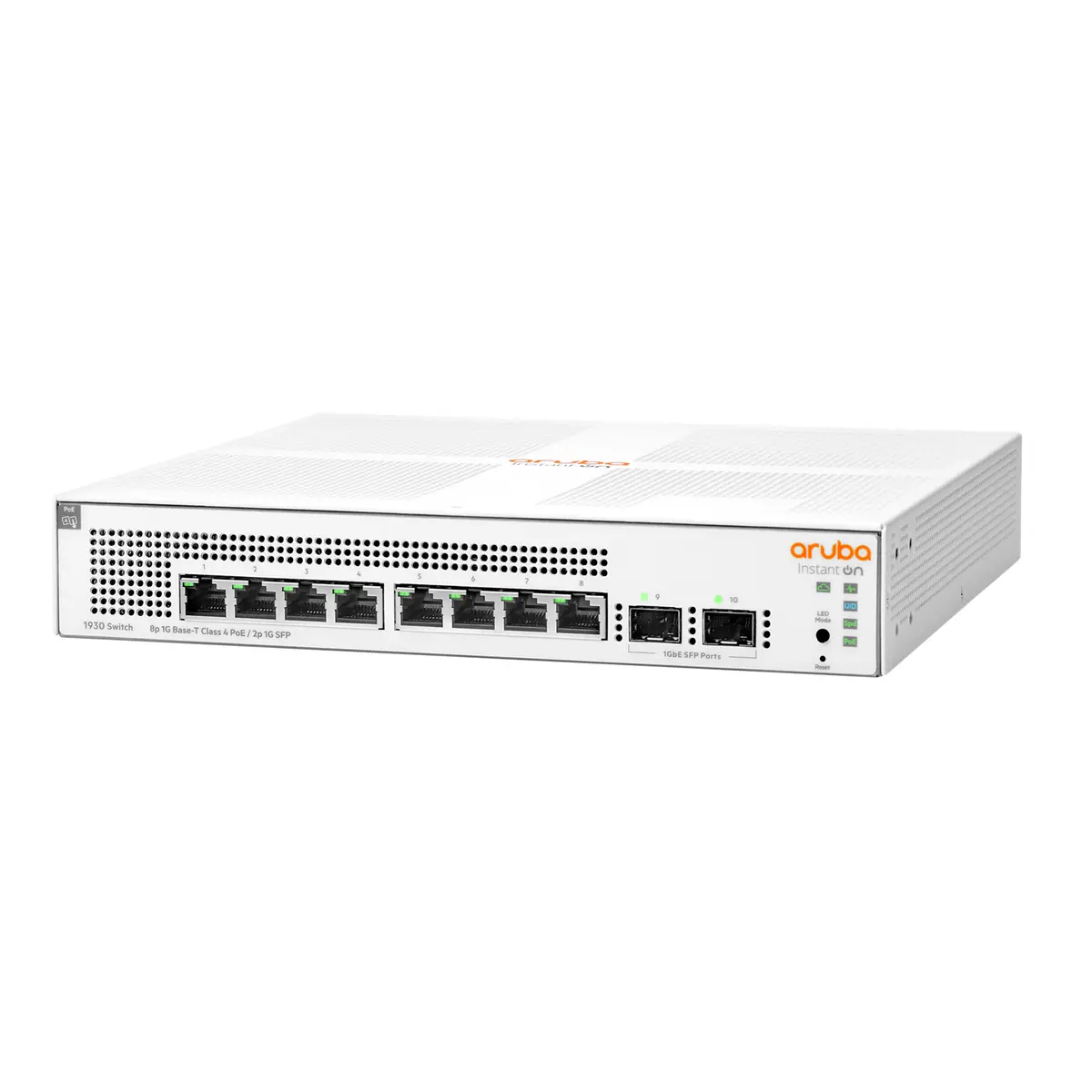

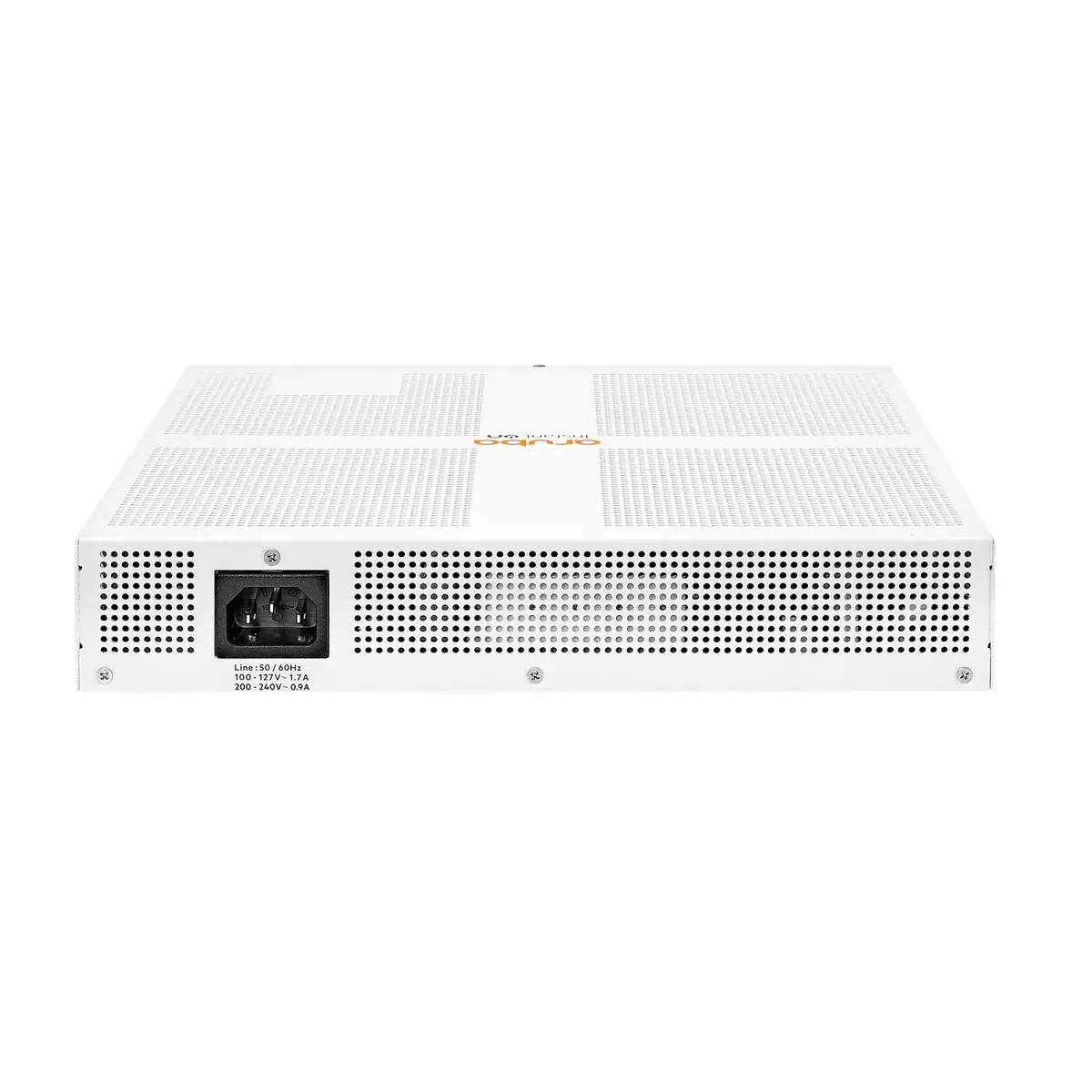

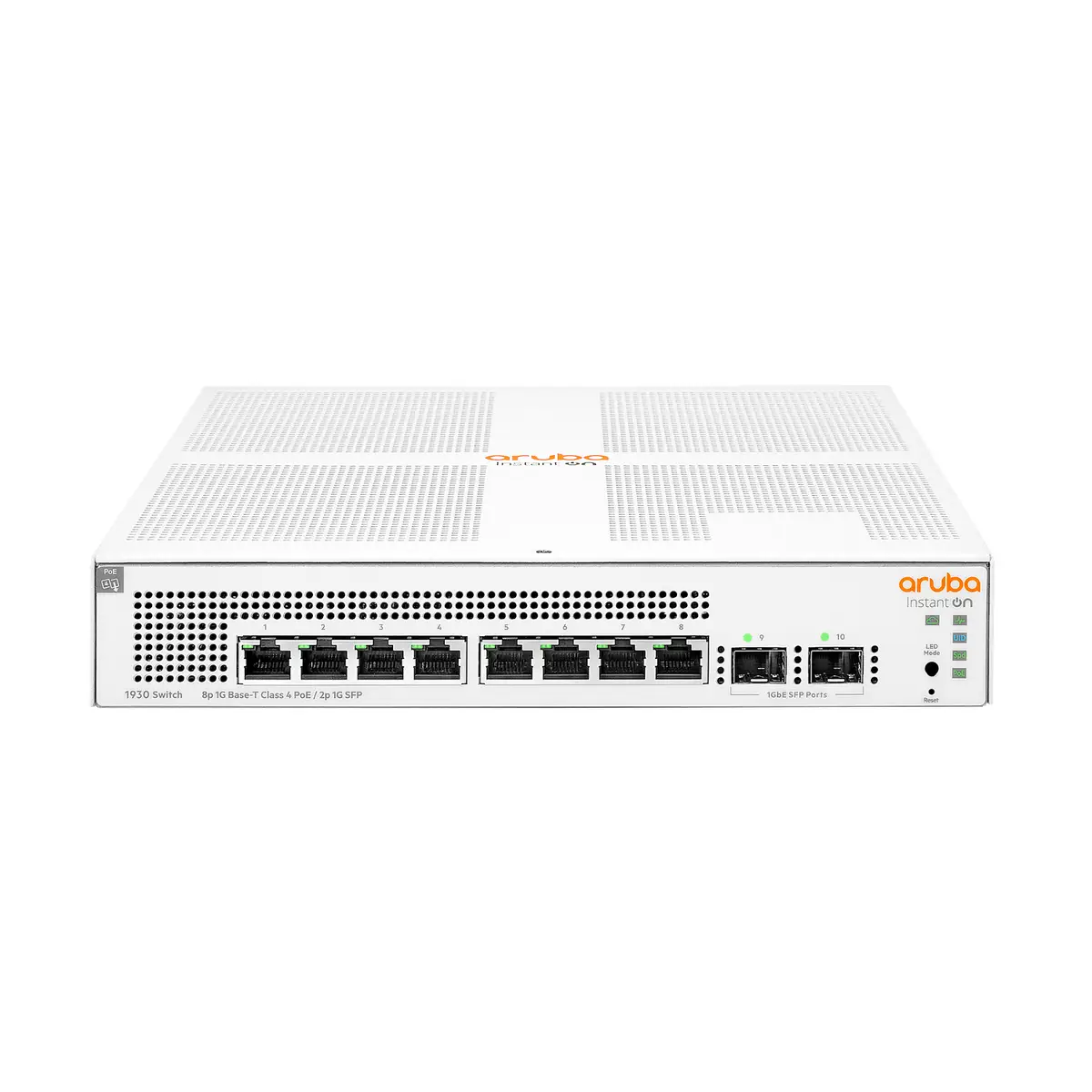

HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch L3 managed 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP an Rack montierbar PoE (124 W)
Detailed product title
Detailed product title
HP Aruba Instant On 1930 8G Class4 PoE 2SFP 124W Switch L3 managed 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP an Rack montierbar PoE (1 24 W)
