4 Images
Product description

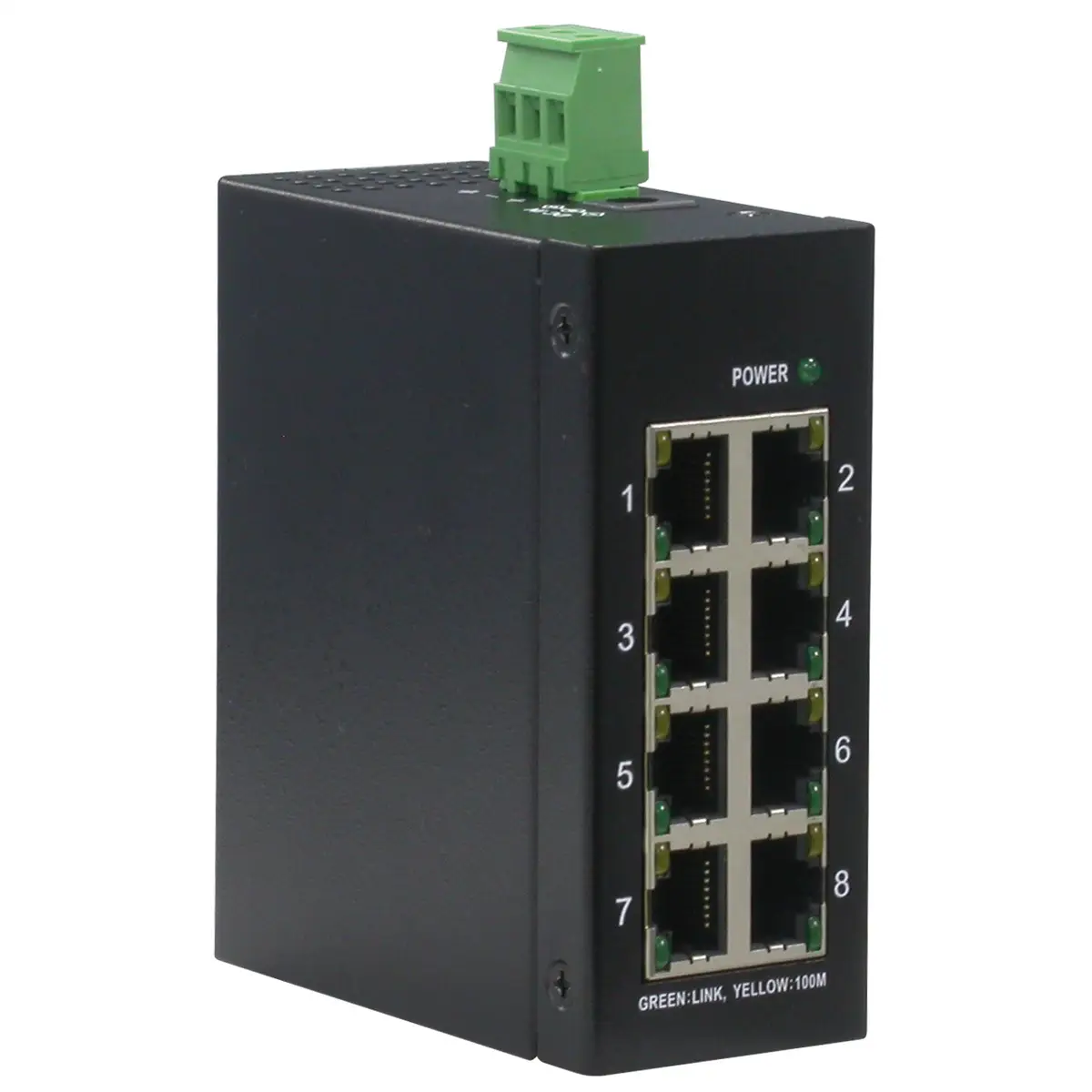

- Fast Ethernet switch with 8 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Supports DIN-rail mounting
- Power: Input: 5 - 30V DC, Consumption: 2.3W (max.)
- Operating Temperature: - 10 ºC - +70 ºC
- DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
- Dimensions: 40 x 80 x 95 mm (WxDxH)
- As according power supply we recommend 21.13.1226
- Contents: Switch
Technical specifications
Sonstige Funktionen
| Dimensions (WxDxH) | 95 x 40 x 80 |
Network
| Ethernet interface type | Fast Ethernet |
| Full duplex | Y |
| MAC address table | 1,000 entrie |
| VLAN support | N |
| Auto-negotiation | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
Design
| Stackable | N |
ID: 137486
Roline ID: 21.13.1156
Industrie Switch 8x RJ-45, unmanaged
Detailed product title
Detailed product title
ROLINE Industrial Switch, 8x RJ-45, unmanaged. Full duplex. MAC address table: 1000 entries
4 Images
Gross:
incl.
vat.
immediately
Added to cart
Gross:
incl.
vat.
immediately
Product description
- Fast Ethernet switch with 8 shielded 10/100 Base-T copper ports
- Wide operating temperature range for temperature critical environment
- Auto MDI/MDI-X crossover function
- Supports IEEE 802.3x flow control for full-duplex operation
- Supports Back-pressure flow control for half-duplex operation
- Supports DIN-rail mounting
- Power: Input: 5 - 30V DC, Consumption: 2.3W (max.)
- Operating Temperature: - 10 ºC - +70 ºC
- DC Input via terminal block or DC power jack (6.3mm / 2.0mm)
- Dimensions: 40 x 80 x 95 mm (WxDxH)
- As according power supply we recommend 21.13.1226
- Contents: Switch
Technical specifications
Sonstige Funktionen
| Dimensions (WxDxH) | 95 x 40 x 80 |
Network
| Ethernet interface type | Fast Ethernet |
| Full duplex | Y |
| MAC address table | 1,000 entrie |
| VLAN support | N |
| Auto-negotiation | Y |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 8 |
Design
| Stackable | N |
