Product description

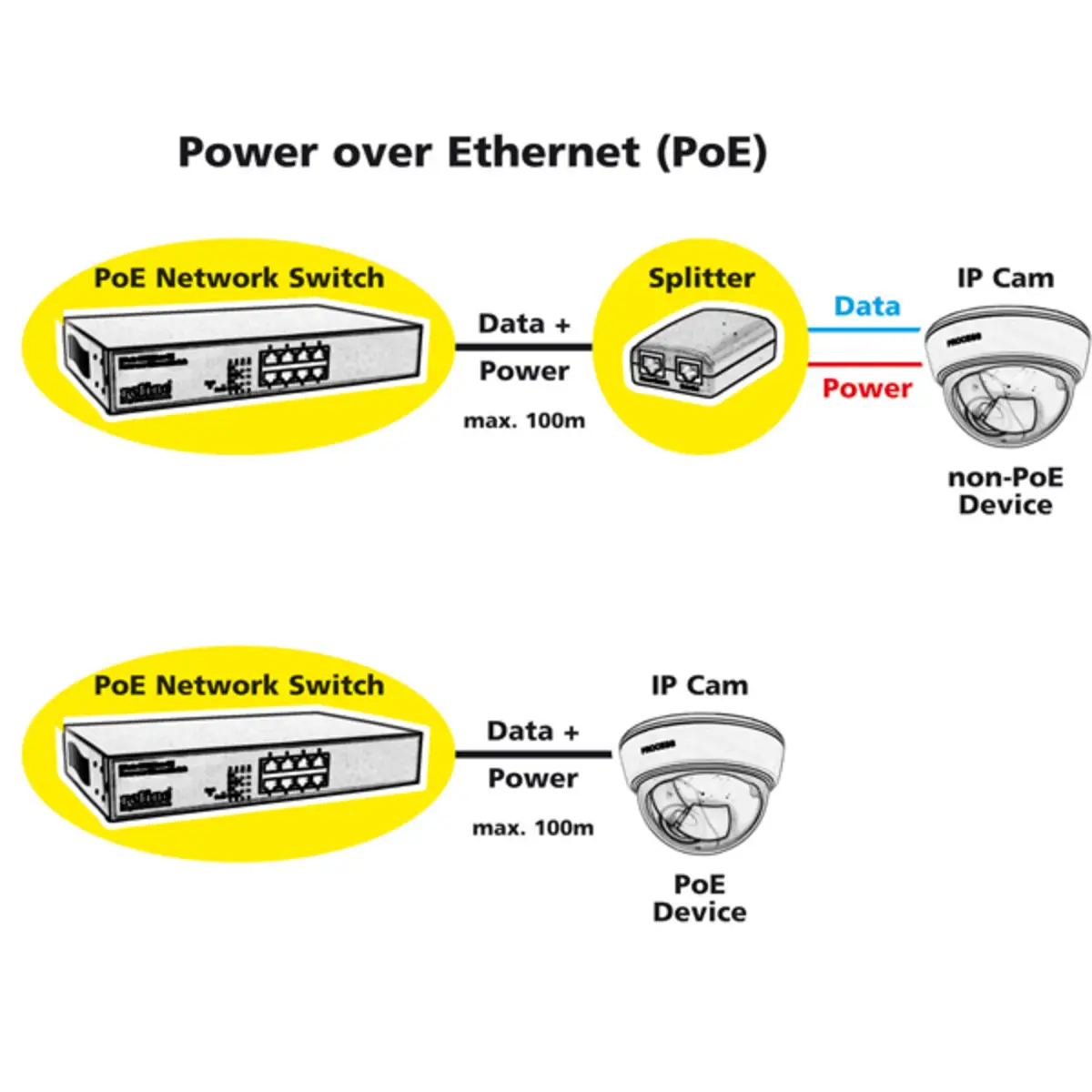

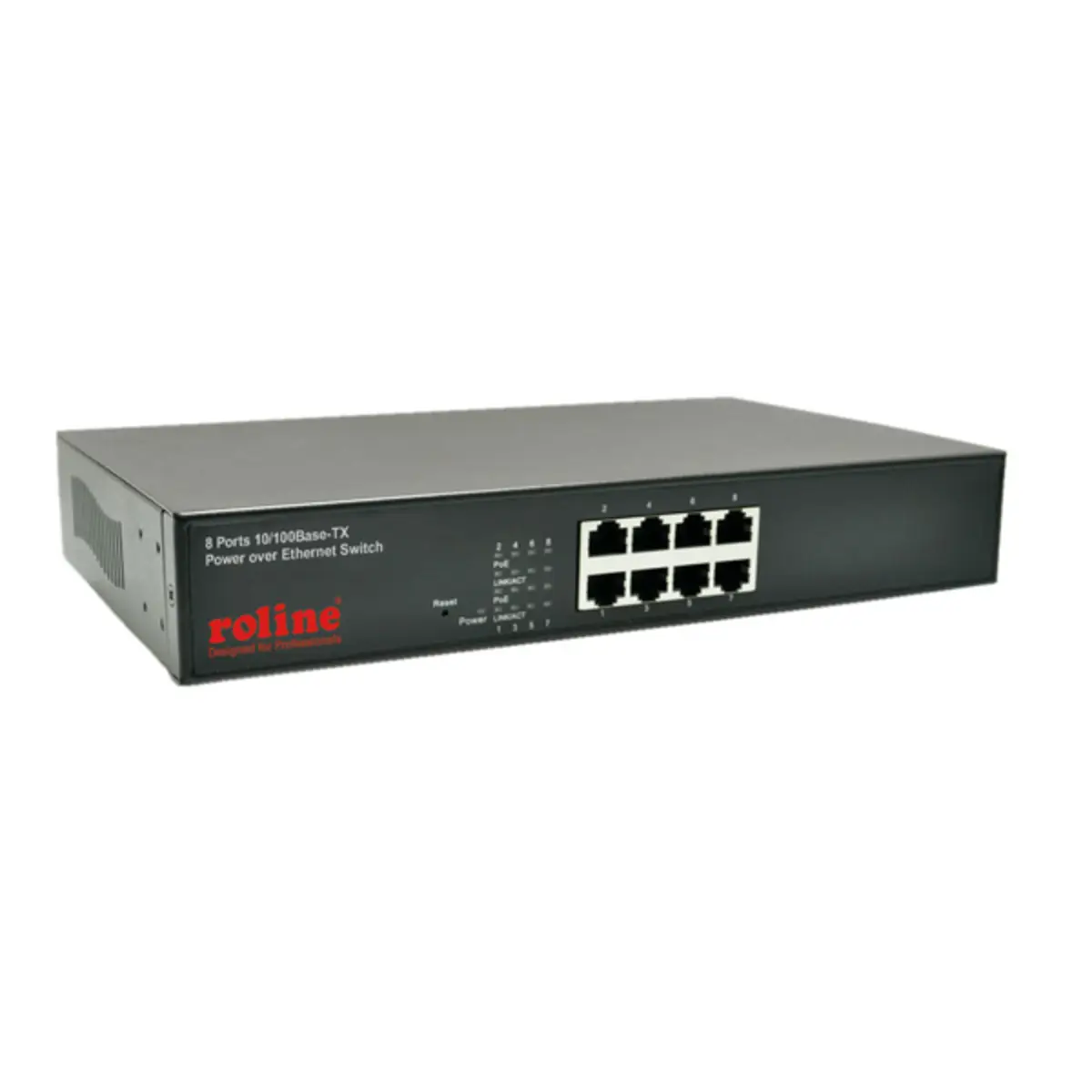

The ROLINE PoE Fast Ethernet Switch 8-Port Fast Ethernet Switch Designed for small and medium-sized network environments. This product is compact in dimensions, making it ideal for desktop users with limited space. The switch features eight IEEE 802.3af Power over Ethernet (PoE) ports with up to 15.4W per port. This product can convert standard 100~240V AC voltage to low voltage DC. This runs via an existing LAN cable to PoE accessories, such as workgroup switches, network cameras, access points, IP telephones, etc. 8x 10/100 Mbit/s Fast Ethernet ports. All 8 ports are 802.3 af-compatible PoE-enabled PSE ports. Each port offers up to 15.4W output power. Auto-MDI/MDI-XAuto-Negotiation Supports 802.3x flow control for full duplex and backpressure for half duplex. Offers full wire speed forwarding. Status LED metal housing. Internal power supply 230V, fan angle for 19" installation included in delivery. Dimensions (LxWxH): 266 × 160 × 44 mm.
Technical specifications
Anschlüsse und Schnittstellen
Ethernet LAN (RJ-45) ports | 8 |
Netzwerk
Cabling technology | Cat. 5 UTP/STP |
Ethernet LAN data rates | 10,100 |
Auto MDI/MDI-X | Y |
Maus
Certification | FCC Class A, CE |
Ergonomie
Plug and Play | Y |
Leistung
Power consumption (max) | 130 W |
Power over Ethernet (PoE) | Y |
Betriebsbedingungen
Operating temperature (T-T) | 0 - 40 |
Operating temperature (T-T) | -20 - 90 |
Sonstige Funktionen
Networking standards | IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x |
Rack mounting | Y |
Dimensions (WxDxH) | 266 x 160 x 44 |
Input voltage | 100 - 240 |
Output power | 15.4 W |
Gewicht und Abmessungen
Weight | 1,400 g |
Downloads
137484_document_EN_001
PDF Download
ID: 137484
Roline ID: 21.13.1191
