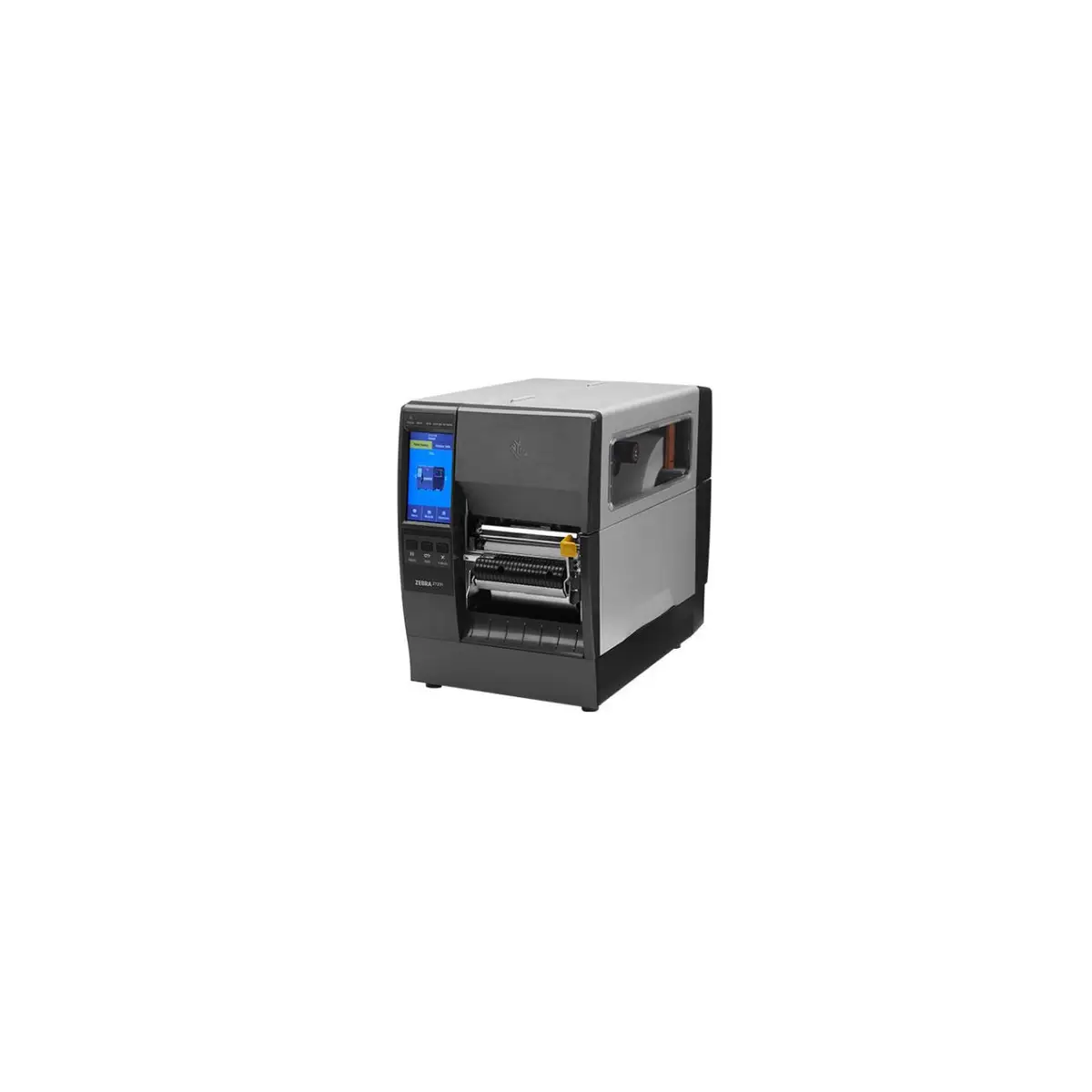

- ZT231, 12 Punkte/mm (300dpi), Peeler, Display, EPL, ZPL, ZPLII, USB, USB-Host, RS232, BT (BLE), Ethernet
1 Images
Product description
Demands are increasing and deadlines are getting tighter. Can your printers keep up - without interruption? The ZT231 offers the perfect combination of the right features at the right price, combined with the quality and durability you expect from Zebra. Fast print speeds, high-resolution print quality, large color touchscreen, cutting-edge design and much more - all in a space-saving housing. Additional features such as RFID, wireless connectivity and media handling functions are available if required. But that's not all. Rely on integrated intelligence that makes your work easier and unmatched security. That's what Zebra means by real added value.
Technical specifications
Design
| Product colour | Black |
| Colour display | Y |
Bildschirm
| Display diagonal | 4.3 " |
Systemanforderung
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Mobile operating systems supported | Android,iOS |
Power
| AC input voltage | 100-240 |
| AC input frequency | 50-60 |
Paper handling
| Media thickness | 0.076 - 0.010 |
| Maximum media length | 1,854 mm |
Sonstige Funktionen
| Display | LCD |
| Colour | Nein |
| Control type | Touch |
| USB port | Ja |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Print speed | 203 mm/s |
Operational conditions
| Operating relative humidity (H-H) | 20 - 85 |
| Storage temperature (T-T) | -40 - 60 |
| Operating temperature (T-T) | 5 - 40 |
| Storage relative humidity (H-H) | 5 - 85 |
Printing
| Page description languages | EPL, EPL2, ZBI, ZPL, ZPL II |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 104 mm |
Gewicht und Abmessungen
| Weight | 9,100 g |
| Height | 279 mm |
| Width | 241 mm |
| Depth | 432 mm |
| Ribbon length | 450 m |
| Core diameter | 25.4 mm |
| Ribbon width | 110 mm |
Features
| Print technology | Wärmeübertragung |
Mouse
| Bluetooth Low Energy (BLE) | Y |
Network
| Connectivity technology | Verkabelt & Kabellos |
Ports & interfaces
| USB 2.0 ports quantity | 1 |
| Ethernet LAN | Ja |
| Wi-Fi | Nein |
| Bluetooth | Y |
| RS-232 ports | 1 |
Downloads
311494_document_EN_001
PDF Download
ID: 311494
Zebra ID: ZT23143-T1E000FZ
ZT231, 12 Punkte/mm (300dpi), Peeler, Display, EPL, ZPL, ZPLII, USB, USB-Host, RS232, BT (BLE), Ethernet
